Product details

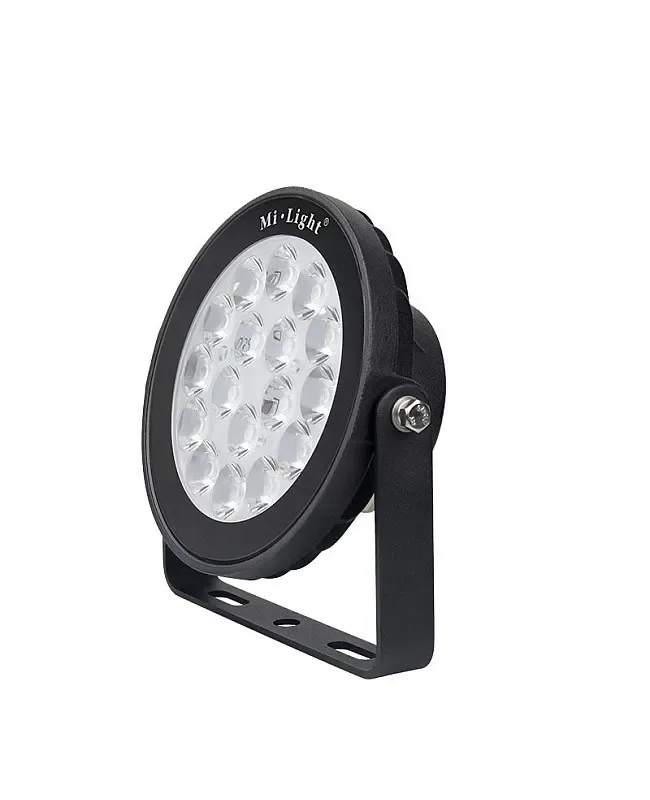

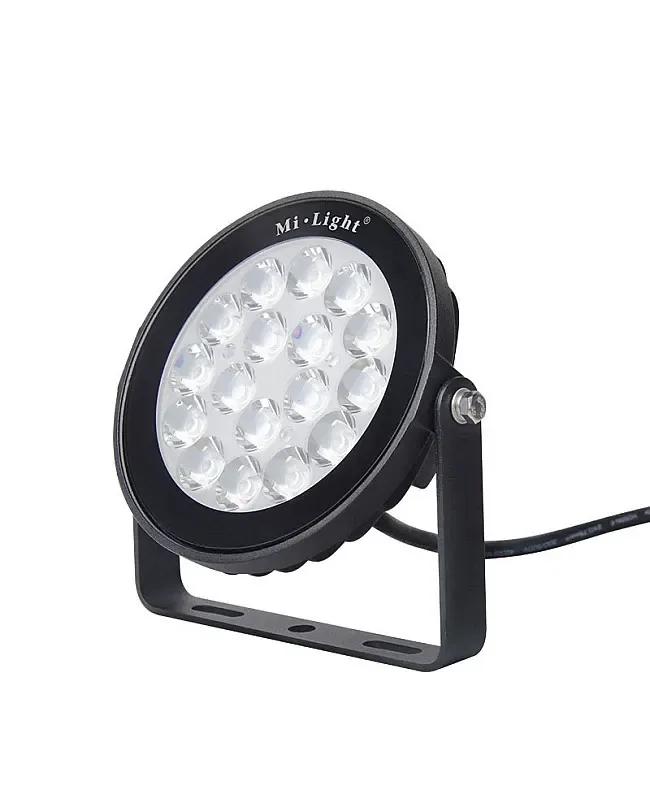

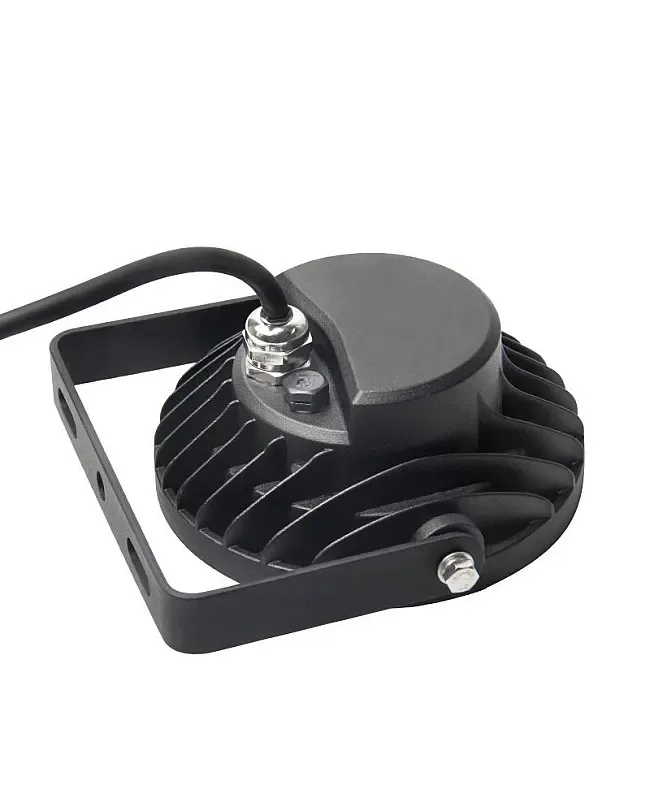

SYS 9W RGBWW Back Yard Lights
LumaCircuit offers SYS 9W RGBWW Back Yard Lights as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Size: 137*132*49.3mm(L*W*H) Emitting Color: RGB + CCT Light Efficiency: 80LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller 3 Pin Waterproof Connector And Wires
- Size: 137*132*49.3mm(L*W*H)
- Emitting Color: RGB + CCT
- Light Efficiency: 80LM/W
- Color Temperature: 2700 K- 6500 K
- Illumination Distance: >10m
- IP Rating: IP65 Waterproof
- Saturation, CCT, And Brightness Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- Size: 137*132*49.3mm(L*W*H)
- LumaCircuit model: LC-STR-1IG09N
- Working Voltage: DC24V
- Power: 9W
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15°
- IP Rating: IP65 Waterproof
- Working Temperature: -20℃-+45℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller 3 Pin Waterproof Connector And Wires
Specifications
Size: 137*132*49.3mm(L*W*H)
Model
Working Voltage: DC24V
Power: 9W
Emitting Color: RGB + CCT
Luminous Flux: 700LM
Light Efficiency: 80LM/W
Color Temperature: 2700 K- 6500 K
CRI: >
Illumination Distance: >10m
Beam Angle: 15°
IP Rating: IP65 Waterproof

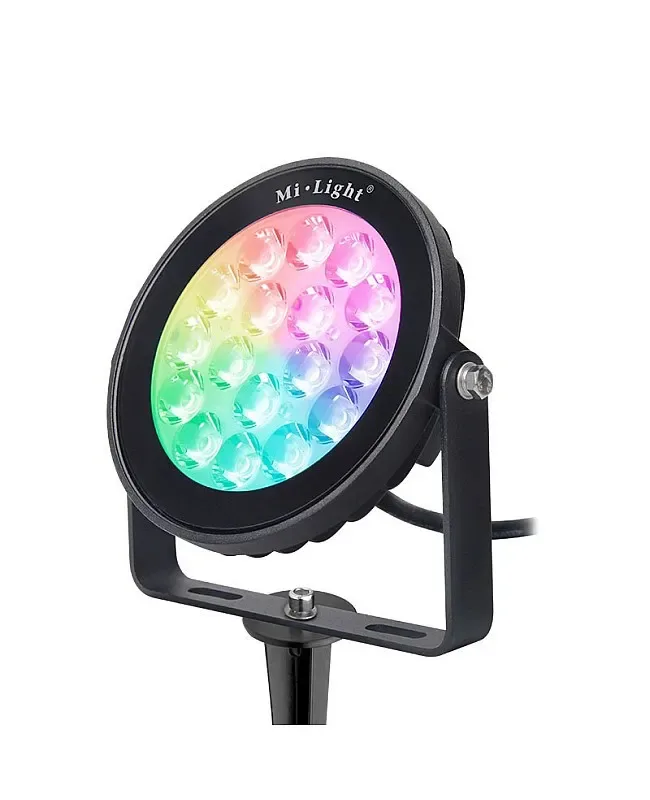

16 Million Colors Available
Saturation, CCT, And Brightness Adjustable
Wireless Remote Controlling By Connecting The 1 Channel Host Controller SYS-T1
360° Rotate Moving, 180° Vertical Moving

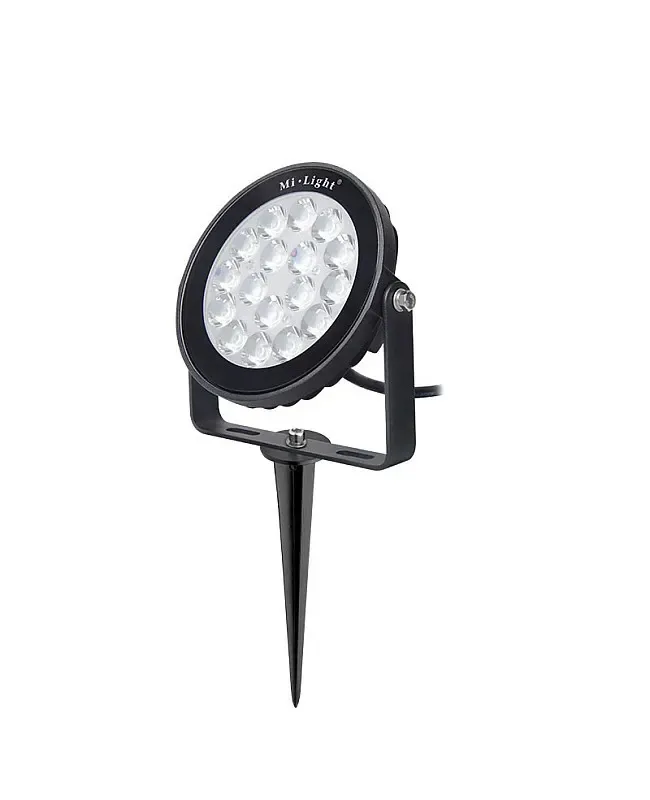

Anticorrosion Inserted Pole Included
Working Temperature: -20℃-+45℃
Includes
1 * wireless controller Back Yard Light
1 * Anticorrosion Inserted Pole
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
