X2 Color Temperature DMX LED Strip Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller X2 color temperature DMX LED strip controller with DMX512 signal output and wireless 2.4G signal output design, the DMX signal to control DMX512 Lamps and 2.4G signal to control wireless controller 2.4G LED lights. The DMX LED controller with a standard European 86-type structure and sensitive touch panel design is easy to install and use. The indicator light will flash when touching the buttons and make different sounds.
• wireless controller X2 CCT DMX512 Controller
• Working Voltage: -240V, 50/60Hz
• Output Signals: DMX512 + 2.4G Wireless
• RF Transmitting Power: 6 dBm
• RF Control Distance: ≤30m
• Comply With DMX512, -1990, DMX512-A, RDM.0 Protocols
• Brightness And Color Temperature Adjustable

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 240 V
• Light engine: CCT
• Size: 86*86*26mm(L*W*H)
• Working Voltage: -240V, 50/60Hz
• Output Signals: DMX512 + 2.4G Wireless
• RF Transmitting Power: 6 dBm
• RF Control Distance: ≤30m
• Working Temperature: -20-45℃
• LumaCircuit model: LC-STR-GETYOV
• Dimensions found: 86x86x26mm / 26mm / 30m

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

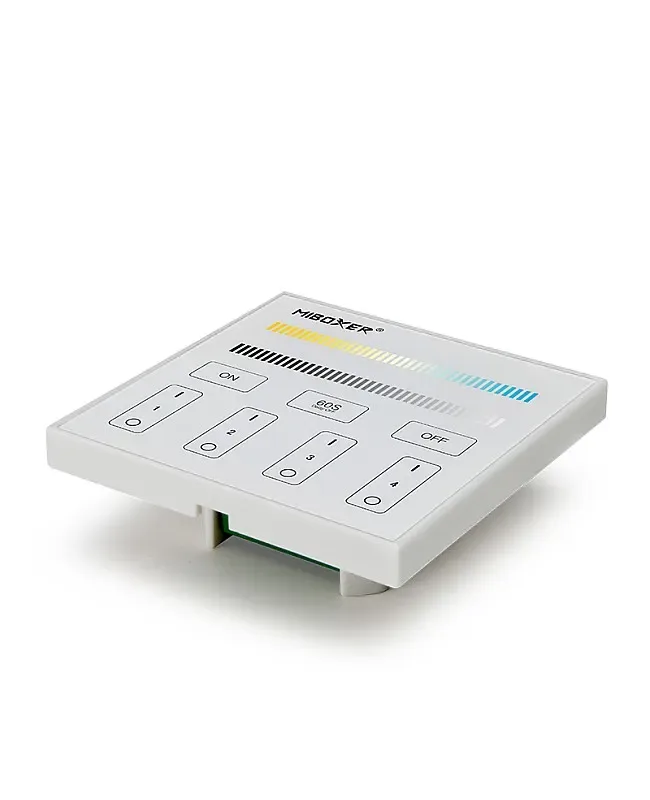

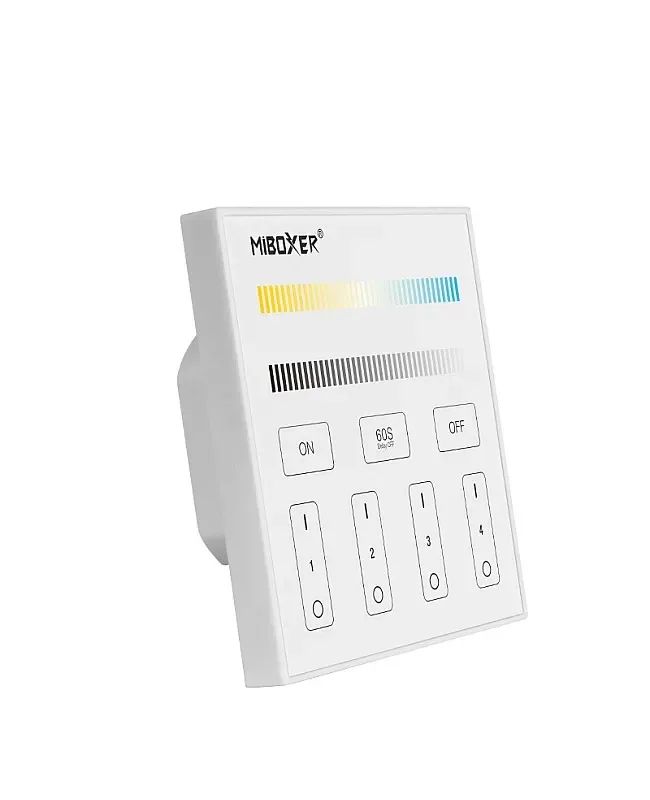

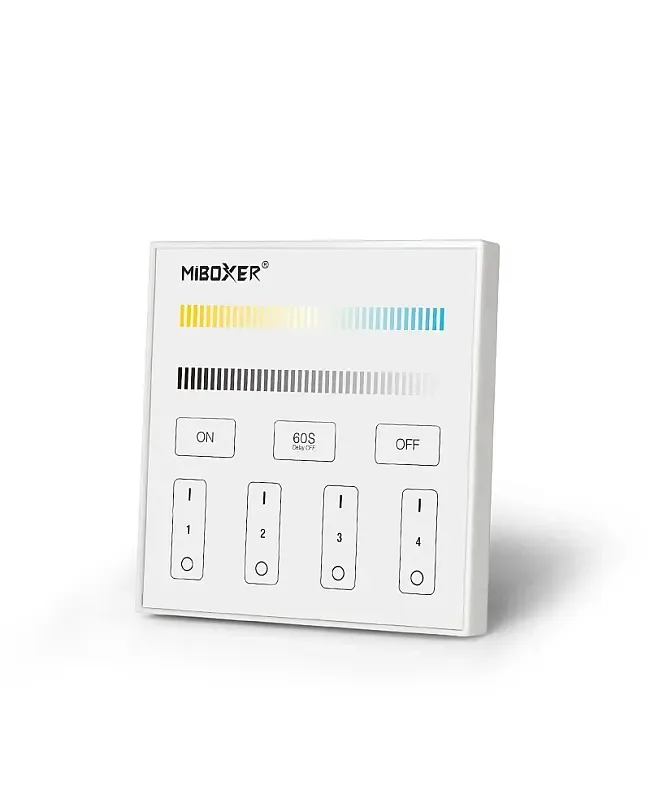

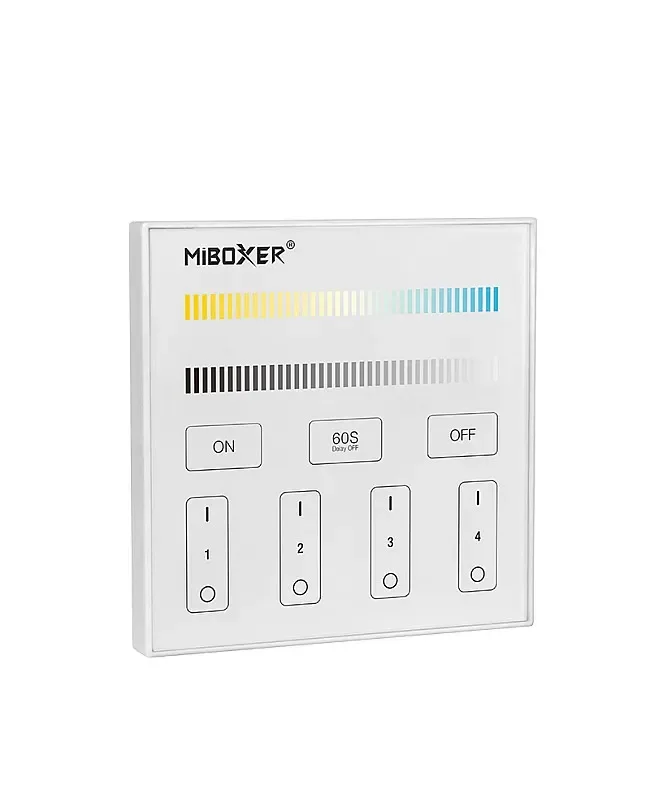

The wireless controller X2 color temperature DMX LED strip controller with DMX512 signal output and wireless 2.4G signal output design, the DMX signal to control DMX512 Lamps and 2.4G signal to control wireless controller 2.4G LED lights. The DMX LED controller with a standard European 86-type structure and sensitive touch panel design is easy to install and use. The indicator light will flash when touching the buttons and make different sounds. The wireless controller X2 can be controlled by 2.4G remote controls and a smartphone APP after adding the 2.4G gateway. The installer can touch the sliders to adjust the color temperature from warm white to cool white and the brightness from 1% to 100%. There are 4 zones individually controlled design, and the installer can control each zone separately, with a 60-second delay OFF function by touching the button. The LED light will turn off automatically after 60 seconds.

Quick Links

wireless controller X2 CCT DMX512 Controller

Specifications

Size: 86*86*26mm(L*W*H)

Working Voltage: -240V, 50/60Hz

Output Signals: DMX512 + 2.4G Wireless

RF Transmitting Power: 6 dBm

RF Control Distance: ≤30m

Comply With DMX512, -1990, DMX512-A, RDM.0 Protocols

Brightness And Color Temperature Adjustable

Standard European 86-Type Structure

4 Zones Control Separately

Delay OFF

Support 2.4G RF Remote Control

Smartphone APP Control(WL- Gateway Needed)

Sensitive Touching Panel

Working Temperature: -20-45℃

Includes

1 * wireless controller DMX512 LED Strip Controller
