Product details

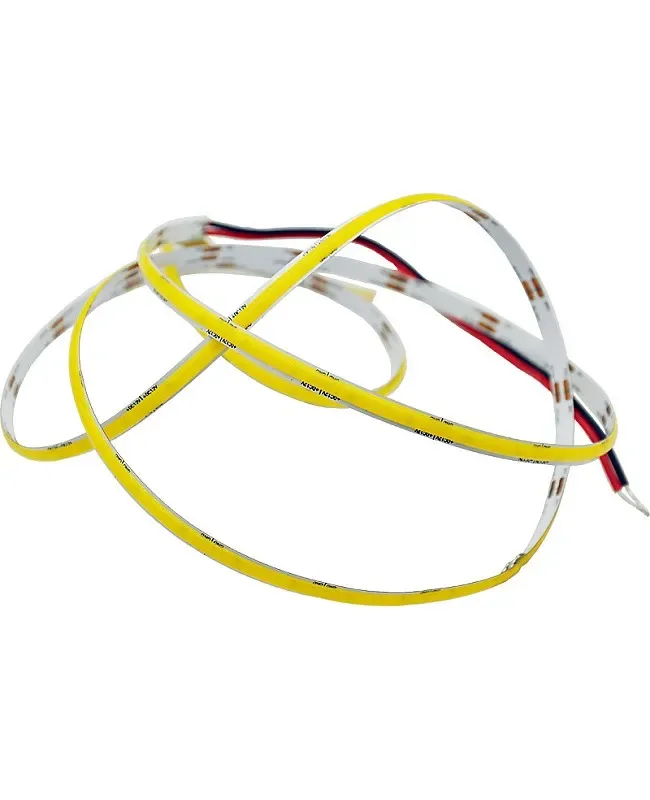

Ultra Slim 3MM 12V Strip LED COB Dot Free
LumaCircuit offers Ultra Slim 3MM 12V Strip LED COB Dot Free as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. PCB Board: Dual Layer Gold-Plated FPC Power: 4W/M(3mm)/7.2W(4.5mm) Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6500K) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

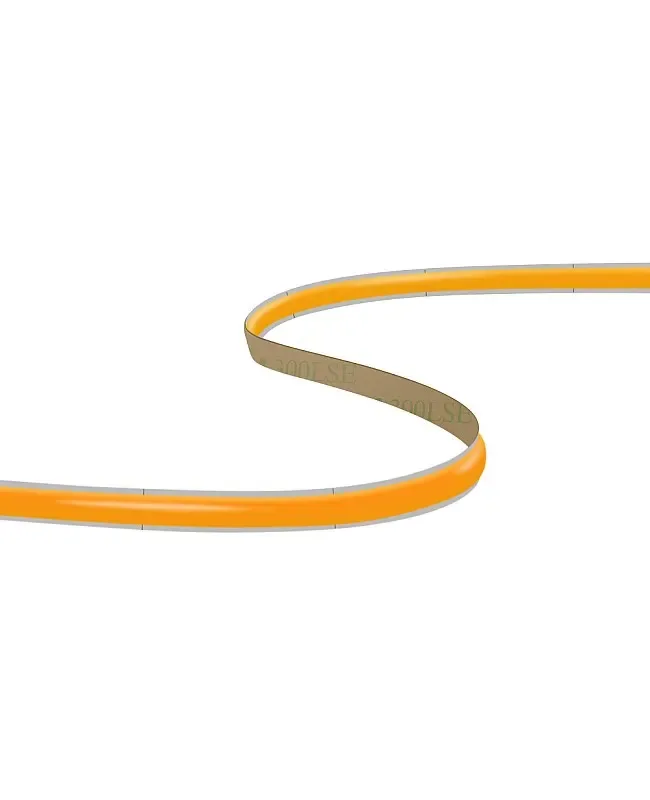

- The ultra-slim strip LED COB, a width of only 3mm/4.5mm, is suitable for narrow applications like under-cabinets, jewelry cases, etc. With the chip-on-board design. There are 2,640 high-quality LED chips, flexible and bendable, that are mounted on the 5-meter dual-layer gold-plated FPC board. The high density of LEDs creates a seamless and smooth line of light, NO visible light dots and hotspots, brighter than the SMD LED strips, and uniform light emission, with a 90+ CRI for quality color rendering.
- PCB Board: Dual Layer Gold-Plated FPC
- Power: 4W/M(3mm)/7.2W(4.5mm)
- Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6500K)
- Luminous Flux: 320-725 LM/M
- Luminous Efficiency: 80-90LM/W
- IP Rate: IP20 Non-waterproof
- Minimum Cuttable Length: 22.73mm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- PCB Board: Dual Layer Gold-Plated FPC
- Length: 5 Meters/Reel
- Width: 3mm/4.5mm
- LED Quantity: 528 PCS/M
- Working Voltage: DC12V
- Power: 4W/M(3mm)/7.2W(4.5mm)
- Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6500K)
- Beam Angle: 180°
- IP Rate: IP20 Non-waterproof
- CRI: +
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

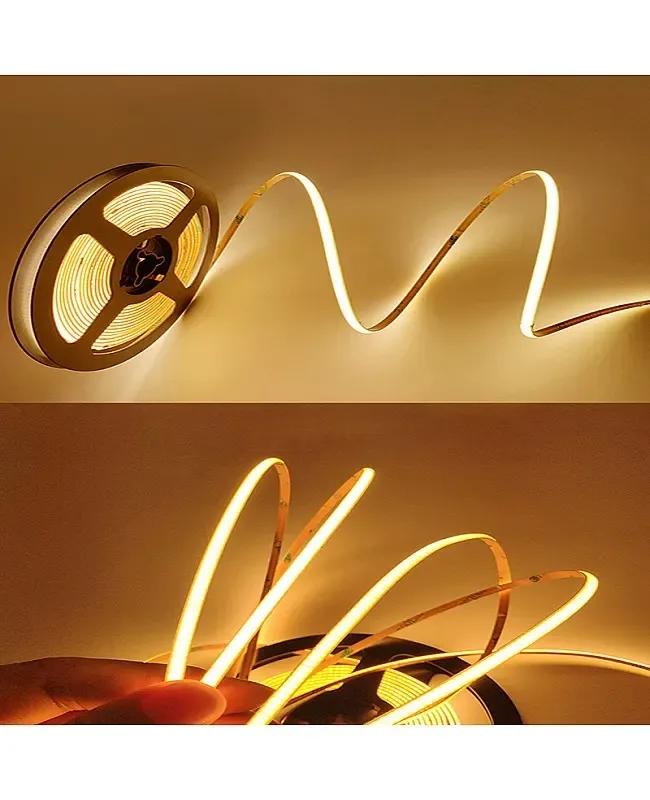

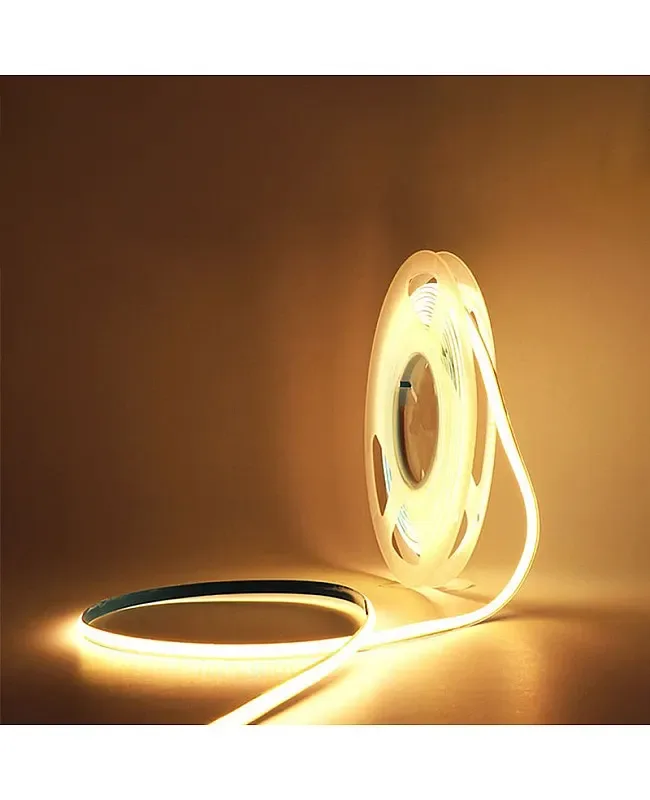

The ultra-slim strip LED COB, a width of only 3mm/4.5mm, is suitable for narrow applications like under-cabinets, jewelry cases, etc. With the chip-on-board design. There are 2,640 high-quality LED chips, flexible and bendable, that are mounted on the 5-meter dual-layer gold-plated FPC board. The high density of LEDs creates a seamless and smooth line of light, NO visible light dots and hotspots, brighter than the SMD LED strips, and uniform light emission, with a 90+ CRI for quality color rendering. The COB LED strips are cuttable; the minimum cuttable length is 22.73mm, and the installer can cut to any length for your project following the cutting marks. The back has double-sided adhesive tape, and it is easy to remove the protective paper from the tape and stick it to where you want to install it. The IP rate is IP20 non-waterproof and only recommended for indoor applications. Various emitting colors of products are available, and the installer can choose warm white, natural white, and cool white for multiple scenes. It can work with light dimmers to adjust the brightness from 0 to 100% the installer can use them on kitchen counters, display cases, under-cabinets, furniture, TV backlighting, etc.
Specifications
PCB Board: Dual Layer Gold-Plated FPC

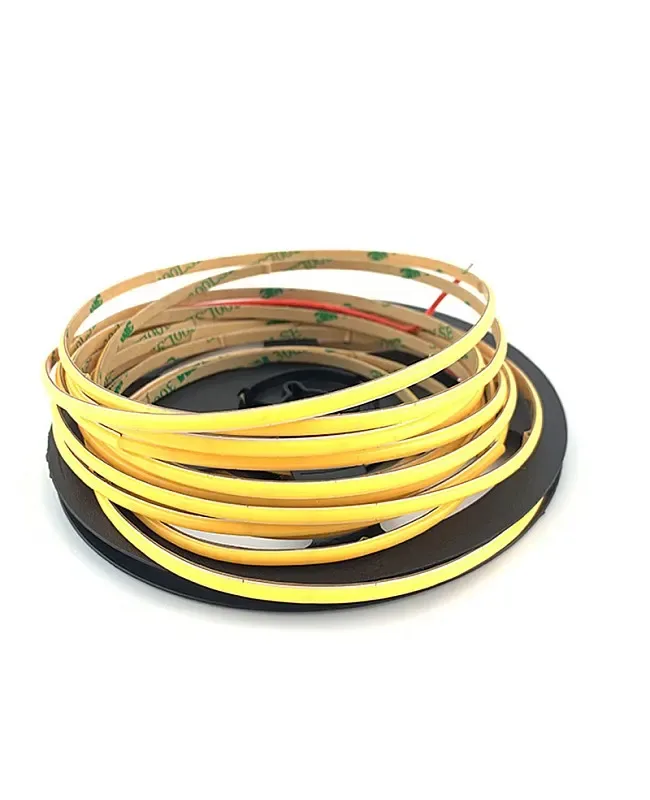

Length: 5 Meters/Reel
Width: 3mm/4.5mm
Thickness: 1.6mm
LED Quantity: 528 PCS/M
Working Voltage: DC12V
Power: 4W/M(3mm)/7.2W(4.5mm)
Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6500K)
Luminous Flux: 320-725 LM/M
Luminous Efficiency: 80-90LM/W
Beam Angle: 180°
IP Rate: IP20 Non-waterproof
Dimmable: 0-100%
CRI: +

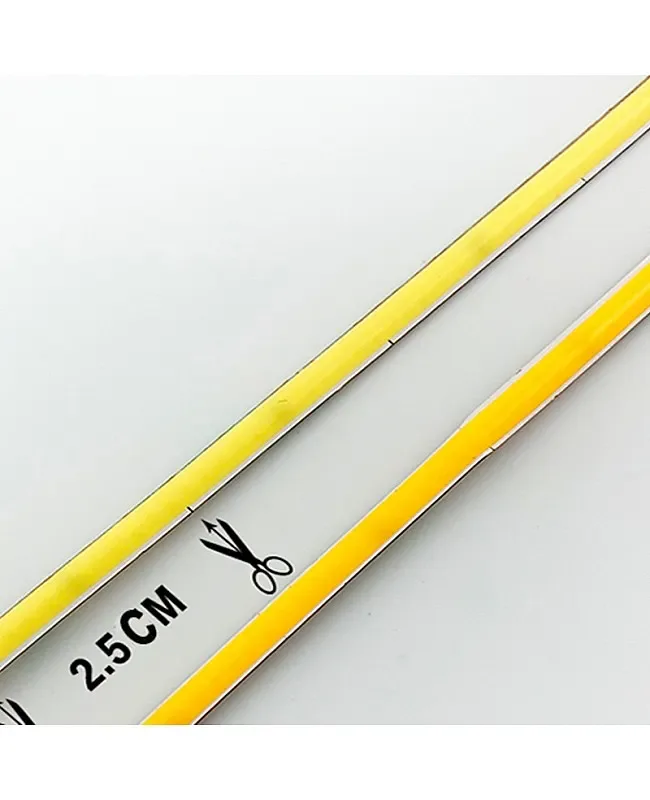

Minimum Cuttable Length: 22.73mm
Includes
1 * Strip LED COB
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
