+ 3 In 1 WiFi LED Strip Lights Controller
LumaCircuit offers + 3 In 1 WiFi LED Strip Lights Controller as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 74.5*36*17mm(L*W*H) 16 Million Colors To Choose Color Temperature Adjustable From 2700K To 6500K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

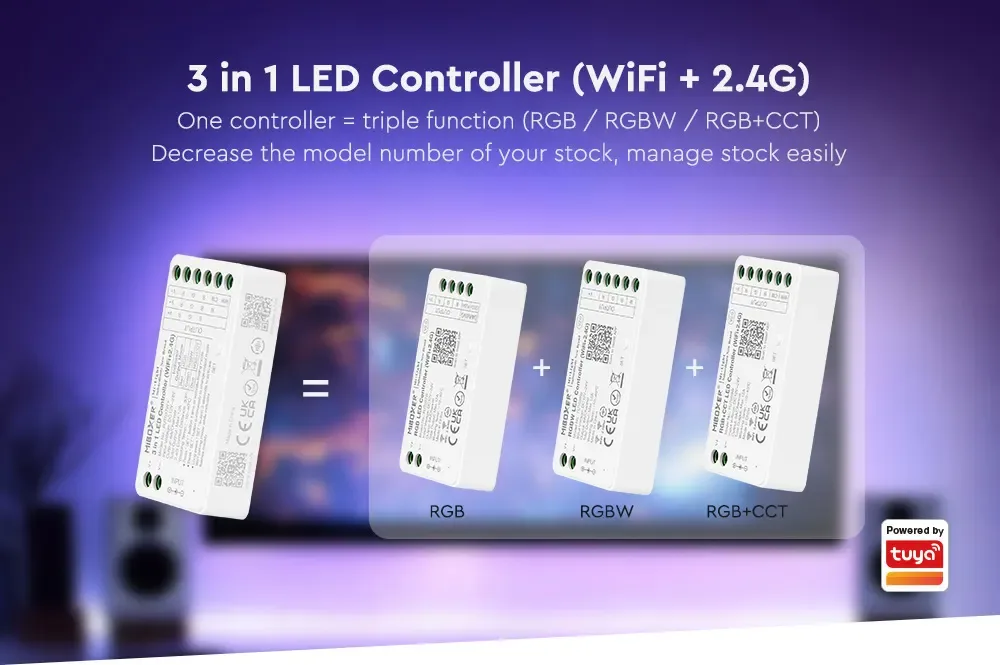

- The wireless controller + wireless LED strip lights controller has a 3-in-1 function design for RGB, RGBW, and RGB+CCT LED lights. The controller integrates WiFi and 2.4G communication modules and can be controlled by 2.4G remotes, smartphone APP, and third-party voice commands. The installer can turn ON/OFF, set the color, and adjust the color temperature and brightness for various scenes freely.

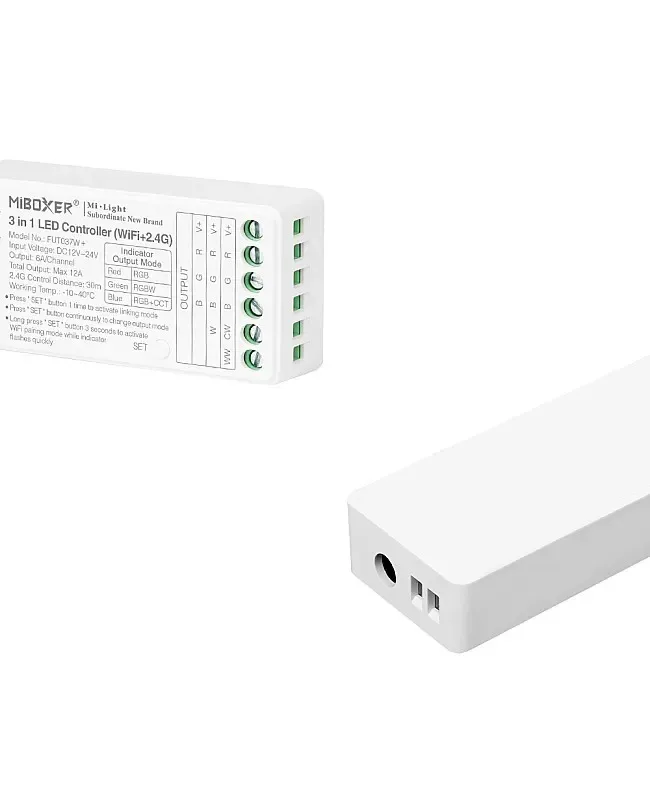

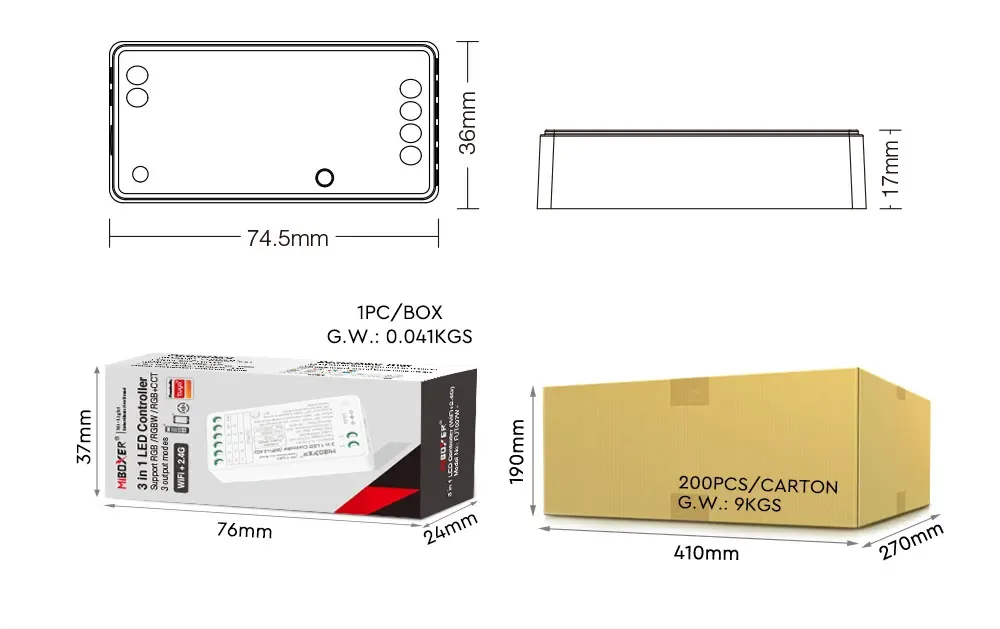

- Size: 74.5*36*17mm(L*W*H)
- 16 Million Colors To Choose
- Color Temperature Adjustable From 2700K To 6500K
- Stepless Dimming Brightness From 1% To 100%
- Switching 3 Output Modes Via One Button From RGB/RGBW/RGB+CCT

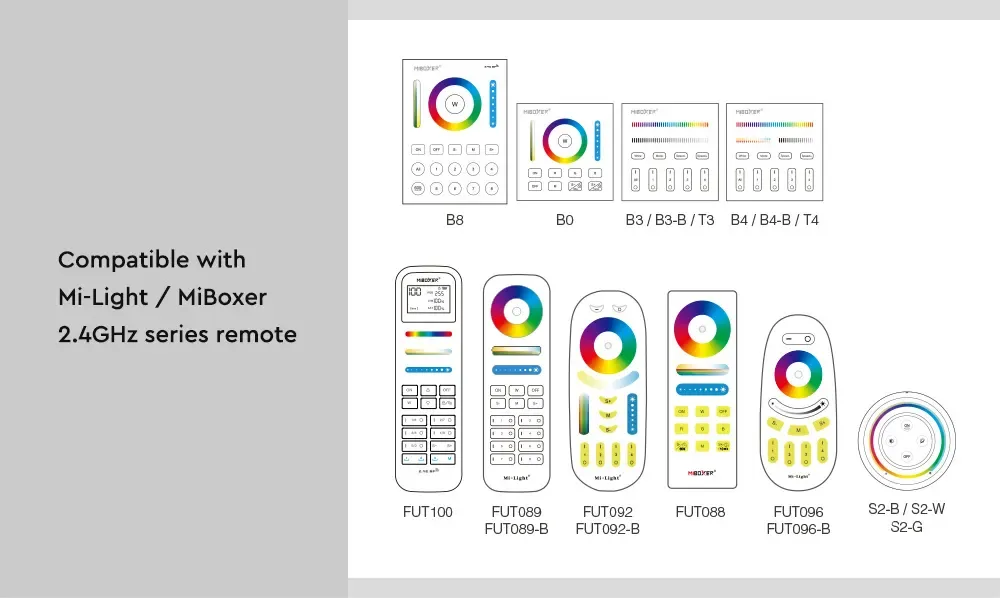

- Compatible With 2.4 GHz wireless/wireless controller 2.4G Remote Controls B, T3, B, T4, B, B, B, B, W, G
- WiFi Standard: IEEE 802.11 b/g/n 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-PUPTU8
- Material: PC
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 6A/Channel
- Total Output: Max 12A
- Compatible With 2.4 GHz wireless/wireless controller 2.4G Remote Controls: B, T3, B, T4, B, B, B, B, W, G
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
- Support Third-Party Voice Control: Amazon Alexa And Google Assistant
- Remote Control Distance: ≤30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

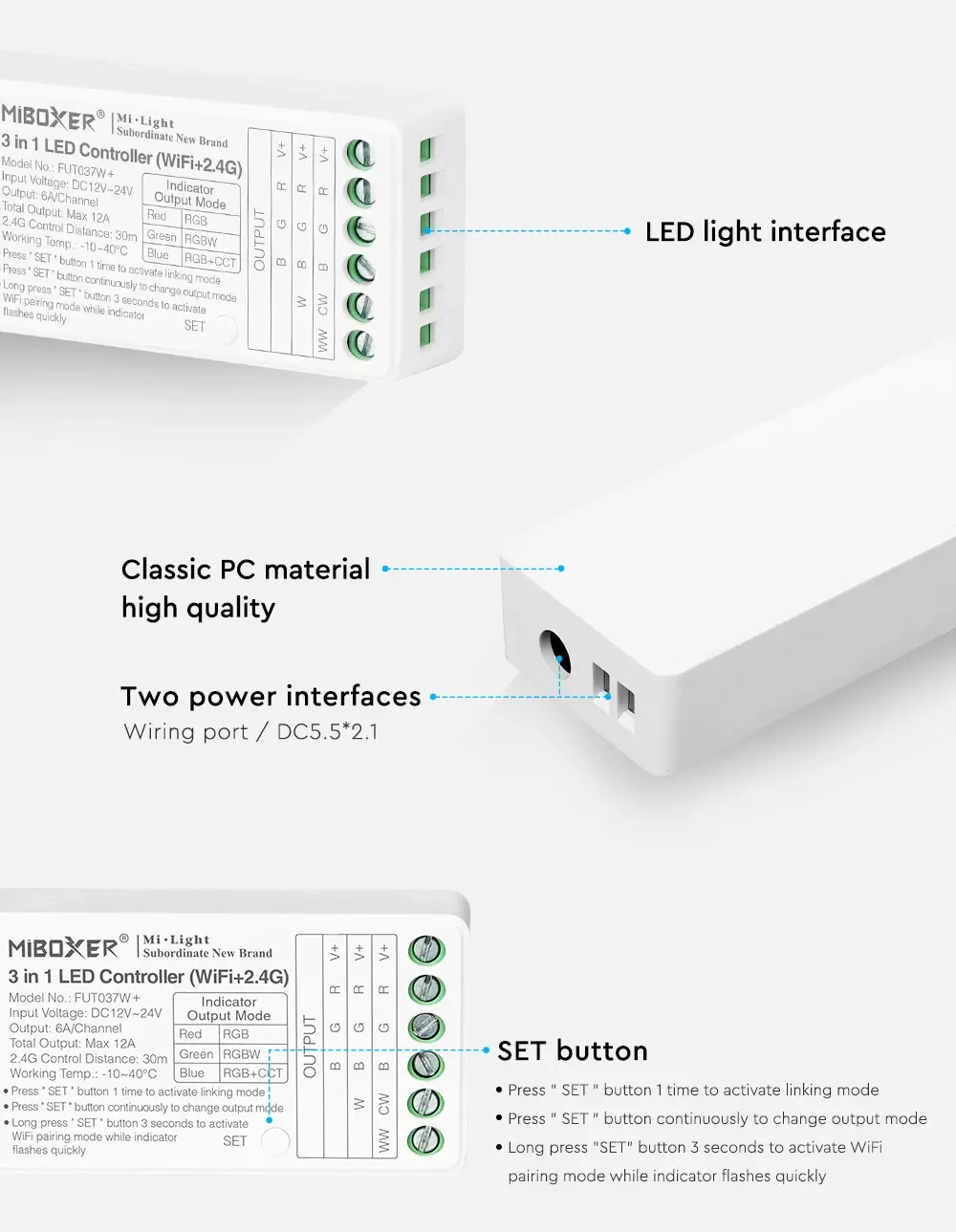

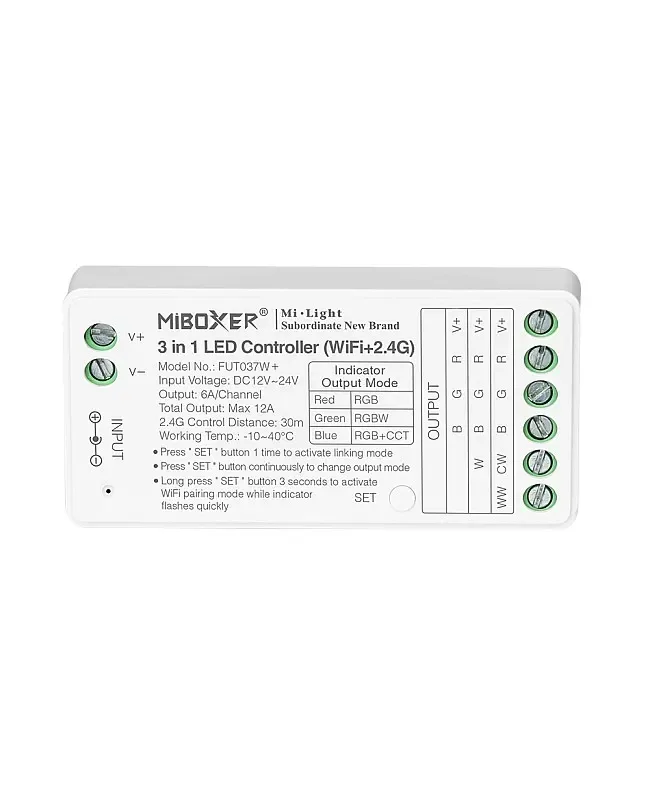

The wireless controller + wireless LED strip lights controller has a 3-in-1 function design for RGB, RGBW, and RGB+CCT LED lights. The controller integrates WiFi and 2.4G communication modules and can be controlled by 2.4G remotes, smartphone APP, and third-party voice commands. The installer can turn ON/OFF, set the color, and adjust the color temperature and brightness for various scenes freely. There are 16 million colors to choose from, and the color temperature is adjustable from 2700K to 6500K, and the stepless dimming brightness is from 1% to 100% the installer can download the APP to your phone to achieve more functions like timing, music rhythm, tap-to-run, scene customization, device sharing, etc. It can work with Amazon Alexa and Google Assistant, and the installer can use voice commands to control ON/OFF, adjust brightness, etc., through voice commands. There is a physical button on the controller, and the installer can press it continuously to change the output mode from RGB, RGBW, and RGB+CCT. The WiFi light controller will receive the signals from a remote and transmit them to another controller within 30 meters; all will synchronize. The wireless controller controller has two power interfaces: a wiring port and DC connectors, which are easy to connect to an LED power supply.
Specifications

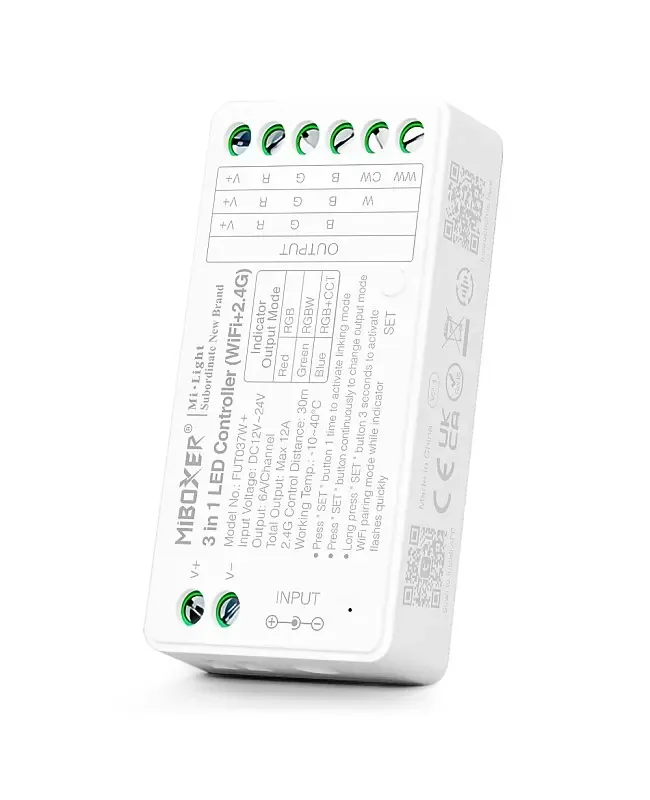

Model: +
Material: PC
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 6A/Channel
Total Output: Max 12A

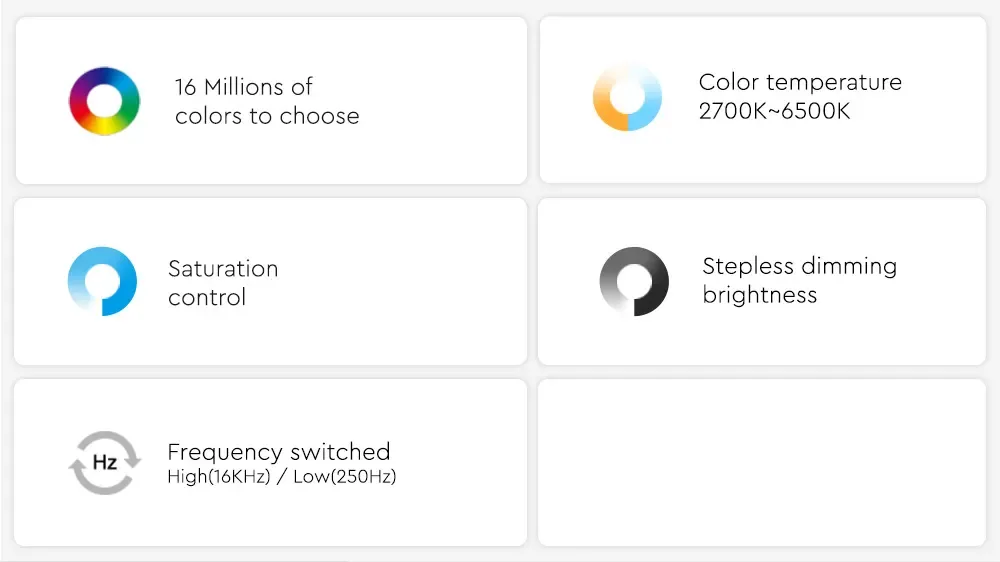

16 Million Colors To Choose
Color Temperature Adjustable From 2700K To 6500K
Stepless Dimming Brightness From 1% To 100%
Saturation Control

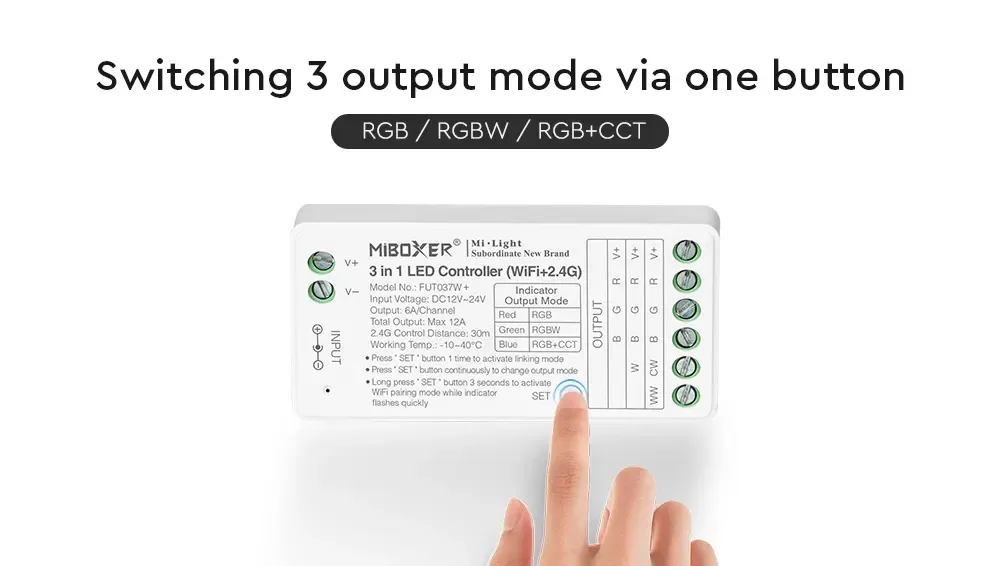

Switching 3 Output Modes Via One Button From RGB/RGBW/RGB+CCT
Compatible With 2.4 GHz wireless/wireless controller 2.4G Remote Controls B, T3, B, T4, B, B, B, B, W, G
WiFi Standard: IEEE 802.11 b/g/n 2.
Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
RF: 2.
Smartphone APP Controllable(2.4G Gateway Needed)

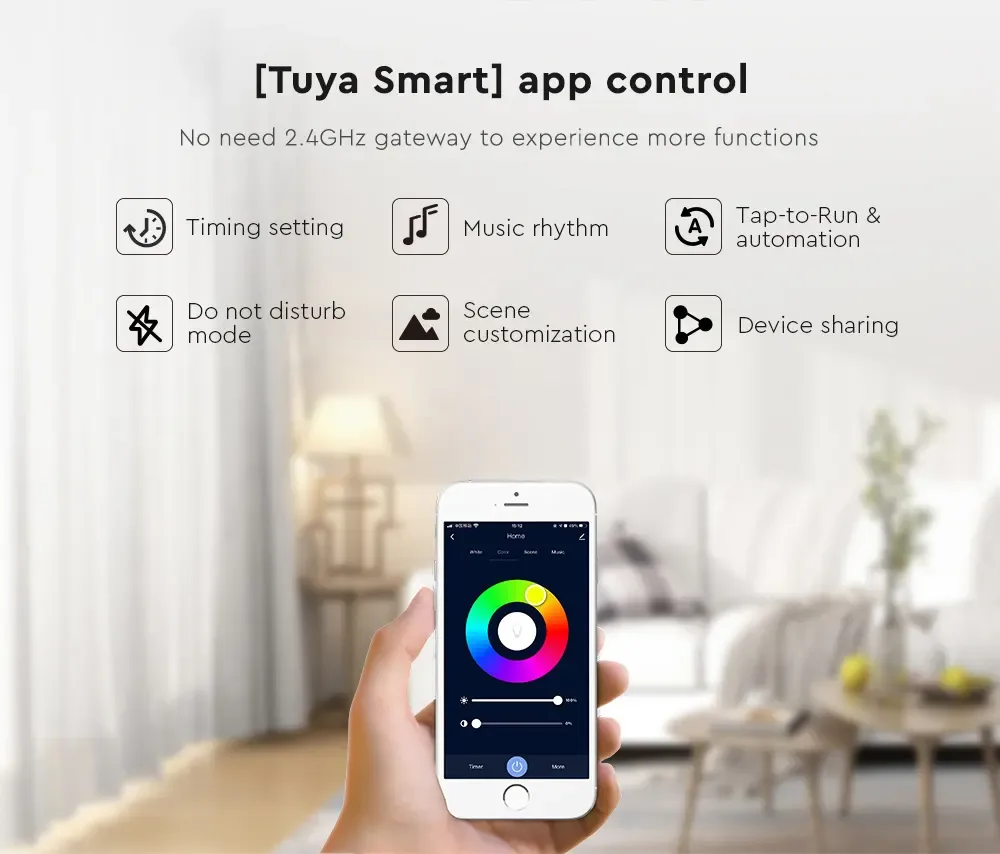

APP Name: Tuya Smart
Support Third-Party Voice Control: Amazon Alexa And Google Assistant
Remote Control Distance: ≤30m

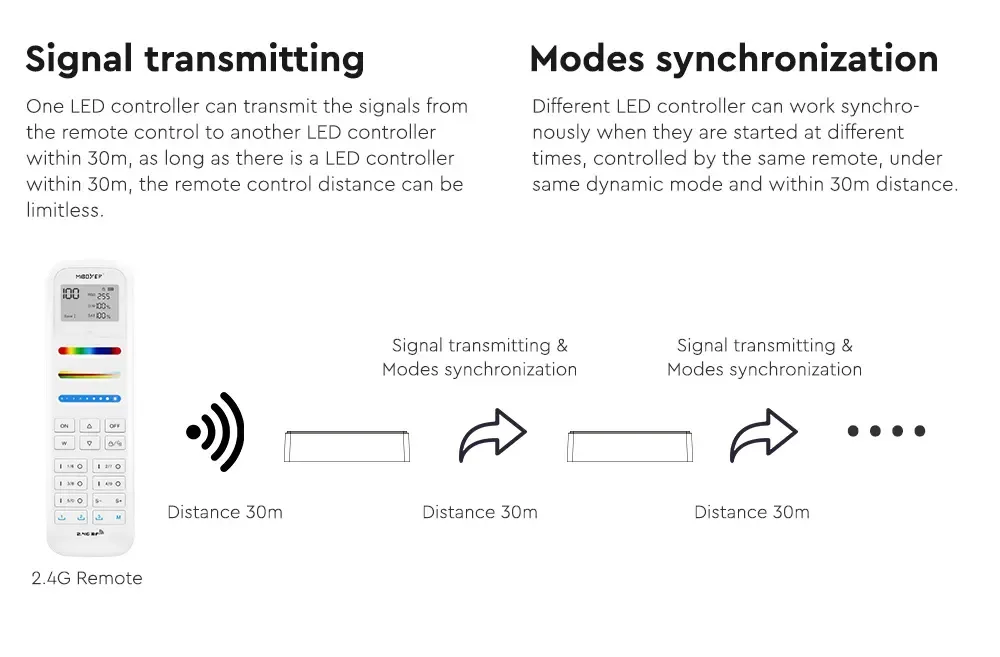

Auto Signal Transmitting/Modes Synchronization
Working Frequency Switched From High To Low 250Hz
Working Temperature: -10-40℃
Includes
1 * WiFi+2.4G Wireless Light Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
