ZR Zigbee Light Strip Controllers 3 In 1 Version
LumaCircuit offers ZR Zigbee Light Strip Controllers 3 In 1 Version as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 3 In 1 Zigbee Light Controller Size: 100.6*40*17.6mm(L*W*H) Total Output Current: 12A Max The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller Zigbee light strip controllers have a 3-in-1 design for RGB, RGBW, and RGB+CCT LED lights. It adopts a 2 communication module and can be controlled by 2.4G RF remote controls. And follow Zigbee 3.0 standard protocol, which can be controlled by a smartphone APP and third-party voice commands after pairing to Zigbee gateways. The installer can use a remote, a smartphone APP, and voice commands to choose the color and adjust brightness and color temperature for various scenes.
- Type: 3 In 1 Zigbee Light Controller
- Size: 100.6*40*17.6mm(L*W*H)
- Total Output Current: 12A Max
- Switching 3 Output Modes(RGB/RGBW/RGB+CCT) Via One Button
- 16 Millon Of Colors To Choose
- Color Temperature Adjustable
- Compatible With 2.4G RF Remote Controls B, B, B, B, B, T4, B, T3, B, W, G,
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-1MXTJY
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: -24V
- Output: 6A/Channel
- Total Output Current: 12A Max
- Compatible With 2.4G RF Remote Controls: B, B, B, B, B, T4, B, T3, B, W, G,
- Communication Protocol: Zigbee 3.0 + 2.
- Control Distance: Zigbee≤100m(Open Area); 2.4G RF≤30m
- Wireless Frequency: 2.400- 2.
- Two Power Interfaces: Wiring Ports,.5*2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

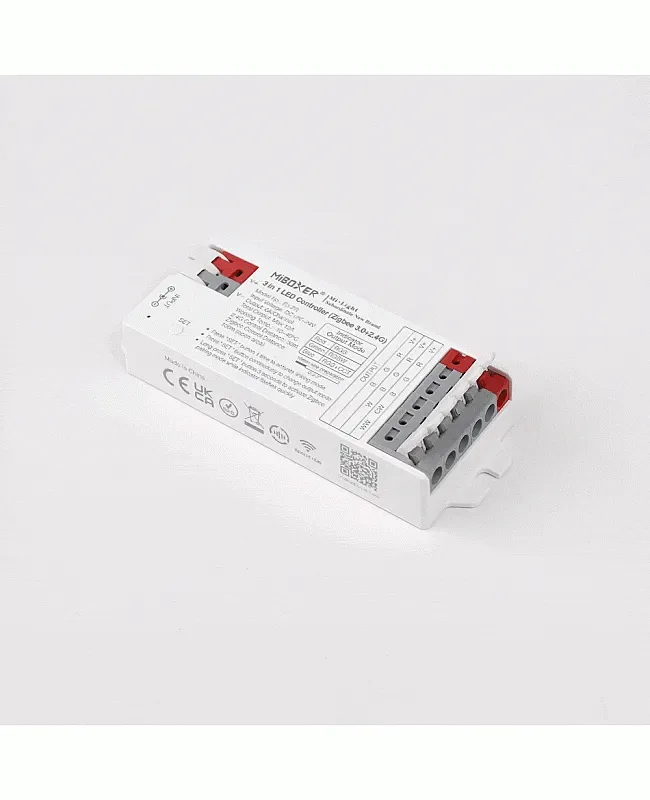

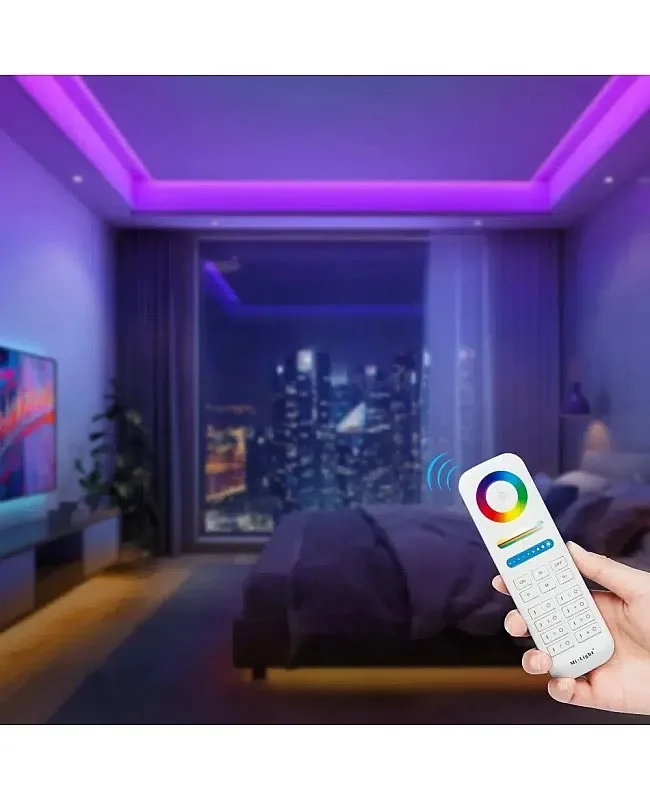

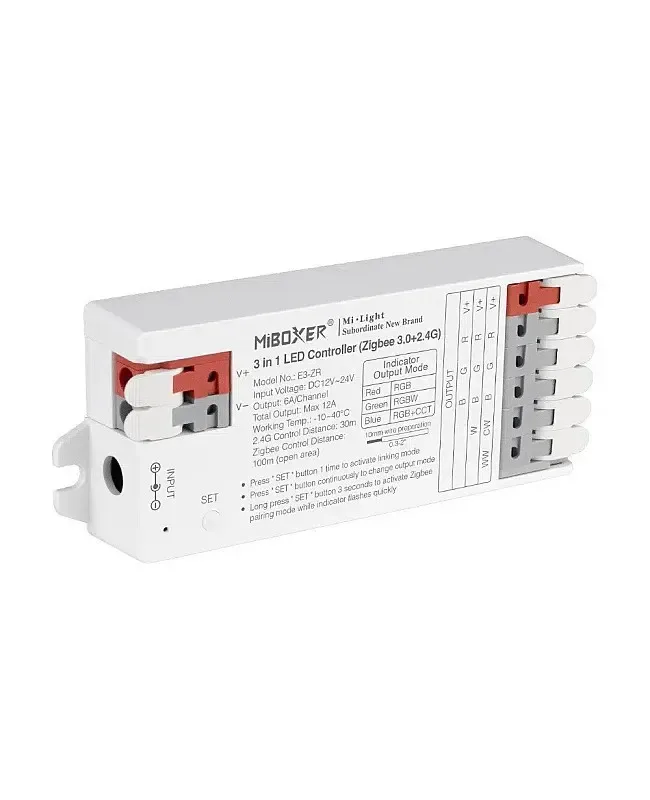

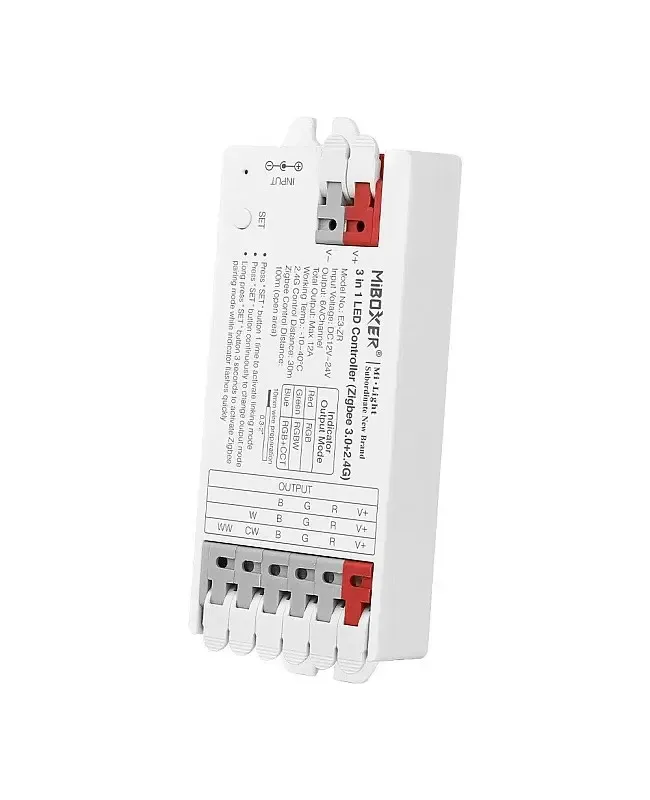

The wireless controller Zigbee light strip controllers have a 3-in-1 design for RGB, RGBW, and RGB+CCT LED lights. It adopts a 2 communication module and can be controlled by 2.4G RF remote controls. And follow Zigbee 3.0 standard protocol, which can be controlled by a smartphone APP and third-party voice commands after pairing to Zigbee gateways. The installer can use a remote, a smartphone APP, and voice commands to choose the color and adjust brightness and color temperature for various scenes. The ZR will receive signals from the remote control and transmit them to other controllers within 30 meters, and different controllers can work synchronously. The installer can download the APP " Tuya Smart " to your smartphone to achieve more functions like scene customization, music rhythm, timing, device sharing, etc. The wireless controller Zigbee controller can connect to other Zigbee gateways like Philips Hue, IKEA TRADFRI, and Amazon Echo. The Zigbee controller with tool-free instant wiring design is super easy to connect to the power supply and LED lights without any necessary tools.
Specifications
Type: 3 In 1 Zigbee Light Controller
Model
Size: 100.6*40*17.6mm(L*W*H)
Input Voltage: -24V
Output: 6A/Channel
Total Output Current: 12A Max
Switching 3 Output Modes(RGB/RGBW/RGB+CCT) Via One Button
16 Millon Of Colors To Choose
Saturation Adjustable
Color Temperature Adjustable
Brightness Adjustable
Compatible With 2.4G RF Remote Controls B, B, B, B, B, T4, B, T3, B, W, G,
Auto Signal Transmitting And Modes Synchronization
Communication Protocol: Zigbee 3.0 + 2.
Control Distance: Zigbee≤100m(Open Area); 2.4G RF≤30m
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400- 2.
High Frequency Low Frequency(250Hz) Can Be Switched
Tuya Smart APP Control(Zigbee 3.0 Gateway Needed)
Support Third-party Voice Control: Amazon Alexa And Google Assistant(Zigbee Gateway Needed)
Support DMX512 Controllable
Two Power Interfaces: Wiring Ports,5*2.1mm
Instant Wiring Tool-free
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
1 * ZR Zigbee Light Controller
1 * User Manual
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
