Product details

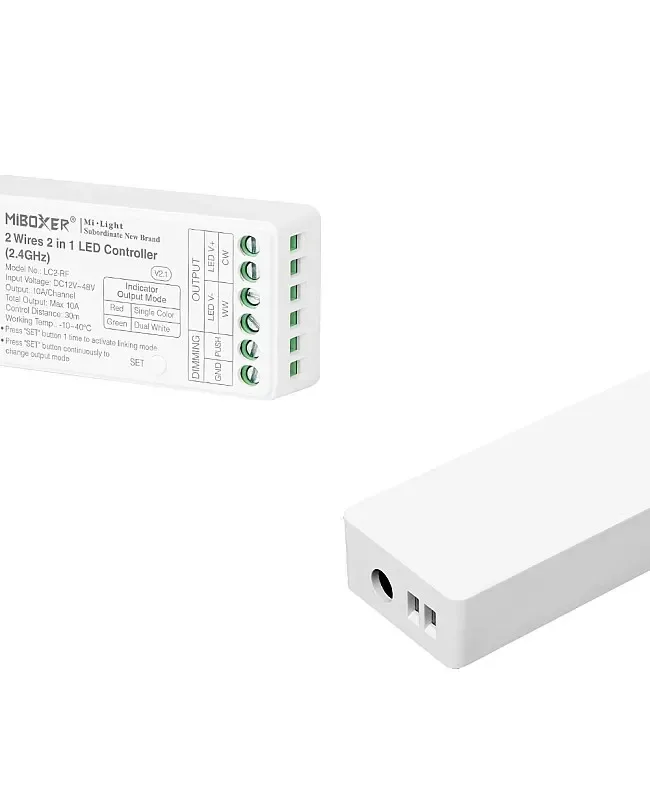

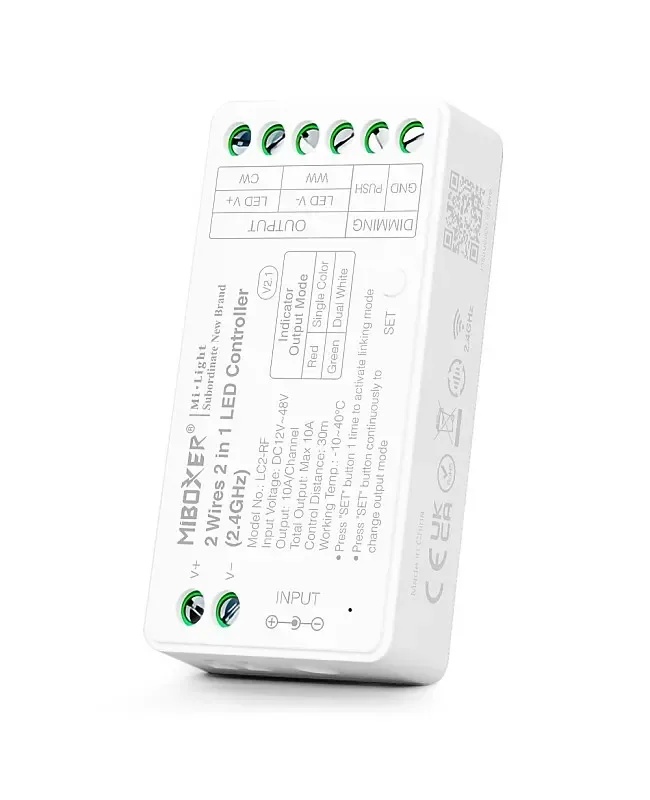

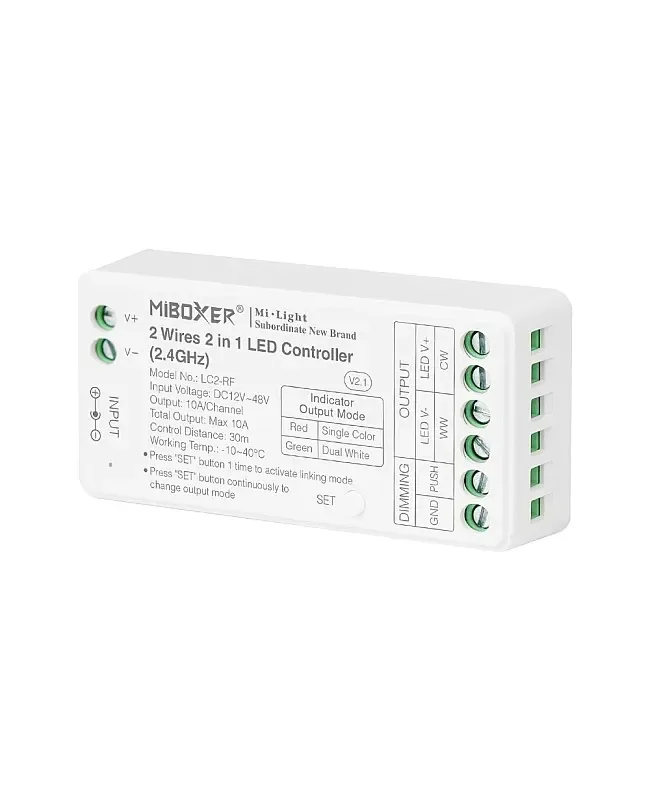

RF LED Strip Light Dimmer For Dual White Lights
LumaCircuit offers RF LED Strip Light Dimmer For Dual White Lights as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size(L*W*H): 74.5 mm x 36 mm x 17 mm Single color/dual white 2 output modes switchable Color temperature adjustable from 2700K To 6500K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

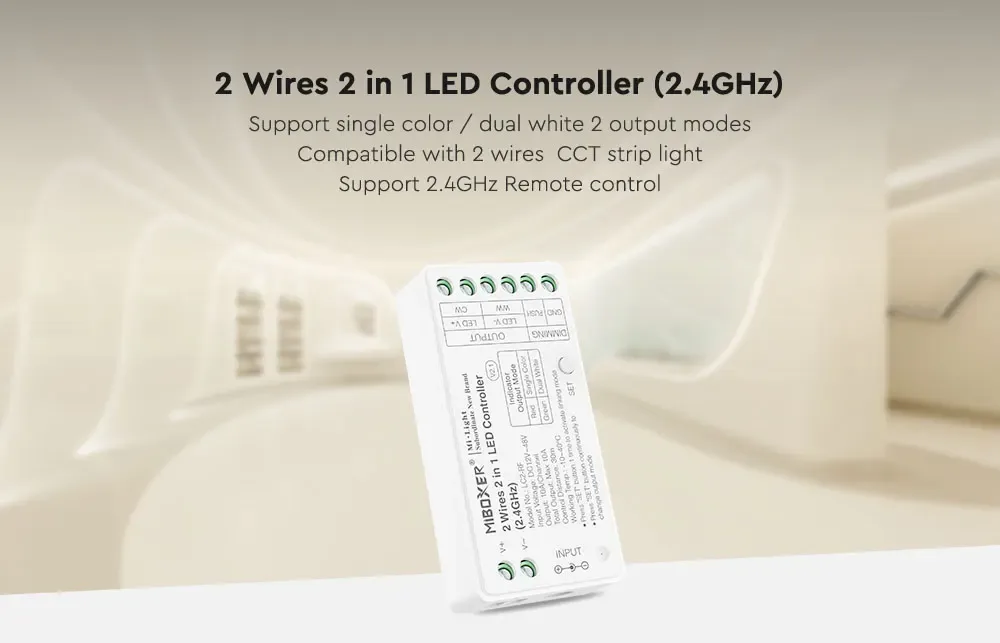

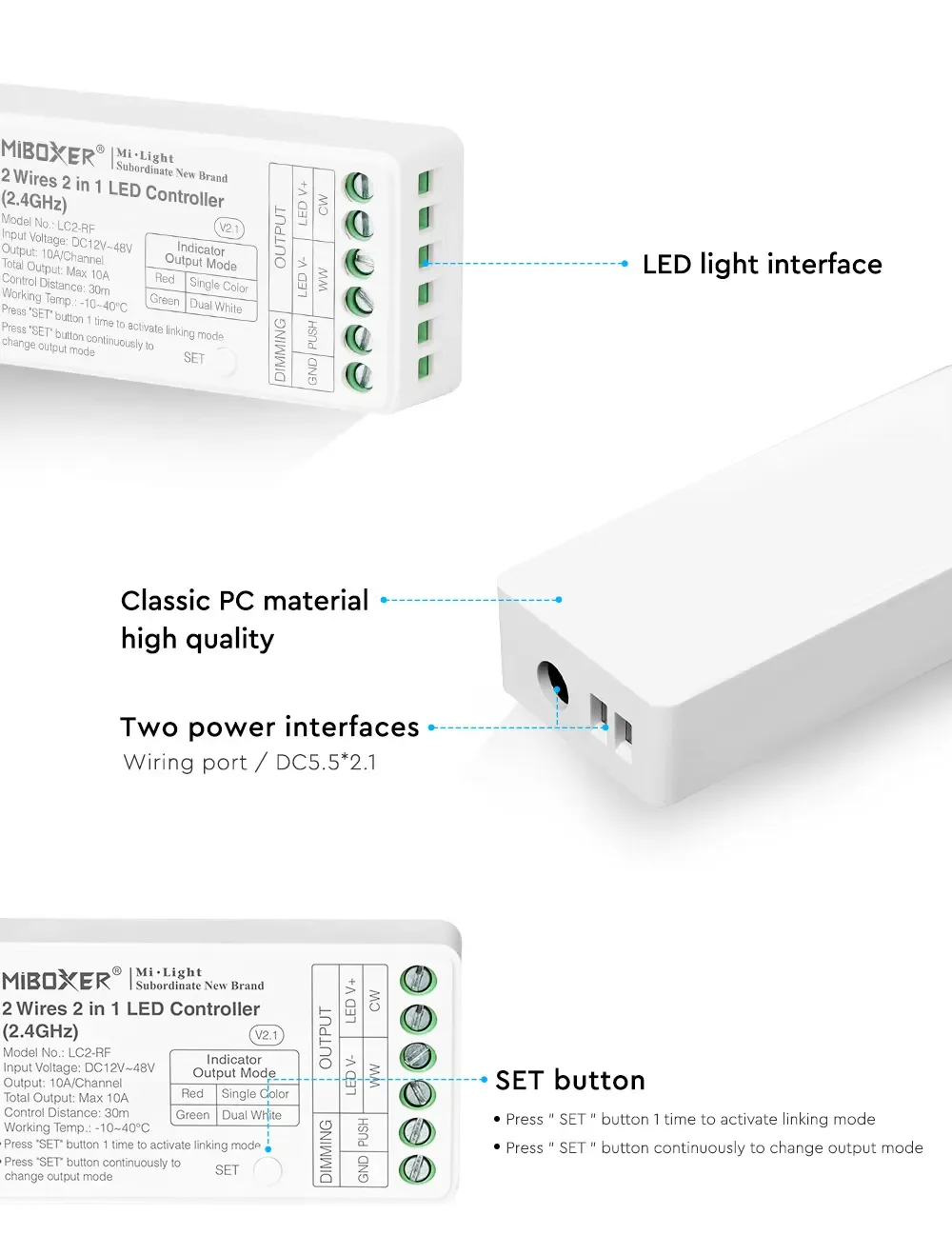

- The wireless controller LED strip light dimmers feature two output modes, designed for single-color and dual-white LED lights, and are especially compatible with 2-wire CCT COB strip lights. There is a single button on the dimmer, which the installer can press continuously to switch the output mode from single color to dual white. 2.4 G remote controls can control the wireless controller light dimmer and support smartphone APP and third-party voice control after being connected to a 2.4G gateway.

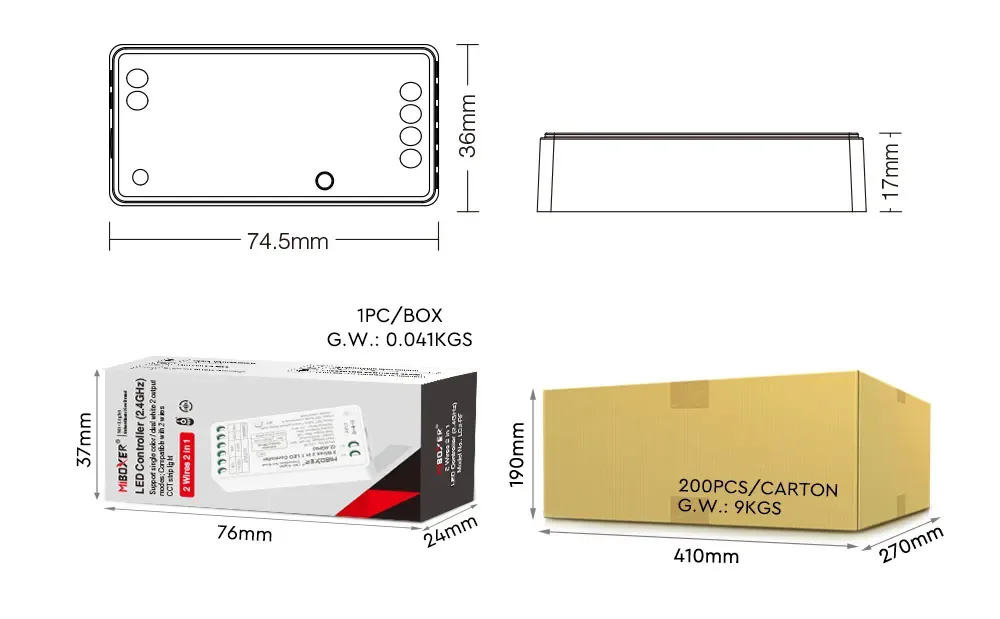

- Size(L*W*H): 74.5 mm x 36 mm x 17 mm
- Single color/dual white 2 output modes switchable
- Color temperature adjustable from 2700K To 6500K
- Stepless dimming brightness from 1% to 100%

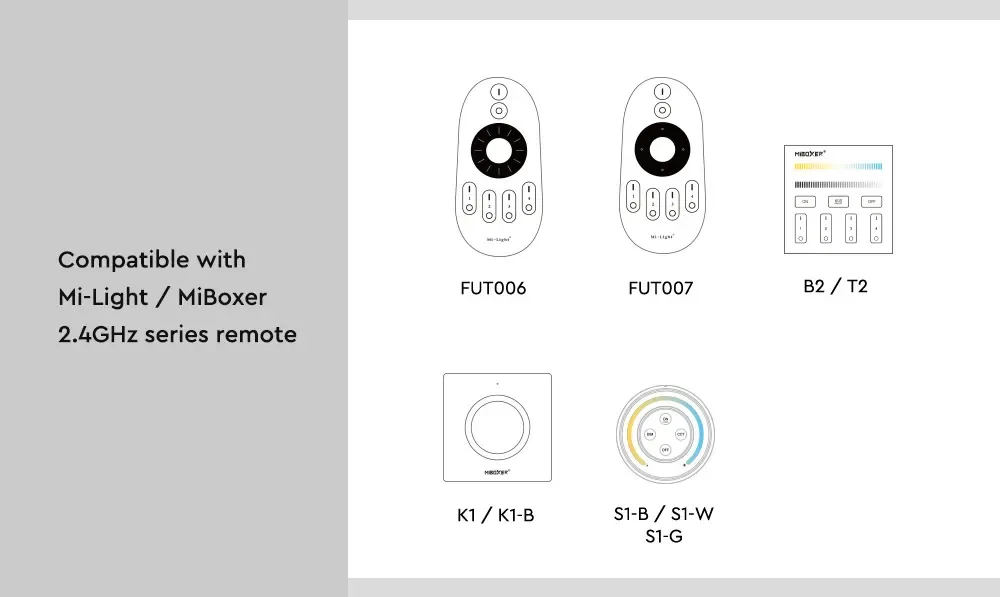

- Compatible with 2.4 GHz wireless/wireless controller 2.4G remote controls T2, B, B, W, G

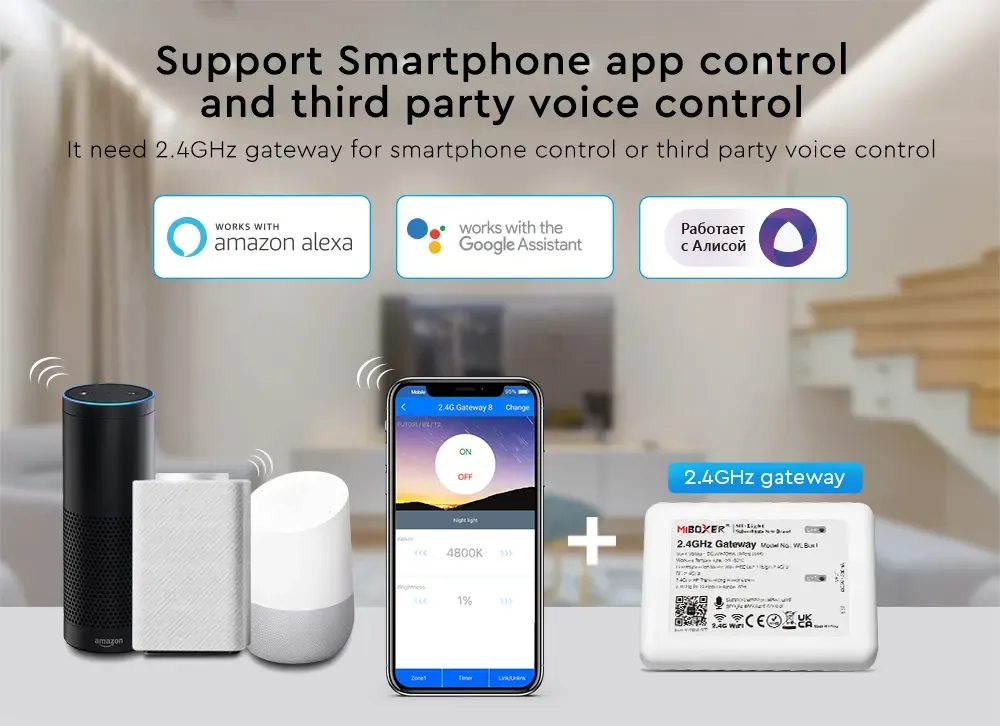

- Support smartphone APP control and third-party voice control(2.4G gateway needed)
- Can work with Amazon Alexa and Google Assistant
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: CCT
- LumaCircuit model: LC-STR-J31UPE
- Material: PC
- Size(L*W*H): 74.5 mm x 36 mm x 17 mm
- Working Voltage: -48V
- Output: 10A per channel
- Total Output: Max 10A
- Compatible with 2.4 GHz wireless/wireless controller 2.4G remote controls: T2, B, B, W, G
- Control Distance: ≤30m
- Working Temperature: -10-40℃
- Dimensions found: 74.5 mm / 36 mm / 17 mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller LED strip light dimmers feature two output modes, designed for single-color and dual-white LED lights, and are especially compatible with 2-wire CCT COB strip lights. There is a single button on the dimmer, which the installer can press continuously to switch the output mode from single color to dual white. 2.4 G remote controls can control the wireless controller light dimmer and support smartphone APP and third-party voice control after being connected to a 2.4G gateway. The installer can freely control the color temperature and brightness. The color temperature is adjustable from 2700K to 6500K, with stepless dimming brightness from 1% to 100%. The dimmer can work with Amazon Alexa and Google Assistant. The installer can use voice commands to turn the light on/OFF and adjust the light. The RF dimmer will receive the signal from the 2.4 GHz CCT remote control and transmit it to others within a 30-meter range, allowing all devices to work synchronously.
Specifications
Model
Material: PC
Size(L*W*H): 74.5 mm x 36 mm x 17 mm
Working Voltage: -48V
Output: 10A per channel
Total Output: Max 10A
Single color/dual white 2 output modes switchable
Color temperature adjustable from 2700K To 6500K
Stepless dimming brightness from 1% to 100%
RF: 2.
Compatible with 2.4 GHz wireless/wireless controller 2.4G remote controls T2, B, B, W, G
Control Distance: ≤30m
Support smartphone APP control and third-party voice control(2.4G gateway needed)
Can work with Amazon Alexa and Google Assistant

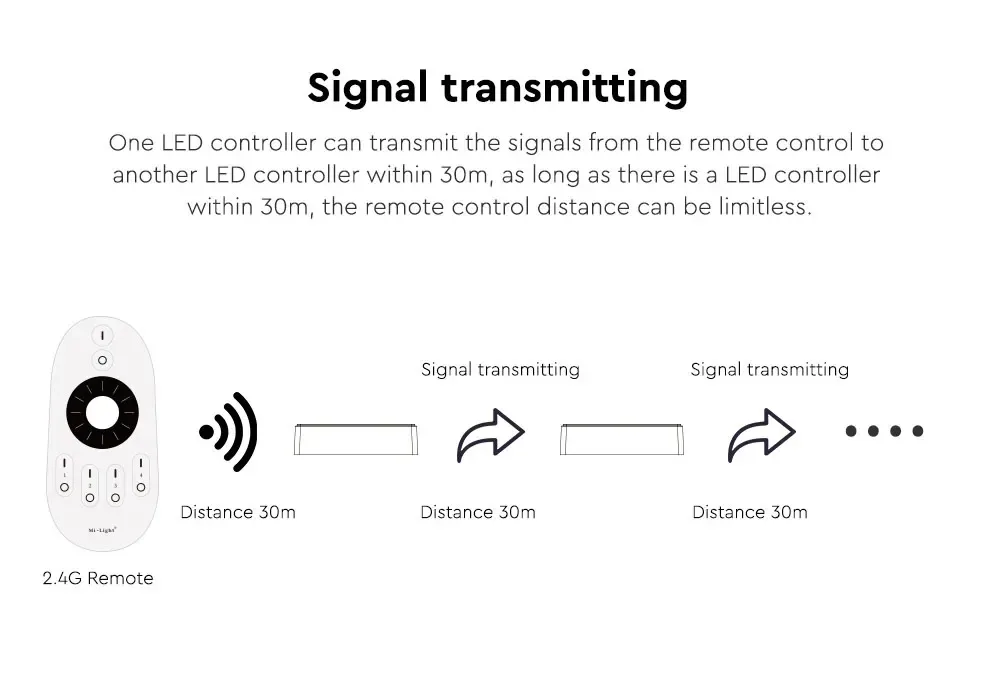

Auto signal transmitting
Support PUSH dimming
Working Temperature: -10-40℃
Includes
1 * wireless controller LED strip dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
