Product details
Tunable White COB LED Strip 24V Dimmable
LumaCircuit offers Tunable White COB LED Strip 24V Dimmable as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Power: 7.5W+7.5W ( 10mm ), 10W +10W (10mm), 12W+12W ( 8mm ) PCB width: 10 mm ( 0.39" ) / 8 mm ( 0.31" ) Min cuttable length: 25mm(10mm) / 27mm(8mm) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Voltage: DC24V DC12V
- Power: 7.5W+7.5W ( 10mm ), 10W +10W (10mm), 12W+12W ( 8mm )
- PCB width: 10 mm ( 0.39" ) / 8 mm ( 0.31" )
- Min cuttable length: 25mm(10mm) / 27mm(8mm)

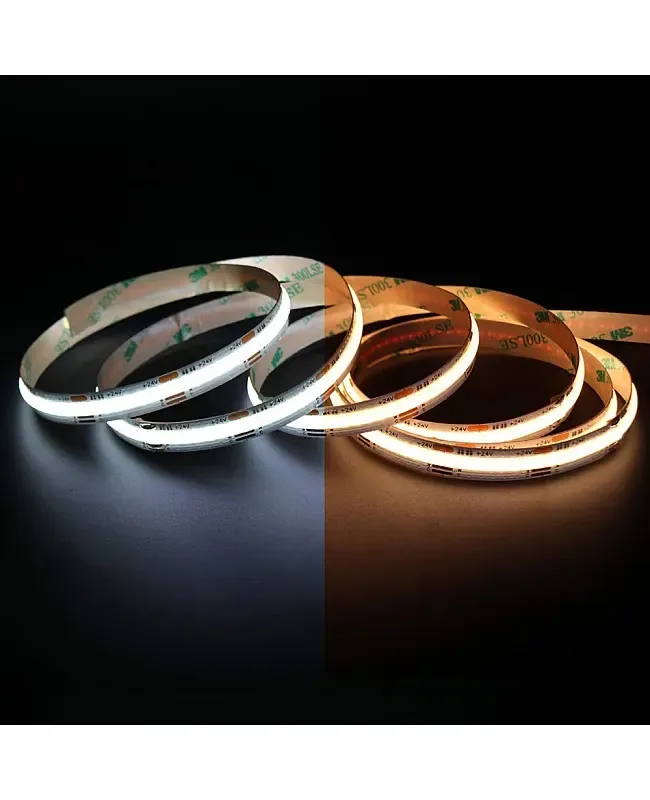

- Color temperature: 2700 K- 6500 K
- Luminous efficiency: 100-120LM/W
- Luminous flux: 1500LM-1700LM/M
- IP rating: IP20 non-waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: CCT
- Working Voltage: DC24V DC12V
- Power: 7.5W+7.5W ( 10mm ), 10W +10W (10mm), 12W+12W ( 8mm )
- PCB width: 10 mm ( 0.39" ) / 8 mm ( 0.31" )
- LED type: 1010
- LED chip size: 9*22 mil
- LED quantity: 576 PCS M
- Lengths available: 5M
- Min cuttable length: 25mm(10mm) / 27mm(8mm)
- Color temperature: 2700 K- 6500 K
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Working Voltage: DC24V DC12V
Power: 7.5W+7.5W ( 10mm ), 10W +10W (10mm), 12W+12W ( 8mm )
PCB width: 10 mm ( 0.39" ) / 8 mm ( 0.31" )
LED type: 1010
LED chip size: 9*22 mil
LED quantity: 576 PCS M
Lengths available: 5M
Min cuttable length: 25mm(10mm) / 27mm(8mm)

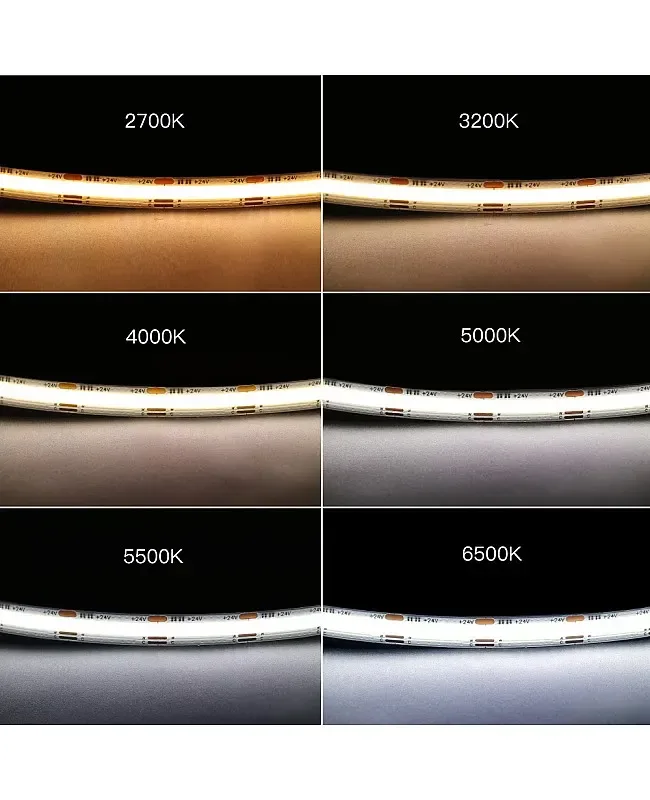

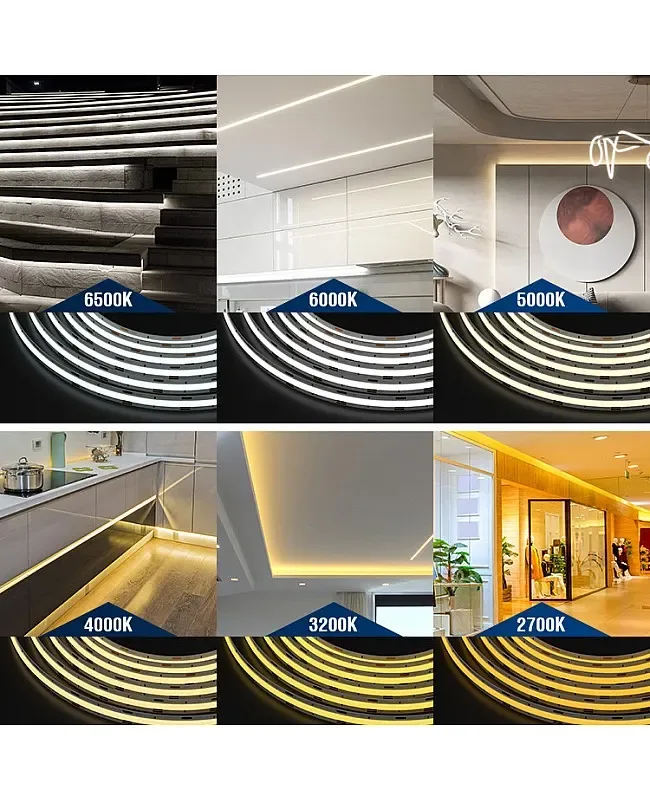

Color temperature: 2700 K- 6500 K
Luminous efficiency: 100-120LM/W
Luminous flux: 1500LM-1700LM/M
CRI: >
Dimmable: YES
IP rating: IP20 non-waterproof
View angle: 180°

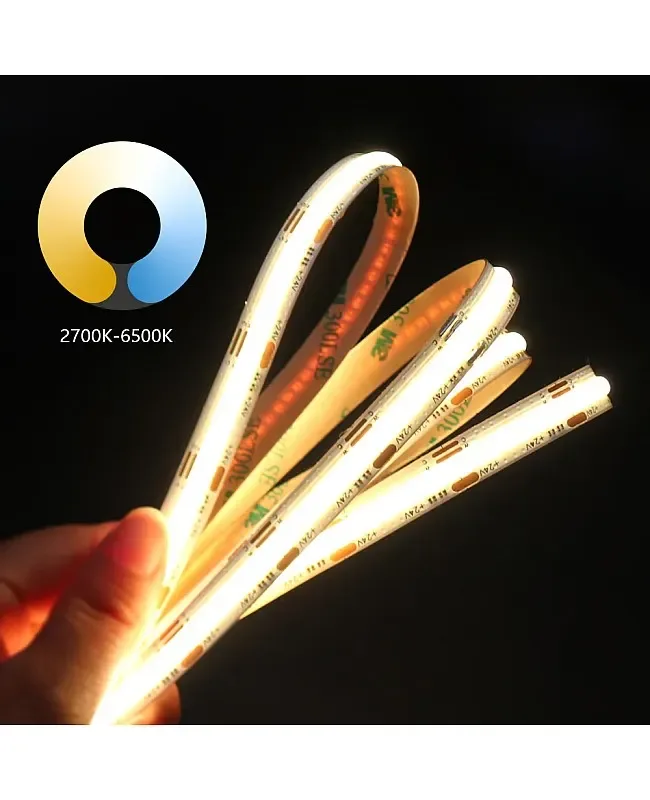

Flexible and bendable

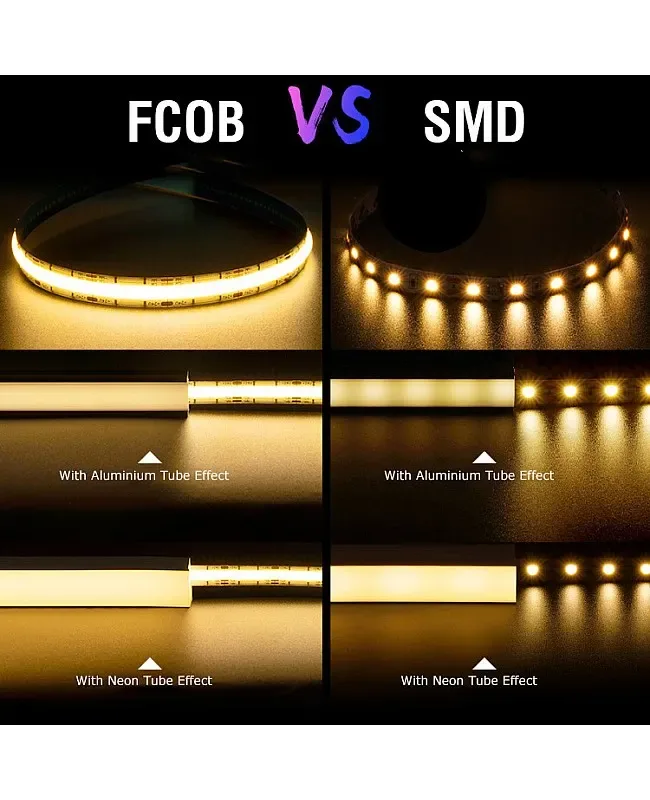

High CRI, high density, high brightness

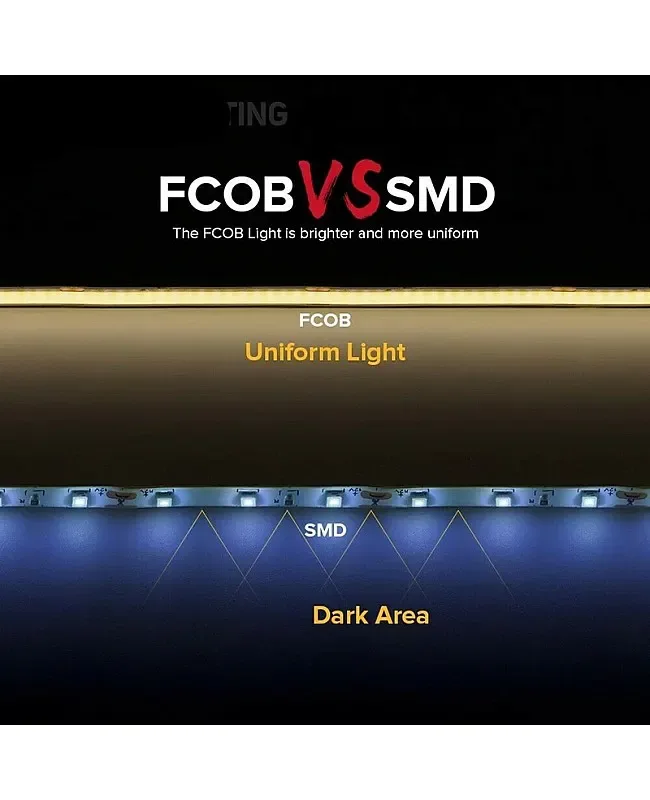

Uniform light emission and no light spots

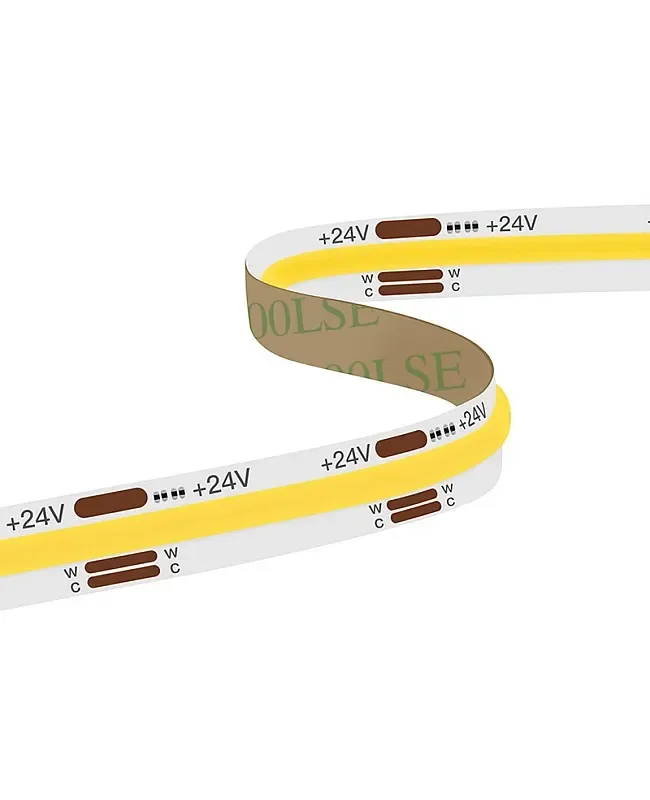

Back with double-sided adhesive tape
Working temperature: -20℃-+45℃
Includes

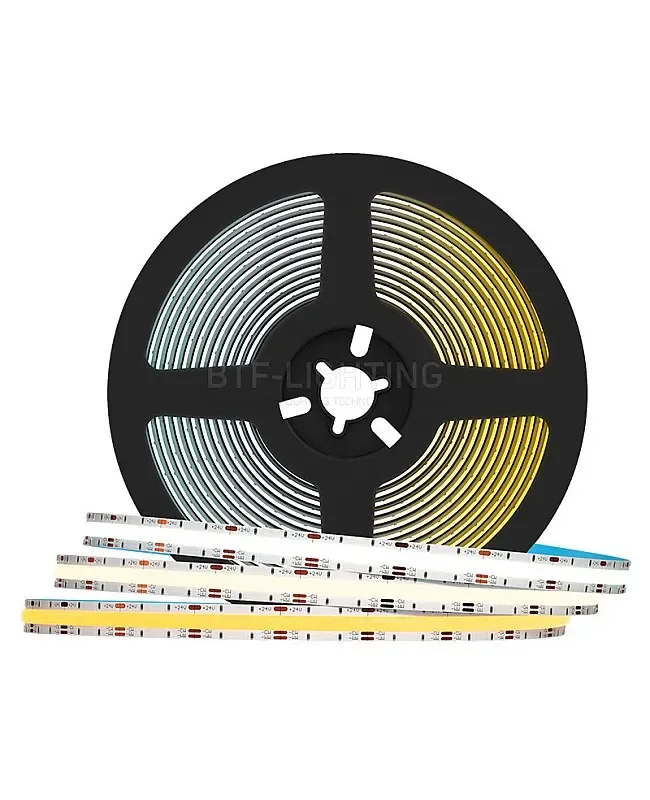

1 * CCT COB LED Strip 24V (16.4FT/Roll)

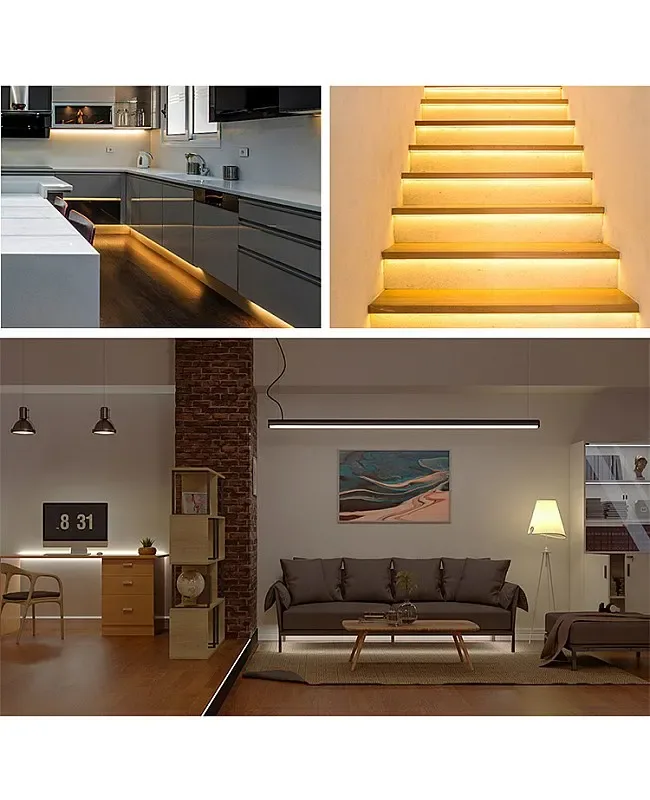

Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
