Product details
DC5V 2835 SMD USB LED Strip
LumaCircuit offers DC5V 2835 SMD USB LED Strip as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. LED Quantity: 30PCS/Meter Waterproof Level: IP20(Non-Waterproof) IP65 Emitting Colors: Warm White(3000K), Cool White(6500K), RGB The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

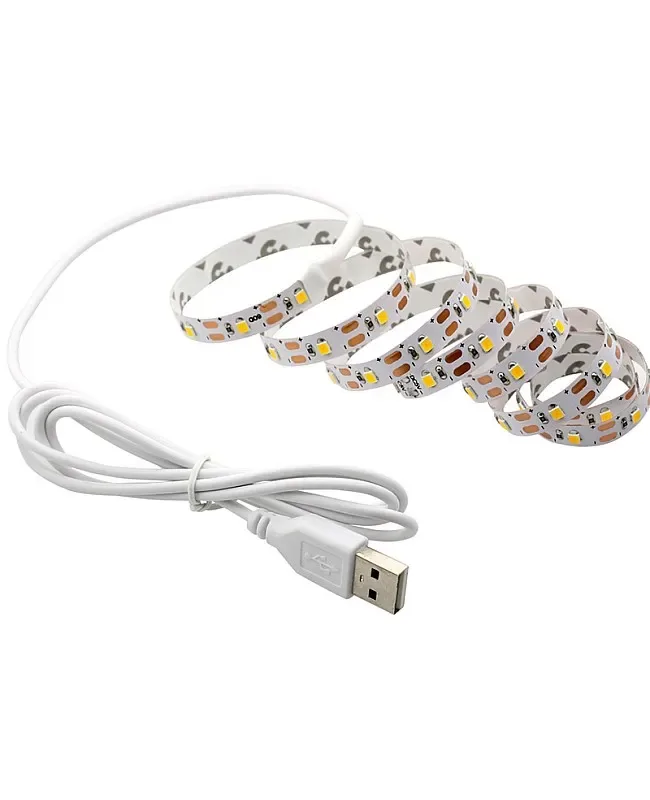

- The 5V USB LED strips use the high-quality 2835 SMD LEDs as the light source, work on DC5V, and 1 meter or 2 meters are available. There are two waterproof products available: IP20 non-waterproof and IP65 waterproof. The back of 5V LED strips with double-sided tape is easy to install and use; remove the protector and stick it where you want to use it. The one side with the USB cable can connect directly to the 5V USB port and connect to a wall adapter or be powered by batteries.
- LED Quantity: 30PCS/Meter
- Waterproof Level: IP20(Non-Waterproof) IP65
- Emitting Colors: Warm White(3000K), Cool White(6500K), RGB
- RGB USB LED Strips With Mini LED Controller
- Back With Double-Sided Adhesive Tape
- 1 * 3 Keys Mini LED Controller(RGB Only)
- The DC5V USB LED Strips, and length available, there are 2 waterproof products available, IP20 non-waterproof and IP65 waterproof comes with USB port cable, can connect to a wall adapter or powered by batteries to light them up.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- Working Voltage: DC5V
- LED: 2835 SMD
- LED Quantity: 30PCS/Meter
- Lumen: 20lm/LED
- Power: 4.W/Meter
- Length: 1M / 2M
- Width: 8mm
- Emitting Colors: Warm White(3000K), Cool White(6500K), RGB
- Beam Angle: 120°
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

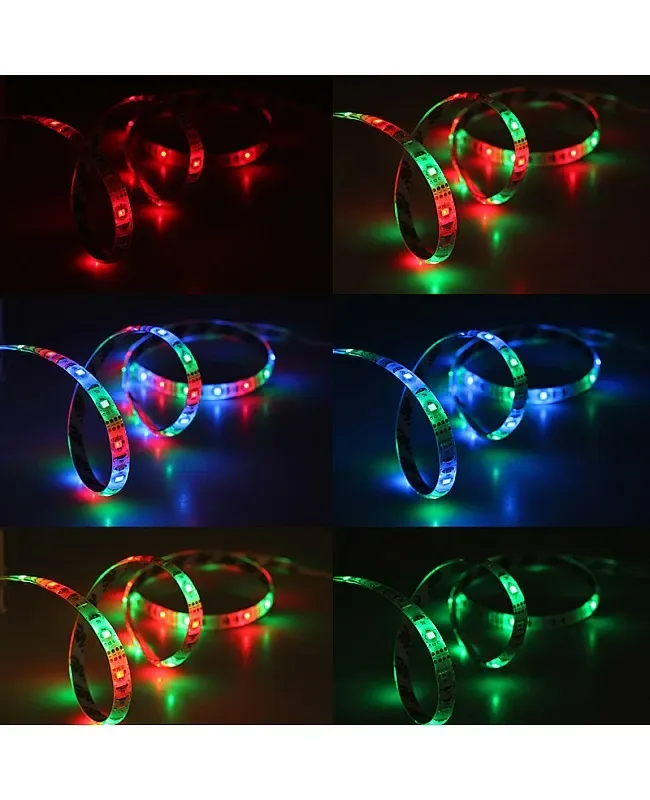

The 5V USB LED strips use the high-quality 2835 SMD LEDs as the light source, work on DC5V, and 1 meter or 2 meters are available. There are two waterproof products available: IP20 non-waterproof and IP65 waterproof. The back of 5V LED strips with double-sided tape is easy to install and use; remove the protector and stick it where you want to use it. The one side with the USB cable can connect directly to the 5V USB port and connect to a wall adapter or be powered by batteries. The RGB USB LED strips with the mini LED controller can adjust the color-changing mode or static colors. The installer can use the cordless LED strips as a backlight on the TV, computer, toys, etc.
Specifications
Working Voltage: DC5V
LED: 2835 SMD
LED Quantity: 30PCS/Meter
Lumen: 20lm/LED
Power: 4. W/Meter
Waterproof Level: IP20(Non-Waterproof) IP65
Length: 1M / 2M
Width: 8mm

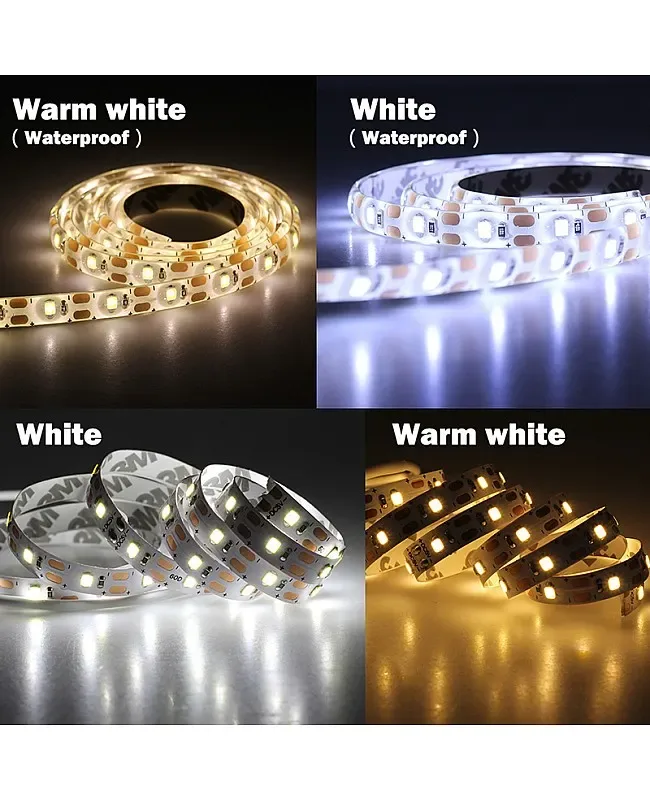

Emitting Colors: Warm White(3000K), Cool White(6500K), RGB

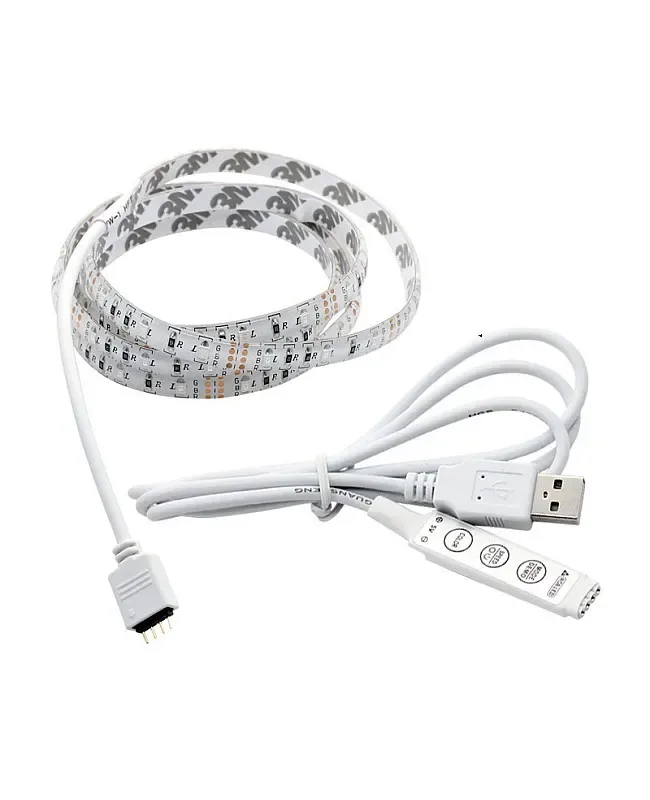

RGB USB LED Strips With Mini LED Controller
Back With Double-Sided Adhesive Tape
Beam Angle: 120°
CRI: >

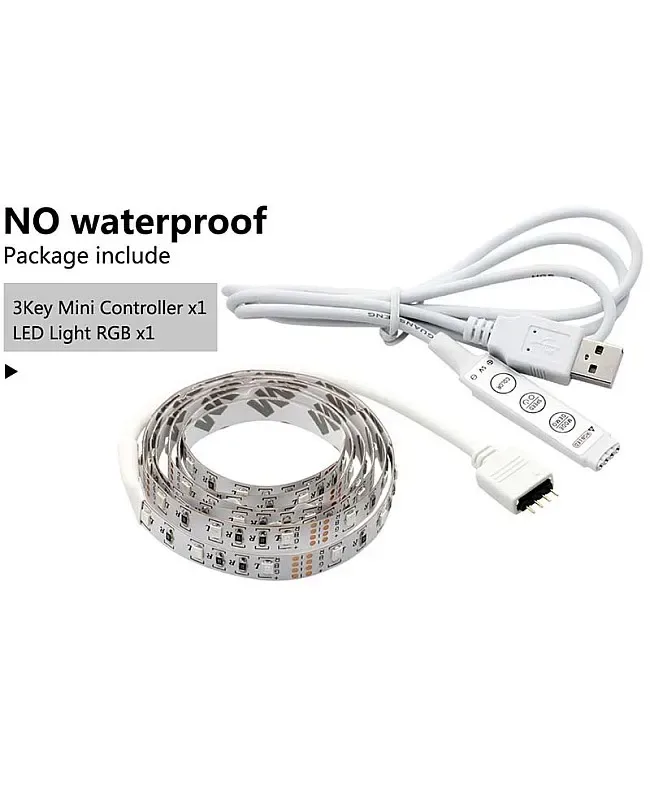

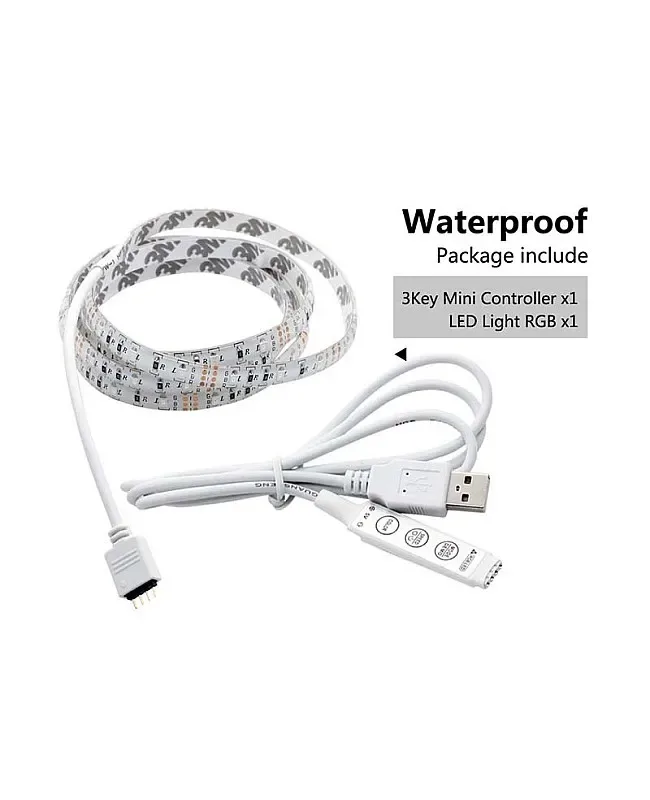

Includes
1 * 5V USB LED Strip
1 * 3 Keys Mini LED Controller(RGB Only)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
