Super Slim 2MM 12V Strip LED COB Dotless
LumaCircuit offers Super Slim 2MM 12V Strip LED COB Dotless as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Using advanced COB ( chip-on-board ) technology, enabling dense packing with 480 LEDs to deliver continuous linear light with no visible LED dots, even in shallow or diffused profiles. With a high CRI of 90+ Ra for exceptional color fidelity and operating on a stable 12V system, they ensure reliable performance and are dimmable. The standard length is 5 meters per roll, with a minimum cutting length of 25mm, and can be cut to your exact length at the cutting points. The 3M adhesive backing provides quick, secure installation. Length: 5 meters ( 16.4ft ) per roll The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

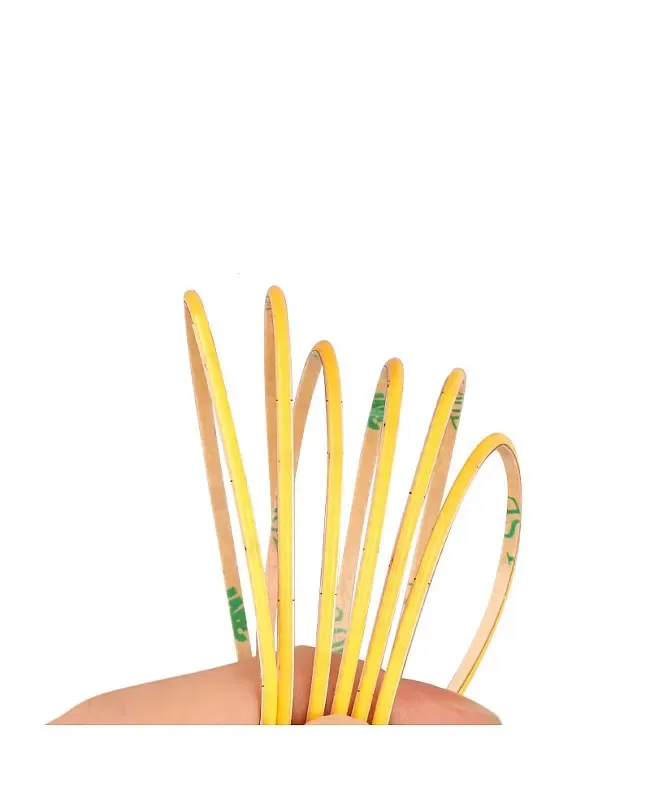

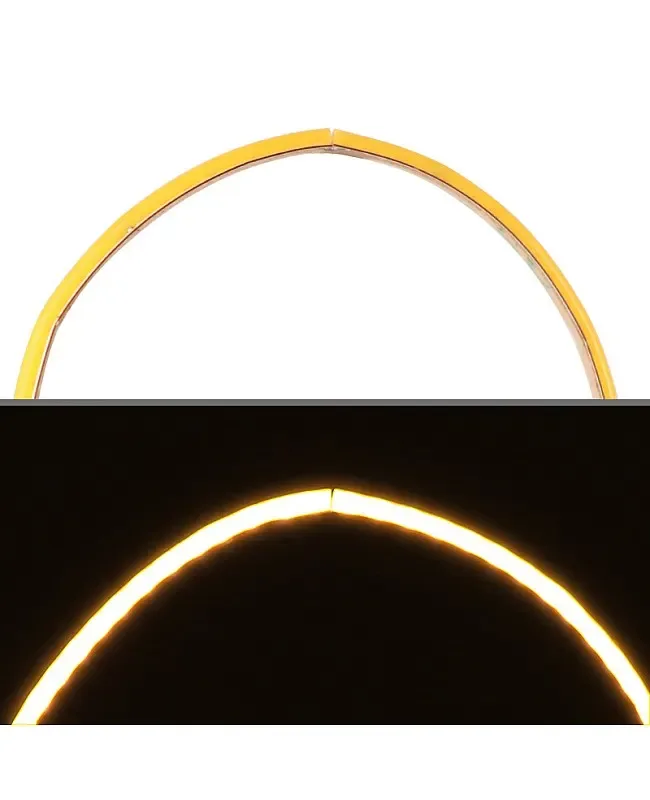

- the configured product narrowest COB LED strips, measuring only 2mm wide, can be installed in narrow or limited spaces that regular LED tapes cannot. They fit seamlessly into narrow channels, grooves, and minimalist lighting designs suited to cabinets, shelves, signs, display boxes, cars, trucks, toys, models, and many more.

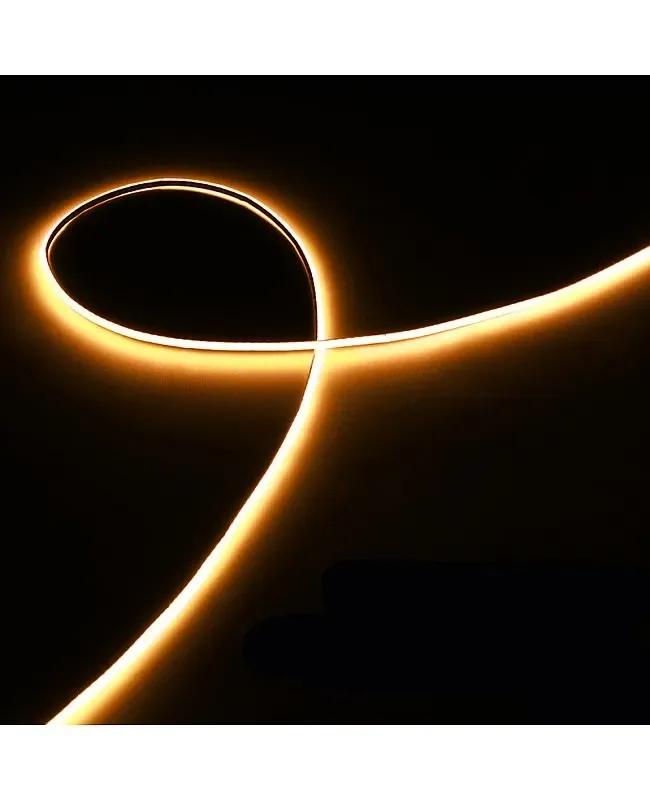

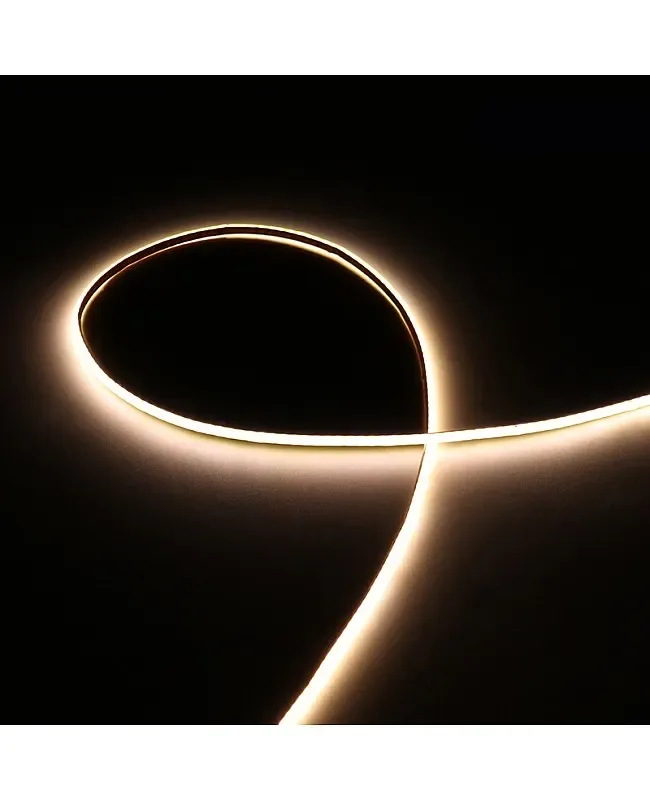

- Using advanced COB ( chip-on-board ) technology, enabling dense packing with 480 LEDs to deliver continuous linear light with no visible LED dots, even in shallow or diffused profiles. With a high CRI of 90+ Ra for exceptional color fidelity and operating on a stable 12V system, they ensure reliable performance and are dimmable.
- The standard length is 5 meters per roll, with a minimum cutting length of 25mm, and can be cut to your exact length at the cutting points. The 3M adhesive backing provides quick, secure installation.
- Length: 5 meters ( 16.4ft ) per roll
- LED quantity: 480 pieces per meter
- Colors: 2700K (warm white), 3000K (warm white), 4000K (natural white), 5000K (day white), 6500K (cool white), ice blue, blue, pink, red, green, orange, yellow
- Luminous Efficacy: 90-110lm/w
- Minimum cutting length: 25mm / 0.98"
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-9WW2PD
- Width: 2 mm / 0.08"
- Length: 5 meters ( 16.4ft ) per roll
- Working voltage: DC 12V
- Power: 5W/m
- LED quantity: 480 pieces per meter
- Colors: 2700K (warm white), 3000K (warm white), 4000K (natural white), 5000K (day white), 6500K (cool white), ice blue, blue, pink, red, green, orange, yellow
- CRI: > 90 Ra
- Beam angle: 180°
- Minimum cutting length: 25mm / 0.98"
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
the configured product narrowest COB LED strips, measuring only 2mm wide, can be installed in narrow or limited spaces that regular LED tapes cannot. They fit seamlessly into narrow channels, grooves, and minimalist lighting designs suited to cabinets, shelves, signs, display boxes, cars, trucks, toys, models, and many more.
Using advanced COB ( chip-on-board ) technology, enabling dense packing with 480 LEDs to deliver continuous linear light with no visible LED dots, even in shallow or diffused profiles. With a high CRI of 90+ Ra for exceptional color fidelity and operating on a stable 12V system, they ensure reliable performance and are dimmable.
The standard length is 5 meters per roll, with a minimum cutting length of 25mm, and can be cut to your exact length at the cutting points. The 3M adhesive backing provides quick, secure installation.
Specifications
Model
Width: 2 mm / 0.08"

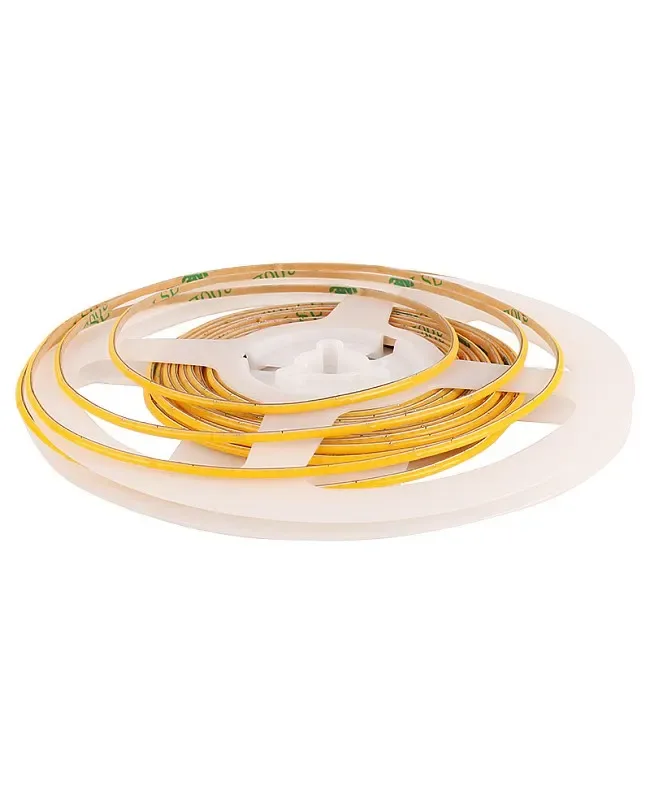

Length: 5 meters ( 16.4ft ) per roll
Working voltage: DC 12V
Input current
Power: 5W/m
LED quantity: 480 pieces per meter

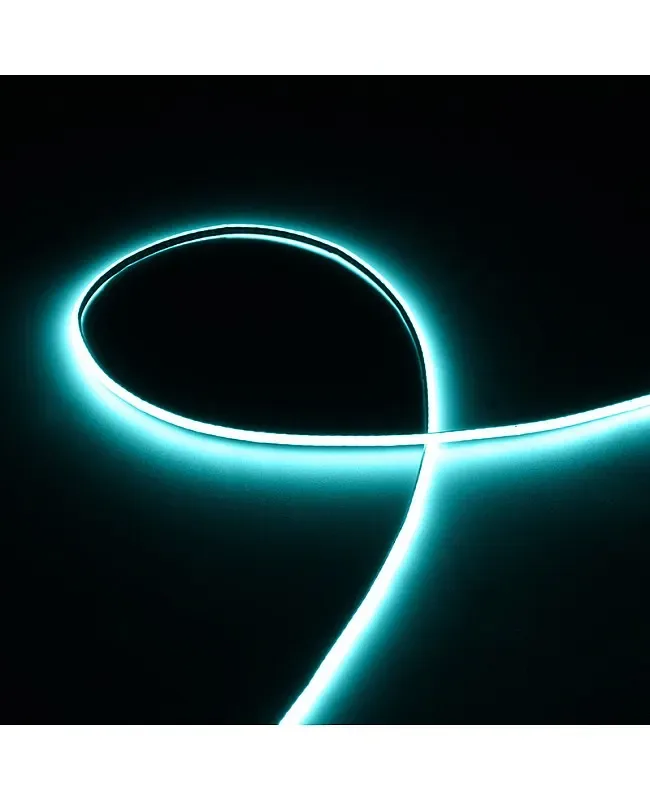

Colors: 2700K (warm white), 3000K (warm white), 4000K (natural white), 5000K (day white), 6500K (cool white), ice blue, blue, pink, red, green, orange, yellow
Luminous Efficacy: 90-110lm/w
CRI: > 90 Ra

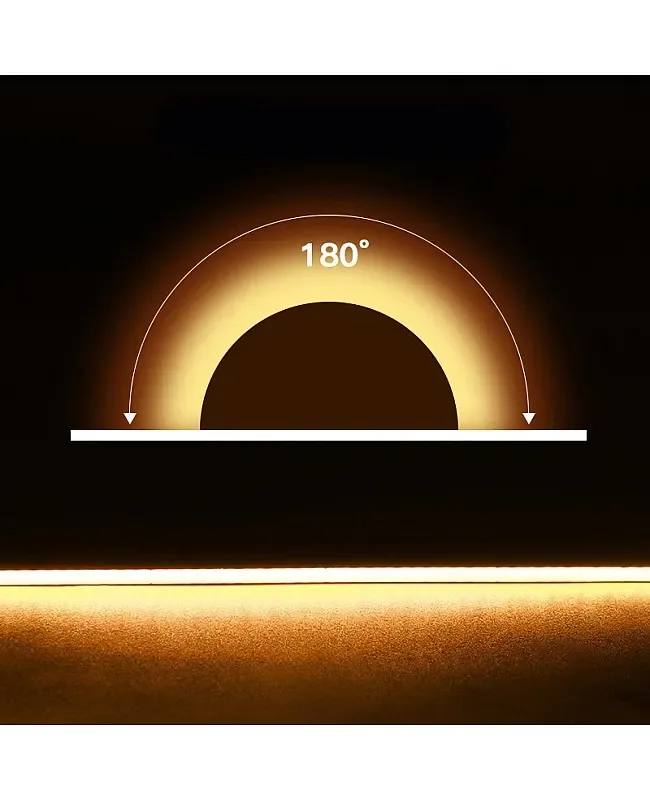

Beam angle: 180°

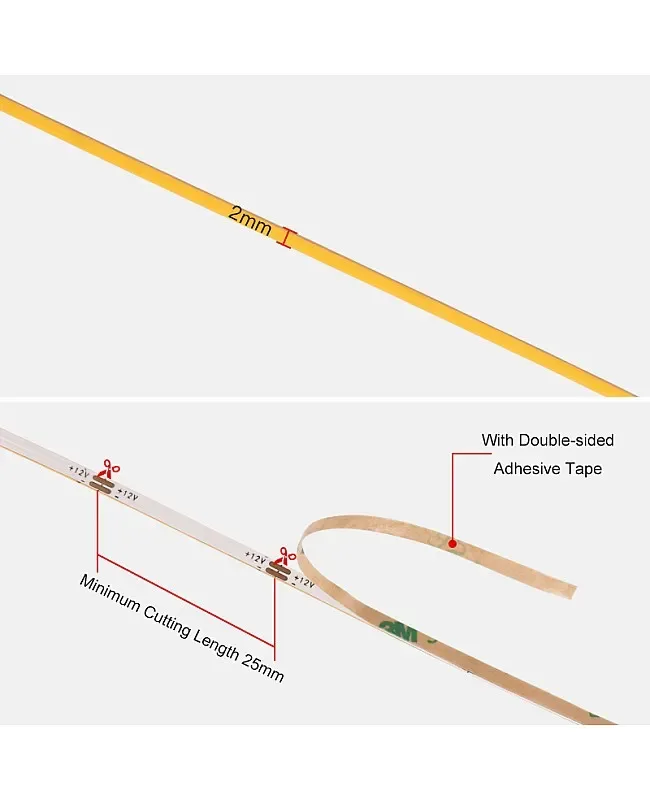

Minimum cutting length: 25mm / 0.98"
Dimmable: YES
Waterproof level: IP20 non-waterproof
The back has double-sided adhesive tape
Applications: Cabinet and display, car Interior, toys and models, DIY, etc
Working temperature: -20℃ + 45℃
Storage temperature: -40℃ + 85℃
Includes
1 x 2mm LED strip
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
