Product details
5m Tunable White Weatherproof Outdoor LED Strip Lights 24V IP67
LumaCircuit offers 5m Tunable White Weatherproof Outdoor LED Strip Lights 24V IP67 as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: Tunable White Waterproof COB LED Strips Size ( W x H ): 12*4mm ( 10mm ) / 10*4mm( 8mm ) Width of PCB Board: 10mm / 8mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The weatherproof outdoor LED strip lights are suited to adding bright, vibrant lighting to outdoor areas. The LED strips are waterproof and feature an IP67 rating, ensuring they can withstand rain, snow, and other elements. It adopts the newest chip-on-board(COB) technology, 576 pieces of LED chips mounted on the 10mm PCB board, and the high density of LEDs allows for bright and even lighting without visible light dots and dark areas.
- Type: Tunable White Waterproof COB LED Strips
- Size ( W x H ): 12*4mm ( 10mm ) / 10*4mm( 8mm )
- Width of PCB Board: 10mm / 8mm
- Power: 12W+12W/M ( 10mm ), 7.5W+7.5W( 8mm )
- Color Temperature Adjustable From 2700K To 6500K(10mm) / 3500-6500K( 8mm)
- Luminous Efficiency: 100-120LM/W
- Luminous Flux: 1500LM-1700LM/M
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-STR-O2GJGJ
- Size ( W x H ): 12*4mm ( 10mm ) / 10*4mm( 8mm )
- Length: 5M/Roll(16.4FT)
- Width of PCB Board: 10mm / 8mm
- LED Chips: 576 PCS/M
- Working Voltage: DC24V
- Power: 12W+12W/M ( 10mm ), 7.5W+7.5W( 8mm )
- CRI: >
- Applications: Swimming Pools, Outdoor Stairs, Wash Basins, Outdoor Decoration, etc
- Dimensions found: 12x4mm / 10x4mm / 4mm / 10mm / 8mm / 5M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

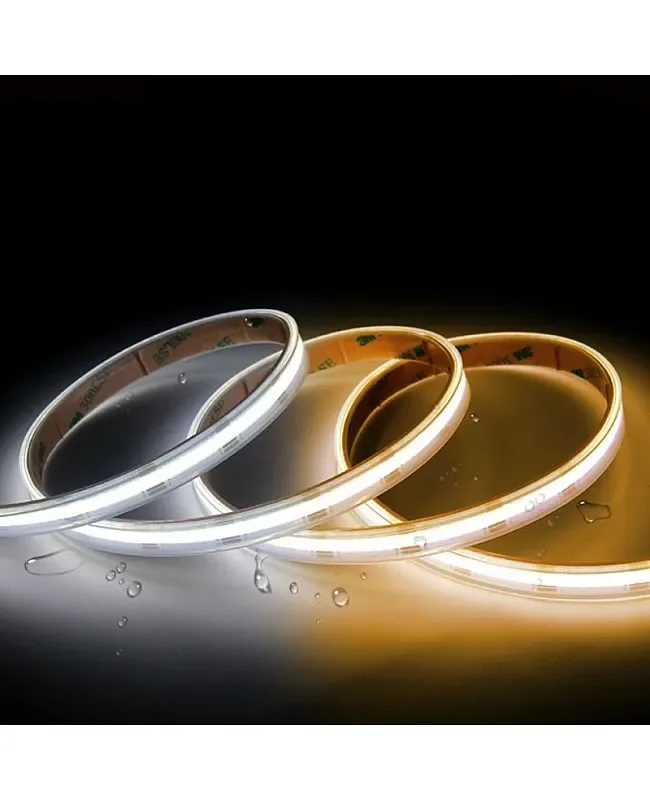

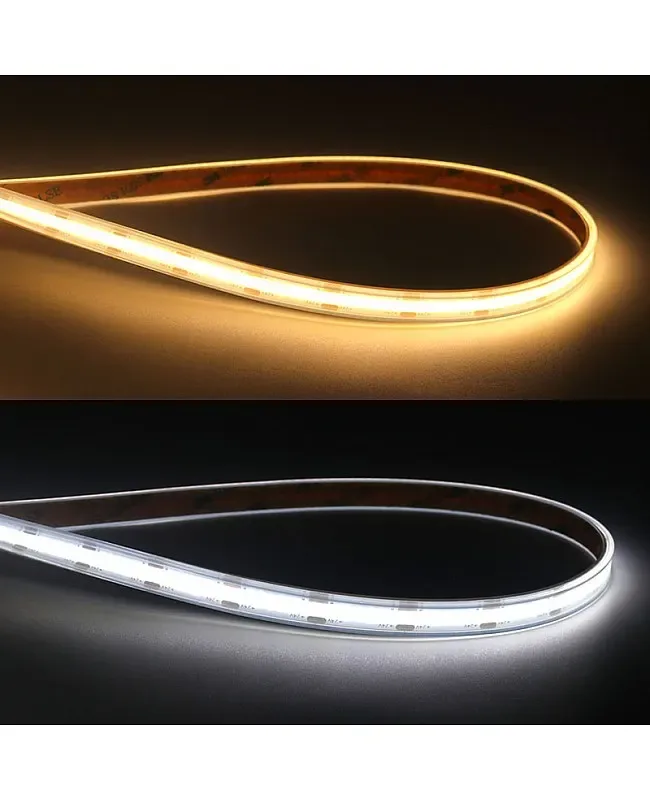

The weatherproof outdoor LED strip lights are suited to adding bright, vibrant lighting to outdoor areas. The LED strips are waterproof and feature an IP67 rating, ensuring they can withstand rain, snow, and other elements. It adopts the newest chip-on-board(COB) technology, 576 pieces of LED chips mounted on the 10mm PCB board, and the high density of LEDs allows for bright and even lighting without visible light dots and dark areas. The color rendering index is more than for projects that need high-quality color rendering. The waterproof COB LED strips with cover feature a tunable white range of 2700K to 6500K, giving you the perfect lighting for any outdoor setting. Easy to connect to a waterproof dual white dimmer to adjust the color temperature from warm white to cool white and adjust the brightness from 1% to 100% for various scenes.
Specifications
Type: Tunable White Waterproof COB LED Strips
Model
Size ( W x H ): 12*4mm ( 10mm ) / 10*4mm( 8mm )
Length: 5M/Roll(16.4FT)
Width of PCB Board: 10mm / 8mm
LED Chips: 576 PCS/M
Working Voltage: DC24V
Power: 12W+12W/M ( 10mm ), 7.5W+7.5W( 8mm )
Color Temperature Adjustable From 2700K To 6500K(10mm) / 3500-6500K( 8mm)
Luminous Efficiency: 100-120LM/W
Luminous Flux: 1500LM-1700LM/M
Waterproof Level: IP67 waterproof
View Angle: 180°
Adopts High-Density Of Chip-On-Board Technology
No Visible Light Dots And Dark Areas
Uniform Light Emission
CRI: >
Waterproof level: IP67 waterproof
Applications: Swimming Pools, Outdoor Stairs, Wash Basins, Outdoor Decoration, etc
Includes
1 * Tunable White LED Light Strips (16.4FT)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
