Product details
4MM/2.7MM Thin LED Strip Lights DC5V 16.4FT
LumaCircuit offers 4MM/2.7MM Thin LED Strip Lights DC5V 16.4FT as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: Ultra-Thin Flexible LED Strips Model: 4MM/2.7MM-DC5V-200LEDs Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Thin LED Strip Lights, which can operate on either DC 5V or DC 3.7V, can be powered by batteries, power banks, and LED drivers. The narrow width allows for installation in compact spaces or along edges, providing a seamless and integrated lighting effect. The installer can use them to enhance the ambiance of a room or highlight certain areas. The Thinnest LED Tapes utilize 2016 SMD LEDs as the light source, with each meter containing 200 pieces of LEDs.
- Type: Ultra-Thin Flexible LED Strips
- Model: 4MM/2.7MM-DC5V-200LEDs
- Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White
- Luminous Flux: 110LM/LED
- IP Rating: IP20 Non-waterproof
- Color Rendering Index: >
- Back With Double-sided Adhesive Tape
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- LumaCircuit model: LC-STR-RNWYM2
- Width: 2.7mm/4mm
- Length: 16.4FT/Roll
- LED Type: 2016
- LED Quantity: 200LEDs/M
- Working Voltage: .7V/DC5V
- Power: 5W/M
- Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White
- Beam Angle: 120°
- IP Rating: IP20 Non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

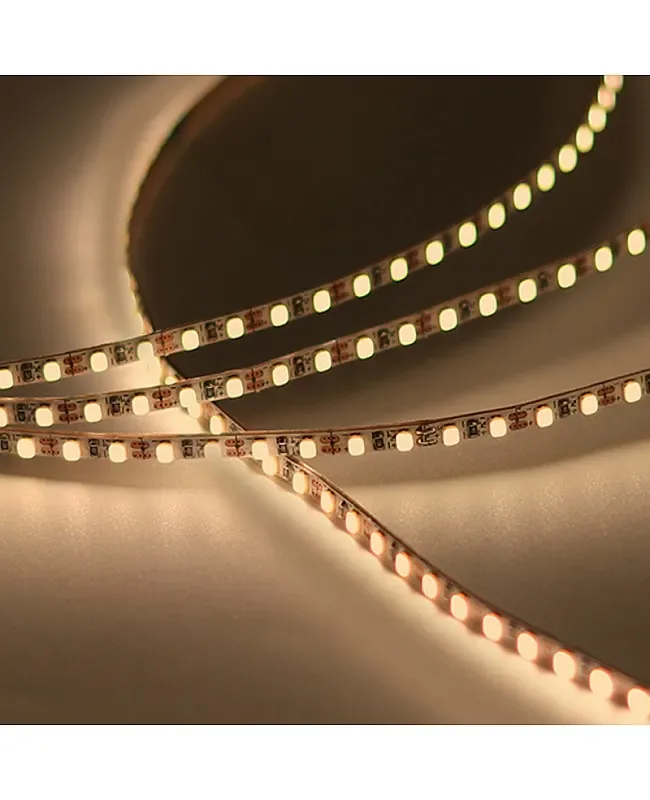

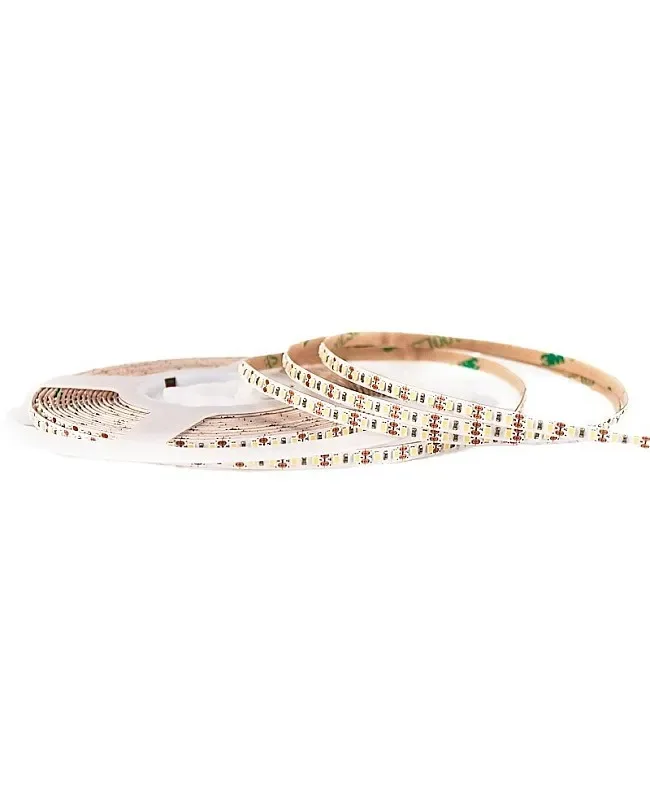

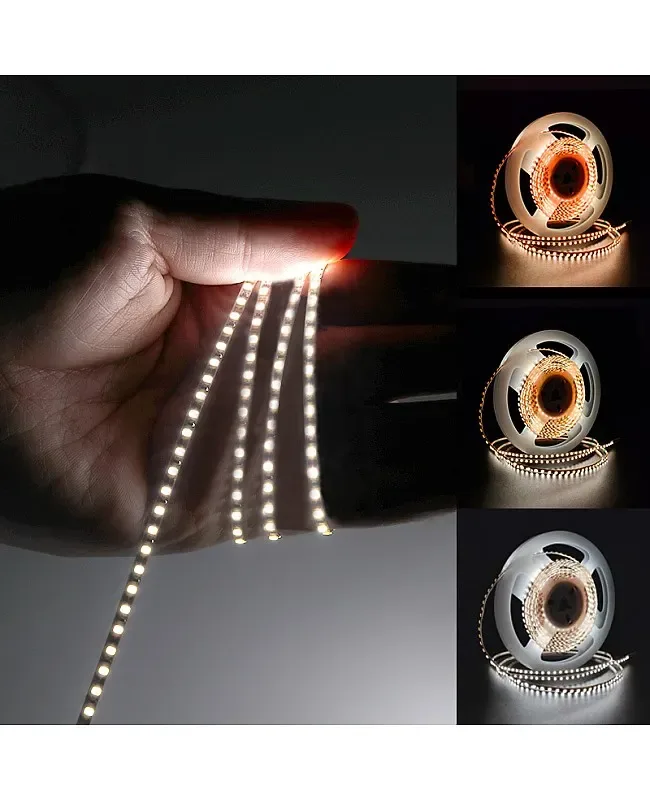

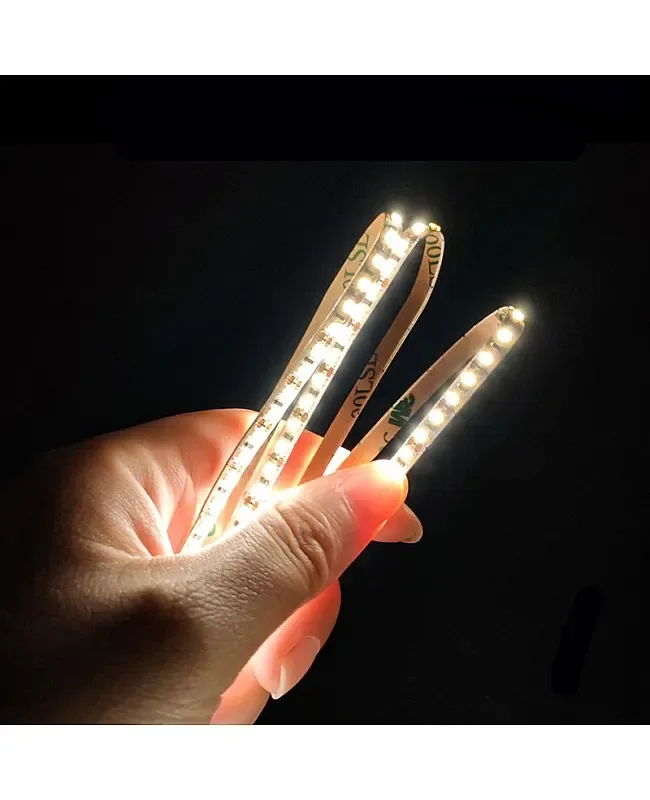

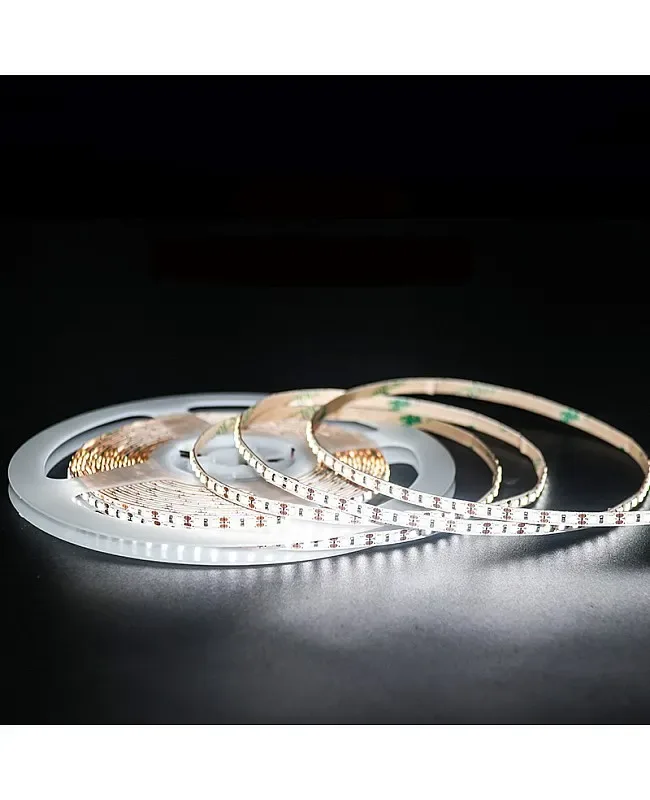

The Thin LED Strip Lights, which can operate on either DC 5V or DC 3.7V, can be powered by batteries, power banks, and LED drivers. The narrow width allows for installation in compact spaces or along edges, providing a seamless and integrated lighting effect. The installer can use them to enhance the ambiance of a room or highlight certain areas. The Thinnest LED Tapes utilize 2016 SMD LEDs as the light source, with each meter containing 200 pieces of LEDs. The length of each roll is 5 meters(16.4 feet), and the minimum cutting length is 10mm; the installer can cut to any size for your needs. Three colors are available: 3000K warm white, 4000K natural white, and 6500K cool white. The installer can use them for various applications. The Slim LED Strips feature double-sided adhesive tape on the back, making it easy to remove the protector and stick them to the desired installation location. They can work with PWM Light Dimmers to adjust the brightness freely.
Specifications
Type: Ultra-Thin Flexible LED Strips
Model: 4MM/2.7MM-DC5V-200LEDs
Width: 2.7mm/4mm
Length: 16.4FT/Roll
LED Type: 2016
LED Quantity: 200LEDs/M
Working Voltage.7V/DC5V
Power: 5W/M
Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White
Luminous Flux: 110LM/LED
Dimmable: YES
Beam Angle: 120°
IP Rating: IP20 Non-waterproof
Color Rendering Index: >
Back With Double-sided Adhesive Tape
Minimum Cutting Length: 10mm
Includes
1*Thinest LED Strips(5M/Roll)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
