Product details
DC24V IP68 Waterproof COB LED Tape Light
LumaCircuit offers DC24V IP68 Waterproof COB LED Tape Light as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Light Efficiency: 100-110LM/W Luminous Flux: 500-1650LM LED Quantity(Meter): 480PCS/M The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Voltage: DC24V DC12V
- Light Efficiency: 100-110LM/W
- Luminous Flux: 500-1650LM
- LED Quantity(Meter): 480PCS/M
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6500K)
- Installation: Surface Mounted Or Recessed
- Applications: Swimming Pools, Bathrooms, Wash Basin Lights, Outdoor Garden/Yard Lights, etc
- 1 * IP68 Waterproof COB LED Tape
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-NWMI3R
- Width: 5mm
- Length: 5M/Reel
- Working Voltage: DC24V DC12V
- Power: 10W/M
- LED Chips: San An
- LED Type: 1022
- LED Quantity(Meter): 480PCS/M
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6500K)
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model

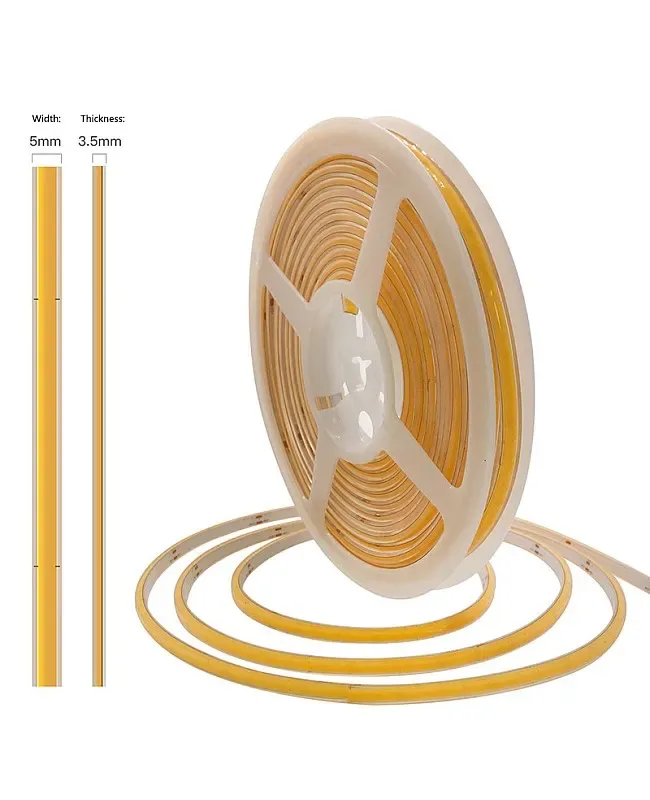

Width: 5mm
Thickness: 3mm
Length: 5M/Reel
Working Voltage: DC24V DC12V
Power: 10W/M
Light Efficiency: 100-110LM/W
Luminous Flux: 500-1650LM
LED Chips: San An
LED Type: 1022
LED Quantity(Meter): 480PCS/M
Colors: Warm White(3000K), Natural White(4000K), Cool White(6500K)
Dimmable: YES
CRI: >
Beam Angle: 180°
Waterproof Level: IP68
Cuttable: NO
Installation: Surface Mounted Or Recessed
Applications: Swimming Pools, Bathrooms, Wash Basin Lights, Outdoor Garden/Yard Lights, etc
Includes
1 * IP68 Waterproof COB LED Tape
Silicone Clips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
