Product details

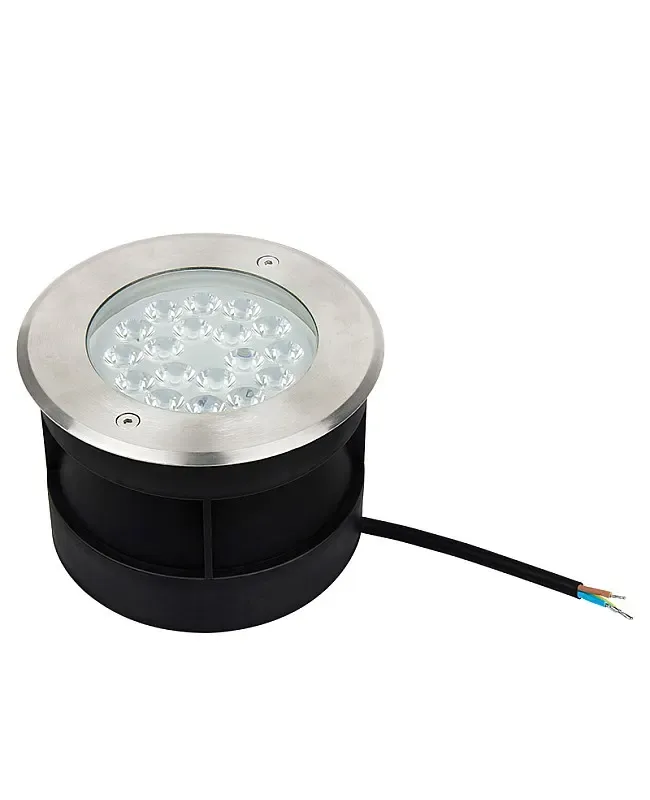

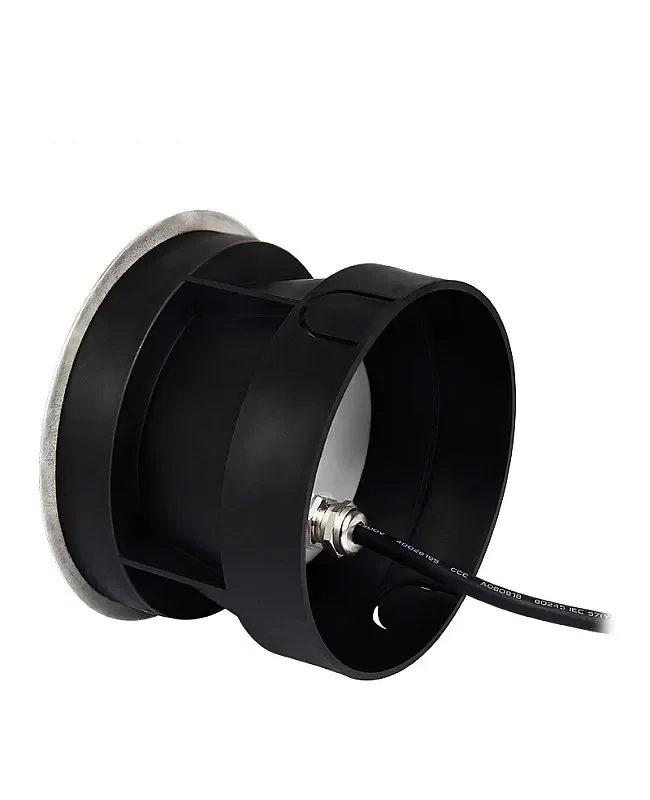

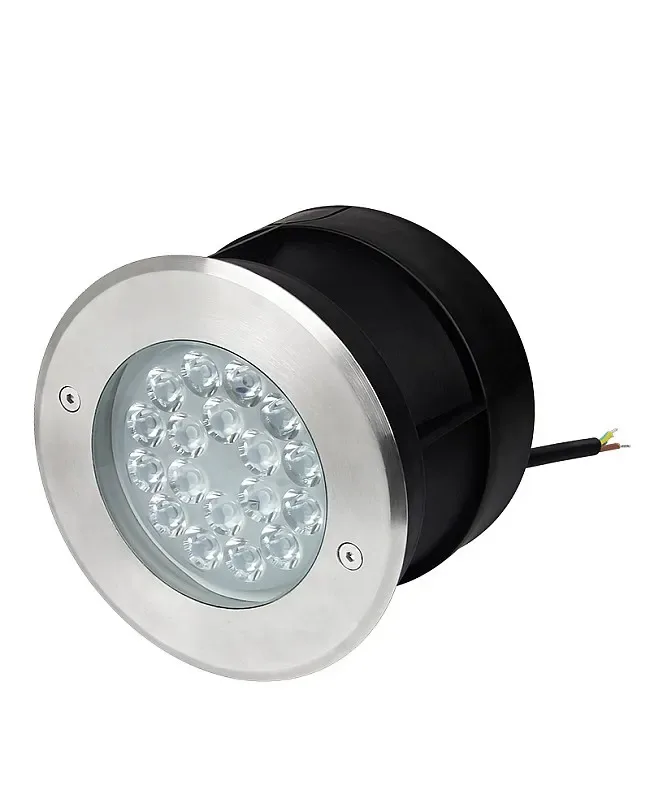

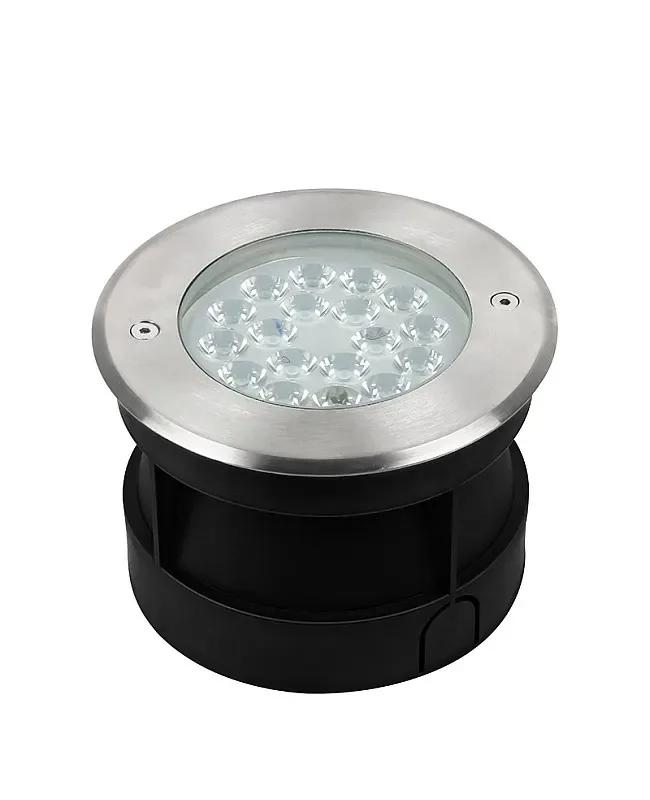

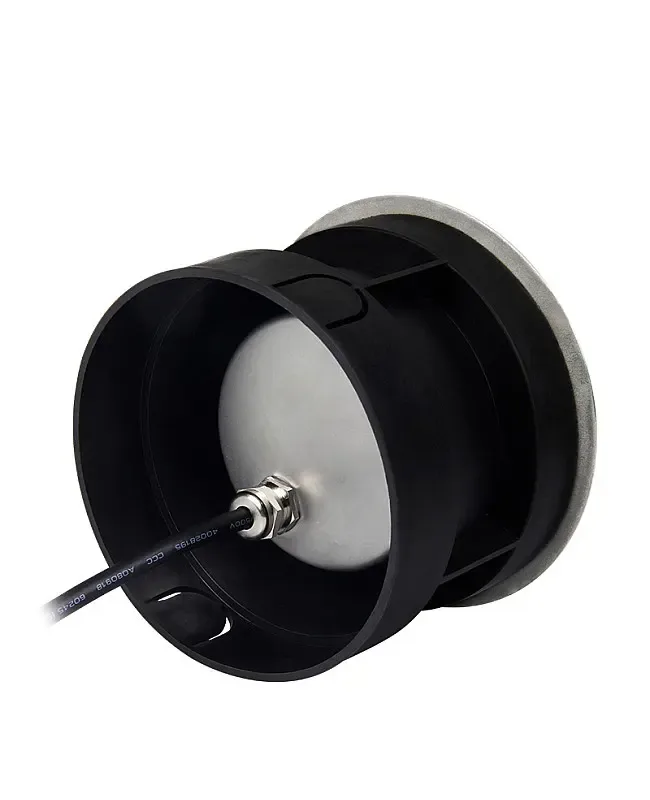

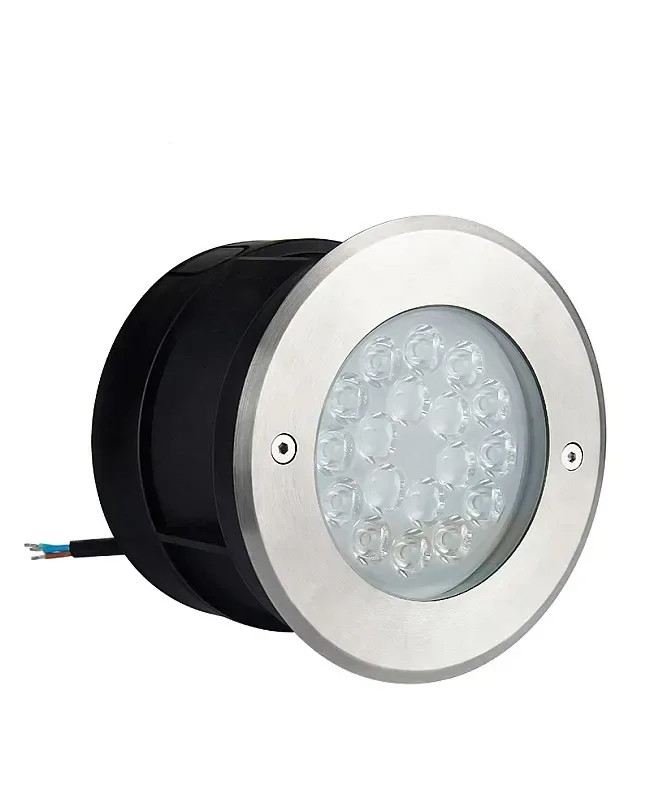

SYS 9W RGB+CCT In Ground Landscape Lights
LumaCircuit offers SYS 9W RGB+CCT In Ground Landscape Lights as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller Instruction Material: Aluminum + Stalinite Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller in-ground landscape Lights are great for adding light and color to your landscape. These lights feature adjustable brightness and color temperature, allowing you to customize the look of your outdoor lighting. It uses high-lumen LED chips as the light source, with a PC body for pressure and corrosion resistance. The surface with an anti-dazzling optical lens will deliver light scientifically, symmetrical, and bright light rays.
- wireless controller Instruction
- Material: Aluminum + Stalinite
- Color Temperature: 2700 K- 6500 K
- Light Efficiency: 80LM/W
- Color Temperature, Brightness, And Saturation Adjustable
- Stainless Steel Surface Ring
- Anti-dazzling Optical Lens
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- Material: Aluminum + Stalinite
- Size: 150*104mm(W*H)
- LumaCircuit model: LC-STR-9Z5M3K
- Working Voltage: DC24V
- Power: 9W
- Emitting Color: RGBWW
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15°
- IP Rating: IP68 Waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller in-ground landscape Lights are great for adding light and color to your landscape. These lights feature adjustable brightness and color temperature, allowing you to customize the look of your outdoor lighting. It uses high-lumen LED chips as the light source, with a PC body for pressure and corrosion resistance. The surface with an anti-dazzling optical lens will deliver light scientifically, symmetrical, and bright light rays. With a salinity mask, high hardness, nonbreakable, and high light transmittance. The wireless controller in-ground light with silicone rubber sealing ensures excellent waterproofness and safety. Working in DC24V low voltage, it is safe for children and pets. The in-ground lighting needs to work with 1 1-channel Host Controller to set the color and dynamic mode and adjust the saturation, color temperature, and brightness for various scenes. There are 16 million colors and 9 dynamic modes available. The installer can use the remote control to control the LED Light Remotely. The waterproof level is IP68, and the installer can install them in a wet, damp, or water location to withstand rain, sleet, and snow.
Quick Links
wireless controller Instruction
Specifications
Material: Aluminum + Stalinite
Size: 150*104mm(W*H)
Model
Working Voltage: DC24V
Power: 9W
Emitting Color: RGBWW
Color Temperature: 2700 K- 6500 K
Luminous Flux: 700LM
Light Efficiency: 80LM/W
16 Million Colors Available
9 Dynamic Modes Available
Color Temperature, Brightness, And Saturation Adjustable
CRI: >
Beam Angle: 15°
High Lumen LED Chips
Stainless Steel Surface Ring
Stalinite Mask
Anti-dazzling Optical Lens
Pressure And Corrosion Resistance PC Body
IP Rating: IP68 Waterproof
Need To Work With 1-Channel Host Controller
3 Pin Connector And Cable Sold Separately
Working Temperature: -20℃-+60℃
Includes
1 * wireless controller 9W In-Ground Landscape Lights
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
