Ultra Slim 2.7mm Individually Addressable WS2812B LED Strip
LumaCircuit offers Ultra Slim 2.7mm Individually Addressable WS2812B LED Strip as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Products. The installer can need to light up the 2.7mm addressable strip lights: mini inline SPI light controller DC5V wall power adapter Type: Individually addressable digital LED strips Working voltage: DC5V/DC12V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the listed WS2812B LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The ultra-slim individually addressable WS2812B LED strip offers unparalleled flexibility and control. Its slim design enables them to fit into tight spaces without compromising brightness or performance. A WS2812B IC controls each LED on the strips and can be addressed separately, allowing it to work with the SPI LED controller to achieve hundreds of lighting effects and stunning patterns. The minimum cutting length is 12.5mm, and every 2 LEDs can be cut and reconnected to fulfill your needs.
- Products. The installer can need to light up the 2.7mm addressable strip lights: mini inline SPI light controller DC5V wall power adapter
- Type: Individually addressable digital LED strips
- Working voltage: DC5V/DC12V
- LED quantity: 160 LEDs/Meter
- IC quantity: 160PCS/Meter
- Wattage: 6W/M(DC5V), 5W/M(DC12V)
- IP rating: IP30 non-waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V
- Light engine: Addressable
- WLED chip: WS2812B
- LumaCircuit model: LC-STR-1BN3KW
- Working voltage: DC5V/DC12V
- LED quantity: 160 LEDs/Meter
- Wattage: 6W/M(DC5V), 5W/M(DC12V)
- Colors: RGB full color
- IP rating: IP30 non-waterproof
- Length: 5 meters/16.4ft per roll
- Pins: V+ (red wire), DATA (green wire), GND (white wire)
- Minimum cutting length: 12.5mm (every 2 LEDs)
Control and installation
Use this product on the WLED ambient route. Match the controller to the listed WS2812B LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

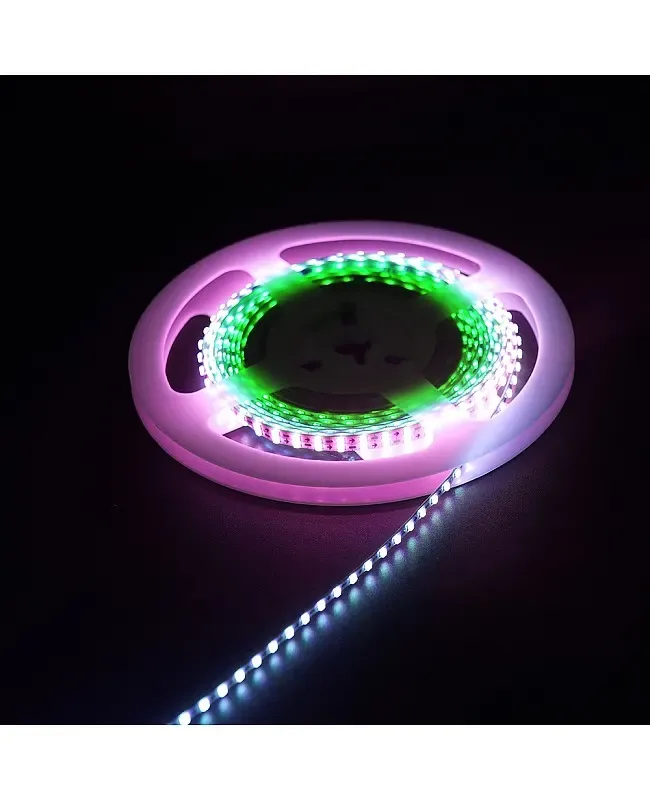

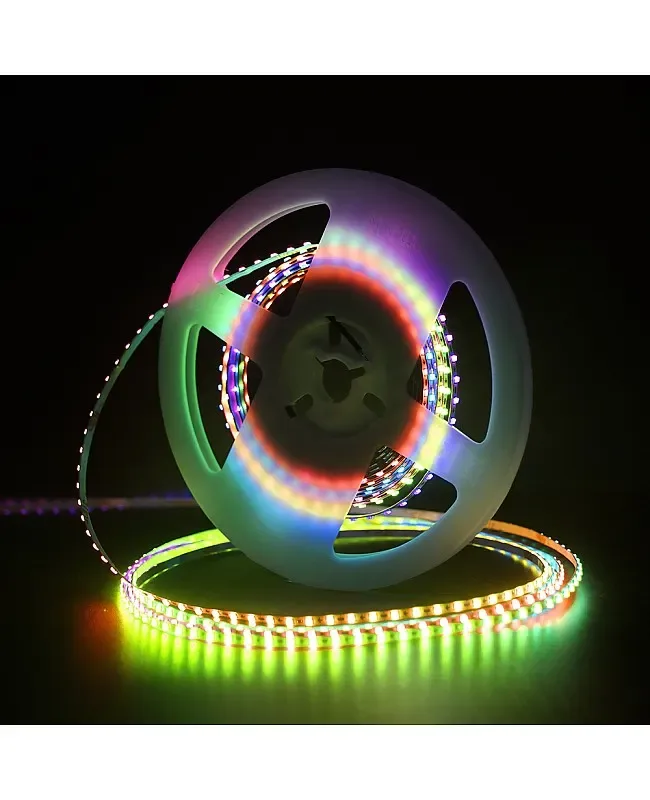

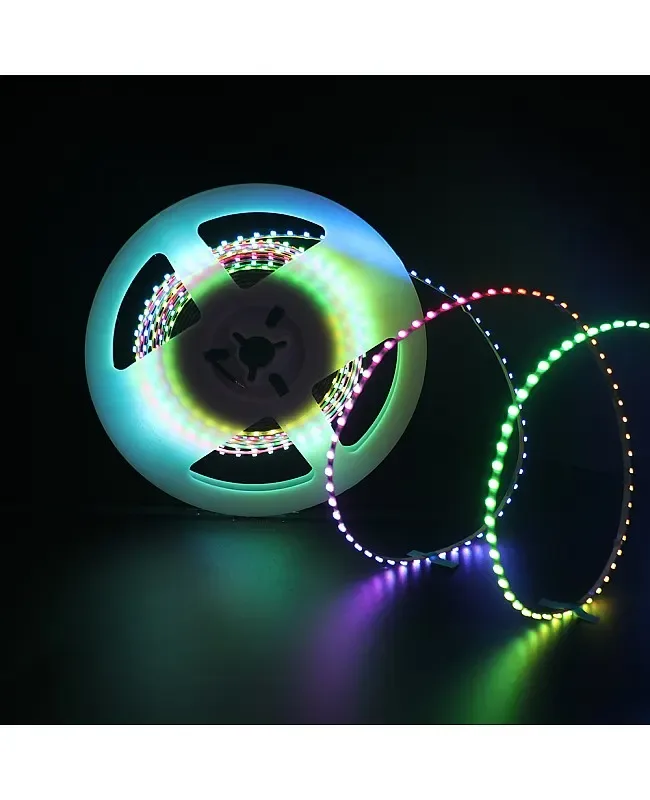

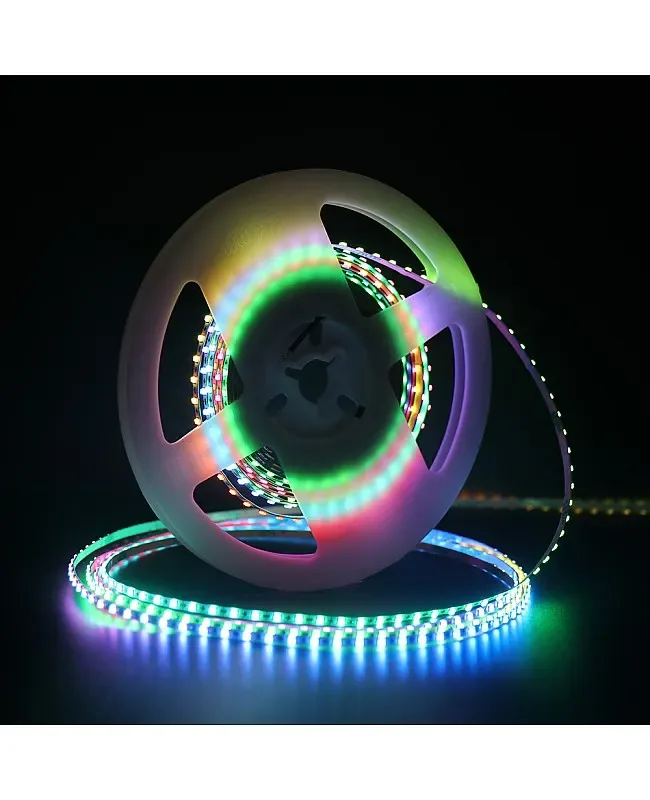

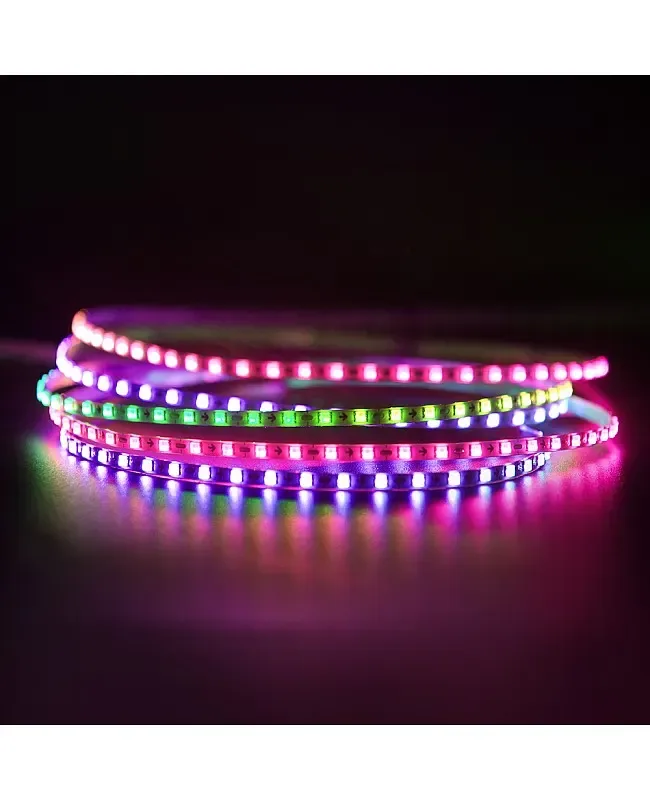

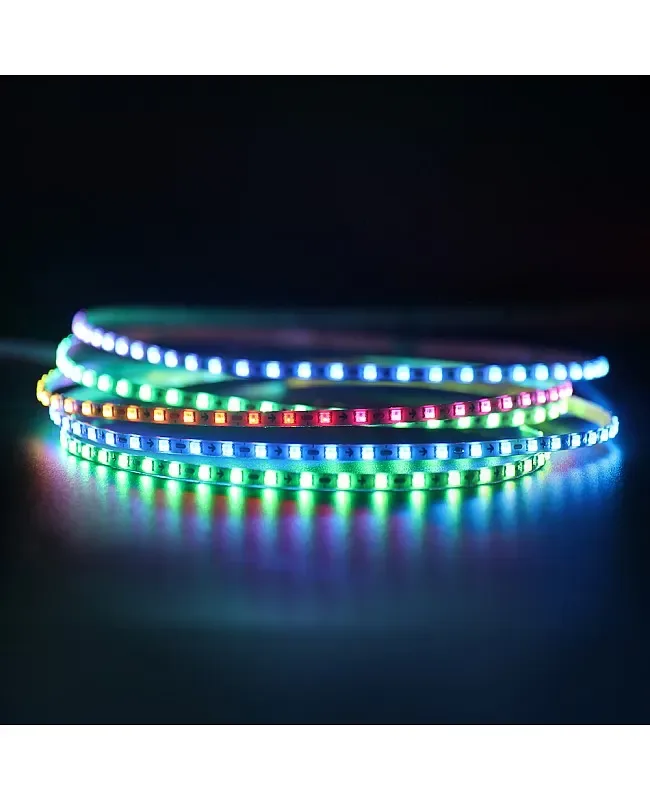

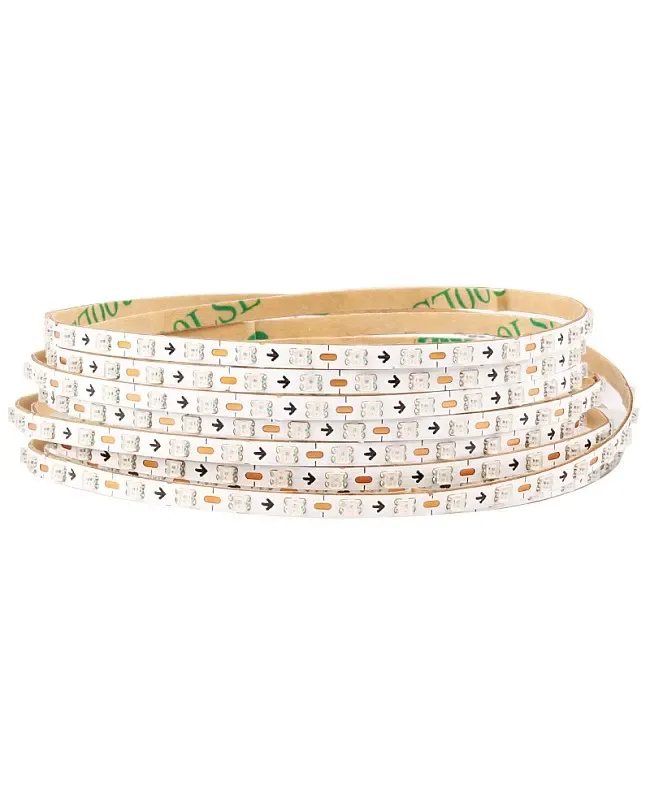

The ultra-slim individually addressable WS2812B LED strip offers unparalleled flexibility and control. Its slim design enables them to fit into tight spaces without compromising brightness or performance. A WS2812B IC controls each LED on the strips and can be addressed separately, allowing it to work with the SPI LED controller to achieve hundreds of lighting effects and stunning patterns. The minimum cutting length is 12.5mm, and every 2 LEDs can be cut and reconnected to fulfill your needs. The back features double-sided adhesive tape, making it easy to remove the protective paper and stick it to the desired installation location. Whether you want to create ambient lighting in your home or add a vibrant touch to your next DIY project, the 2.7mm narrow LED strip is perfect.
Products. The installer can need to light up the 2.7mm addressable strip lights: mini inline SPI light controller DC5V wall power adapter
Specifications
Model: 2.7-SMD-RGBIC
Type: Individually addressable digital LED strips
IC type: WS2812B
Working voltage: DC5V/DC12V
LED quantity: 160 LEDs/Meter
IC quantity: 160PCS/Meter
Wattage: 6W/M(DC5V), 5W/M(DC12V)
Colors: RGB full color
IP rating: IP30 non-waterproof

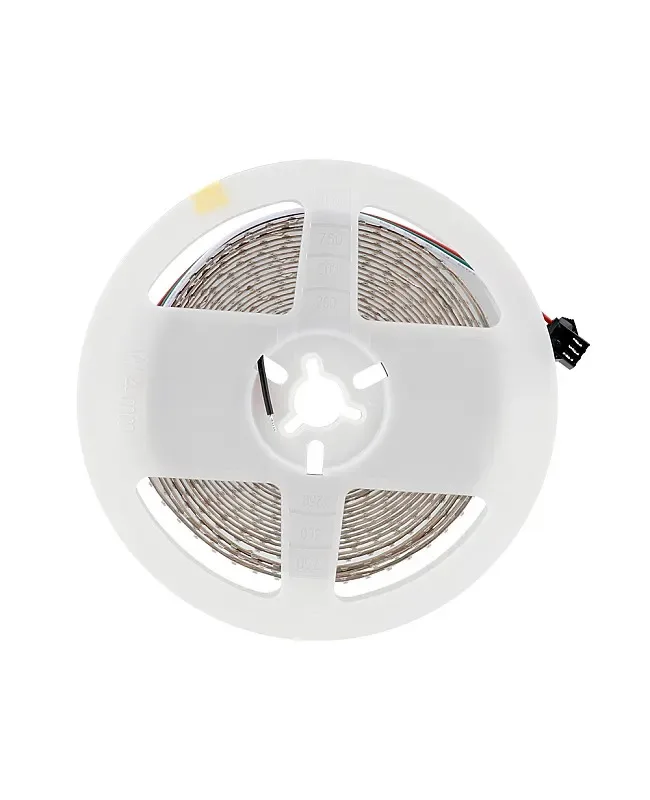

Length: 5 meters/16.4ft per roll
View angle: 180°
Pins: V+ (red wire), DATA (green wire), GND (white wire)
Minimum cutting length: 12.5mm (every 2 LEDs)
Both ends have light connectors
The back has double-sided adhesive tape
Working temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
Includes
1 * 2.7mm WS2812B LED strips
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
