DC5V Battery Powered COB LED Strip Lights Ultra Thin 4MM
LumaCircuit offers DC5V Battery Powered COB LED Strip Lights Ultra Thin 4MM as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Size( W x H ): 4mm x 1.6mm ( 0.16" x 0.06" ) Length: 5 meters ( 16.4ft ) per roll Colors: Warm White(3000K), Natural White(4000K), 6500K(Cool White), Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

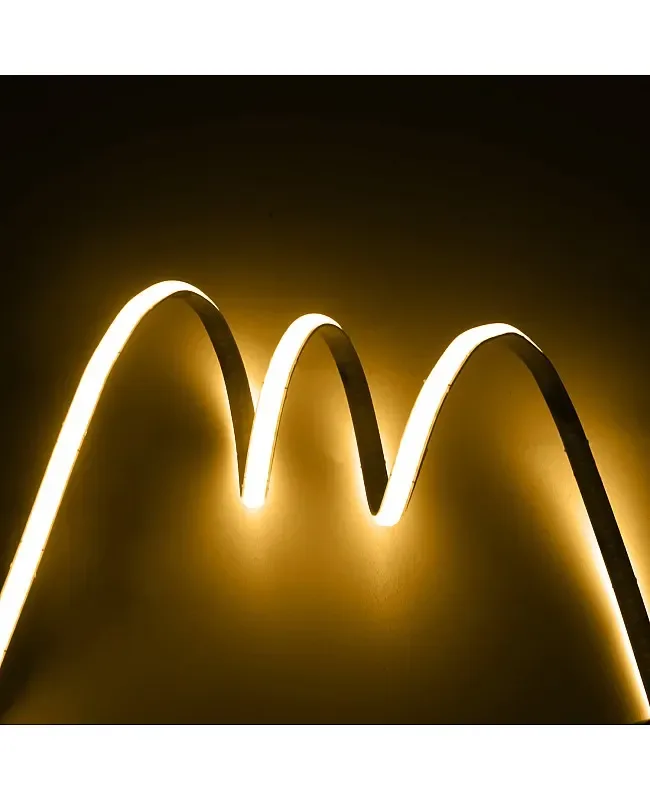

- The 4mm COB strip LED lights operate on 5V DC and can be powered by batteries, power banks, and battery packs. They are designed to be incredibly thin and lightweight, making them an excellent choice for projects that require narrow, bright, and uniform light. The ultra-thin LED strips, with their flexible, bendable construction, make it easy to install in various locations. The double-sided adhesive tape allows for easy and secure attachment.

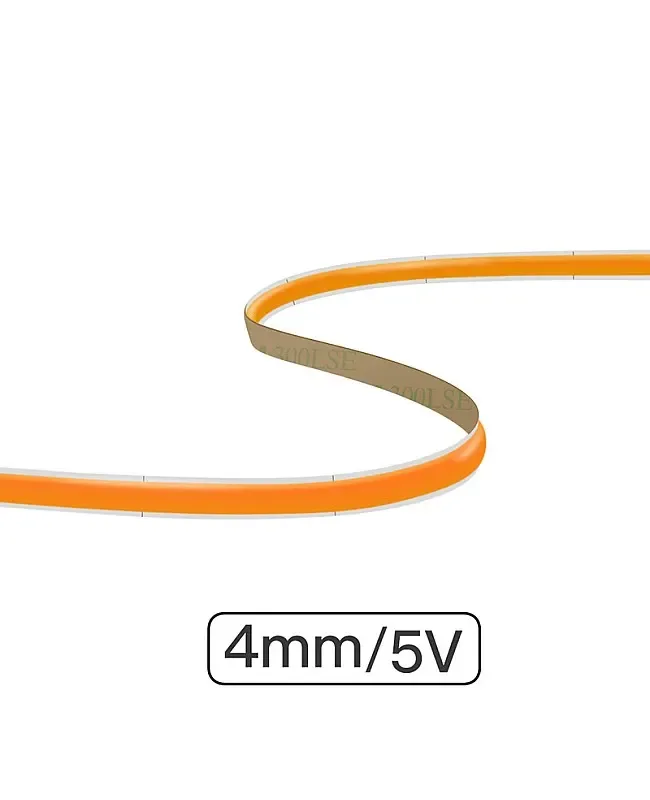

- Size( W x H ): 4mm x 1.6mm ( 0.16" x 0.06" )

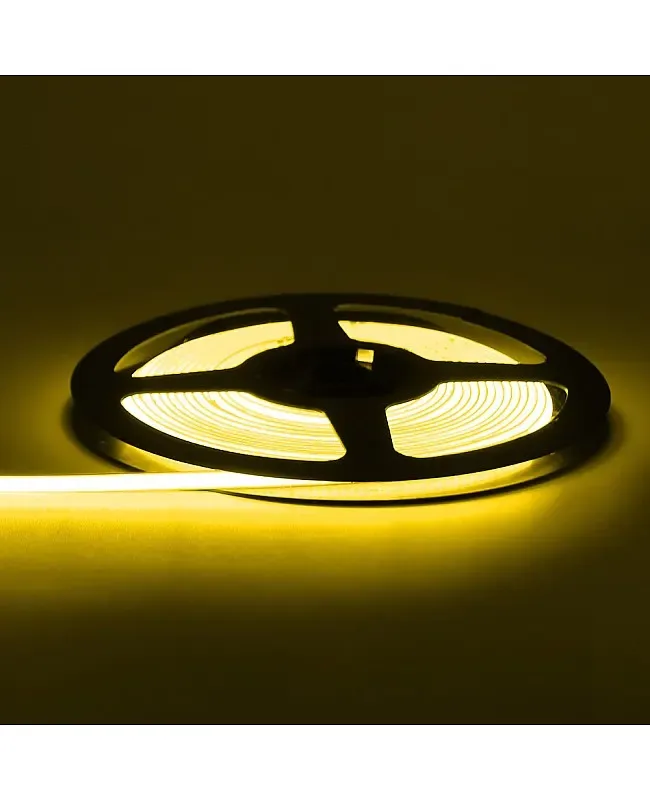

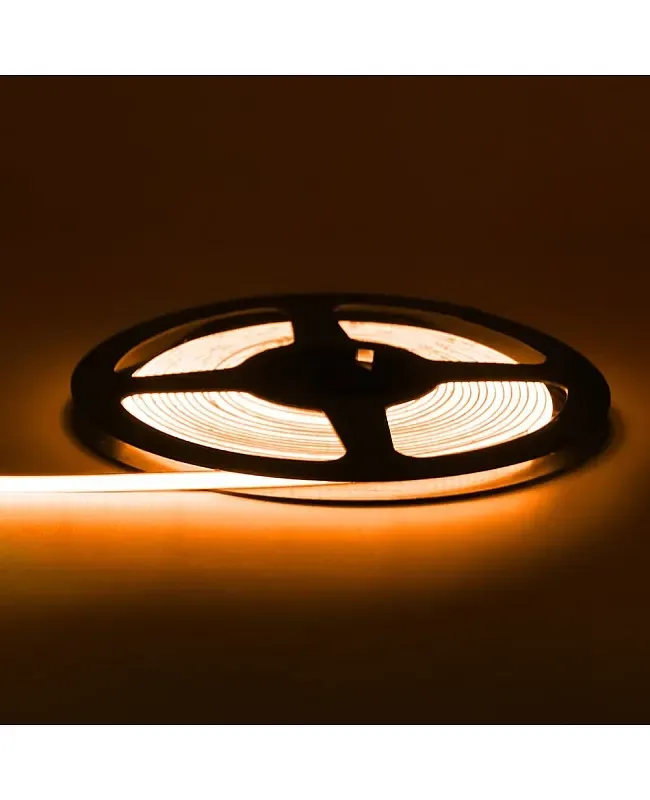

- Length: 5 meters ( 16.4ft ) per roll

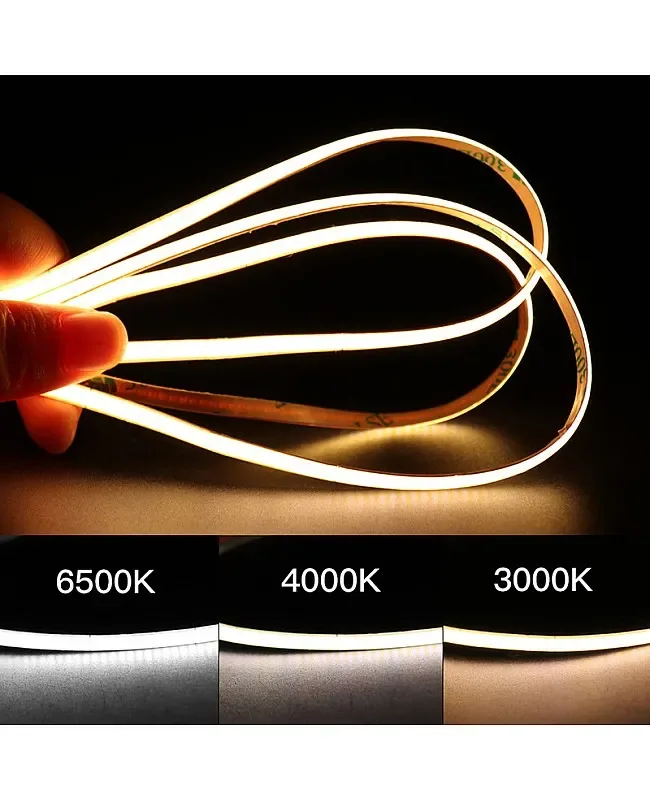

- Colors: Warm White(3000K), Natural White(4000K), 6500K(Cool White), Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow
- Illumination ffficiency: 100-110LM/W
- Luminous flux: 500-1650LM
- Waterproof level: IP20 non-waterproof
- Mini cuttable length: 12.5mm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- LumaCircuit model: LC-STR-83KP65
- Size( W x H ): 4mm x 1.6mm ( 0.16" x 0.06" )
- Length: 5 meters ( 16.4ft ) per roll
- Working voltage: DC5V
- LED chip brand: San-an
- LED chip: 1022
- LED quantity: 480 PCS/M
- Power: 5W/m
- Colors: Warm White(3000K), Natural White(4000K), 6500K(Cool White), Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

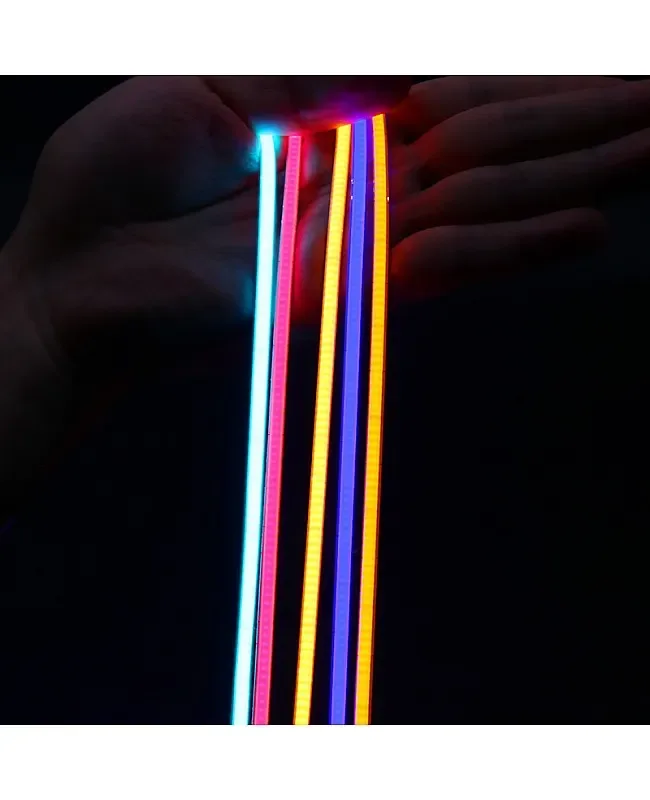

The 4mm COB strip LED lights operate on 5V DC and can be powered by batteries, power banks, and battery packs. They are designed to be incredibly thin and lightweight, making them an excellent choice for projects that require narrow, bright, and uniform light. The ultra-thin LED strips, with their flexible, bendable construction, make it easy to install in various locations. The double-sided adhesive tape allows for easy and secure attachment. They are also suited to accent lighting, as they can create interesting visual effects. With a high-density LED chip design featuring 480 LED chips per meter, this product eliminates visible light dots and dark areas, providing brighter, more uniform light than SMD strip lights. It creates a seamless line of light and boasts a CRI of 90+ for high-quality color rendering. The battery LED strips are cuttable, with a minimum cutting length of 12.5mm. The installer can cut them to any size for your project, suitable for buildings, signs, holiday decorations, cars, cabinets, wardrobes, and more. Connect to a light dimmer to adjust the brightness from 1% to 100%. Various color products are available, including warm white (3000K), natural white (4000K), cool white (6500 K), and other single colors.
Specifications
Model
Size( W x H ): 4mm x 1.6mm ( 0.16" x 0.06" )
Length: 5 meters ( 16.4ft ) per roll
Working voltage: DC5V
LED chip brand: San-an
LED chip: 1022
LED quantity: 480 PCS/M
Power: 5W/m

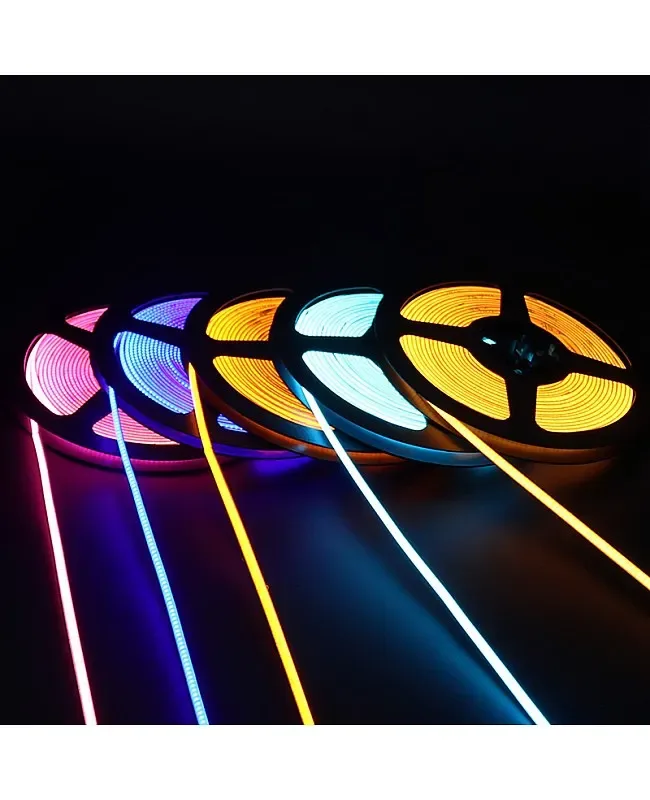

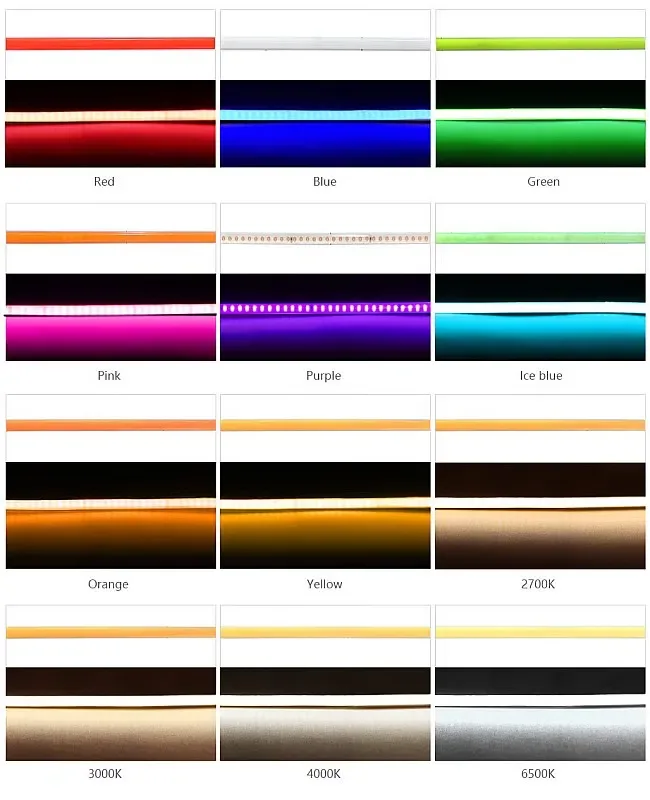

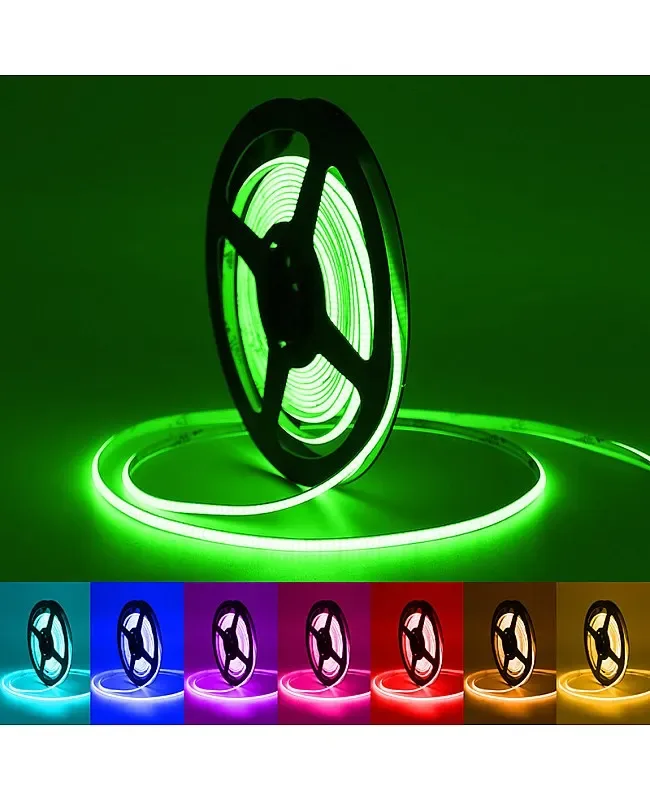

Colors: Warm White(3000K), Natural White(4000K), 6500K(Cool White), Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow
Illumination ffficiency: 100-110LM/W
Luminous flux: 500-1650LM
CRI: >
0-100% dimmable
Waterproof level: IP20 non-waterproof
Beam angle: 180°
Cuttable: YES
Mini cuttable length: 12.5mm

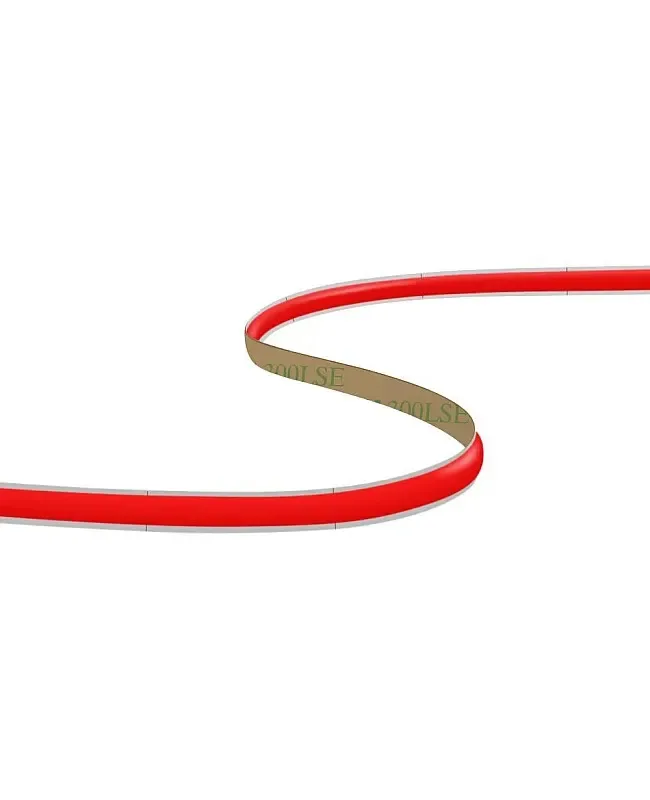

The back has double-sided adhesive tape
Can be operated by batteries, power banks, or battery packs
The COB LED strips do not come with a battery, battery housing, or power bank
Applications: In toys, under cabinets, in furniture, models, etc
Includes
1 * Battery-operated ultra thin LED light strips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
