Dimmable Flexible Single Colour COB LED Strip 24V
LumaCircuit offers Dimmable Flexible Single Colour COB LED Strip 24V as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Working Voltage: DC12V/DC24V Emitting Colors: Warm White(3000K)/Natural White(4000K)/Cool White(6000K) Power: 10W(8mm), 15W(10mm) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The single colour COB LED strips, and products are available, 5 meters per reel, and the minimum cuttable length is 4.5cm; the installer can cut to any length for your project following the cuttable marks. The 24V LED strips with new COB LED technology produce seamless linear light without an extra diffuser. 528PCS high-quality San An LED chips are mounted on the double-layer flexible PCB board to create a smooth, seamless line of light, not showing visible light dots and hot spots.
- Working Voltage: DC12V/DC24V
- Emitting Colors: Warm White(3000K)/Natural White(4000K)/Cool White(6000K)
- Power: 10W(8mm), 15W(10mm)
- Luminous Flux: >100Lm/W(±10%)
- IP Rating: IP20 Non-waterproof
- Color Rendering Index: >
- Minimum Cuttable Length: 22.73mm, 45.45mm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: CCT
- Working Voltage: DC12V/DC24V
- Length: Reel(16.4FT)
- Width: 8mm/10mm
- LED Brand: San An
- LED QTY: 528 LEDs/Meter
- Emitting Colors: Warm White(3000K)/Natural White(4000K)/Cool White(6000K)
- Power: 10W(8mm), 15W(10mm)
- IP Rating: IP20 Non-waterproof
- Beam Angle: 180°
- Color Rendering Index: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

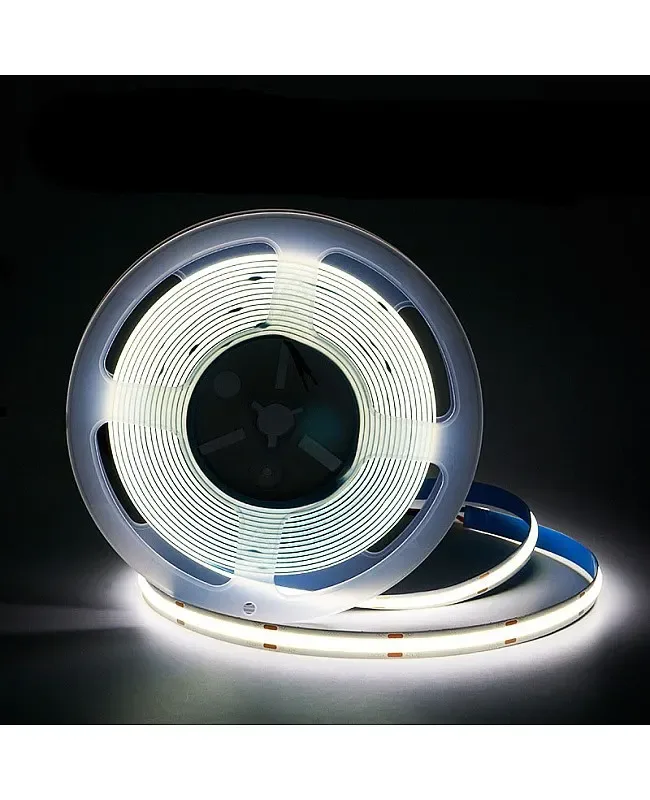

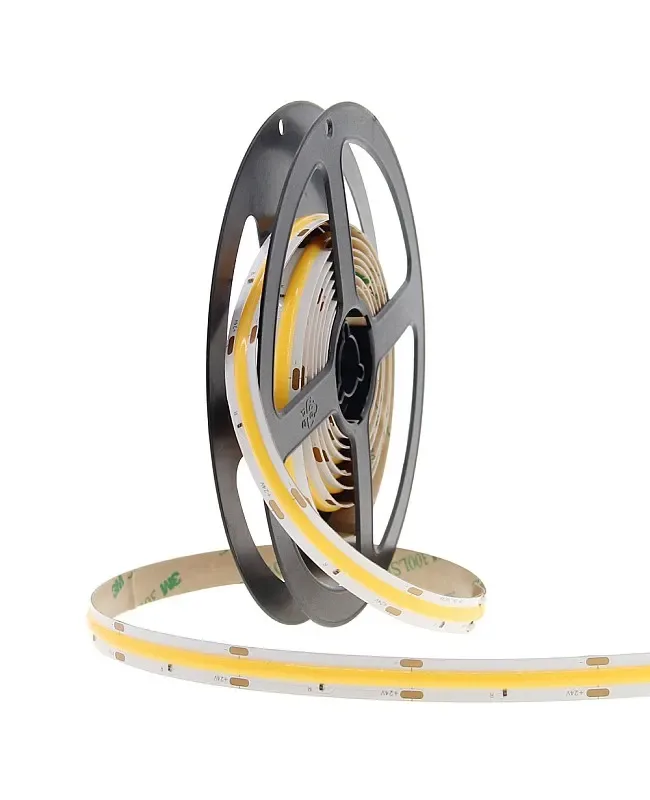

The single colour COB LED strips, and products are available, 5 meters per reel, and the minimum cuttable length is 4.5cm; the installer can cut to any length for your project following the cuttable marks. The 24V LED strips with new COB LED technology produce seamless linear light without an extra diffuser. 528PCS high-quality San An LED chips are mounted on the double-layer flexible PCB board to create a smooth, seamless line of light, not showing visible light dots and hot spots. The widths are 8mm or 10mm available, and the installer can choose various widths of flexible LED strip lighting for your project, which can be installed in a narrow location. The dimmable LED strips are non-waterproof and only recommended for indoor applications. The back has double-sided adhesive tape, making it easy to stick to where you want to install it. With a high color rendering index value of up to 90+, it is a solution for areas where quality color rendering is needed. There are three emitting colors of products available, and the installer can choose warm white, natural white, or cool white for task lighting, countertop lighting, or lights under cabinets, coves, display cases, art galleries, etc.
Specifications
Working Voltage: DC12V/DC24V
Length: Reel(16.4FT)
Width: 8mm/10mm
LED Brand: San An
LED QTY: 528 LEDs/Meter
Emitting Colors: Warm White(3000K)/Natural White(4000K)/Cool White(6000K)
Power: 10W(8mm), 15W(10mm)
Luminous Flux: >100Lm/W(±10%)
IP Rating: IP20 Non-waterproof
Beam Angle: 180°
Color Rendering Index: >
Minimum Cuttable Length: 22.73mm, 45.45mm
For A Longer Max Run
0-100% Dimmable
NEW COB LED Technology For Seamless Linear Light
Without Visible Dots And Hot Spots

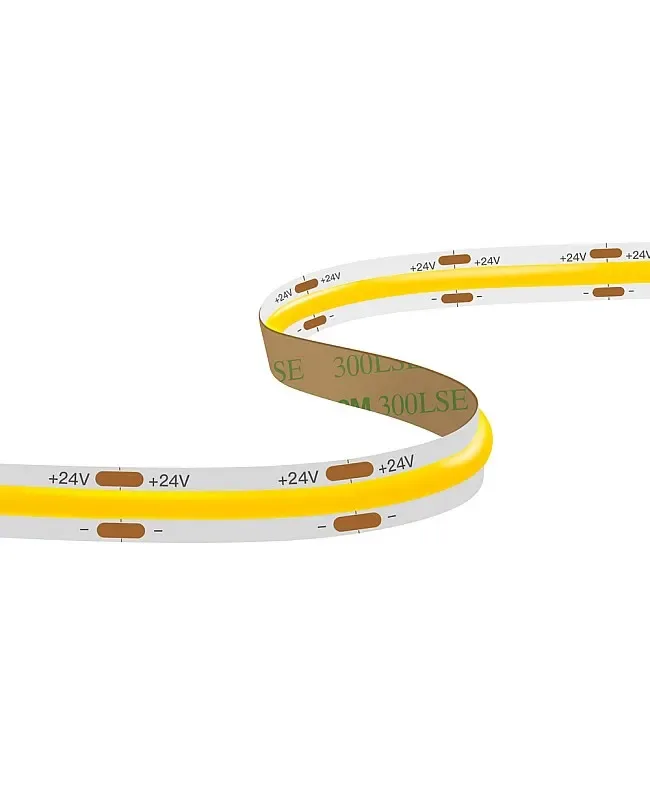

Back With Double-Sided Adhesive Tape
Working Temperature: -20℃-+40℃
Includes
1 * Single Colour COB LED Strip(Reel)

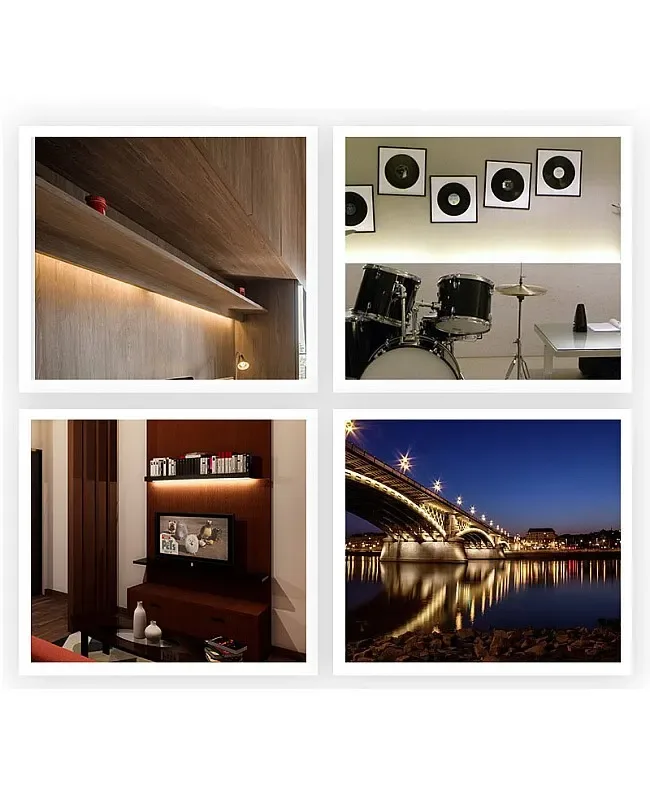

Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
