WS2812B LED Strips 5MM 5050 SMD DC5V Individually Addressable

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

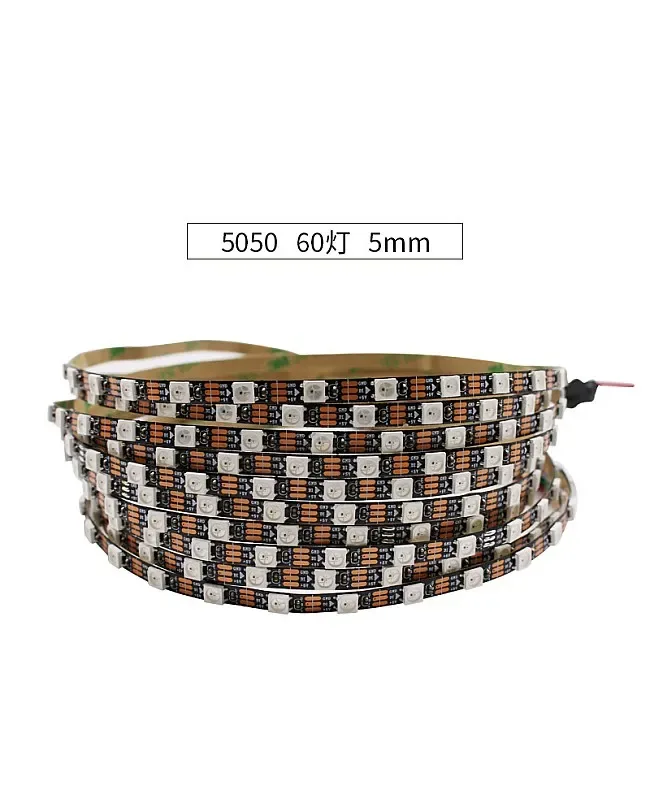

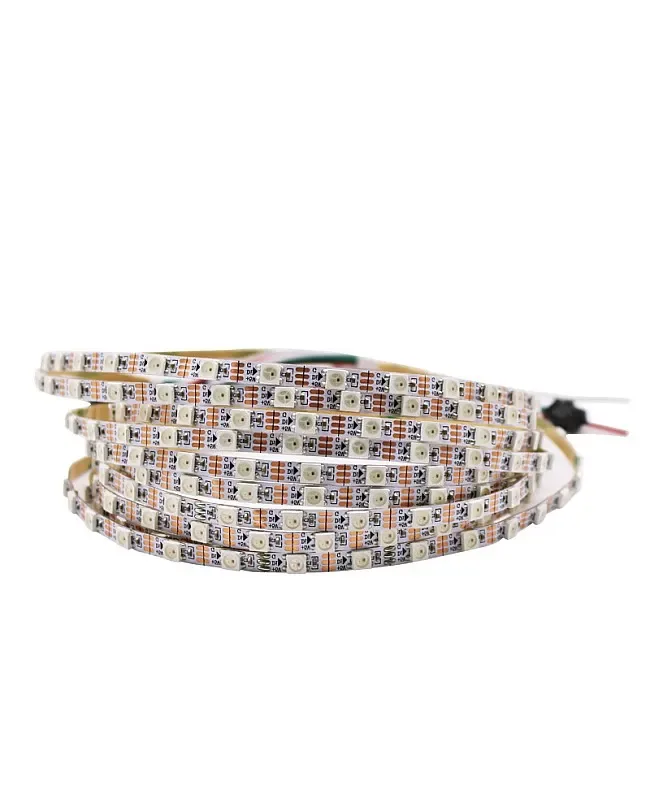

• The WS2812B LED strips, which feature an ultra-narrow size design with a width of only 5mm, allowing for easy installation in small and narrow locations. The Flexible LED Strips use the San An 5050 SMD LEDs as the light source. 60PCS LED Strip Lamps mounted on the dual layer PCB board, flexible and bendable. The 5050 SMD LEDs are built with the WS2812B IC for individually addressable, low power consumption, improved heat dissipation, and enhanced light efficiency.
• Size: 5000*5*1.6mm(L*W*H)
• IC Type: WS2812B Built-in

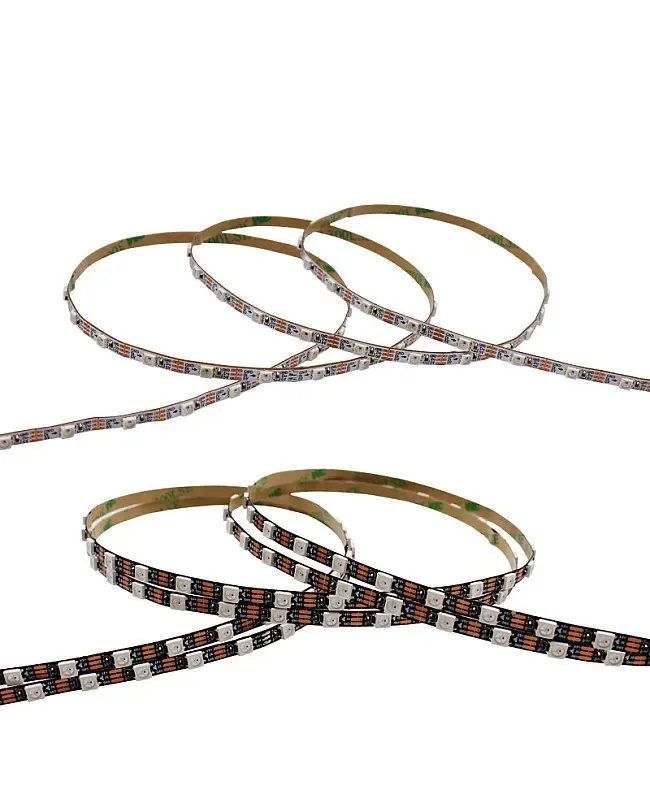

• Colors Of PCB Board: Black/White

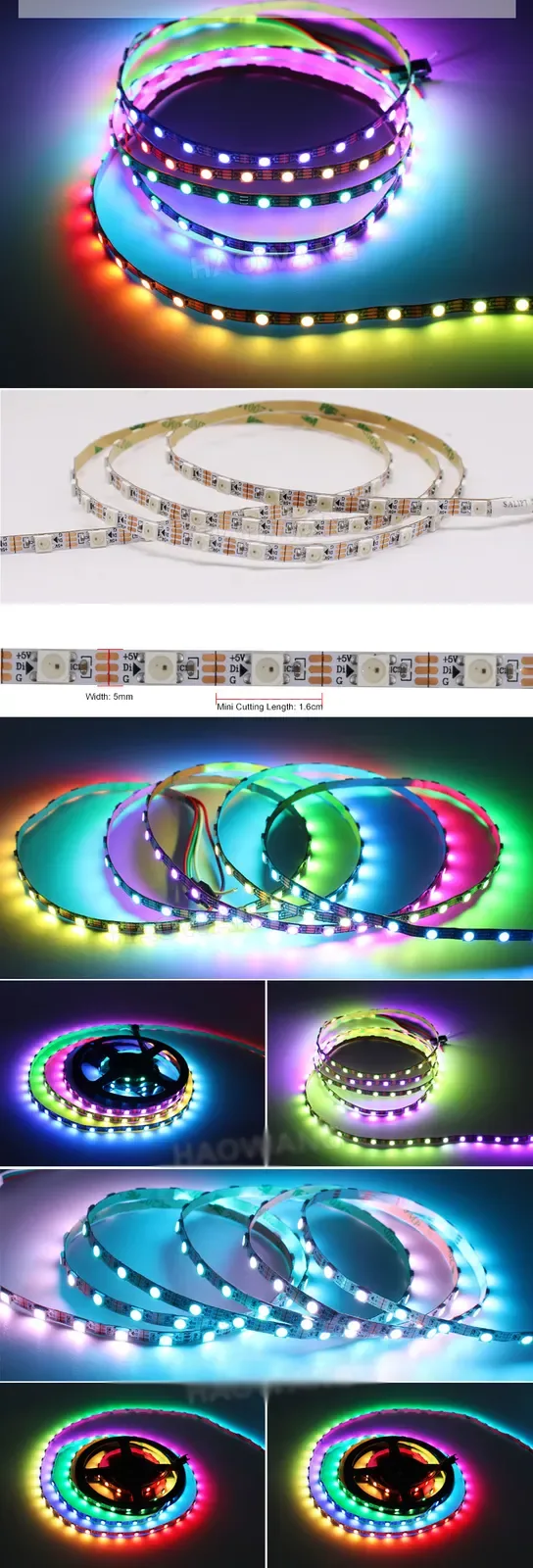

• Mini Cutting Length: 1.6cm
• IP Rate: IP20 Non-waterproof
• Back With Double-Sided Adhesive Tape
• Recommended Controllers etc

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V
• Light engine: Addressable
• WLED chip: WS2812B
• LumaCircuit model: LC-STR-2Y7KXO
• Size: 5000*5*1.6mm(L*W*H)
• Working Voltage: DC5V
• LED Brand: San An
• LED Type: 5050 SMD LEDs
• LED Quantity: 60LEDs/M
• Colors Of PCB Board: Black/White
• Colors: Dreamcolor RGB
• Power: 18W/M

Control and installation

Use this product on the WLED ambient route. Match the controller to the listed WS2812B LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

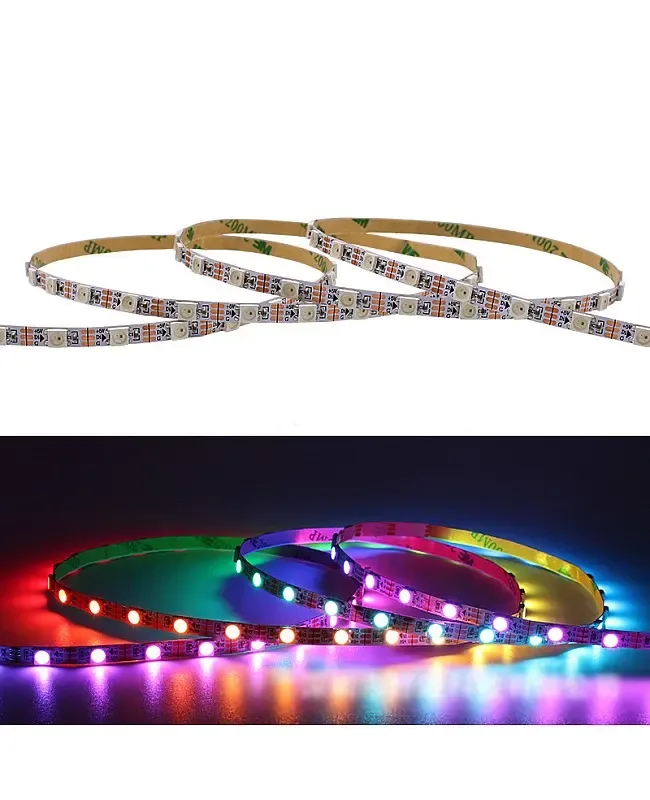

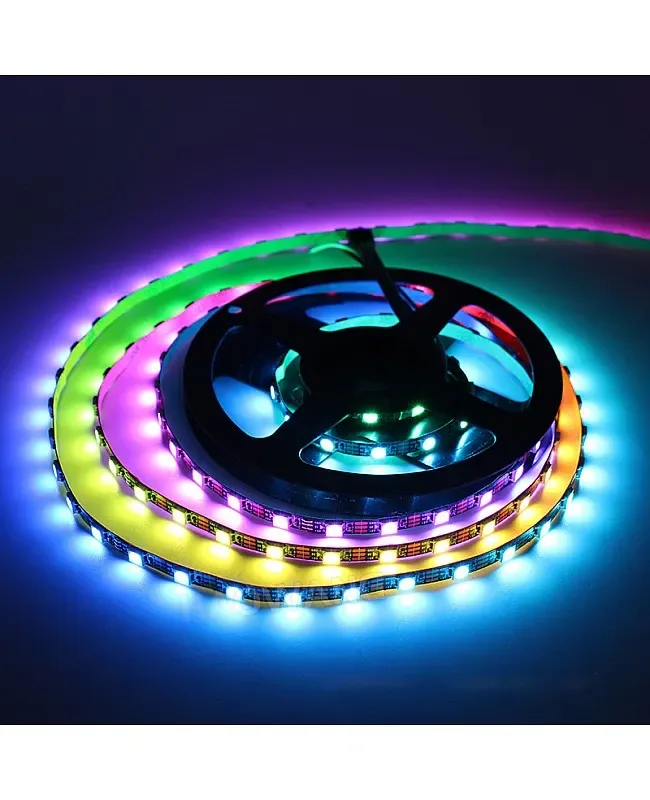

The WS2812B LED strips, which feature an ultra-narrow size design with a width of only 5mm, allowing for easy installation in small and narrow locations. The Flexible LED Strips use the San An 5050 SMD LEDs as the light source. 60PCS LED Strip Lamps mounted on the dual layer PCB board, flexible and bendable. The 5050 SMD LEDs are built with the WS2812B IC for individually addressable, low power consumption, improved heat dissipation, and enhanced light efficiency. With the one-LED, one-circuit design, every LED can be easily cut and reconnected. The mini-cutting length is 1.6cm. The back features double-sided adhesive tape, making it easy to remove the protector paper and stick the WS281B LED Strips in place for interior lighting projects. Both sides come with 3Pin SM Connectors, easy to connect to Pixel LED Controllers to achieve hundreds of amazing lighting effects like color-chasing, static, raindrop, fire, meteor, rhythm, etc. 256 brightness levels, and 24-bit color display. The LED Strips operate on 5V DC; to maintain uniform brightness across all LEDs, the installer should add a 5V voltage source every 5 meters.

Specifications

Model

Size: 5000*5*1.6mm(L*W*H)

Working Voltage: DC5V

LED Brand: San An

LED Type: 5050 SMD LEDs

LED Quantity: 60LEDs/M

IC Type: WS2812B Built-in

IC Quantity: 60 PCS/M

Colors Of PCB Board: Black/White

Colors: Dreamcolor RGB

Power: 18W/M

Mini Cutting Length: 1.6cm

Beam Angle: 120°

Dimmable: YES

Grayscale: 256 Levels

IP Rate: IP20 Non-waterproof

Back With Double-Sided Adhesive Tape

Connectors: 3Pin SM

Recommended Controllers etc

Includes

1 * WS2812B LED Strips(5M/Reel)
