Product details
60LEDs Per Meter 3528 RGB LED Strip
LumaCircuit offers 60LEDs Per Meter 3528 RGB LED Strip as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Color available: RGB, Blue, White, Red, Green, Warm White LED Quantity: 60PCS Per Meter IP Rating: IP20, IP65, IP67, IP68 The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 3528 RGB LED strips, which use the red, blue, and green 3528 SMD LEDs as the light source, have 60 LEDs per meter and 5 meters per reel. The width is 8mm and backed with double-sided adhesive tape, and the installer can choose from various waterproof products for indoor or outdoor installations. The IP20 non-waterproof and IP65 waterproof RGB LED strip lights can be used indoors, and IP67 and IP68 waterproof RGB LED strip lights can be used outdoors.
- Color available: RGB, Blue, White, Red, Green, Warm White
- LED Quantity: 60PCS Per Meter
- IP Rating: IP20, IP65, IP67, IP68
- Size Width: 8mm; thickness: 2mm
- Back With Double-Sided Adhesive Tape
- 1 * 3528 RGB LED strip( Per Reel)

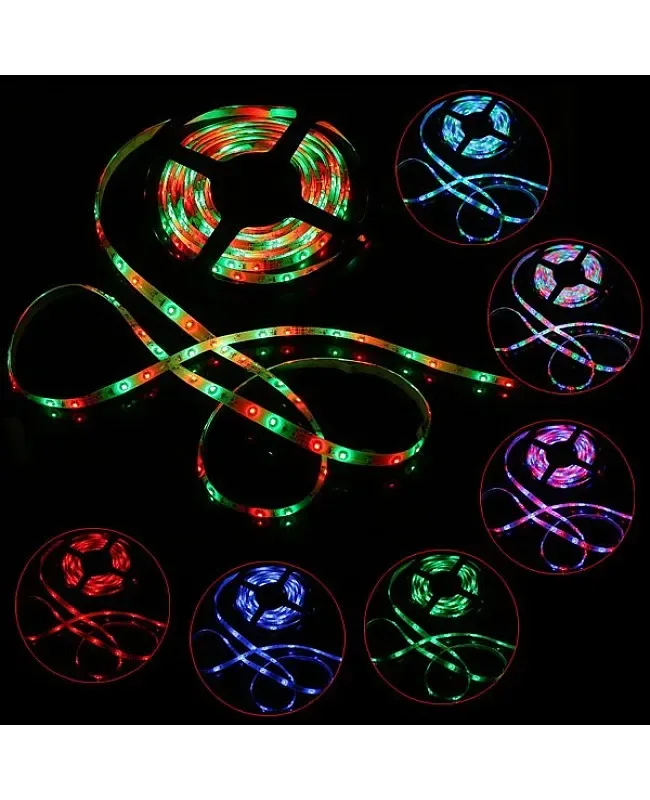

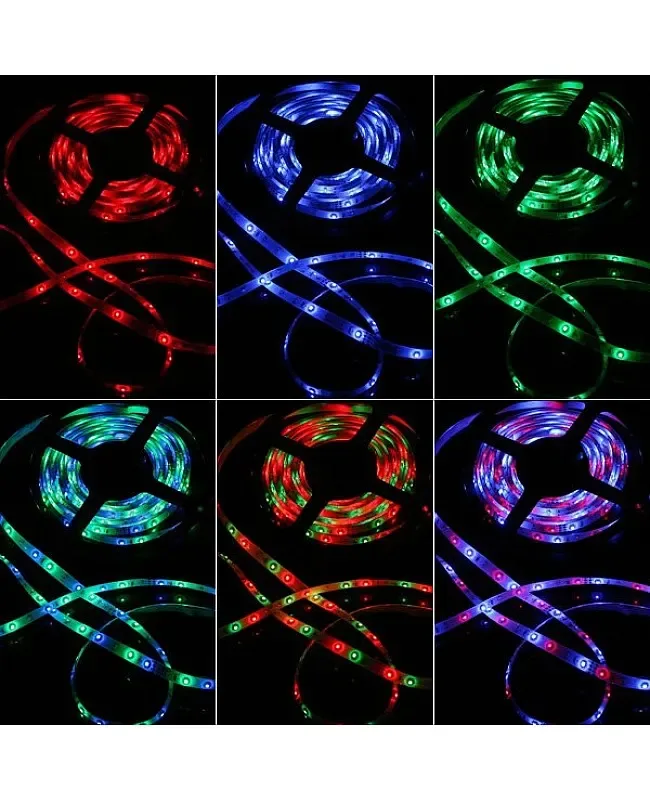

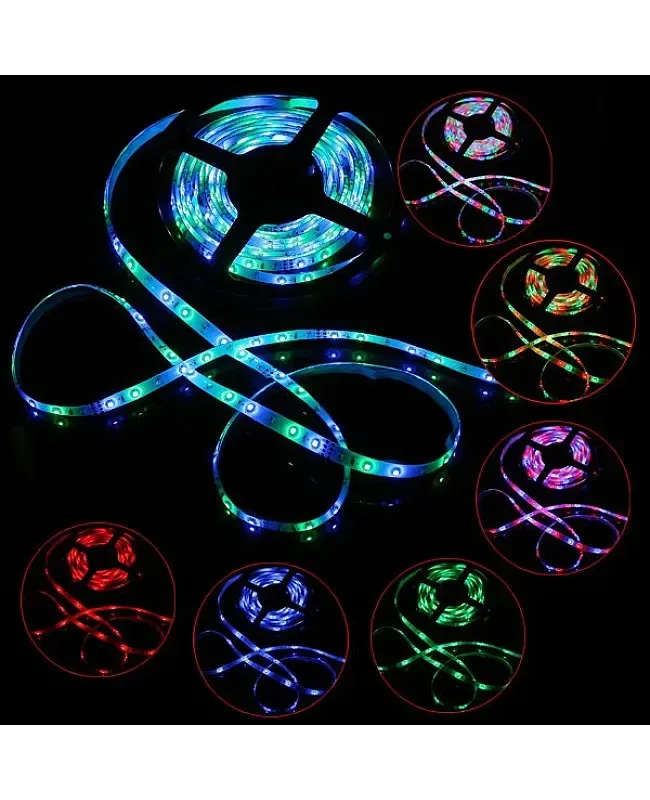

- The 3528 RGB LED Strips, use the red, green and blue LEDs as the light source, per reel and 60LEDs per meter, can work with RGB LED Controller to chang the static colors or the dynamic modes.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-1SP61N
- Color available: RGB, Blue, White, Red, Green, Warm White
- LEDs: 3528 SMD LEDs
- LED Quantity: 60PCS Per Meter
- Beam Angle: 120°
- IP Rating: IP20, IP65, IP67, IP68
- Working Voltage: DC12V
- Power: 4.8W/Meter
- Lumens: UP to 1100lm
- Size Width: 8mm; thickness: 2mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

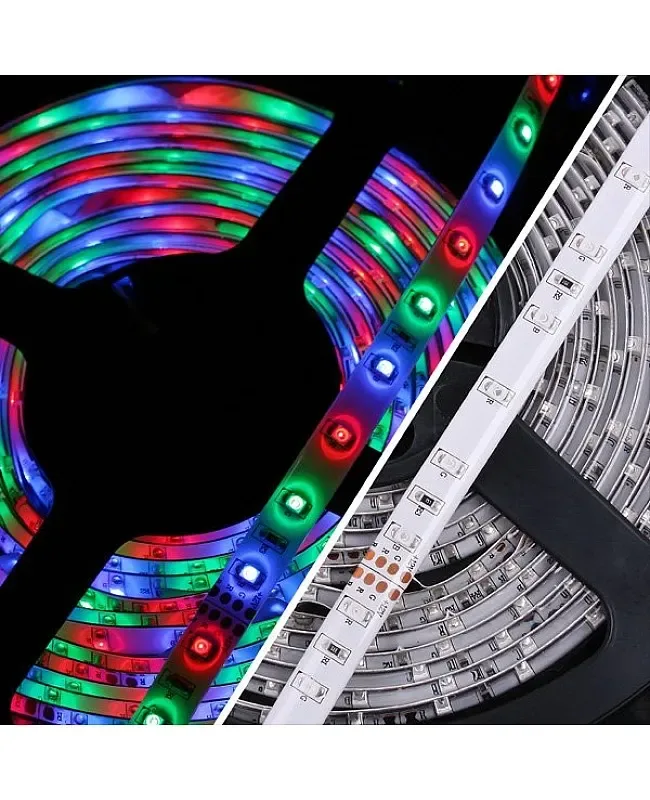

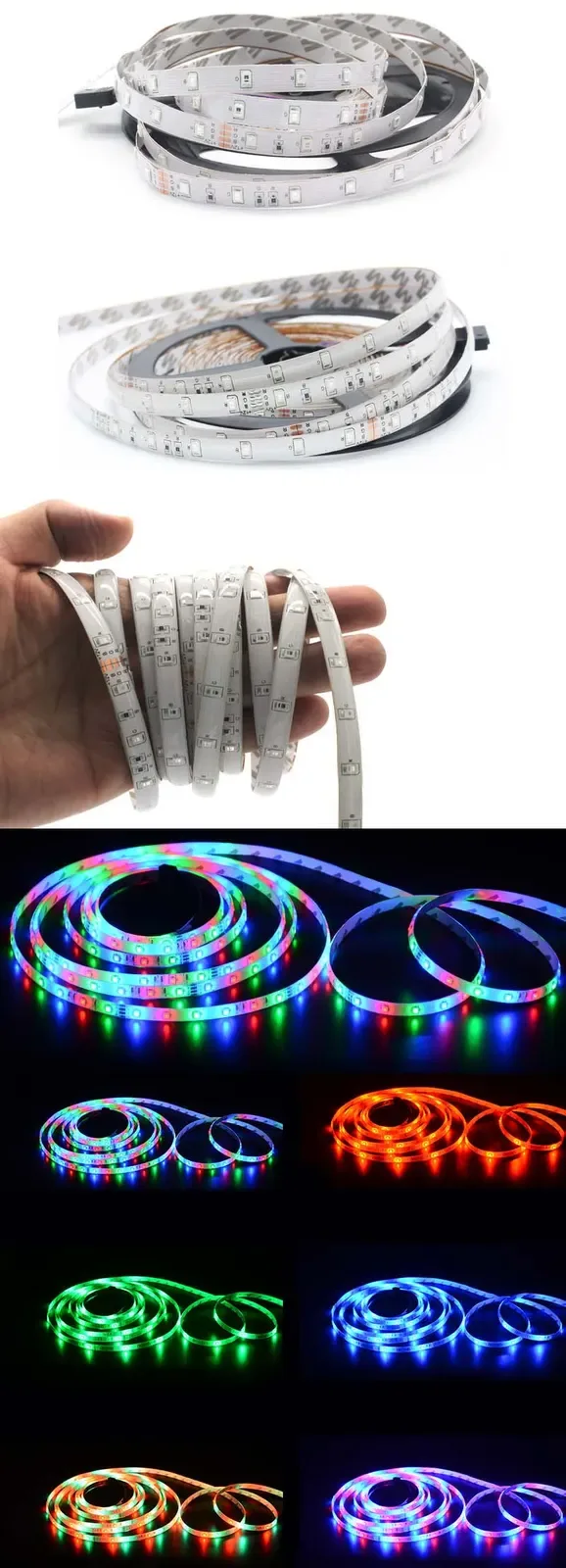

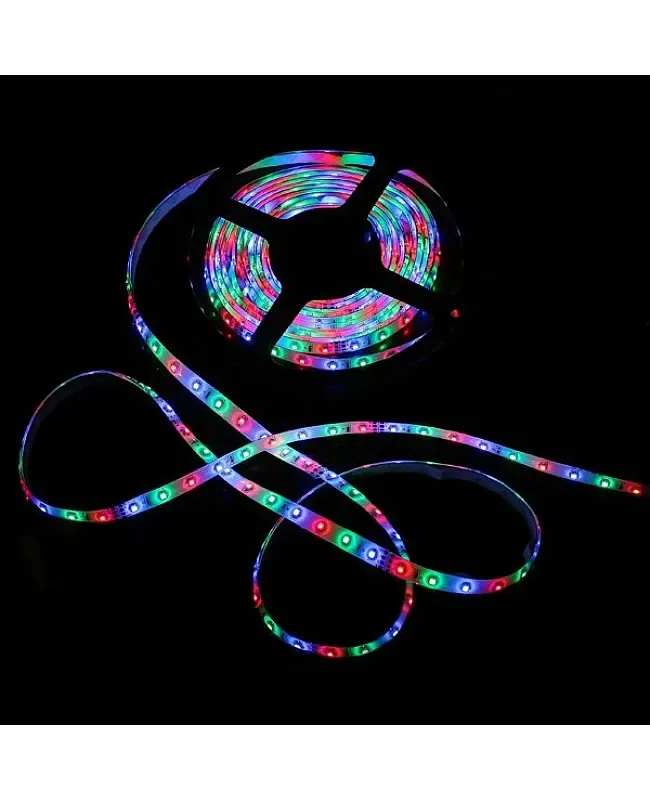

The 3528 RGB LED strips, which use the red, blue, and green 3528 SMD LEDs as the light source, have 60 LEDs per meter and 5 meters per reel. The width is 8mm and backed with double-sided adhesive tape, and the installer can choose from various waterproof products for indoor or outdoor installations. The IP20 non-waterproof and IP65 waterproof RGB LED strip lights can be used indoors, and IP67 and IP68 waterproof RGB LED strip lights can be used outdoors. With the 4-pin RGB LED connector, the installer can connect to the RGB LED controller and driver to light them up and set different static colors or dynamic modes. The 3528 color-changing LED strips are cuttable and re-connectable, along with the cutting point, the installer can cut to different sizes for various environments. The installer can use them to decorate building outlines, landscape illumination, holidays, signs, displays, shop windows, etc.
Specifications
Manufacturer: TYoung
Color available: RGB, Blue, White, Red, Green, Warm White
LEDs: 3528 SMD LEDs
LED Quantity: 60PCS Per Meter
Beam Angle: 120°
IP Rating: IP20, IP65, IP67, IP68
Working Voltage: DC12V
Power: 4.8W/Meter
Lumens: UP to 1100lm
Size Width: 8mm; thickness: 2mm
CRI: >
Double Layer FPC Board
Back With Double-Sided Adhesive Tape
Length: Reel
1 * 3528 RGB LED strip( Per Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
