Super Slim 3mm/4.5mm COB LED Strip Lights For Bedroom Ceiling

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

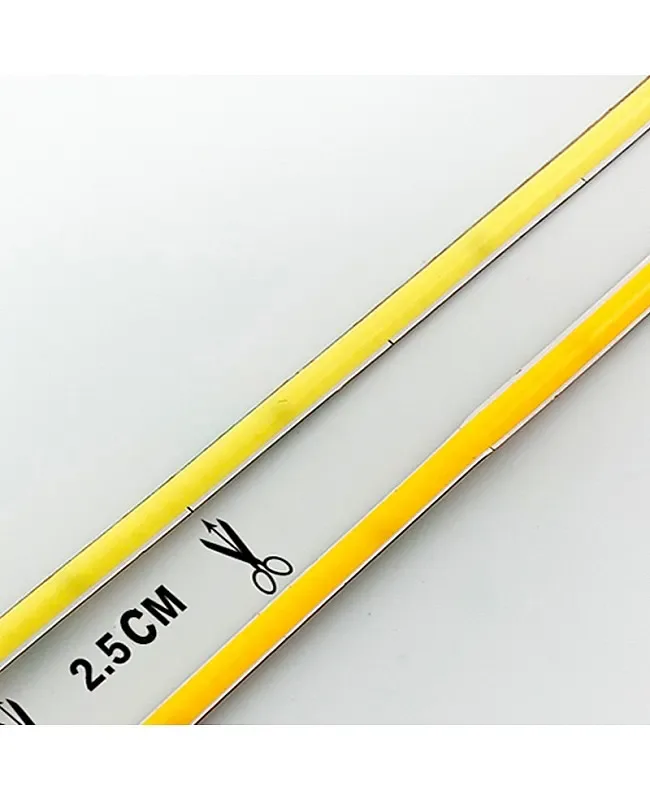

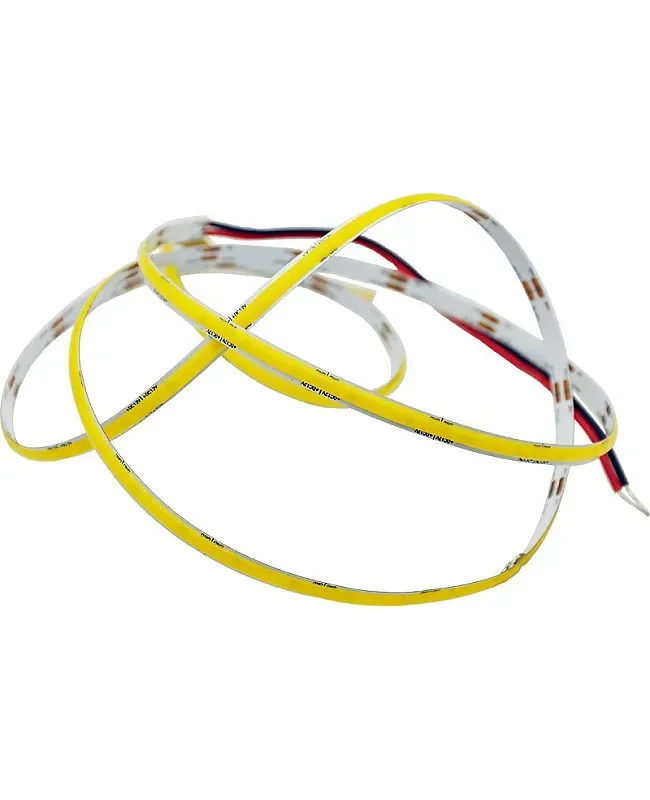

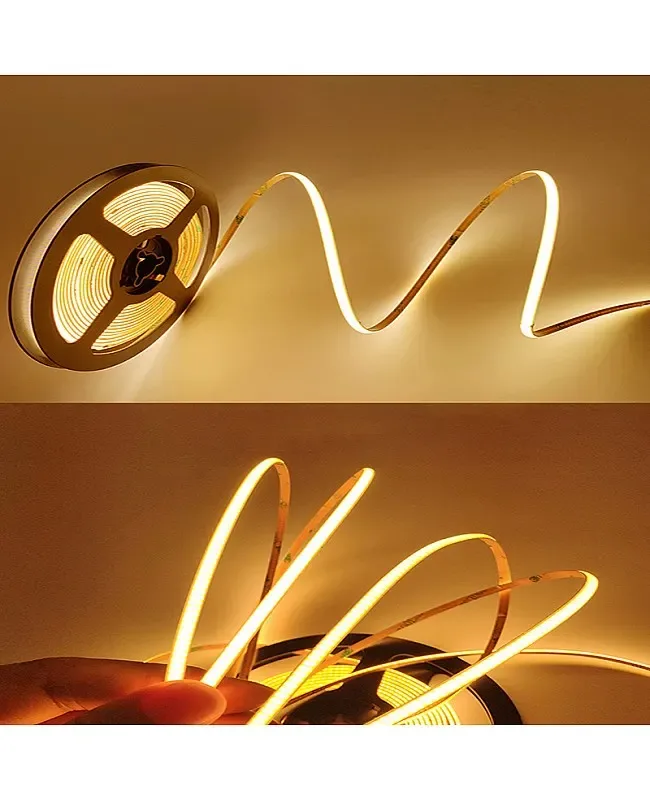

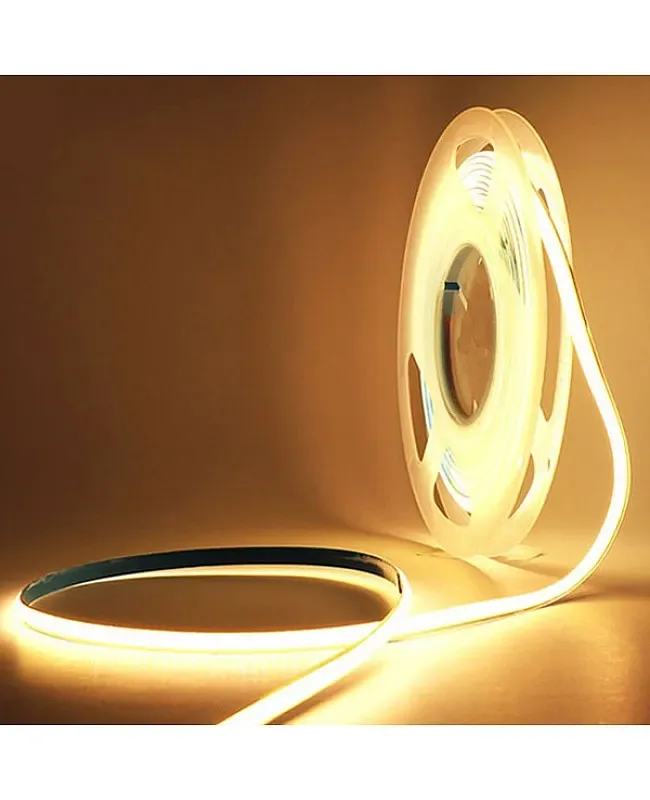

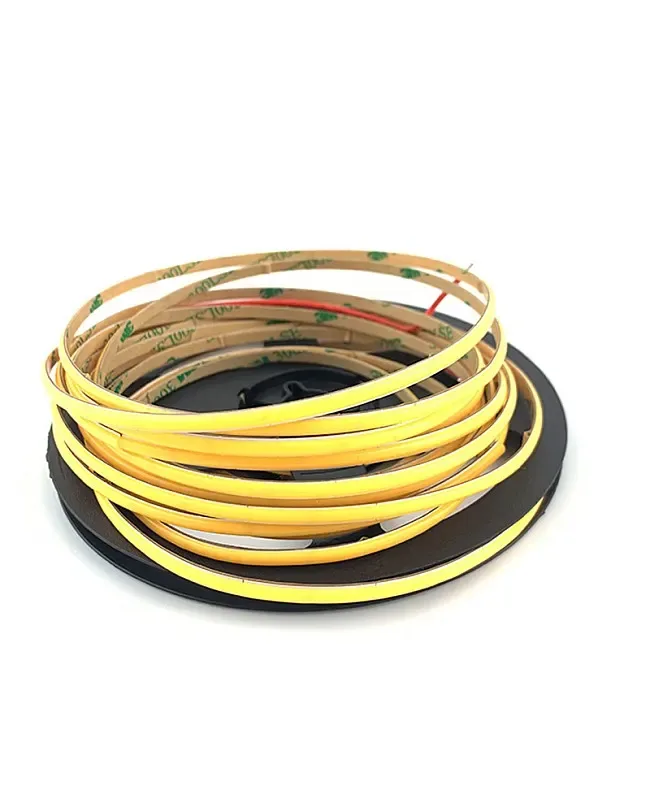

• The super slim COB LED strip lights are the perfect solution for adding a bit of extra light to any space for interior lighting. These skinny LED strips have a width of only 4.5mm or 3mm, allowing them to be easily installed without taking up too much space. The 3MM COB strip lights are 16.4 feet per roll and can be cut to any length fit for your project.
• Power: 4W/M(3mm)/7.2W/M(4.5mm)
• Emitting Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K)
• Luminous Flux: 320-725LM/M
• Color Rendering Index: >
• IP Rating: IP20 Non-waterproof
• Back With Double-Sided Adhesive Tape
• 1 * Super Slim 3mm/4.5mm COB LED Strip Lights For Bedroom Ceiling

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• Working Voltage: DC12V
• LED Chip: San An
• LED QTY: 528PCS/Meter
• Length: Reel
• Width: 3mm/4.5mm
• Power: 4W/M(3mm)/7.2W/M(4.5mm)
• Emitting Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K)
• Color Rendering Index: >
• IP Rating: IP20 Non-waterproof
• Beam Angle: 180°

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The super slim COB LED strip lights are the perfect solution for adding a bit of extra light to any space for interior lighting. These skinny LED strips have a width of only 4.5mm or 3mm, allowing them to be easily installed without taking up too much space. The 3MM COB strip lights are 16.4 feet per roll and can be cut to any length fit for your project. The thin LED strips adopt the newest chip-on-board technology, and 528 PCS LED chips are mounted on every meter of double-layer PCB board, the high-density LED arrays provide a bright and even glow that is suited to creating a relaxing atmosphere, with no visible light dots and hot spots, for the incredibly colorful and comfortable visual experience. Three emitting colors of products are available: warm white, natural white, and cool white. The waterproof level is IP20 non-waterproof, and the back has double-sided adhesive tape, making them simple to install in any room.

Specifications

Working Voltage: DC12V

LED Chip: San An

LED QTY: 528PCS/Meter

Length: Reel

Width: 3mm/4.5mm

Power: 4W/M(3mm)/7.2W/M(4.5mm)

Emitting Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K)

Luminous Flux: 320-725LM/M

Color Rendering Index: >

IP Rating: IP20 Non-waterproof

Beam Angle: 180°

0-100% Dimmable

Back With Double-Sided Adhesive Tape

Includes

1 * Super Slim 3mm/4.5mm COB LED Strip Lights For Bedroom Ceiling
