WS2812B LED Strips Individually Addressable Full Color DC5V

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• WS2812B LED Strips are individually addressable; each LED features an integrated IC that precisely controls its color and brightness. This enables stunning dynamic lighting effects with just a single data line. The programmable strip lights have male and female 3-pin JST-SM Connectors on both ends, making it easy to connect to Pixel LED Controllers to achieve thousands of amazing lighting effects, such as curtain-up, flowing water, raindrops, jump flash, and hundreds of other lighting effects.
• The LEDs at the far end of the Programmable LED Strip Lights may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.
• Individually Addressable SMD LED Strips
• LED Type: 5050 RGB SMD LEDs
• LED Quantity(Per Meter): 30/60/74/96/100/144 LEDs
• IC Quantity:30PCS/M, 60PCS/M, 74PCS/M, 96PCS/M, 100PCS/M, 144PCS/M
• Colors Of PCB Boards: White/Black
• Width: 10mm(30 / 60 LEDs/M), 12mm(74 / 96 / 100 / 144 LEDs/M)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V
• Light engine: Addressable
• WLED chip: WS2812B
• LED Type: 5050 RGB SMD LEDs
• LED Quantity(Per Meter): 30/60/74/96/100/144 LEDs
• Colors Of PCB Boards: White/Black
• Width: 10mm(30 / 60 LEDs/M), 12mm(74 / 96 / 100 / 144 LEDs/M)
• Lengths Available: 1M, 2M, 4M, 5M
• Working Voltage: DC5V
• Power: 0.3W/LED
• Emitting Colors: Full-Color 24-Bit
• Wavelength: Red: 620-630nm, Green: 515-530nm, Blue: 465-475nm

Control and installation

Use this product on the WLED ambient route. Match the controller to the listed WS2812B LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

WS2812B LED Strips are individually addressable; each LED features an integrated IC that precisely controls its color and brightness. This enables stunning dynamic lighting effects with just a single data line. The programmable strip lights have male and female 3-pin JST-SM Connectors on both ends, making it easy to connect to Pixel LED Controllers to achieve thousands of amazing lighting effects, such as curtain-up, flowing water, raindrops, jump flash, and hundreds of other lighting effects. The installer can edit the animation effect with CorelDRAW, Flash, or LED Edit software. There are various WS2812B LED products available, including 30, 60, 74, 96, 100, and 144 LEDs per meter. Three waterproof products are available: the IP30 Non-waterproof, IP65 Coating Waterproof, and IP67 Silicone Tube Waterproof. The backside of IP30 and IP65 products has double-sided adhesive tape, making it easy to stick to the desired installation location. The installer can use the LED Clips to mount IP67 products in wet, damp, or water locations. Each LED can be cut to any length for your project only working in DC5V, do not try 12V or 24V. The installer can use them to produce LED Screens, Lighting walls, and Advertising boards, and utilize them in hotels, KTVs, Bars, Outdoor Signs, and for Holidays, among other applications.

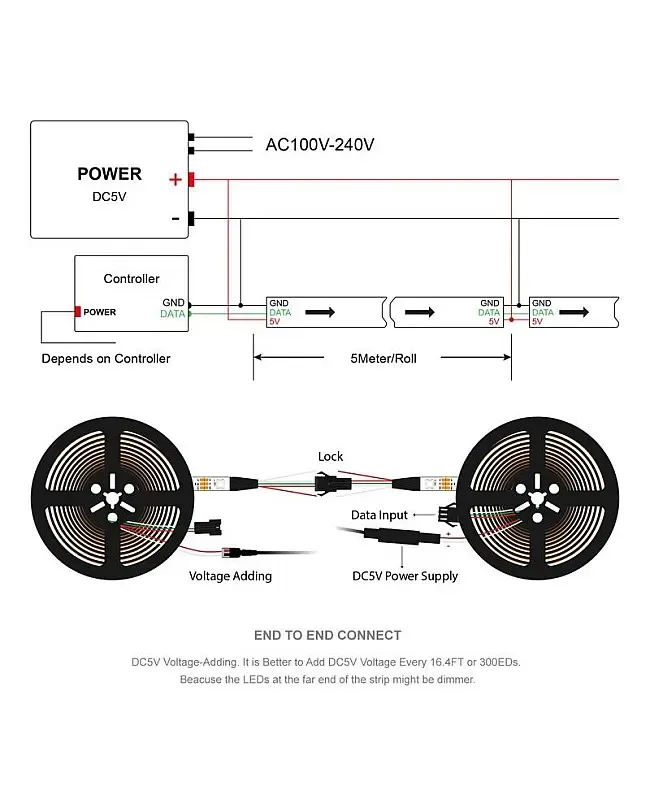

The LEDs at the far end of the Programmable LED Strip Lights may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.

Specifications

Individually Addressable SMD LED Strips

LED Type: 5050 RGB SMD LEDs

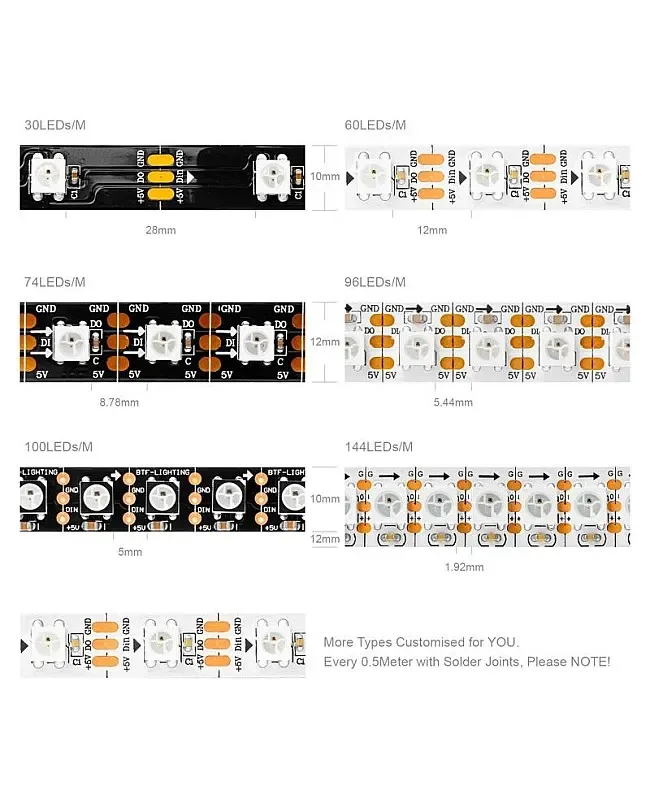

LED Quantity(Per Meter): 30/60/74/96/100/144 LEDs

IC Quantity:30PCS/M, 60PCS/M, 74PCS/M, 96PCS/M, 100PCS/M, 144PCS/M

Colors Of PCB Boards: White/Black

Width: 10mm(30 / 60 LEDs/M), 12mm(74 / 96 / 100 / 144 LEDs/M)

Lengths Available: 1M, 2M, 4M, 5M

Working Voltage: DC5V

Power: 0.3W/LED

Emitting Colors: Full-Color 24-Bit

Grayscale Levels: 256

Angle View: 120°

Wavelength: Red: 620-630nm, Green: 515-530nm, Blue: 465-475nm

Every 3PCS LED can Be Cut Off

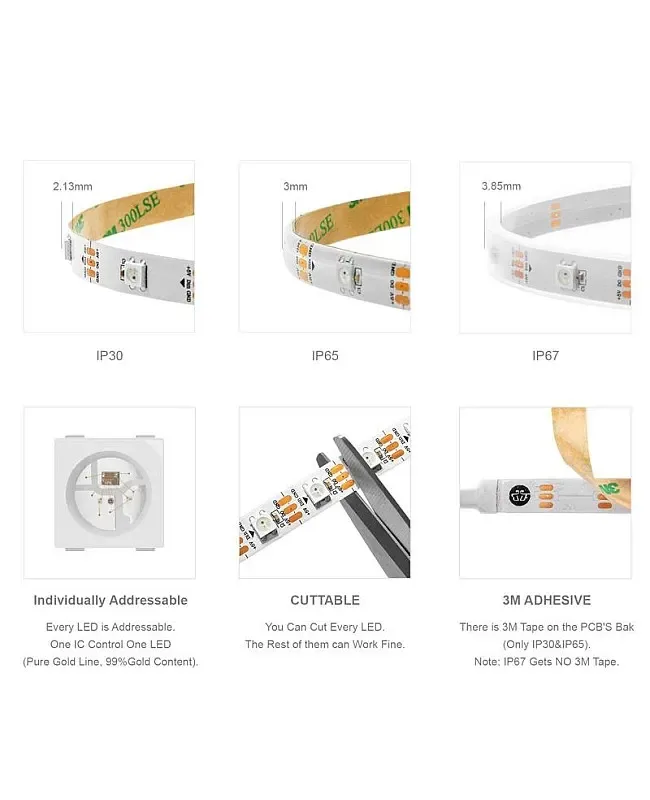

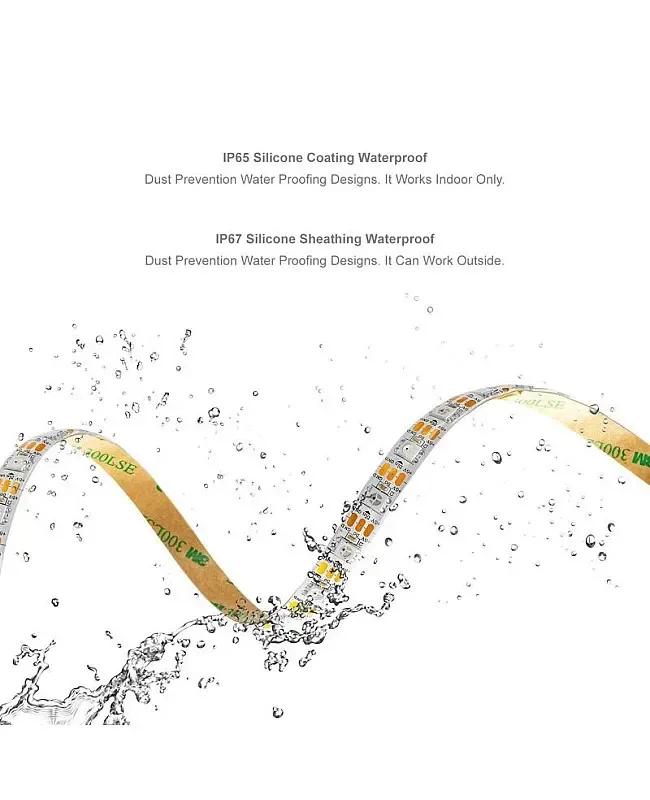

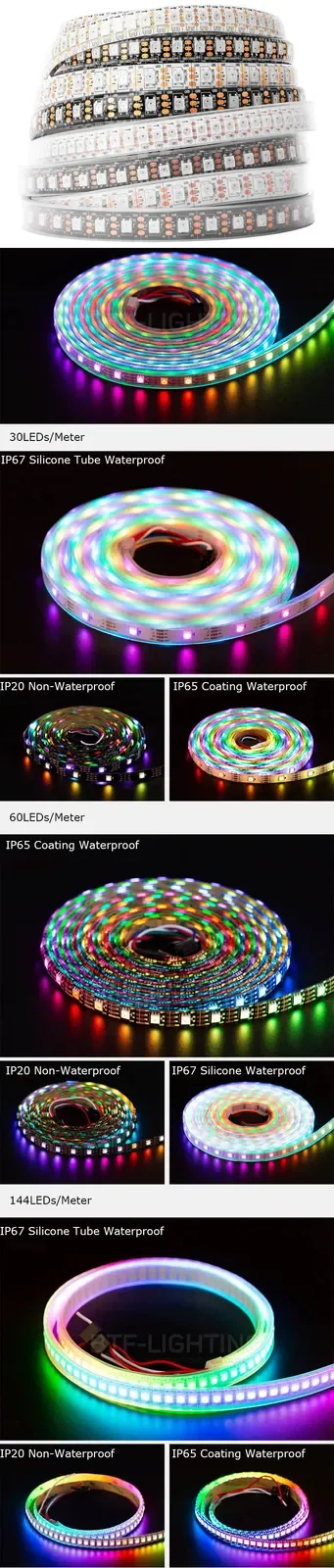

IP Rating: IP30 Non-Waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof

3 Pin JST-SM Connectors Included

Compatible With K Programmable LED Controllers

Working Temperature: -20°-+40°

Includes

1 * WS2812B LED Light Strips
