Product details

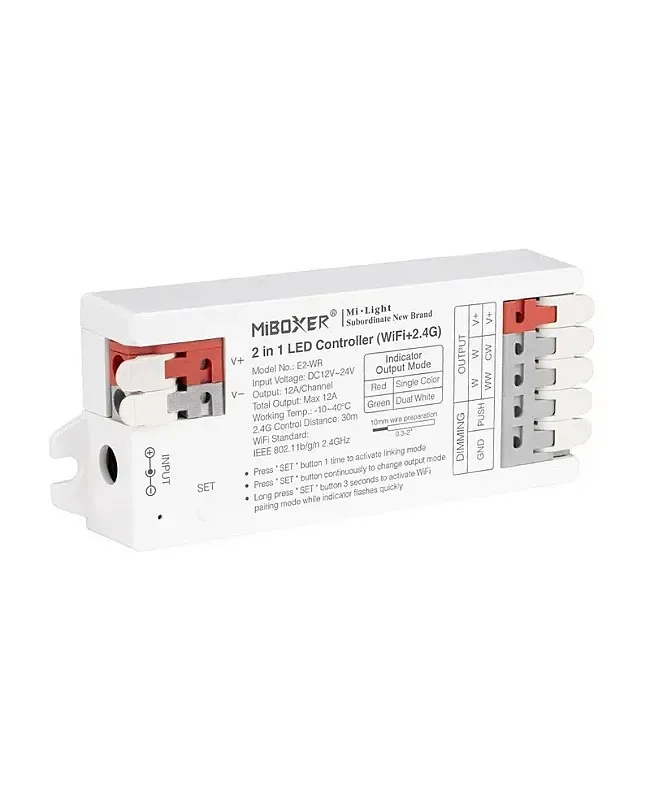

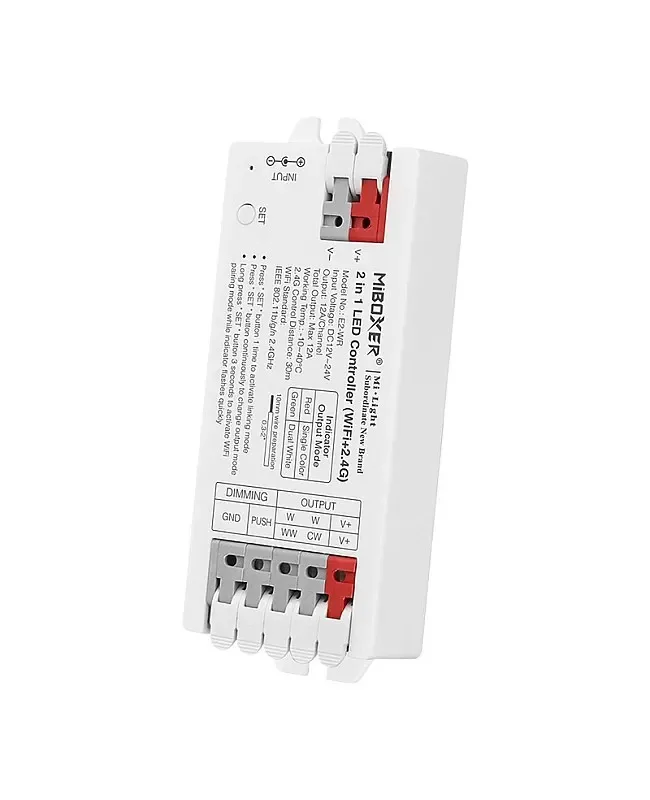

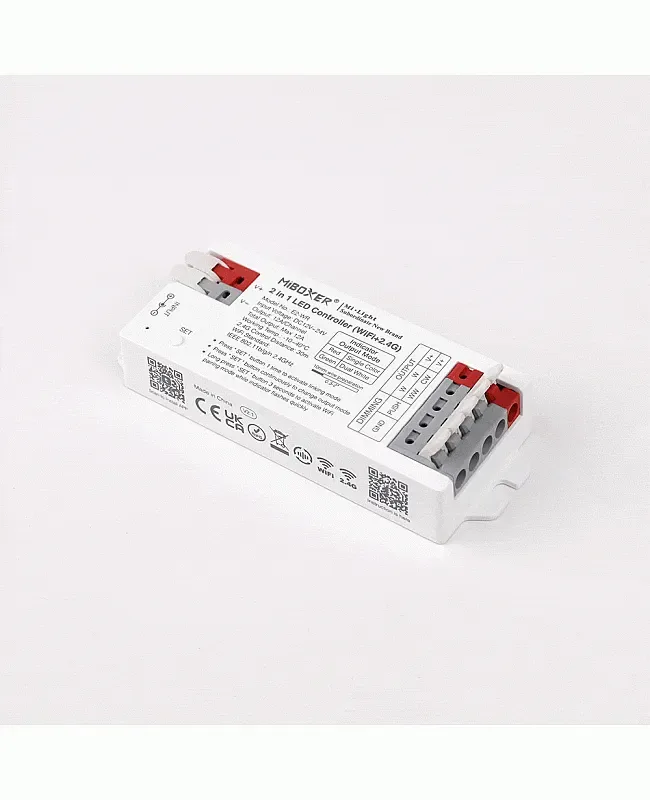

WR 2 In 1 WiFi Smart Strip Lighting Dimmers
LumaCircuit offers WR 2 In 1 WiFi Smart Strip Lighting Dimmers as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: WiFi + 2.4G 2 In 1 Light Dimmer Size: 100.6*40*17.6mm(L*W*H) Total Output Current: 12A Max The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 2 In 1 WiFi smart strip lighting dimmers is an excellent addition to any home that wants to control its lighting more conveniently and flexibly. With its 2 in 1 design, it switches output mode by pressing one button from single color mode to dual white mode and allows you to adjust the color temperature and brightness for various scenes. The wireless controller dimmers use WiFi + Bluetooth + 2.4G wireless transmission technology, low power consumption, and strong anti-interference ability.
- Type: WiFi + 2.4G 2 In 1 Light Dimmer
- Size: 100.6*40*17.6mm(L*W*H)
- Total Output Current: 12A Max
- Working Modes: Single Color/Tunable White
- Color Temperature Adjustable
- Communication Protocol: WiFi + 2.
- Compatible With 2.4G RF LED Remotes B, T1, T2, B, B, B, W, G, WL- (Sold Separately)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-STR-V84CKX
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: -24V
- Output: 12A/Channel
- Total Output Current: 12A Max
- Working Modes: Single Color/Tunable White
- Communication Protocol: WiFi + 2.
- Compatible With 2.4G RF LED Remotes: B, T1, T2, B, B, B, W, G, WL- (Sold Separately)
- 2.4G RF Control Distance: ≤30m
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

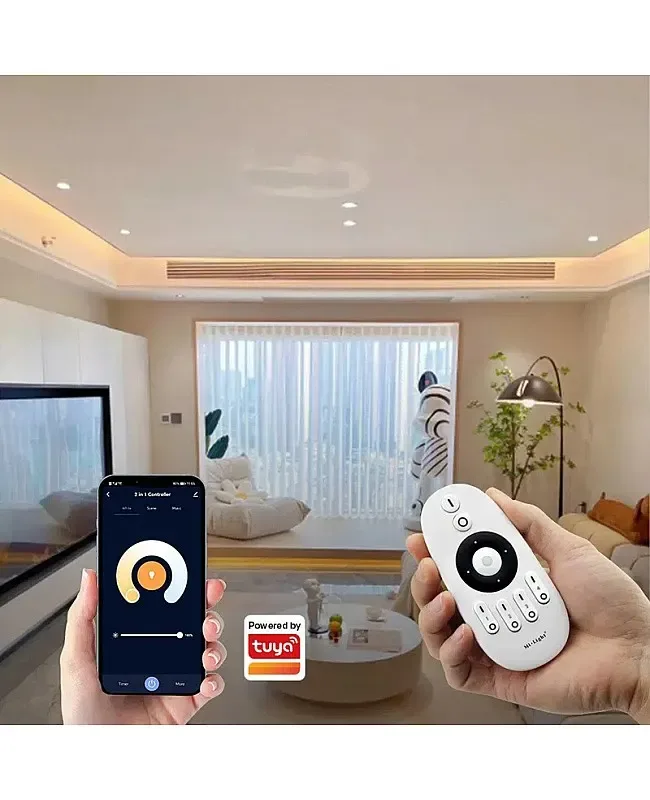

The wireless controller 2 In 1 WiFi smart strip lighting dimmers is an excellent addition to any home that wants to control its lighting more conveniently and flexibly. With its 2 in 1 design, it switches output mode by pressing one button from single color mode to dual white mode and allows you to adjust the color temperature and brightness for various scenes. The wireless controller dimmers use WiFi + Bluetooth + 2.4G wireless transmission technology, low power consumption, and strong anti-interference ability. WiFi and Bluetooth connections can significantly enhance the network experience. Bluetooth can also directly connect and control COB LED lighting at close range when the router is disconnected this is compatible with most wireless controller single-color and CCT 2.4G remote controls, and the lighting fixtures can transmit the signals from the remote control to another lighting fixture within 30 meters; the lighting fixtures will work at the same brightness and color temperature. The remote control distance can be limitless if a light fixture is within 30 m. The installer can download the APP " Tuya Smart " to your smartphone and control the WiFi smart dimmer through the WiFi network, which allows you to control the LED lights anywhere and anytime. It can work with Amazon Alexa and Google Assistant, and the installer can use voice commands to control the LED lights smartly. On the APP, the installer can achieve more functions like group control, music rhythm, device sharing, timing, and many more. The WR remote control light dimmer supports push stepless dimming, and the PWM frequency is switchable.
Specifications
Type: WiFi + 2.4G 2 In 1 Light Dimmer
Model
Size: 100.6*40*17.6mm(L*W*H)
Input Voltage: -24V
Output: 12A/Channel
Total Output Current: 12A Max
Working Modes: Single Color/Tunable White
Color Temperature Adjustable
Brightness Adjustable
Communication Protocol: WiFi + 2.
Compatible With 2.4G RF LED Remotes B, T1, T2, B, B, B, W, G, WL- (Sold Separately)
4G RF Control Distance: ≤30m
Auto Signal Transmitting
WiFi Standard: IEEE 802.11 b/g/n 2.
Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
Support Push Stepless Dimmable
PWM High Frequency(250Hz)/Low Frequency Can Be Switched
Support Smartphone APP Control And Third-party Voice Control
Work With Amazon Alexa And Google Assistant
APP Name: Tuya Smart
IP Rate: IP20 Non-waterproof
Switching 2 Output Mode Via One Button
Instant Wiring Tool-free
Two Port Interfaces: Wiring Ports,5*2.1mm
Working Temperature: -10-40℃
Includes
1 * Smart Strip Lighting Dimmer
1 * User Manual
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
