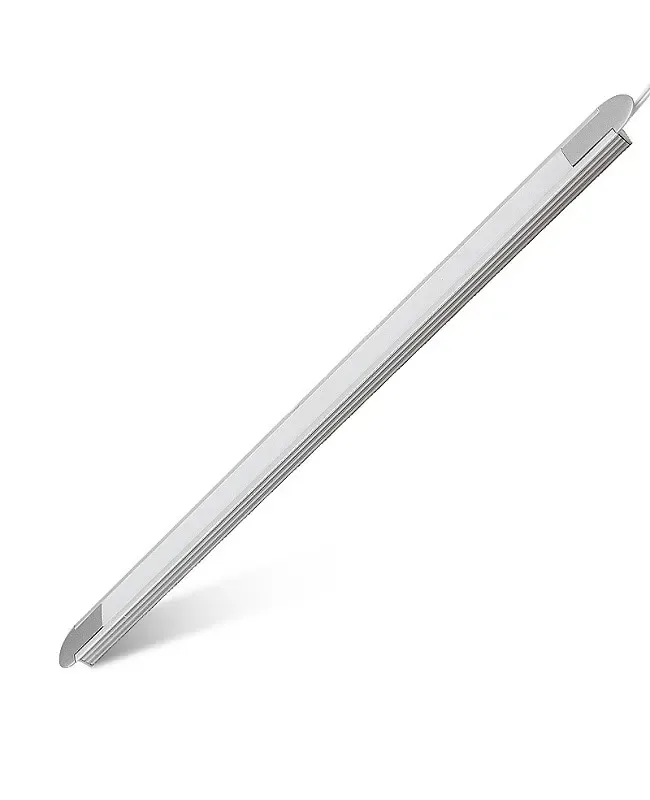

LED Under Cabinet Lighting Strip

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The LED under cabinet lighting strips use the high-quality 2835 SMD LEDs as the light source, working in DC12V. The LEDs are mounted on the 6063 aluminum profile for better heat dissipation. The installer can choose the various length products, the max length being 1.2 meters, and three emitting colors available: white, neutral white, and warm white.
• Material: 6063 Aluminium
• Anodizing Surface Treatment
• Colors: Warm White(3000K)/4000K(Neutral White)/White(6000K)
• Launch Methods: Hand Scan Sensor/IR Sensor/Touch Sensor
• Applications: Shoe Box, Wardrobe, Wall Cabinet, Book Case, Wine Cabinet
• 1 * LED Under Cabinet Lighting Strip(LED Power Not Included)
• The LED Under Cabinet Lighting Strip, use he 2835 SMD LEDs as the light source, various length available, 3 methods available to activate the LED Light, the installer can install the in your home, shoebox, wardrobe, wall cabinet, book case.

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• Material: 6063 Aluminium
• Length: 100cm
• LED Type: 2835 SMD LEDs
• LED Quantity: 87PCS
• Working Voltage: DC12V
• Power: 14W
• CRI: >80
• Lumens: 1260lm
• Colors: Warm White(3000K)/4000K(Neutral White)/White(6000K)
• Connector Length: 2M

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

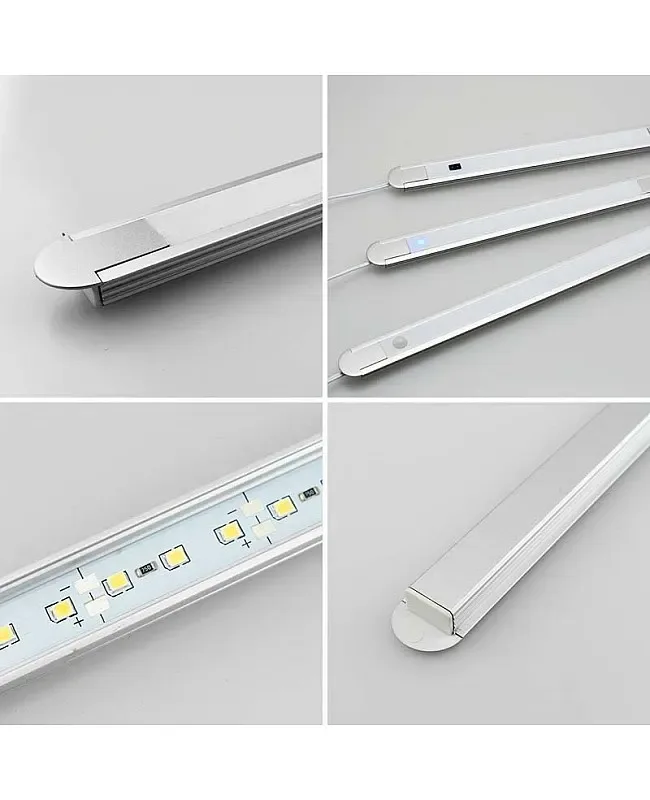

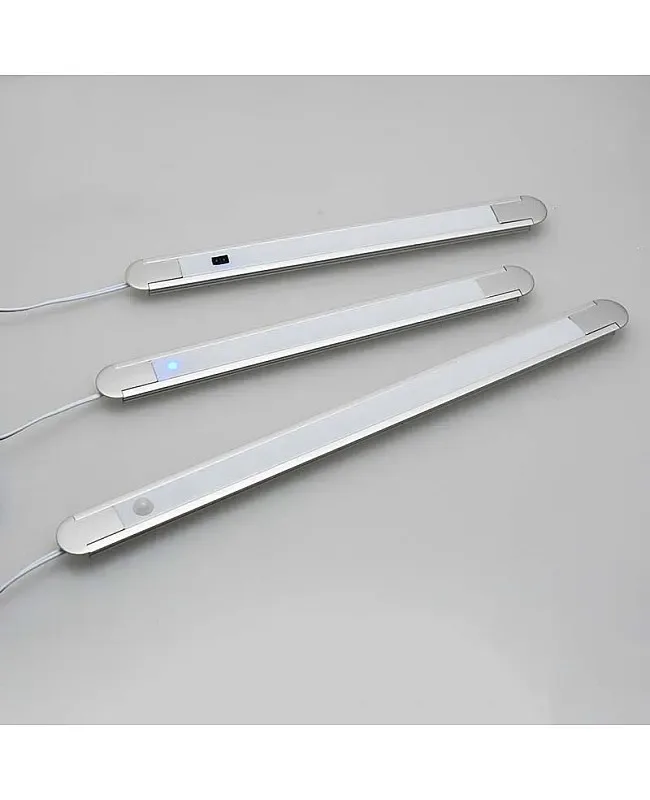

The LED under cabinet lighting strips use the high-quality 2835 SMD LEDs as the light source, working in DC12V. The LEDs are mounted on the 6063 aluminum profile for better heat dissipation. The installer can choose the various length products, the max length being 1.2 meters, and three emitting colors available: white, neutral white, and warm white. Three methods to activate the LED cabinet lamps: the installer can choose the hand scan sensor, the IR sensor, or the touch sensor; no need to turn it on with your hand. If you choose the hand scan sensor, the LED cabinet light will turn on when your hand scans the sensor, and then scan again, the LED light will turn off. If you choose the IR sensor, when you are close to the sensor, around 0.1- 1 meter, the LED light turns on and lasts 30 seconds. If you choose the touch sensor, you need to touch the sensor to turn on or turn off the LED under-cabinet lighting. The installer can install them in your home, shoebox, wardrobe, wall cabinet, bookcase, and wine cabinet. They are easy to install and use.

Specifications

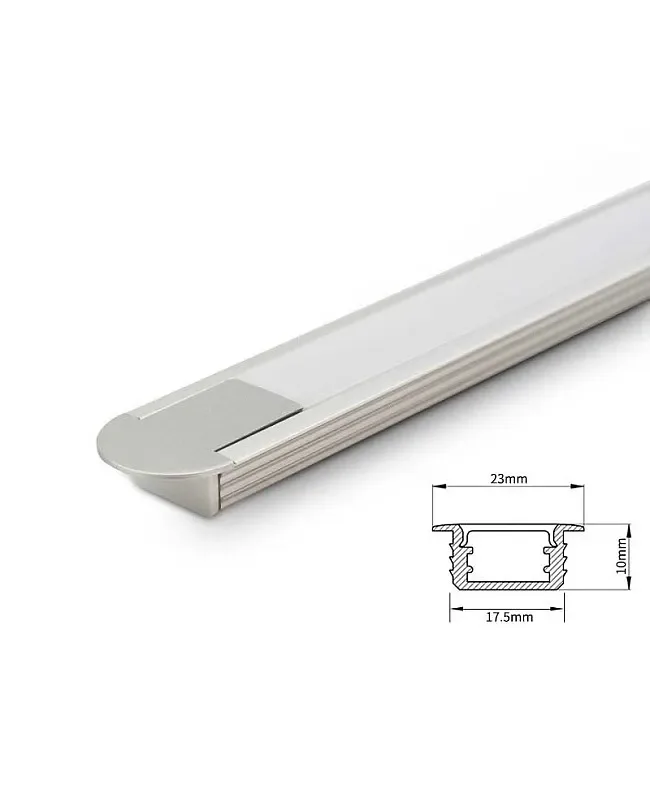

Material: 6063 Aluminium

Anodizing Surface Treatment

Length: 100cm

LED Type: 2835 SMD LEDs

LED Quantity: 87PCS

Working Voltage: DC12V

Power: 14W

Lumens: 1260lm

Angle View: 120 Degree

Colors: Warm White(3000K)/4000K(Neutral White)/White(6000K)

Launch Methods: Hand Scan Sensor/IR Sensor/Touch Sensor

Connector Length: 2M

Installation: Recessed

Applications: Shoe Box, Wardrobe, Wall Cabinet, Book Case, Wine Cabinet

Includes

1 * LED Under Cabinet Lighting Strip(LED Power Not Included)
