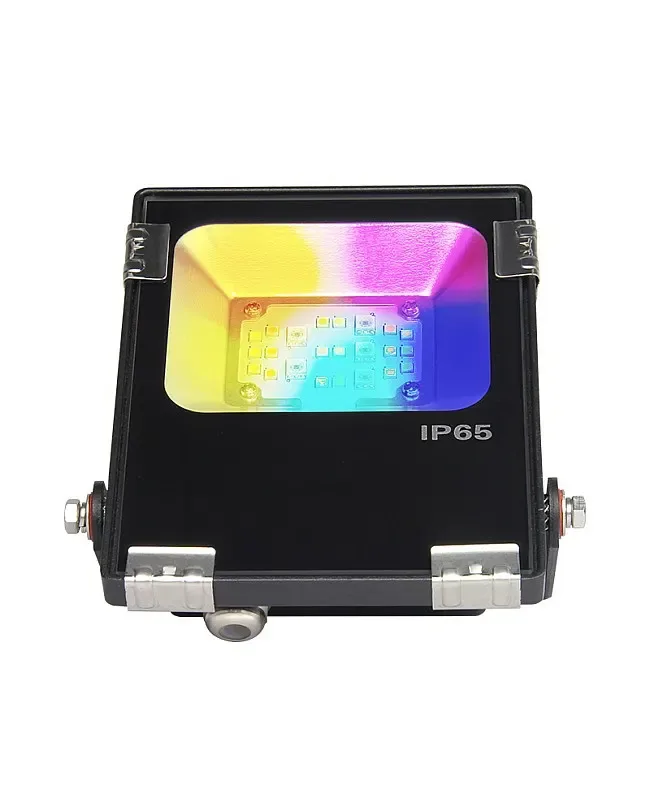

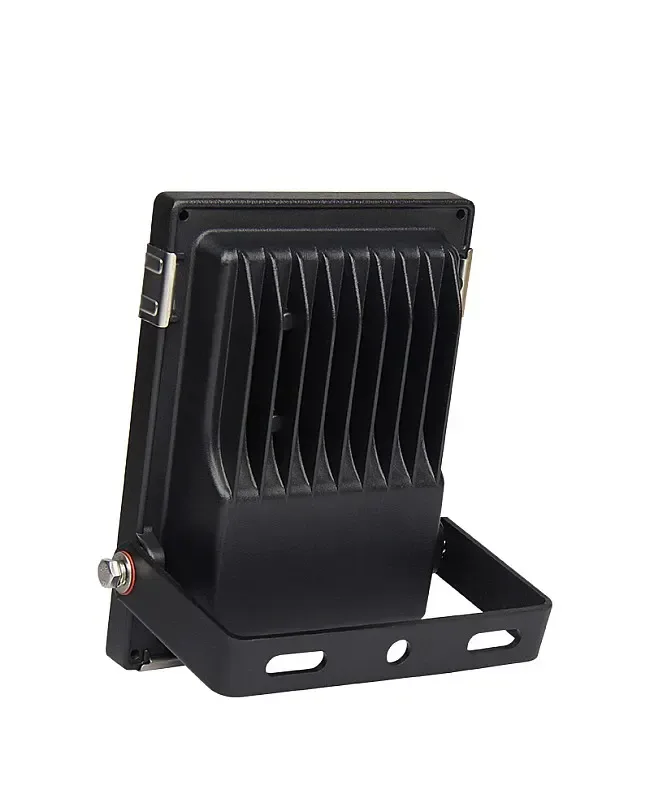

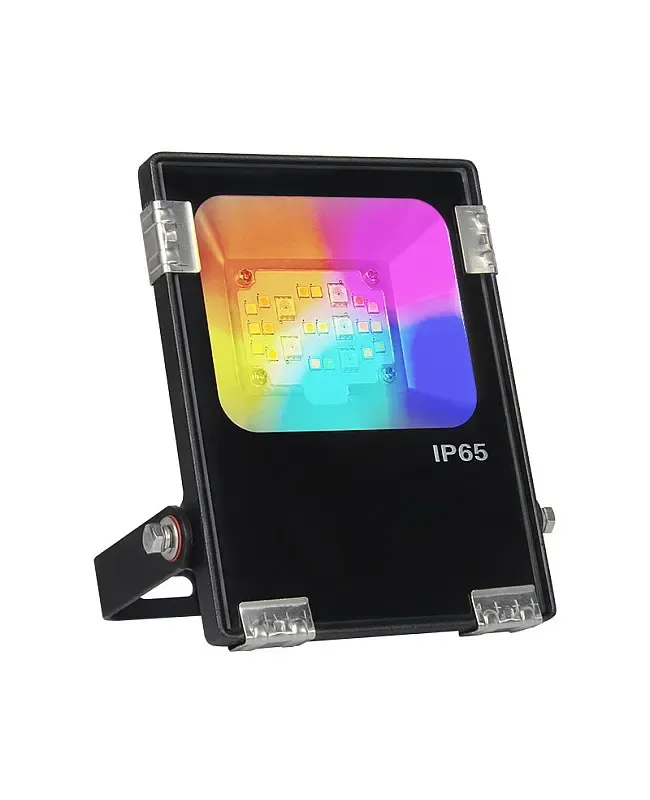

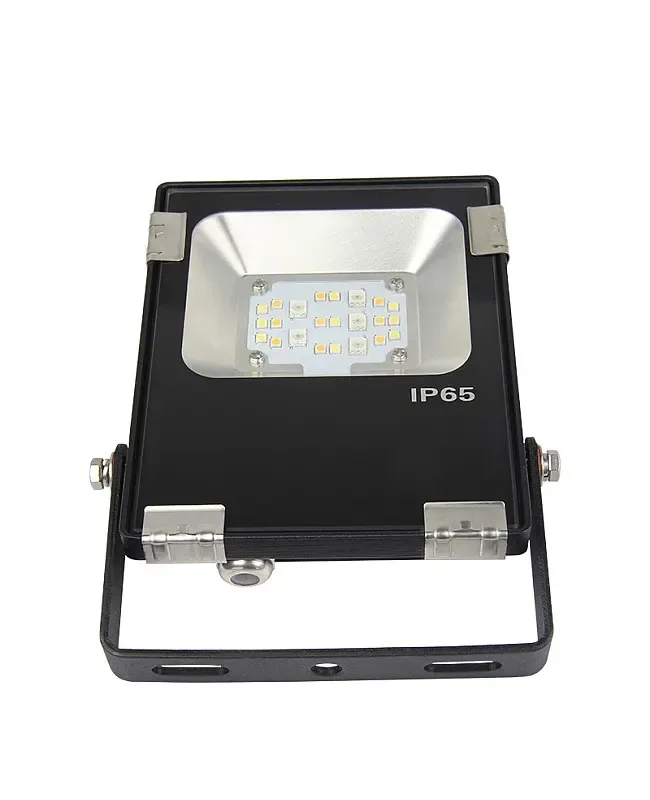

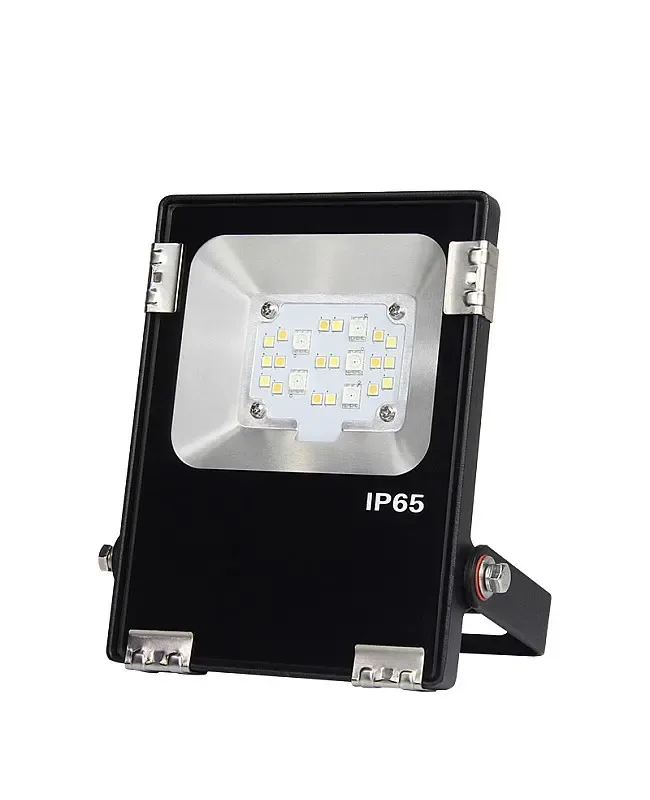

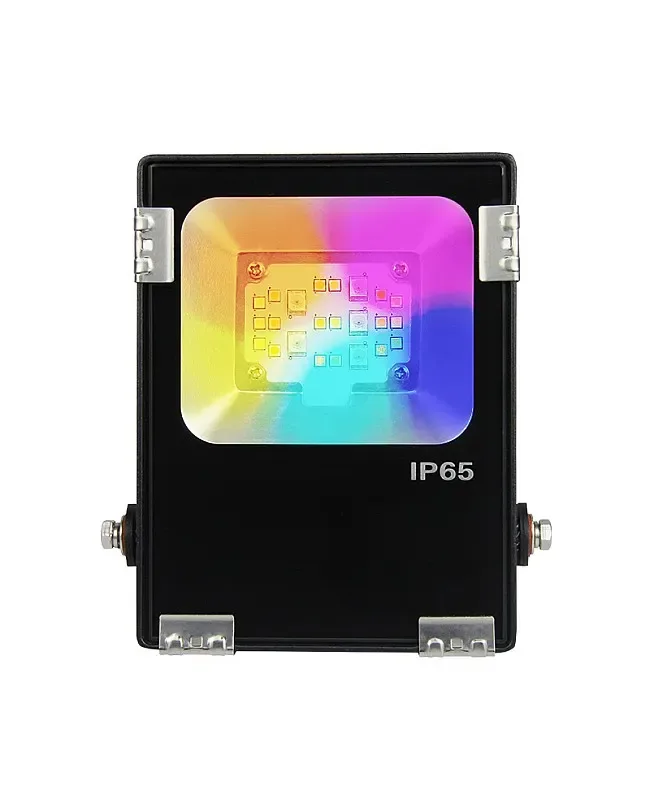

Low Voltage DC24V 10W RGB CCT LED Floodlights
LumaCircuit offers Low Voltage DC24V 10W RGB CCT LED Floodlights as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Size: 166*107*32mm(L*W*H) Color Temperature: 2700 K- 6500 K Luminous Efficiency: 85LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Size: 166*107*32mm(L*W*H)
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 85LM/W
- Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
- Static Power Consumption: 0.5W
- 4G Remote Control Controllable T4, T3, WL
- Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-KSNVSU
- Size: 166*107*32mm(L*W*H)
- Working Voltage: DC24V
- Power: 10W
- Color: RGB+CCT
- Color Temperature: 2700 K- 6500 K
- Static Power Consumption: 0.5W
- CRI: >
- Beam Angle: 160°
- IP Rate: IP65
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Model
Size: 166*107*32mm(L*W*H)
Working Voltage: DC24V
Power: 10W
Color: RGB+CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 900LM
Luminous Efficiency: 85LM/W
16 Million Colors Available And 9 Dynamic Modes Available
Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
Static Power Consumption: 0.5W
CRI: >
Beam Angle: 160°
IP Rate: IP65
RF: 2.
4G Remote Control Controllable T4, T3, WL
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Control Distance: ≤30m
Auto Signal Transmitting And Modes Synchronization
Working Temperature: -20℃-+45℃
Applications: Warehouses, Streets, Campuses, Billboards, Roadways, Areas, High Bays, Parking Lots, Stadiums, Parks, Building Facades, Car Dealerships, Arenas, Tunnels
Includes
1 * DC24V RGB CCT LED Floodlight
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
