Product details
Super Bright LED Strip Lights For Ceiling COB 20MM DC24V
LumaCircuit offers Super Bright LED Strip Lights For Ceiling COB 20MM DC24V as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Length: 16.4FT/5M Per Roll Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White Color Rendering Index: > The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Type: Super Bright COB LED Strips
- Length: 16.4FT/5M Per Roll
- Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White
- Color Rendering Index: >

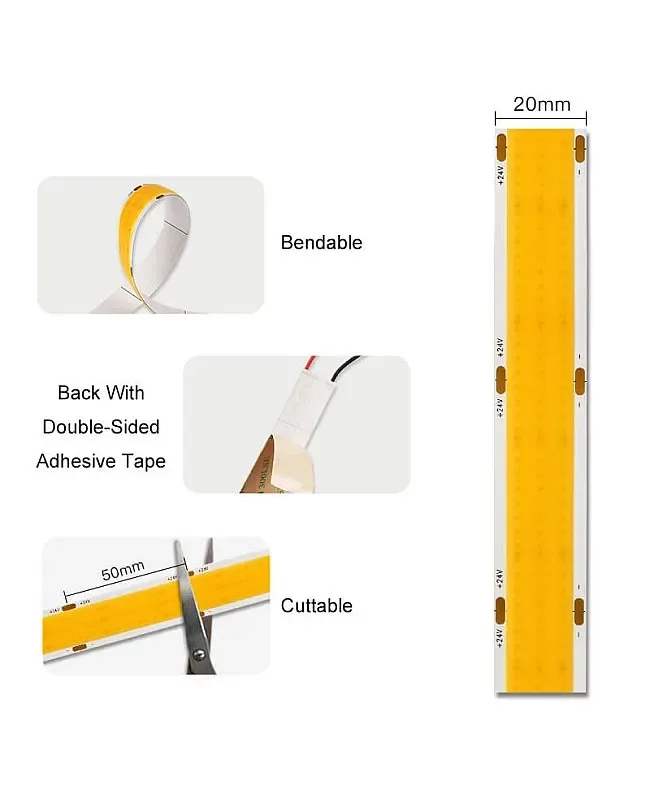

- Minimum Cutting Length: 50mm/1.96"
- IP Rating: IP20 Non-waterproof
- Back With Double-sided Adhesive Tape
- Working Temperature: -20℃-+45℃
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-STR-U4D4M3
- Length: 16.4FT/5M Per Roll
- Width: 20mm/0.787"
- LED QTY: 960 PCS/M
- Working Voltage: DC24V
- Power: 30W/M
- Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White
- Beam Angle: 180°
- Color Rendering Index: >
- Minimum Cutting Length: 50mm/1.96"
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Type: Super Bright COB LED Strips
Model
Length: 16.4FT/5M Per Roll
Width: 20mm/0.787"
LED QTY: 960 PCS/M
Working Voltage: DC24V
Power: 30W/M
Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White
Luminous Flux: 1440LM/M
Beam Angle: 180°
Dimmable: YES
Color Rendering Index: >
Minimum Cutting Length: 50mm/1.96"
IP Rating: IP20 Non-waterproof
Back With Double-sided Adhesive Tape
Working Temperature: -20℃-+45℃
Includes
1 * 20MM Super Bright COB LED Strips(5M/Roll)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
