Product details
Super Narrow 2.7mm DC12V Flexible COB LED Stripe
LumaCircuit offers Super Narrow 2.7mm DC12V Flexible COB LED Stripe as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. The minimum cuttable length is 25mm, making it easy to cut to the desired length for your projects. It is suited to adding lighting under cabinets, in coves, on walls and ceilings, on furniture, and even in cars. The dimmable feature allows them to be connected to light dimmers or dimmable LED drivers to adjust the brightness as needed. the range includes many color options, including 3000K warm white, 4000K natural white, 6500K cool white, as well as blue, red, green, and pink. There are three voltage options available. The installer can choose DC12V, DC5V, and.7V. Working voltage.7V DC5V DC12V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

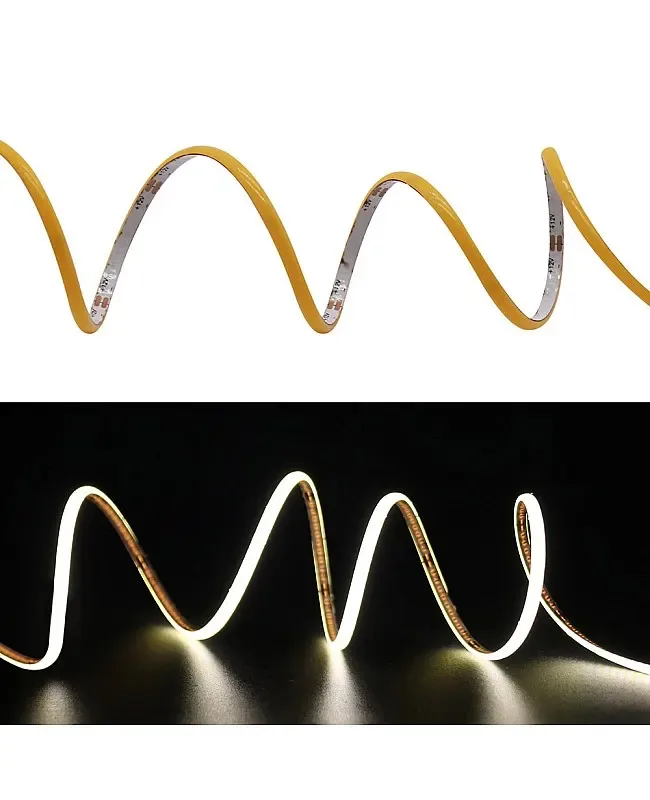

- The super-narrow LED stripe utilizes advanced chip-on-board (COB) technology for seamless, uniform illumination. The ultra-thin 2.7mm width makes them an excellent choice for indoor applications where space is limited, particularly in tight and confined areas. The high-density LED design and high CRI of combined with high brightness, uniform light emission, and no visible light dots, ensure excellent efficiency and color consistency.
- The minimum cuttable length is 25mm, making it easy to cut to the desired length for your projects. It is suited to adding lighting under cabinets, in coves, on walls and ceilings, on furniture, and even in cars. The dimmable feature allows them to be connected to light dimmers or dimmable LED drivers to adjust the brightness as needed.
- the range includes many color options, including 3000K warm white, 4000K natural white, 6500K cool white, as well as blue, red, green, and pink. There are three voltage options available. The installer can choose DC12V, DC5V, and.7V.
- Working voltage.7V DC5V DC12V
- LED quantity: 480PCS per meter
- Length: 5 Meters ( 16.4ft ) per roll

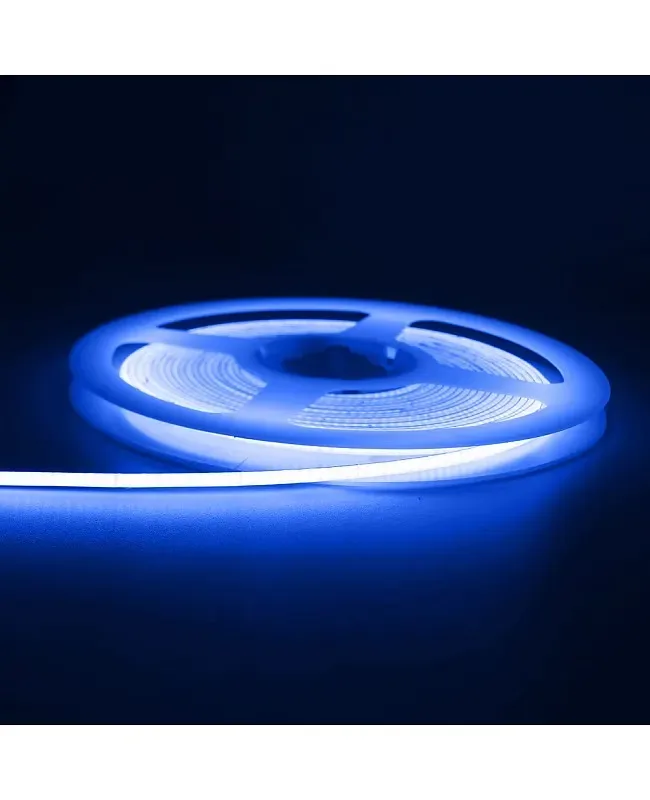

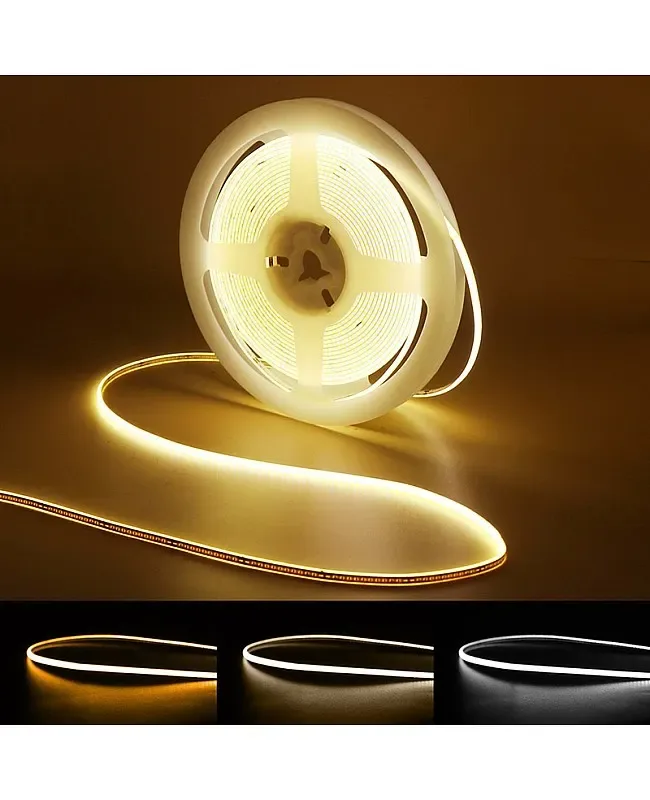

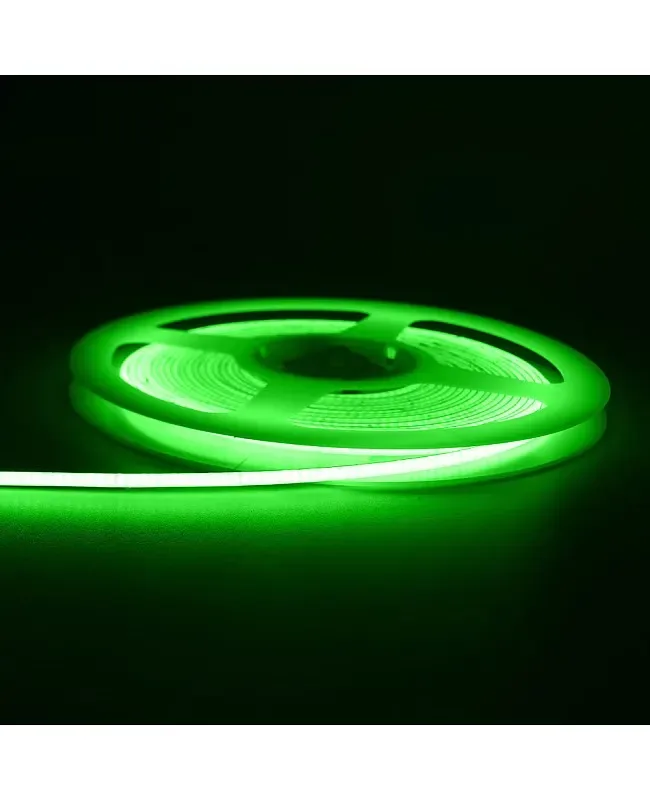

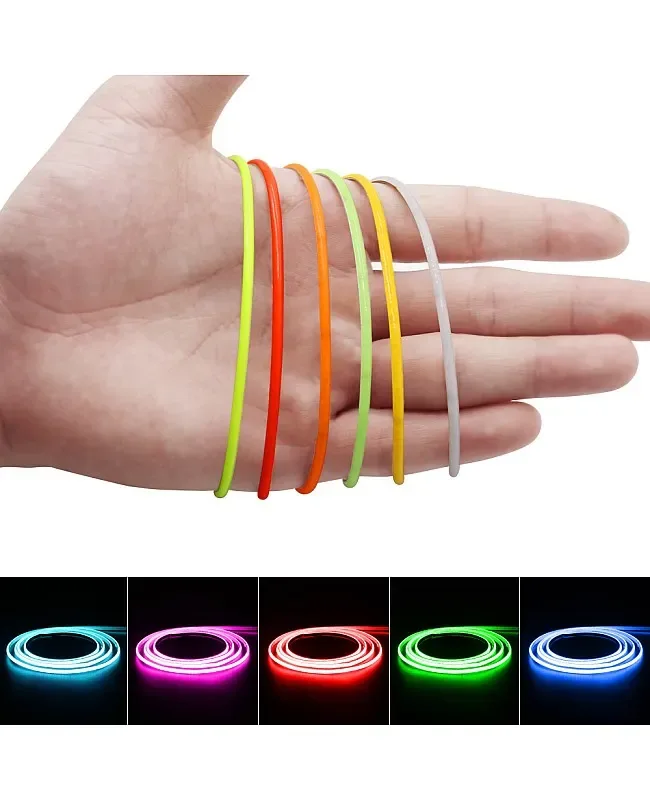

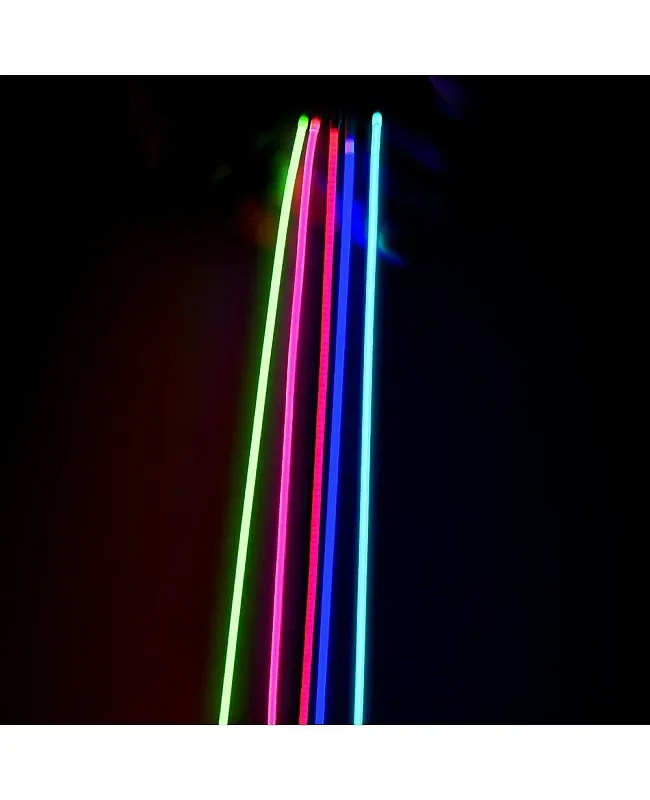

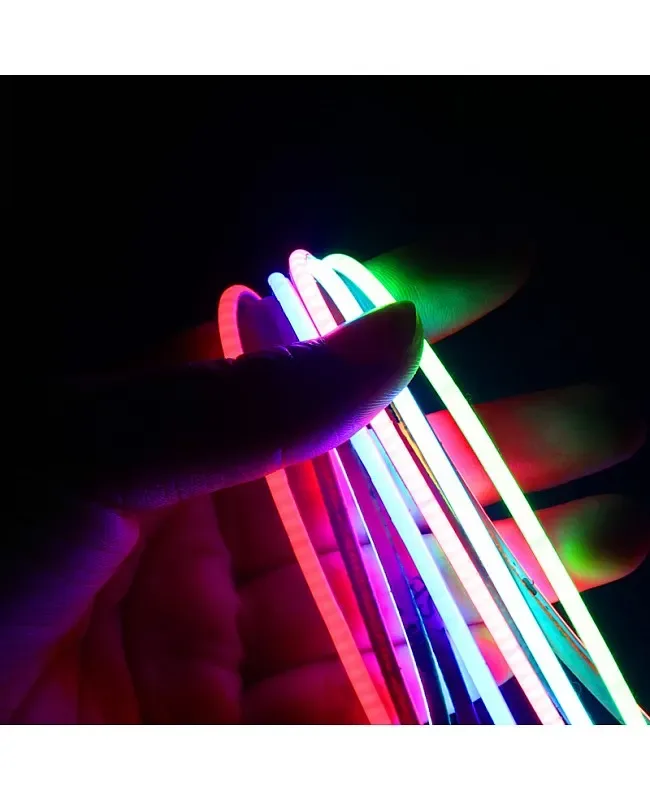

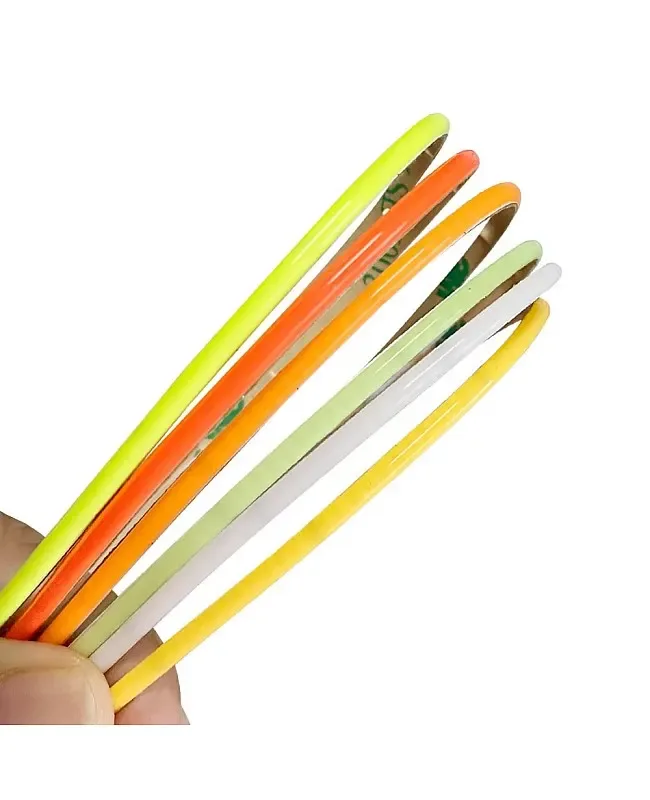

- Colors: Warm white ( 3000K ), natural white ( 4000K ), cool white ( 6500K ), blue, ice blue, red, green, pink, orange, yellow
- Light efficiency: 100-140LM/W
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V
- Light engine: CCT
- Working voltage: .7V DC5V DC12V
- LED type: 1022
- LED quantity: 480PCS per meter
- Length: 5 Meters ( 16.4ft ) per roll

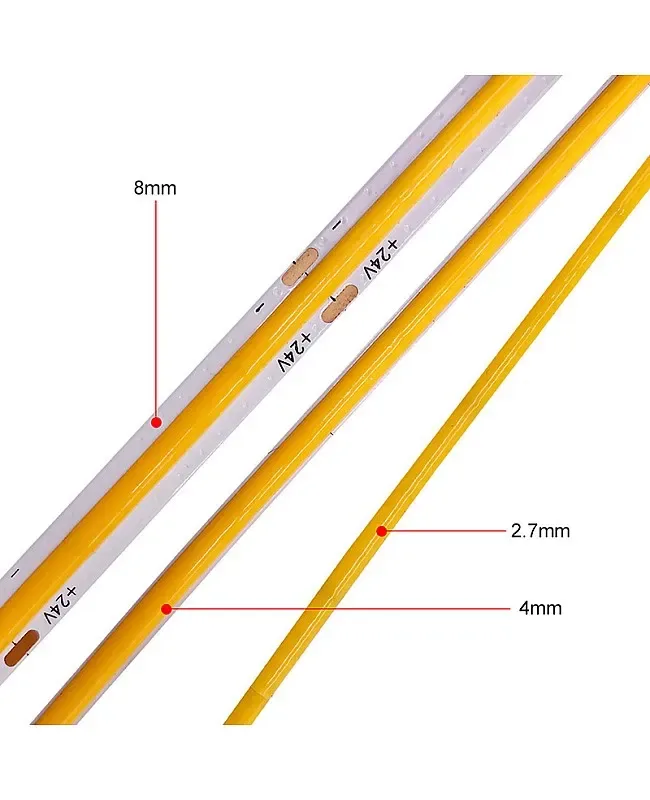

- Width: 2.7 mm / 0.11"
- Power: 5W/Meter
- Colors: Warm white ( 3000K ), natural white ( 4000K ), cool white ( 6500K ), blue, ice blue, red, green, pink, orange, yellow
- Beam angle: 180°
- Color rendering index: >
- IP rating: IP20 non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

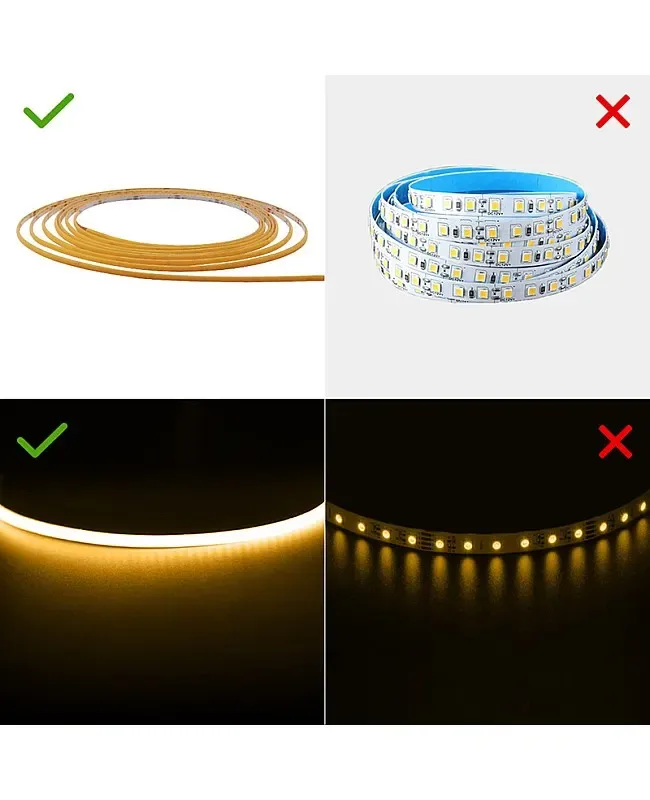

The super-narrow LED stripe utilizes advanced chip-on-board (COB) technology for seamless, uniform illumination. The ultra-thin 2.7mm width makes them an excellent choice for indoor applications where space is limited, particularly in tight and confined areas. The high-density LED design and high CRI of combined with high brightness, uniform light emission, and no visible light dots, ensure excellent efficiency and color consistency.
The minimum cuttable length is 25mm, making it easy to cut to the desired length for your projects. It is suited to adding lighting under cabinets, in coves, on walls and ceilings, on furniture, and even in cars. The dimmable feature allows them to be connected to light dimmers or dimmable LED drivers to adjust the brightness as needed.
the range includes many color options, including 3000K warm white, 4000K natural white, 6500K cool white, as well as blue, red, green, and pink. There are three voltage options available. The installer can choose DC12V, DC5V, and.7V.
Specifications
Working voltage.7V DC5V DC12V
LED type: 1022
LED quantity: 480PCS per meter
Length: 5 Meters ( 16.4ft ) per roll
Width: 2.7 mm / 0.11"
Power: 5W/Meter
Colors: Warm white ( 3000K ), natural white ( 4000K ), cool white ( 6500K ), blue, ice blue, red, green, pink, orange, yellow
Light efficiency: 100-140LM/W
Beam angle: 180°
Color rendering index: >
Dimmable: YES
IP rating: IP20 non-waterproof
Cuttable: YES

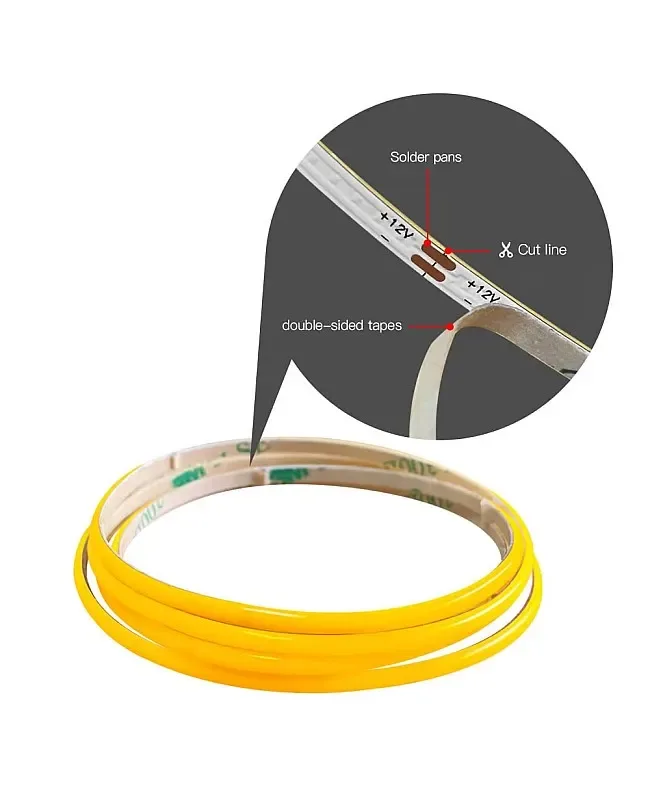

Minimum cutting length: 25mm

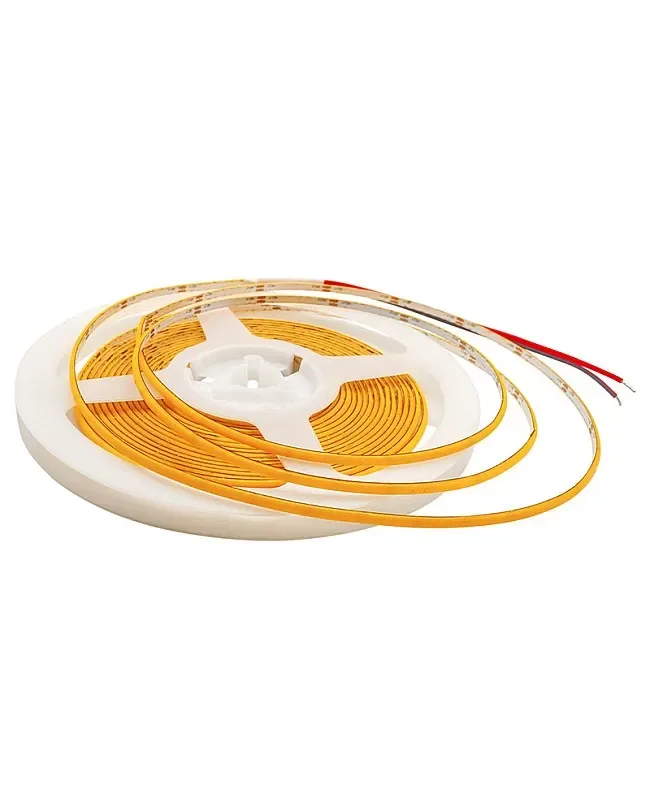

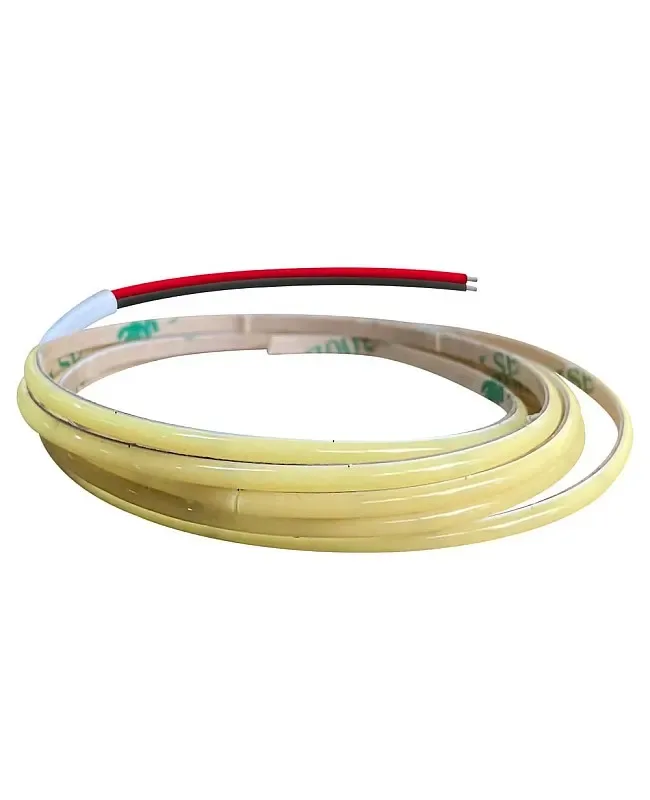

Both ends have wires: The red wire connects to the positive terminal, and the black wire connects to the negative terminal.
The back has double-sided adhesive tape
Working temperature: -20℃-+45℃
Storage temperature: -40℃-+85℃
Applications: Cars, trucks, bars, wine cabinets, wardrobes, TVs, irregular design bodies in hotels/nightclubs, KTVs, signs, holiday decorations, buildings, etc
Includes
1 x 2.7mm COB LED stripe lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
