Product details
RGB CCT Connecting LED Strip Light Waterproof 16.4FT
LumaCircuit offers RGB CCT Connecting LED Strip Light Waterproof 16.4FT as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Color Of PCB Board: White LED Type: 5050 SMD 5 Colors In 1 LED(Red, Green, Blue, Cool White, Warm White) LED Quantity: 30LEDs/60LEDs Per Meter The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB CCT connecting LED strip lights use the high-quality 5 in 1 5050 SMD LEDs as the light source, each LED includes the red, green, blue, warm white and cool white San An LED chips, which are easy to connect to the RGB tunable white light controller to create bold, brilliant illumination in a wide range of high-quality color tones, adjust the static color or dynamic mode, adjust the color temperature from 2700K to 6500K for various scenes.
- Color Of PCB Board: White

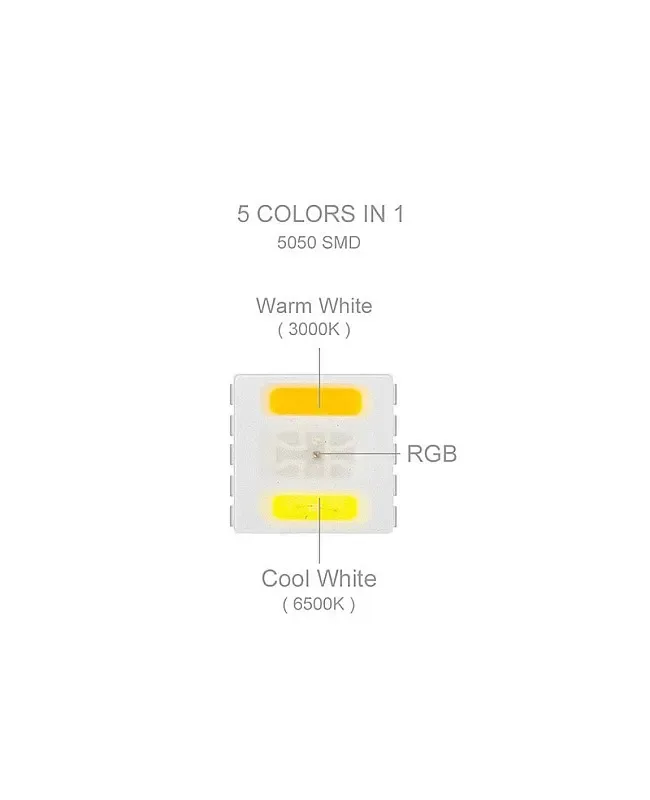

- LED Type: 5050 SMD 5 Colors In 1 LED(Red, Green, Blue, Cool White, Warm White)
- LED Quantity: 30LEDs/60LEDs Per Meter
- Color: RGB + Tunable White
- Color Temperature Adjust Range: 2700 K- 6500 K
- Color Rendering Index: >
- Waterproof Levels: IP30 Non-Waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-GH994T
- Size: 12mm*2.13mm(W*H)
- Length: 16.4FT/Reel
- Color Of PCB Board: White
- LED Chip: San An
- LED Type: 5050 SMD 5 Colors In 1 LED(Red, Green, Blue, Cool White, Warm White)
- LED Quantity: 30LEDs/60LEDs Per Meter
- Working Voltage: DC12V
- Power: 0.3W/LED
- Color: RGB + Tunable White
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

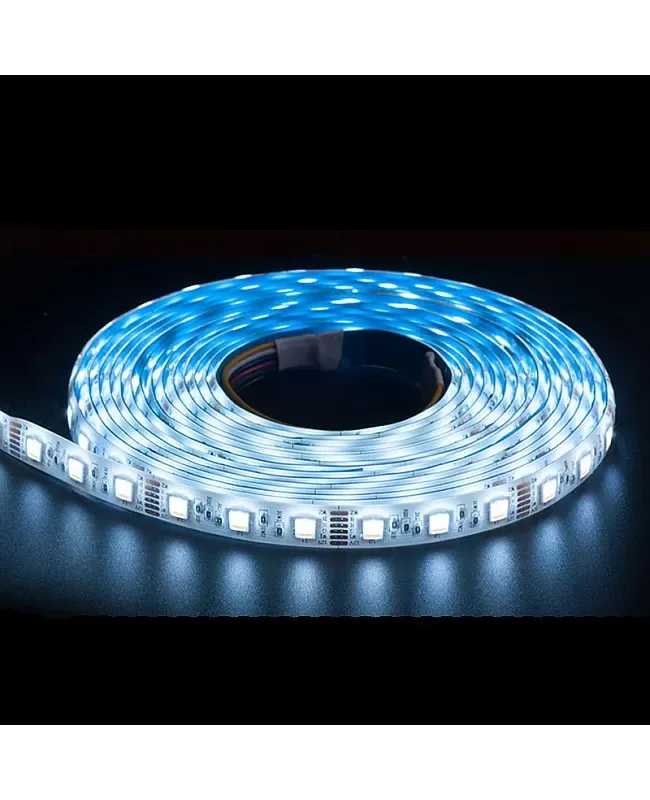

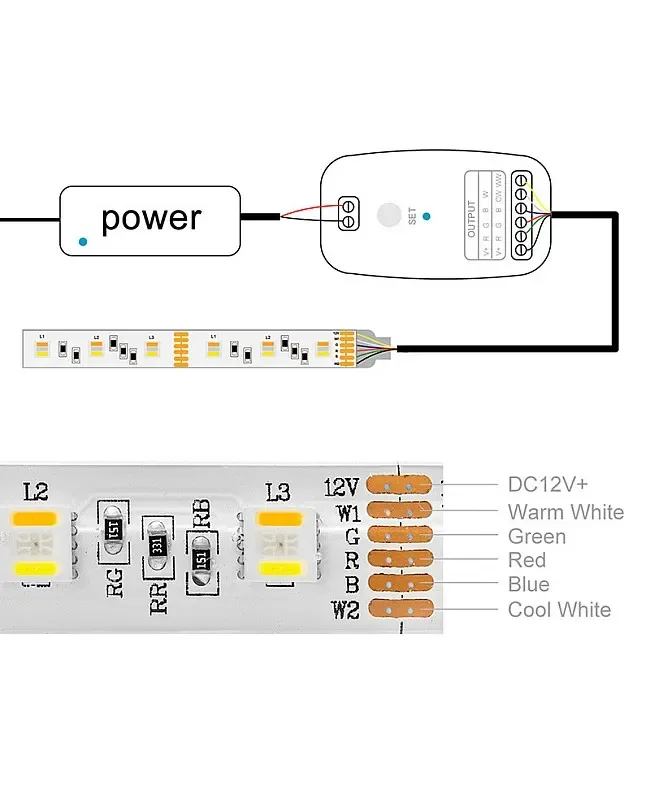

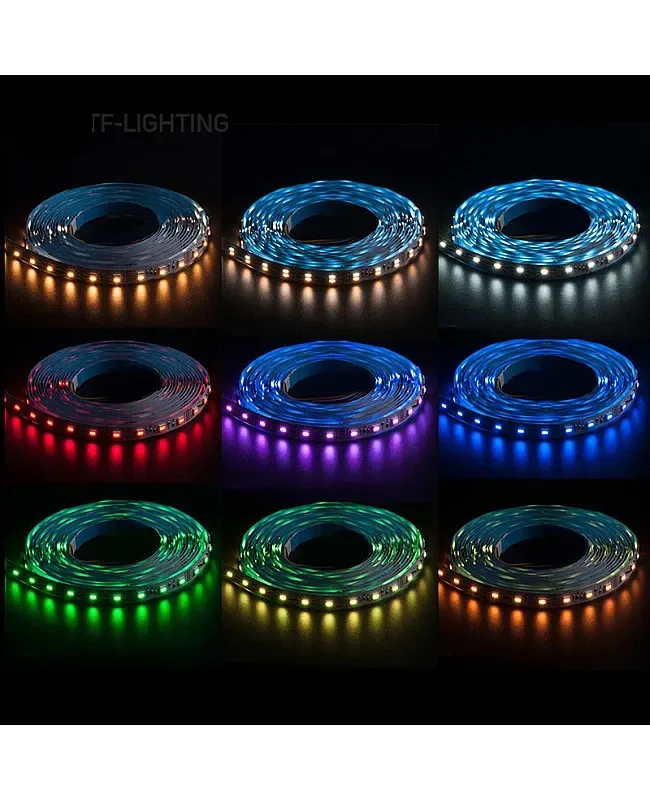

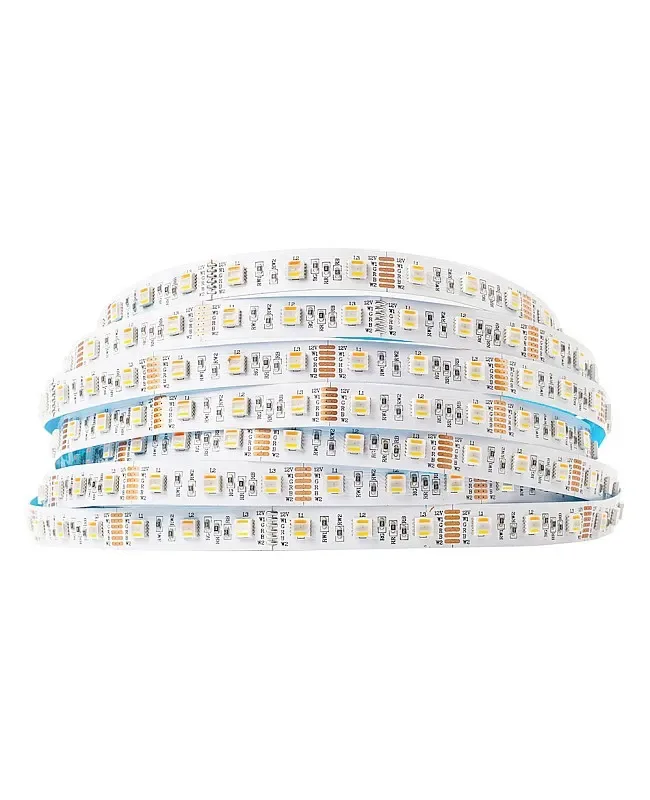

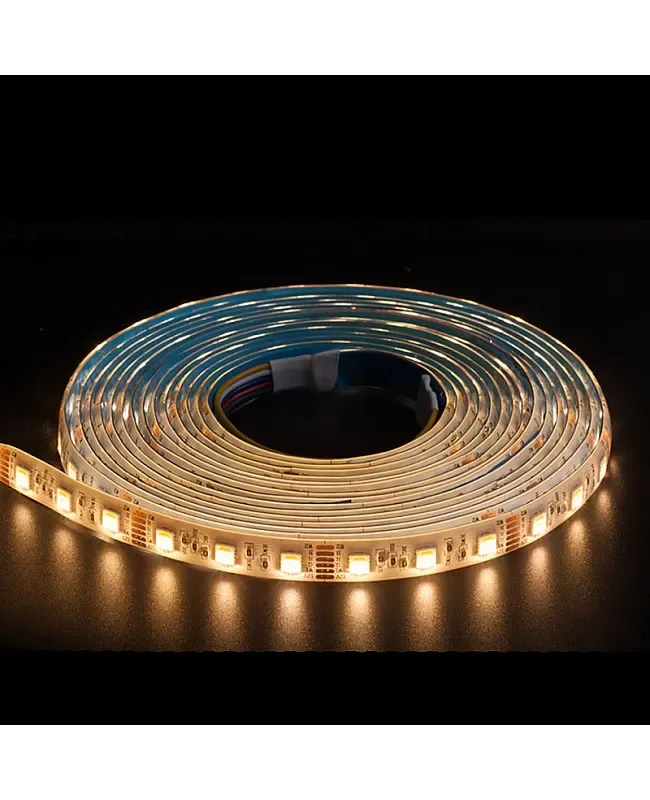

The RGB CCT connecting LED strip lights use the high-quality 5 in 1 5050 SMD LEDs as the light source, each LED includes the red, green, blue, warm white and cool white San An LED chips, which are easy to connect to the RGB tunable white light controller to create bold, brilliant illumination in a wide range of high-quality color tones, adjust the static color or dynamic mode, adjust the color temperature from 2700K to 6500K for various scenes. 30PCS or 60PCS LEDs mounting on each meter dual-layer PCB board, flexible and bendable, there are 3 waterproof level products available, IP30 non-waterproof, IP65 coating waterproof, and IP67 silicone tube waterproof, the installer can choose them for various location installations. The RGBWW LED strips are cuttable and reconnectable; The mini cutting length is 5cm or 10cm; the installer can cut to any length for your project from the copper point and use the light connector to reconnect them. The back has double-sided adhesive tape. Remove the protective paper from the back of the tape and stick it to where you want to install it. The IP67 RGBCW strip lights come with silicone clips, the installer can use the screws to mount them on the surface of the outdoor lighting project.
Specifications
Model: RGB+CCT 5050 SMD
Size: 12mm*2.13mm(W*H)
Length: 16.4FT/Reel
Color Of PCB Board: White
LED Chip: San An
LED Type: 5050 SMD 5 Colors In 1 LED(Red, Green, Blue, Cool White, Warm White)
LED Quantity: 30LEDs/60LEDs Per Meter
Working Voltage: DC12V
Power: 0.3W/LED
Color: RGB + Tunable White
Color Temperature Adjust Range: 2700 K- 6500 K
Dimmable: YES
Color Rendering Index: >
Waterproof Levels: IP30 Non-Waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof
Beam Angle: 120°
Gray Level: 256
Mini Cutting Length: 5CM(60LEDs/M) / 10CM(30LEDs/M)
Back With Double-Sided Adhesive Tape
Working Temperature: -25-50℃
Storage Temperature: -40-50℃
Includes
1 * CCT RGB Connecting LED Strip Light(16.4FT/Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
