480W CCT LED Strip Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

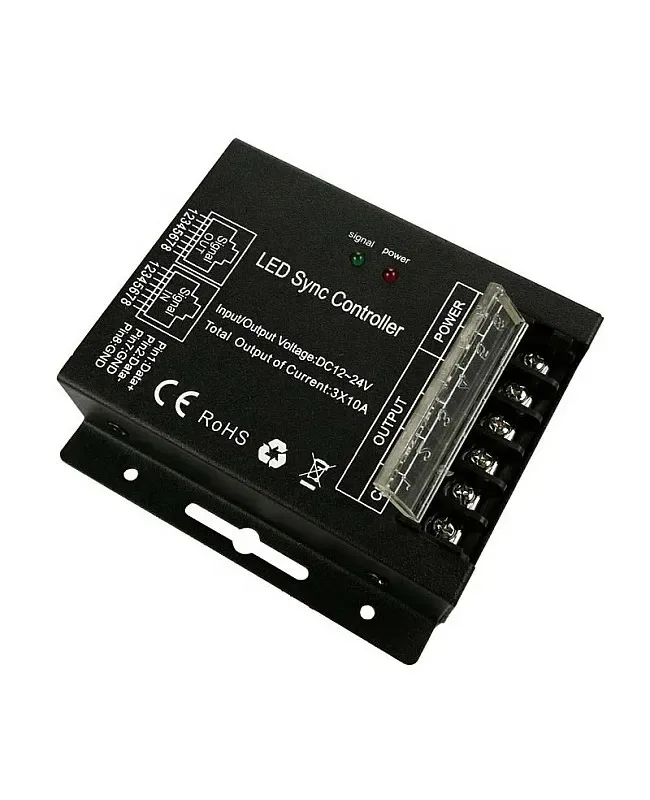

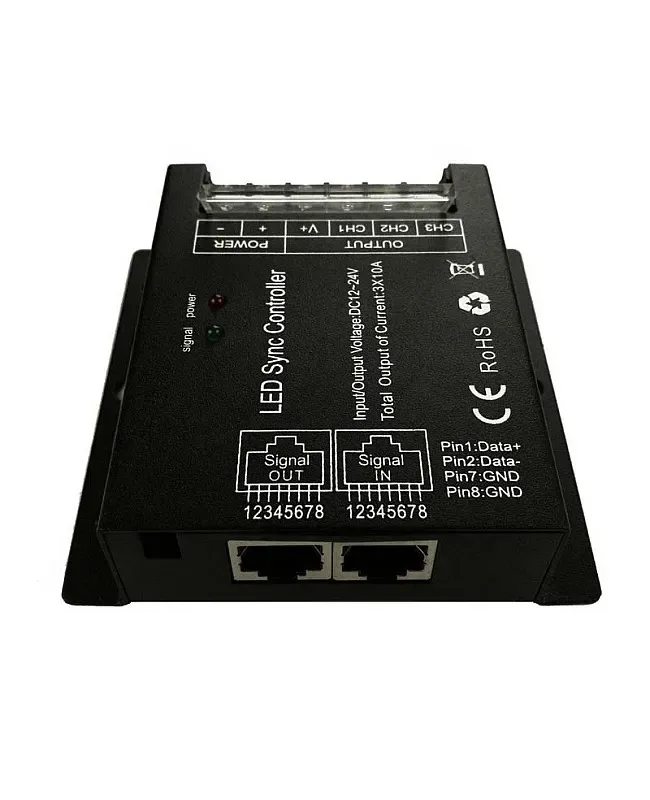

• The CCT LED strip controllers are designed for tunable white constant-voltage LED lights and feature dual Ports to enable synchronization. Multiple LED controllers can operate synchronously, and the maximum network cable length is 80 meters. The tunable white LED strip controller operates on DC 12-24V, with a 2-output, 2-channel design. The maximum load power is up to 480W at 24V, with a memory function; each time it is powered on, it remembers the mode last stopped at power-off.
• Working Temperature: -20-60℃
• Max Output Current: ≤10A (Each Channel)
• Max Output Power: 240W(12V), 480W(24V)
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• 11 Modes In Total, 3 Static Colors And 8 Dynamic Modes
• Remote Control Distance: ≤20M

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V / 12 V / 24 V
• Light engine: CCT
• Working Temperature: -20-60℃
• Size: 91*88*24mm(L*W*H)
• Working Voltage: -24V
• Output Channels: 2
• Max Output Current: ≤10A (Each Channel)
• Max Output Power: 240W(12V), 480W(24V)
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Mode: 11
• PWM Frequency: 433.

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

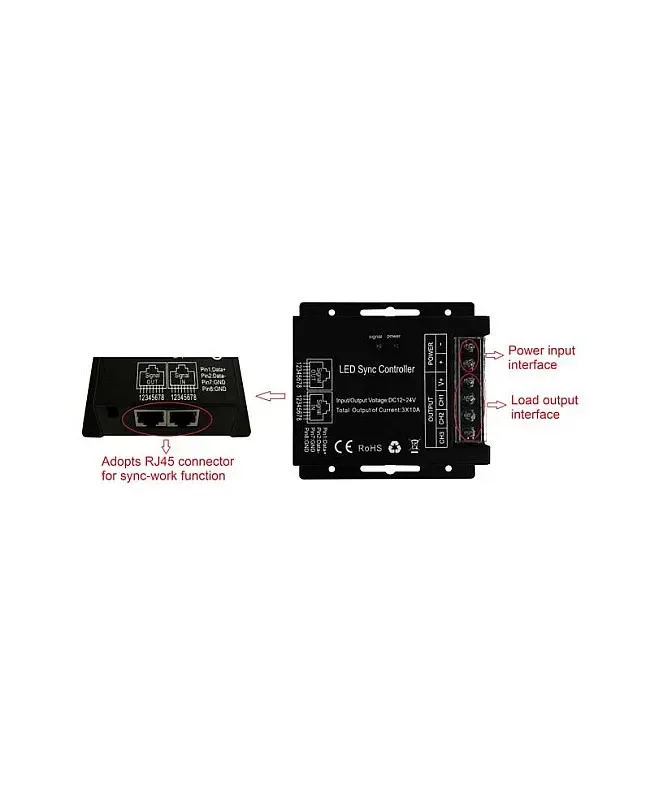

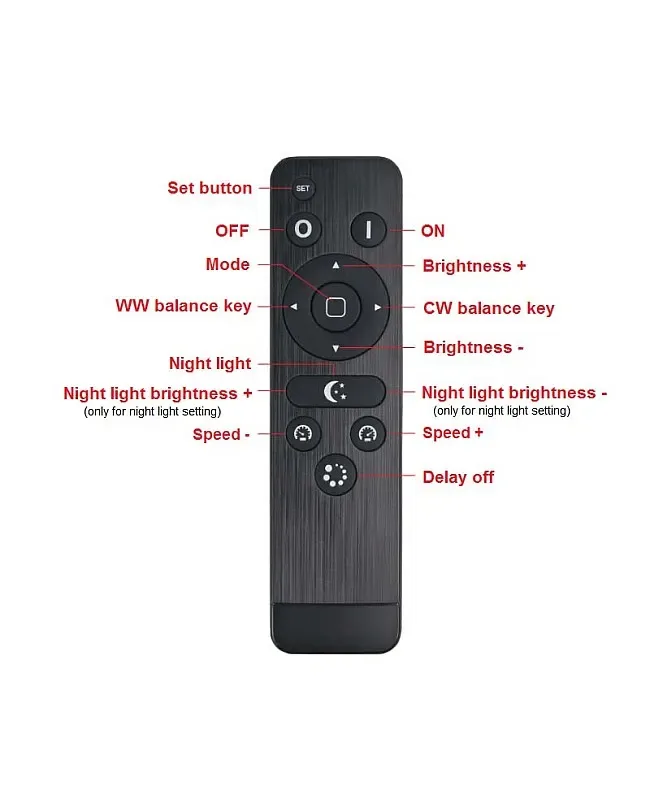

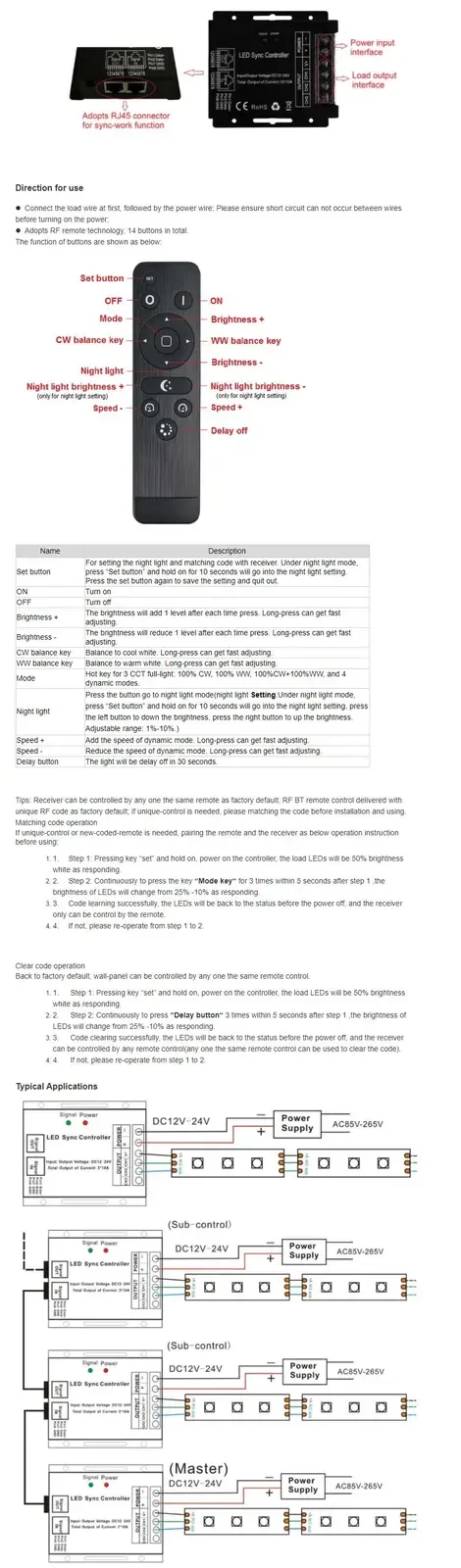

The CCT LED strip controllers are designed for tunable white constant-voltage LED lights and feature dual Ports to enable synchronization. Multiple LED controllers can operate synchronously, and the maximum network cable length is 80 meters. The tunable white LED strip controller operates on DC 12-24V, with a 2-output, 2-channel design. The maximum load power is up to 480W at 24V, with a memory function; each time it is powered on, it remembers the mode last stopped at power-off. THE HX-RFBT-2.4G remote control includes 14 buttons and provides 11 working modes, three static colors, and eight dynamic modes. The brightness of static color is adjustable, with 256 levels. The speed of dynamic modes is adjustable, with 100 levels in total. Long-pressing the brightness and speed keys can get a fast adjustment.

CCT LED Strip Controller Specifications

Working Temperature: -20-60℃

Size: 91*88*24mm(L*W*H)

Working Voltage: -24V

Output Channels: 2

Max Output Current: ≤10A (Each Channel)

Max Output Power: 240W(12V), 480W(24V)

Static Power Consumption: <1W

Connecting Mode: Common Anode

Grayscale: 256 Levels

Speed Stage: 100 Grade

11 Modes In Total, 3 Static Colors And 8 Dynamic Modes

PWM Frequency: 433.

Remote Control Distance: ≤20M

Memory Function: YES

Short Circuit Protection: YES

Weight: 300g

Remote Control Specifications

Working Temperature: -20-60℃

Size: 150*40*20mm(L*W*H)

Working Voltage: DC3V(AAA*2)

Standby Current: <

Working Current: <

Standby Power

Working Power

RF Frequency: 433.

RF Distance: ≤20M

Weight: 65g

Includes

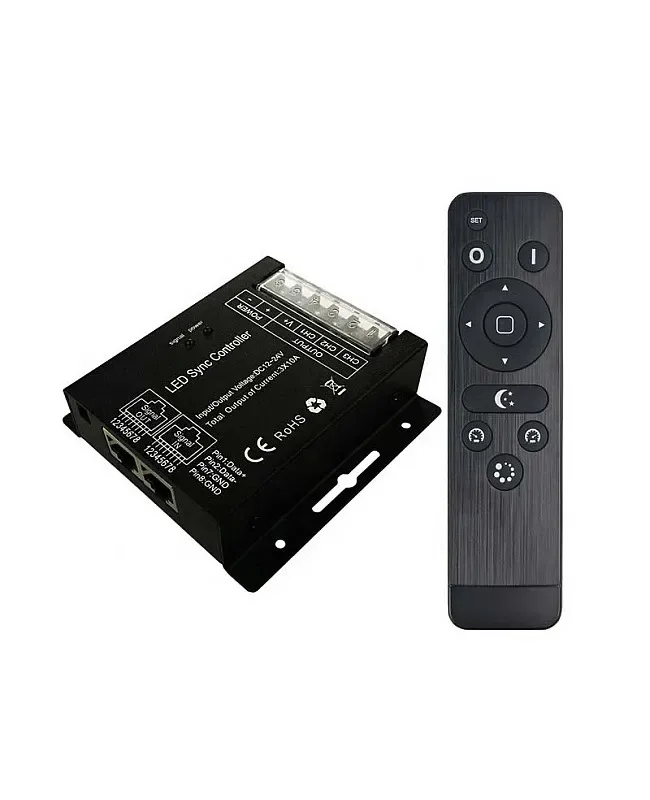

1 * CCT LED Strip Controller

1 * HX-RFBT-2.4G Remote Control
