Product details
3mm 3528 Flexible LED Strips
LumaCircuit offers 3mm 3528 Flexible LED Strips as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Luminous Flux: 5-6 lm/LED LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 96LEDs/Meter Working Voltage: DC3V, DC5V,7V, DC5V, DC12V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 3mm 3528 flexible LED strips, use the high-quality 3528 SMD LEDs as the light source, 30LEDs per meter or 60LEDs per meter available, the max LED quantity can do 96LEDs per meter, per reel, the LEDs mounted on the 3mm dual layer PCB board, back with double side tape, flexible and cuttable, the installer can cut the LED strips to any size follow the scissor marks for your projects, take off the protector on the tape and stick on the place you want to install, the 3mm LED strips is non-waterproof
- Luminous Flux: 5-6 lm/LED
- LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 96LEDs/Meter
- Working Voltage: DC3V, DC5V,7V, DC5V, DC12V
- Emitting Colors: Warm White(3000K)/Cool White(6500K)
- Back With Double-Sided Adhesive Tape
- Cuttable And Reconnectable
- 1 * 3mm 3528 LED Strips(Reel)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V
- Light engine: CCT
- Width: 3mm
- Length: Per Reel
- LED: 3528 SMD LEDs
- LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 96LEDs/Meter
- Working Voltage: DC3V, DC5V,.7V, DC5V, DC12V
- Power: 4.5W/Meter
- Emitting Colors: Warm White(3000K)/Cool White(6500K)
- Power Factor: 0.9
- CRI: >
- IP Rating: IP20
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

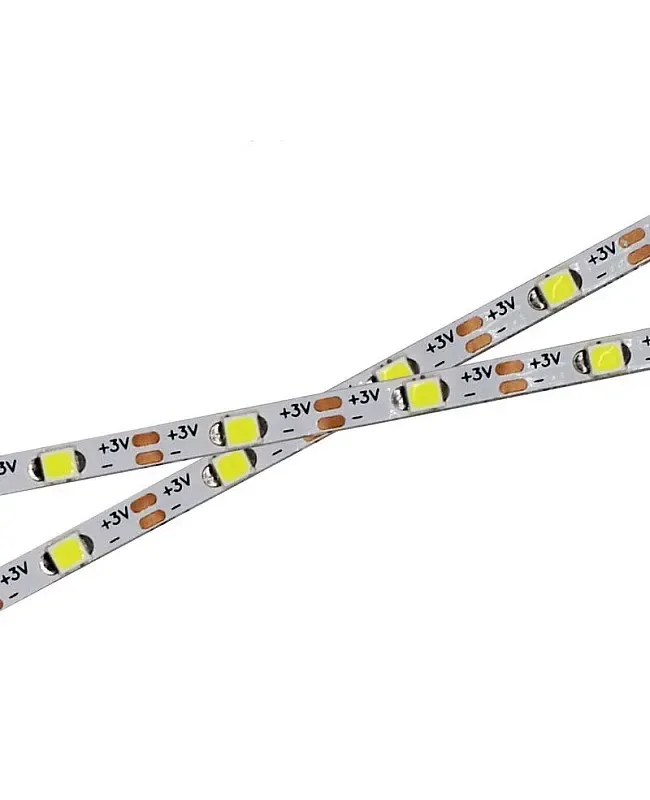

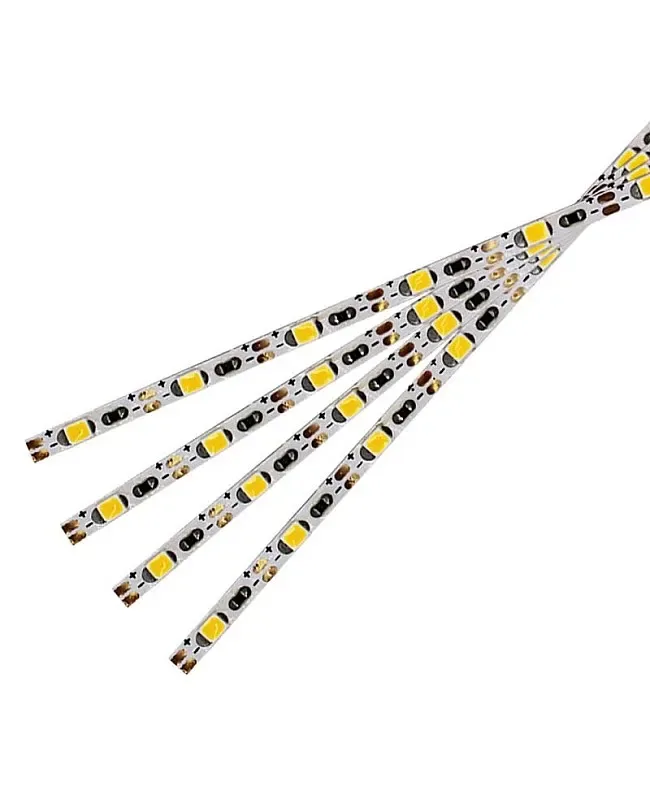

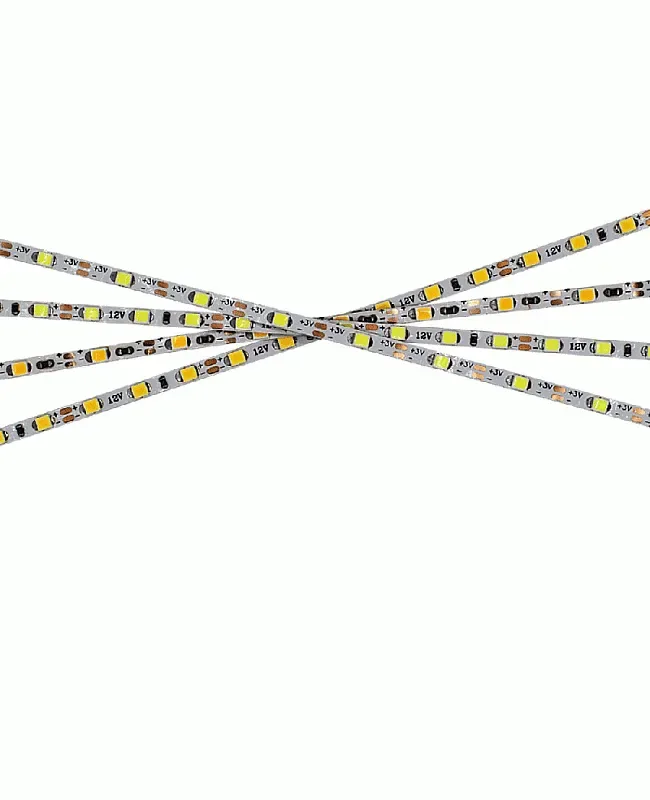

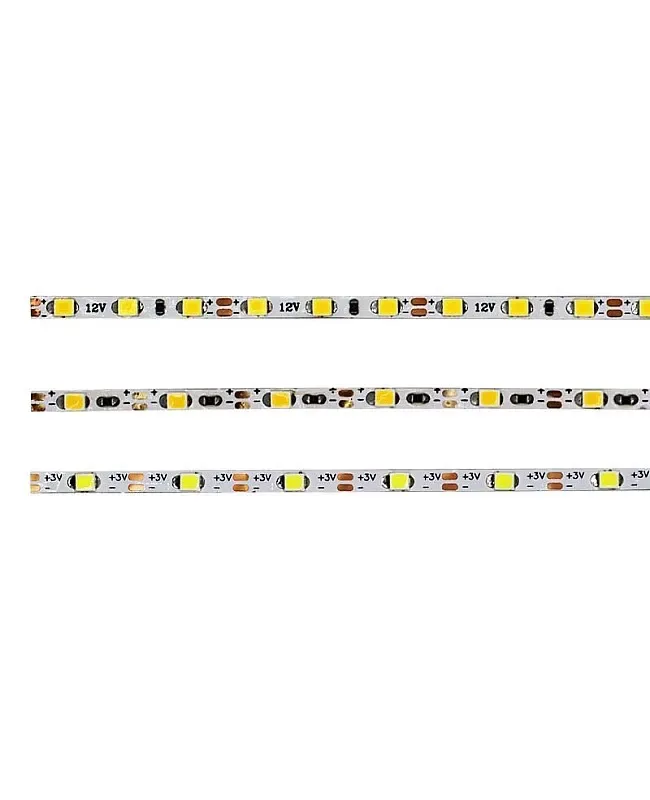

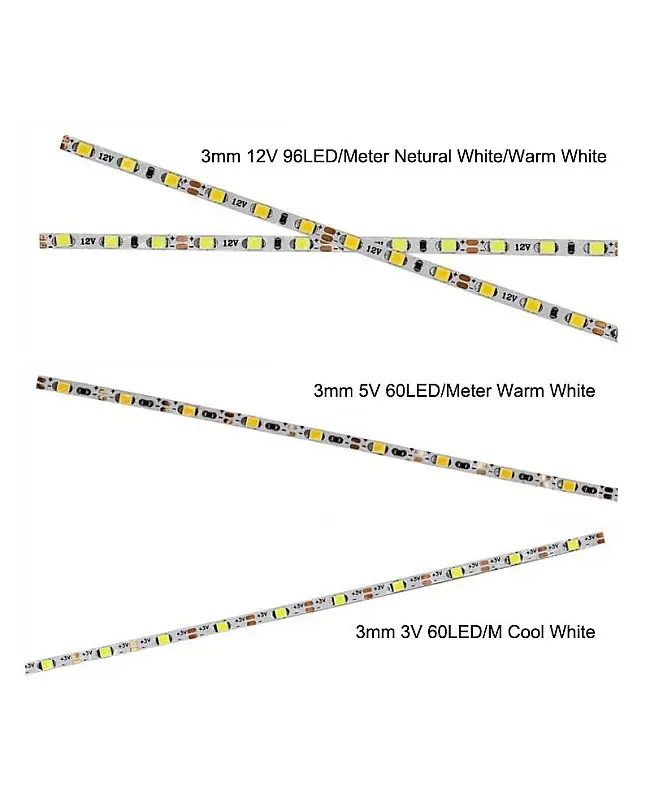

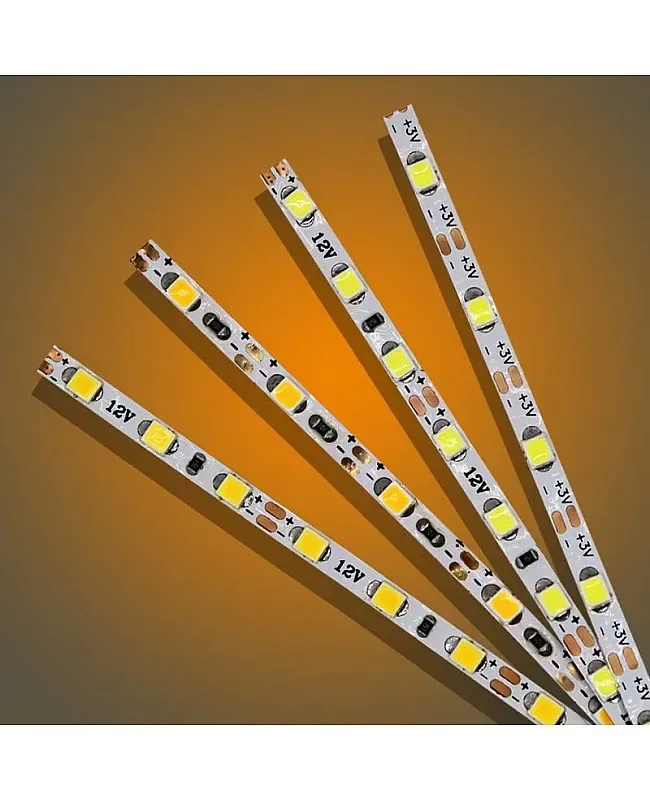

The 3mm 3528 flexible LED strips, use the high-quality 3528 SMD LEDs as the light source, 30LEDs per meter or 60LEDs per meter available, the max LED quantity can do 96LEDs per meter, per reel, the LEDs mounted on the 3mm dual layer PCB board, back with double side tape, flexible and cuttable, the installer can cut the LED strips to any size follow the scissor marks for your projects, take off the protector on the tape and stick on the place you want to install, the 3mm LED strips is non-waterproof, only recommend works indoor or the dry areas. The installer can choose the various working voltage LED strips, the installer can select the DC3V,7V, DC5V, DC12V, the installer can use them in makeup mirror, toy car, baby carriage, scooter, backlight on TV, luminous signs, luminous clothes shoes, the width only 3mm, easy to install and use.
Specifications
Width:3mm
Length: Per Reel
LED: 3528 SMD LEDs
Luminous Flux: 5-6 lm/LED
LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 96LEDs/Meter
Double Layer FPC Board
Working Voltage: DC3V, DC5V,7V, DC5V, DC12V
Power: 4.5W/Meter
Emitting Colors: Warm White(3000K)/Cool White(6500K)
Angle View: 120°
Power Factor: 0.9
Dimmable: YES
CRI: >
Back With Double-Sided Adhesive Tape
Cuttable And Reconnectable
IP Rating: IP20
Includes
1 * 3mm 3528 LED Strips(Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
