Product details
24V Waterproof Wall Wash Lighting Strip Lights With Lens
LumaCircuit offers 24V Waterproof Wall Wash Lighting Strip Lights With Lens as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Size( W * H): 15mm * 10mm / 0.59" * 0.39" Length: 5 Meters/16.4ft per roll Colors: 3000K Warm White, 4000K Neutral White, 6500K Cool White The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The waterproof wall wash lighting strips are designed for indoor and outdoor use. These high-performance LED strips feature a precision lens to deliver smooth, uniform light distribution, eliminating hotspots for a flawless wall-washing effect. The built-in 30° optical lens ensures wide, even illumination, suited to accent, cove, and facade lighting to enhance architectural features.
- Size( W * H): 15mm * 10mm / 0.59" * 0.39"
- Length: 5 Meters/16.4ft per roll
- Colors: 3000K Warm White, 4000K Neutral White, 6500K Cool White
- Waterproof Level: IP20 Non-waterproof IP67 Waterproof
- Minimum Cutting Length: 27mm
- The back has double-sided adhesive tape
- Working Temperature: -20℃-+45℃
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- Size( W * H): 15mm * 10mm / 0.59" * 0.39"
- Length: 5 Meters/16.4ft per roll
- LED QTY: 36PCS/M
- Working Voltage: DC24V
- Power: 18W/M
- Colors: 3000K Warm White, 4000K Neutral White, 6500K Cool White
- Beam Angle: 30°
- Minimum Cutting Length: 27mm
- Working Temperature: -20℃-+45℃
- Storage Temperature: -20℃-+60℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

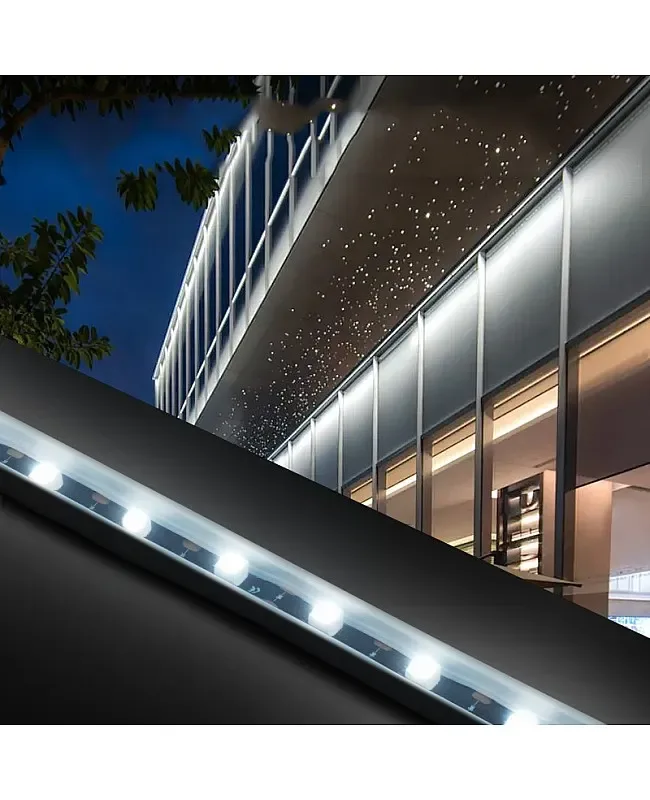

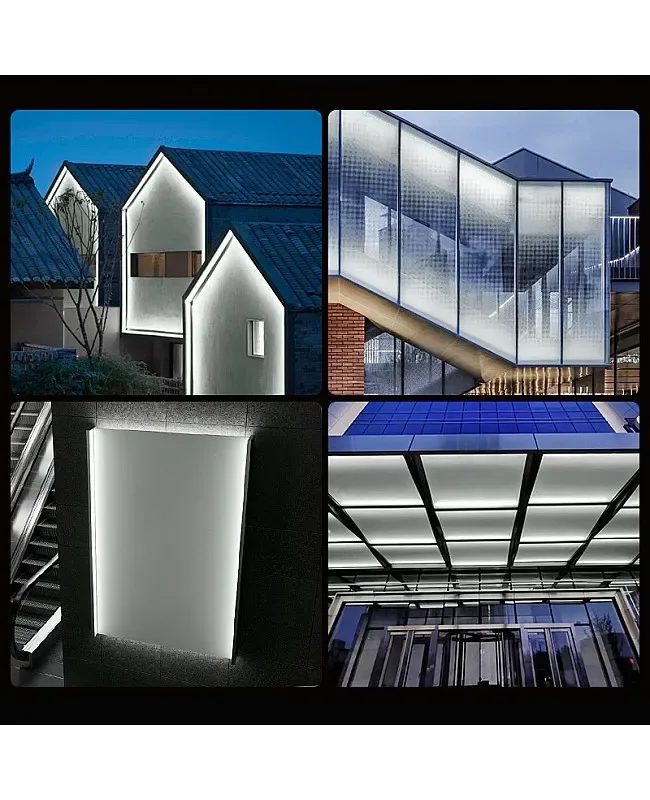

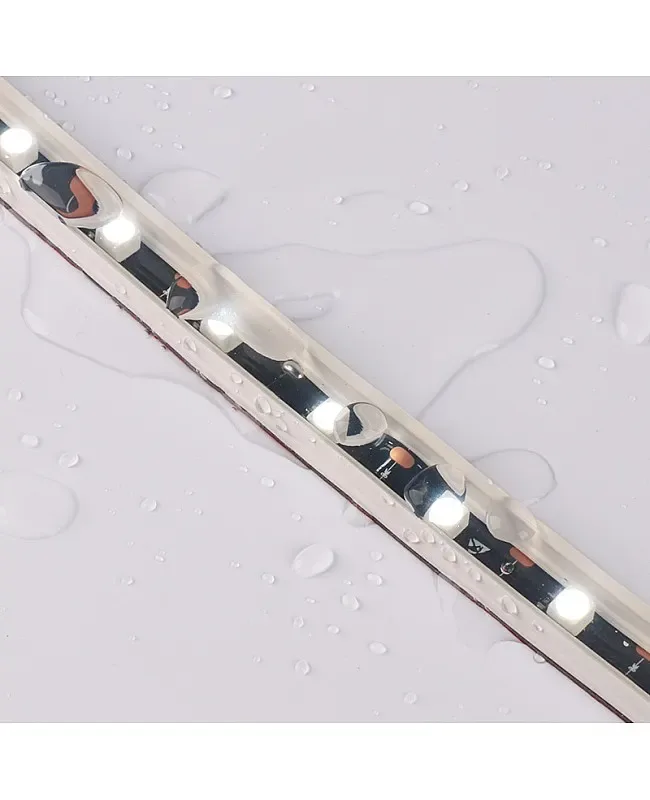

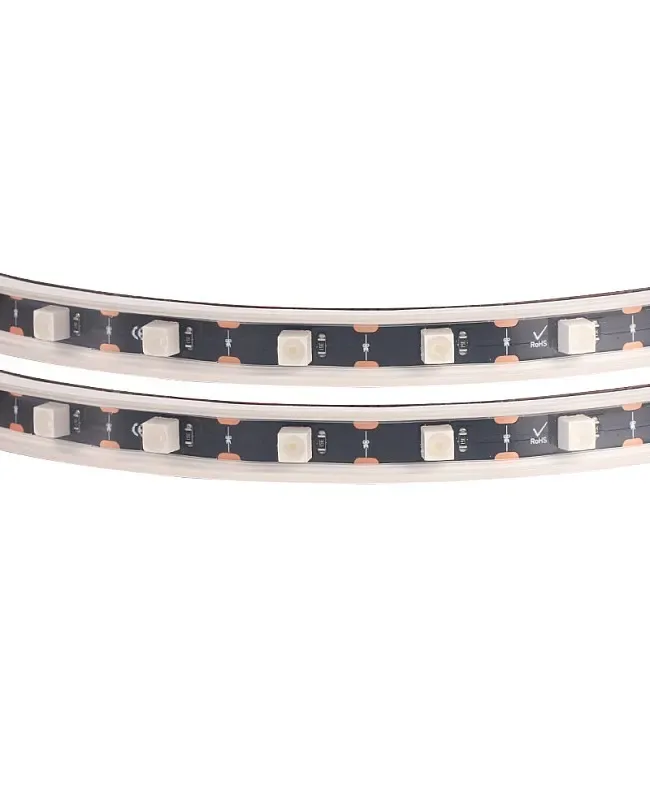

The waterproof wall wash lighting strips are designed for indoor and outdoor use. These high-performance LED strips feature a precision lens to deliver smooth, uniform light distribution, eliminating hotspots for a flawless wall-washing effect. The built-in 30° optical lens ensures wide, even illumination, suited to accent, cove, and facade lighting to enhance architectural features. The one-meter PCB board contains 36 high-quality LEDs in a silicone tube for waterproofing and dustproofing suited to outdoor landscapes, pools, and wet environments. The tube is also flexible and can be shaped into a round, etc. Three white products are available; the installer can choose warm white, neutral white, or cool white for different scenes. The back has strong adhesive tape and optional aluminum channels for seamless mounting on walls, ceilings, etc. The wall wash strip lights work at safer than 120V/220V systems, while delivering high brightness with minimal power consumption.
Specifications
Size( W * H): 15mm * 10mm / 0.59" * 0.39"
Length: 5 Meters/16.4ft per roll
LED QTY: 36PCS/M
Working Voltage: DC24V
Power: 18W/M

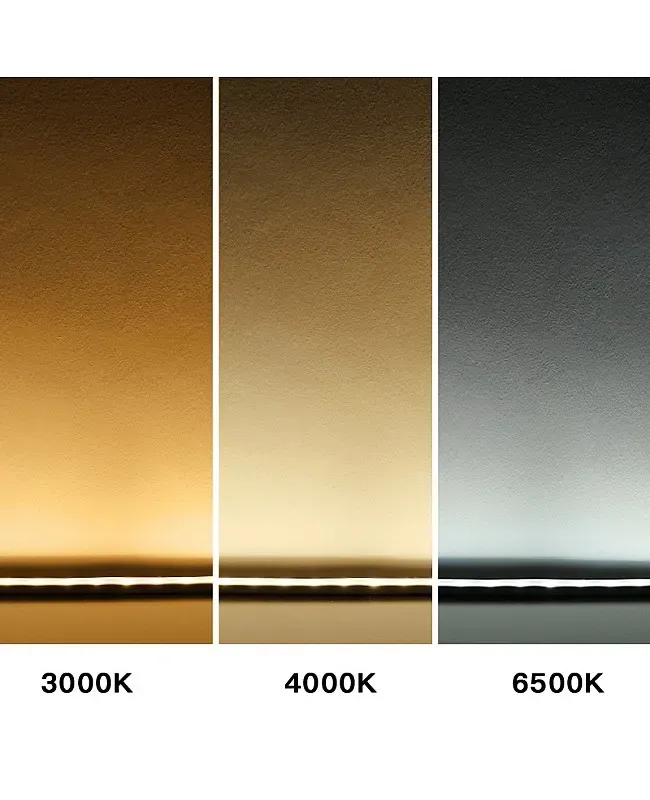

Colors: 3000K Warm White, 4000K Neutral White, 6500K Cool White

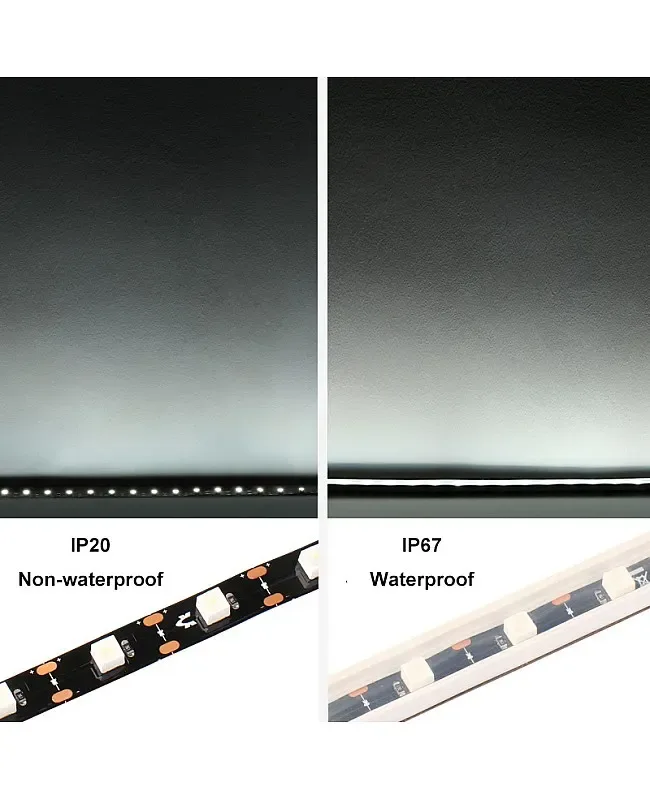

Waterproof Level: IP20 Non-waterproof IP67 Waterproof
Beam Angle: 30°
Minimum Cutting Length: 27mm
The back has double-sided adhesive tape
Working Temperature: -20℃-+45℃
Storage Temperature: -20℃-+60℃
Includes
1 * Wall Wash Light Strips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
