Female DC Solderless LED Strip Connector
LumaCircuit offers Female DC Solderless LED Strip Connector as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Name: Solderless DC LED Connector With Switch DC Connector Size: 5.5*2.1mm Wire Length: Around 30cm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

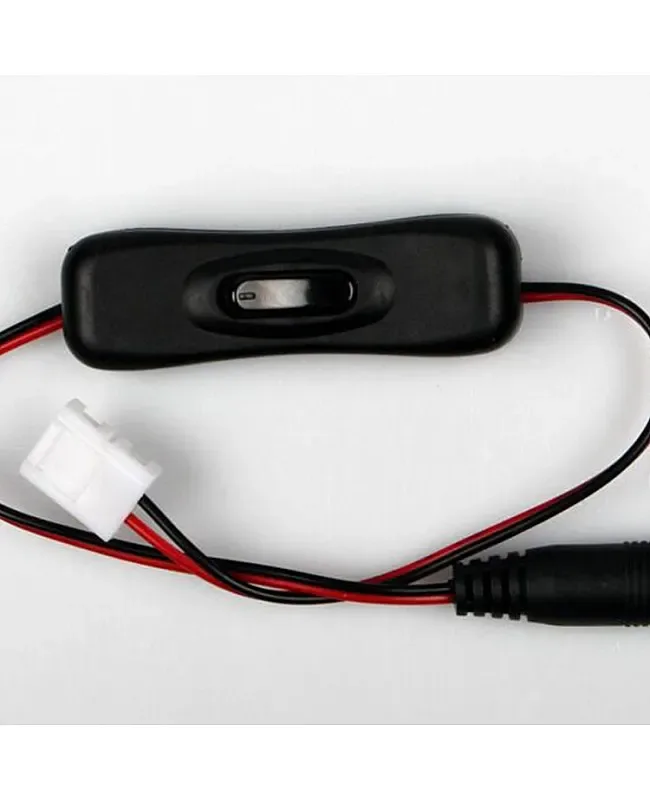

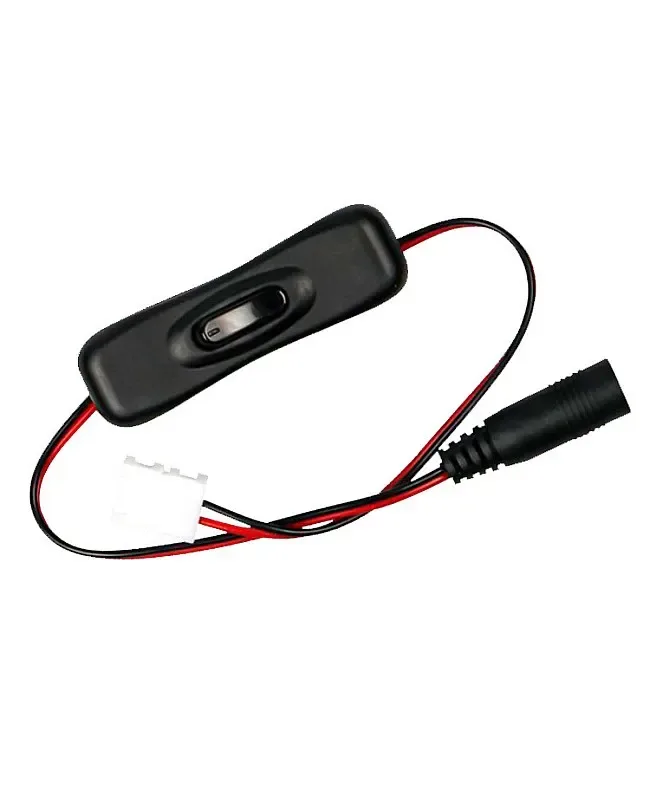

- The female DC solderless LED strip connector has a switch, one side with the female DC connector and another with the single-color solderless LED connector. The width of solderless connectors is 8mm and 10mm. The installer can use them for 3528 or 5050 single-color LED strips.
- Name: Solderless DC LED Connector With Switch
- DC Connector Size: 5.5*2.1mm
- Wire Length: Around 30cm
- Width Of Solderless Connector: 8mm/10mm
- Fit For 3528/5050 Single Color LED Strips
- 1 * Female DC Solderless LED Strip Connectors
- The Female DC Solderless LED Strip Connector with switch, can use them for 3528 or 5050 Single Color LED Strips, can connect to the light dimmers or power supply via the female DC connector, the installer can press the switch to turn on/off the LED Light.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 24 V
- Input Voltage: DC5V-24V
- DC Connector Size: 5.5*2.1mm
- Wire Length: Around 30cm
- Width Of Solderless Connector: 8mm/10mm
- LumaCircuit model: LC-STR-9CV282
- Dimensions found: 5.5x2.1mm / 2.1mm / 8mm / 10mm
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The female DC solderless LED strip connector has a switch, one side with the female DC connector and another with the single-color solderless LED connector. The width of solderless connectors is 8mm and 10mm. The installer can use them for 3528 or 5050 single-color LED strips. Insert the LED strips into the quick connector and under the 4-pin, then close the clip to finish the installation can connect to the light dimmers or power supply via the female DC connector, and the installer can press the switch to turn the LED light on/off easily.
Specifications
Input Voltage: DC5V-24V
Name: Solderless DC LED Connector With Switch
DC Connector Size: 5.5*2.1mm
Wire Length: Around 30cm
Wire Gauge
Width Of Solderless Connector: 8mm/10mm
Fit For 3528/5050 Single Color LED Strips
1 * Female DC Solderless LED Strip Connectors
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
