504LEDs 12V/24V FCOB LED Strips Reel
LumaCircuit offers 504LEDs 12V/24V FCOB LED Strips Reel as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board Working Voltage: DC12V/DC24V Power: 12W/M(10mm), 10W(8mm) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The FCOB LED strips use high-quality San An LED chips as the light source. The LED chips are mounted on the dual-layer flexible PCB board, 504 LEDs per meter, and the high-density LEDs create a seamless line of light with no visible light dots and hotspots. 90+ CRI for quality color rendering, excellent efficiency and color consistency, incredibly bright and comfortable visual experience, suited to various indoor linear lighting projects.
- PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
- Working Voltage: DC12V/DC24V
- Power: 12W/M(10mm), 10W(8mm)

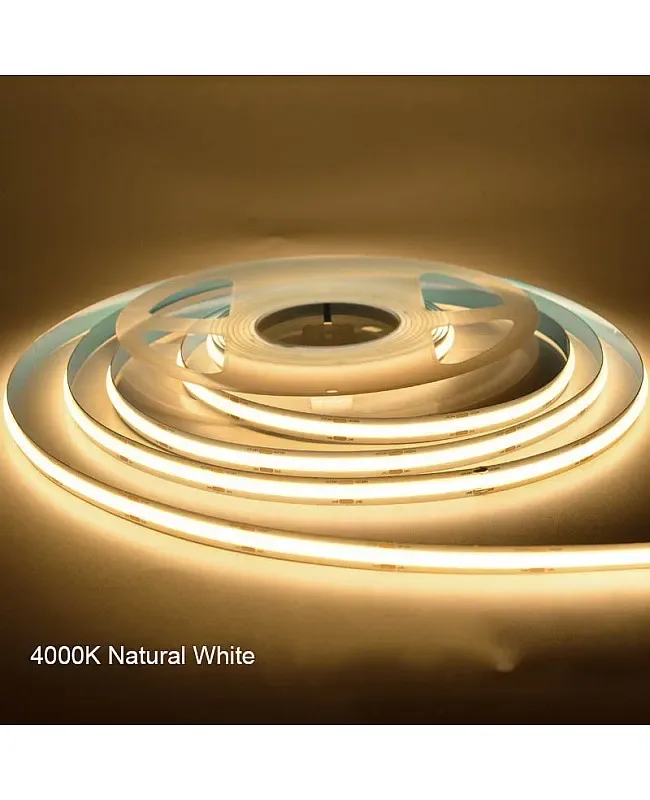

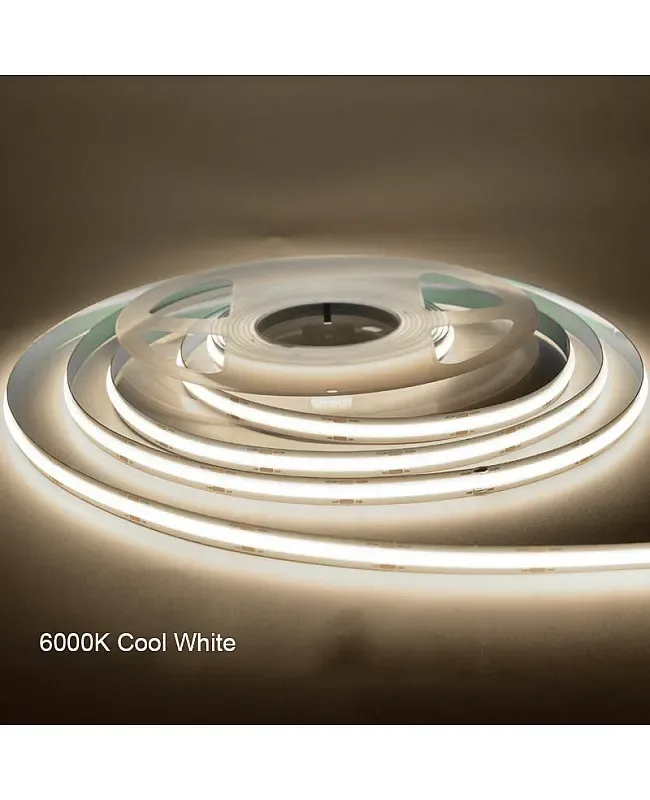

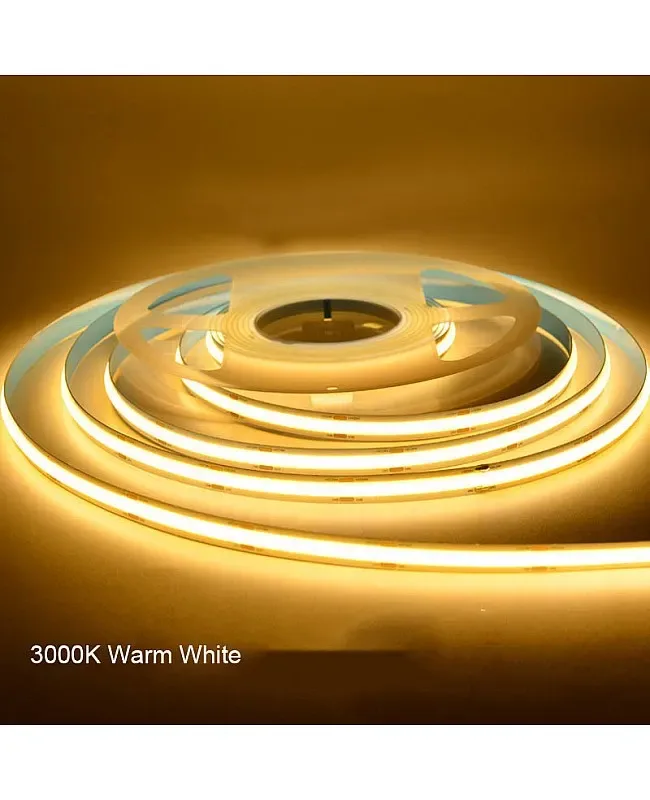

- Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6000K)
- Luminous Flux: 1400-1700LM/M
- Luminous Efficiency: 110-120LM/W
- IP Rating: IP20 Non-waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: CCT
- PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
- Working Voltage: DC12V/DC24V
- LED Chip: San An
- LED QTY: 504 LEDs/Meter
- Length: 5 Meters/Reel
- Width: 10mm, 8mm
- Power: 12W/M(10mm), 10W(8mm)
- Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6000K)
- IP Rating: IP20 Non-waterproof
- CRI: +
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The FCOB LED strips use high-quality San An LED chips as the light source. The LED chips are mounted on the dual-layer flexible PCB board, 504 LEDs per meter, and the high-density LEDs create a seamless line of light with no visible light dots and hotspots. 90+ CRI for quality color rendering, excellent efficiency and color consistency, incredibly bright and comfortable visual experience, suited to various indoor linear lighting projects. Flexible and bendable, the installer can cut to any size for your project from the cuttable marks. The installer can choose the DC12V or DC24V products, working on DC24V for longer max runs. The waterproof rate is IP20; it is non-waterproof and is only recommended for indoor projects. The back of the COB strip lights with double-sided adhesive tape is easy to stick to where you want to install. It can connect to an LED light dimmer to adjust the brightness freely. Three emitting colors of products are available, and the installer can choose warm white, natural white, and cool white for various scenes. Suitable for narrow applications like jewelry cases and backlighting. There are 3-width products available, and the installer can take the 5mm, 8mm, and 10mm for different lighting projects.
Specifications
PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
Working Voltage: DC12V/DC24V
LED Chip: San An
LED QTY: 504 LEDs/Meter
Length: 5 Meters/Reel
Width: 10mm, 8mm
Thickness: 1.6mm
Power: 12W/M(10mm), 10W(8mm)
Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6000K)
Luminous Flux: 1400-1700LM/M
Luminous Efficiency: 110-120LM/W
View Angle: 180°
Dimmable: 0-100%
Cuttable: YES
IP Rating: IP20 Non-waterproof
CRI: +
Minimum Cuttable Length: DC12V: 7.94mm(5mm), 17.86mm(8mm), 17.85mm(10mm); DC24V: 13.89mm(5mm), 41.67mm(8mm), 41.66mm(10mm);
NO Visible Light Dots, NO Hotspots
Flexible, Bendable And Cuttable

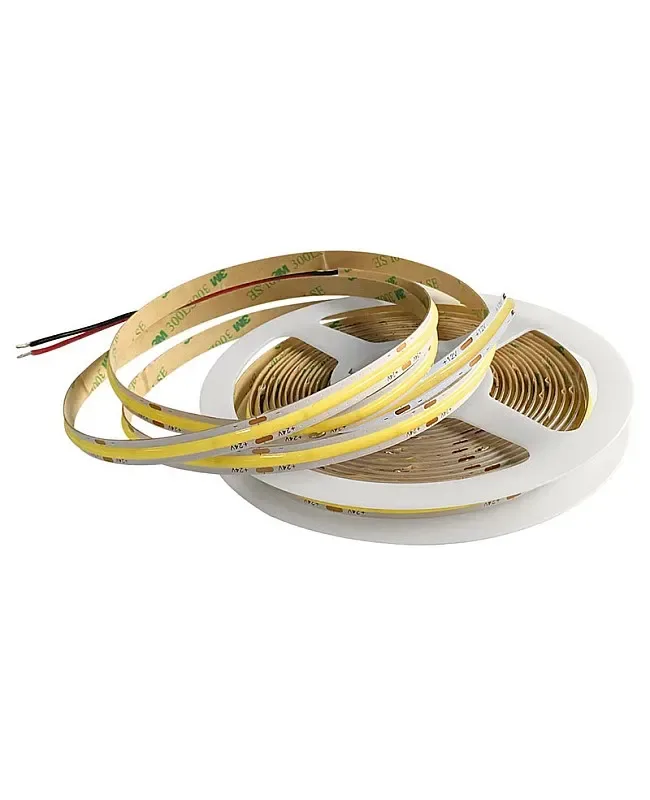

Back With Double-Sided Adhesive Tape
Working Temperature: -20℃-+45℃
Storage Temperature: -20℃-+60℃
Includes
1 * FCOB LED Strips(Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
