Seamless RGB COB LED Tape High CRI DC12V/24V

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The seamless RGB COB LED tapes provide vibrant lighting with a high color rendering index(CRI). It features a seamless design with no visible dots for a consistent lighting effect. It's suited to lighting up staircases, accent walls, living rooms, and other areas.
• It uses high-quality 1022 LED chips as the light source and employs the latest chip-on-board technology, where the LED chips are mounted on a double-layer PCB board that is both flexible and bendable.
• Flex LED tape strips are 16.4 ft per reel, can be cut to any length from the cutting marks, and reconnected with the solderless COB LED connectors. They can be used with LED controllers to switch from static colors to dynamic modes and adjust the speed of the dynamic mode or the brightness of the static color.
• IP20 and IP67 waterproof-rated products are available, suitable for both indoor and outdoor applications. IP20 non-waterproof products come with double-sided adhesive tape for easy installation. IP67 RGB lighting features silicone clips, enabling installation in wet or rainy locations for outdoor projects.
• Working Voltage: DC12V/DC24V
• LED Quantity: 420PCS/M, 840PCS/M, 432PCS/M, 810PCS/M
• Luminous Efficiency: 110-120lm/W
• IP Rating: IP20 Non-Waterproof, IP67 Waterproof

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 24 V
• Light engine: COB
• LumaCircuit model: LC-STR-HXI0LT
• Width: 10mm
• Length: Reel
• Working Voltage: DC12V/DC24V
• LED Type: 1022
• LED Brand: San An
• LED Quantity: 420PCS/M, 840PCS/M, 432PCS/M, 810PCS/M
• Power: 5W+5W+5W
• Emitting Color: RGB
• Beam Angle: 180°

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

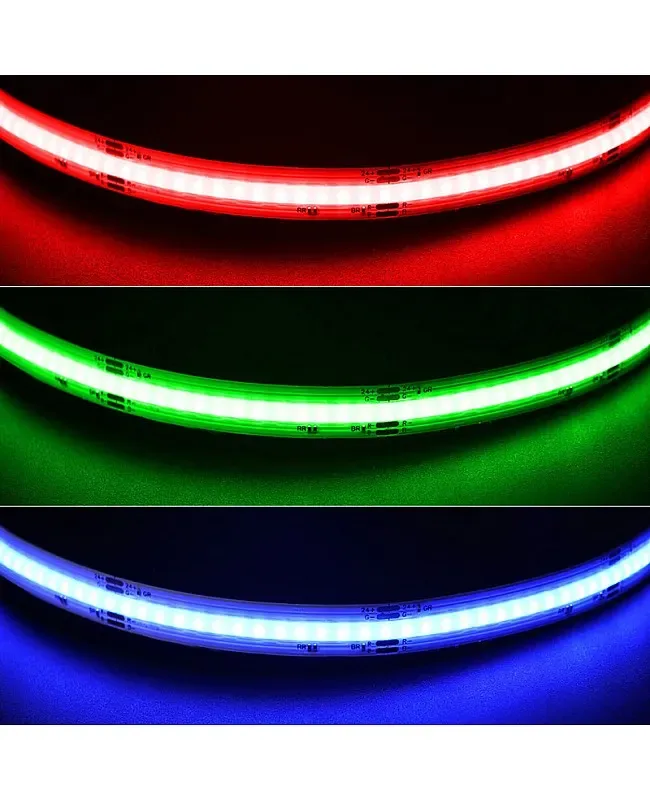

The seamless RGB COB LED tapes provide vibrant lighting with a high color rendering index(CRI). It features a seamless design with no visible dots for a consistent lighting effect. It's suited to lighting up staircases, accent walls, living rooms, and other areas.

It uses high-quality 1022 LED chips as the light source and employs the latest chip-on-board technology, where the LED chips are mounted on a double-layer PCB board that is both flexible and bendable. The high-density LED arrays create a continuous, smooth, and seamless colorful RGB line of light, with no visible light dots or hot spots, thereby reducing heat buildup and achieving a high CRI of up to 90+ the installer can use them in places that require high-quality color rendering, such as tile floors, jewelry cases, or backlighting on tile floors.

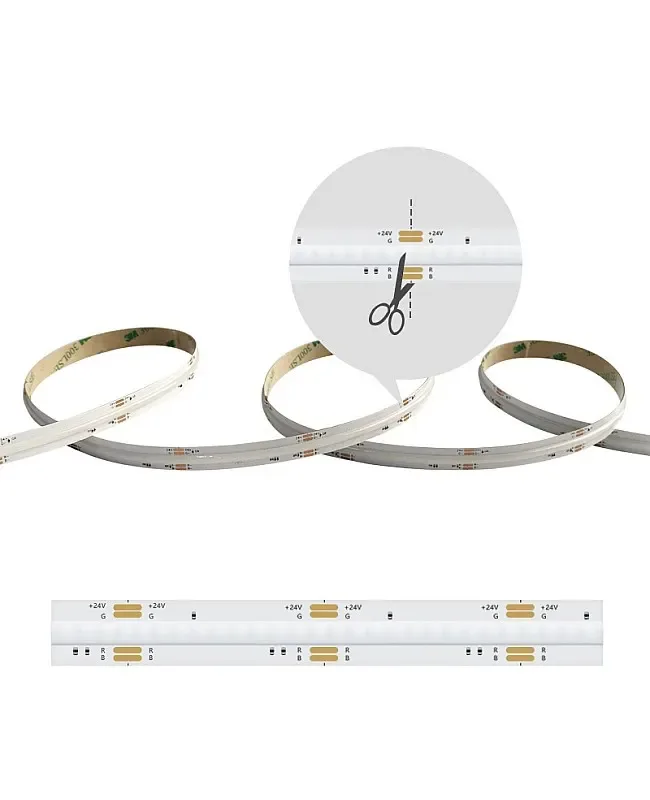

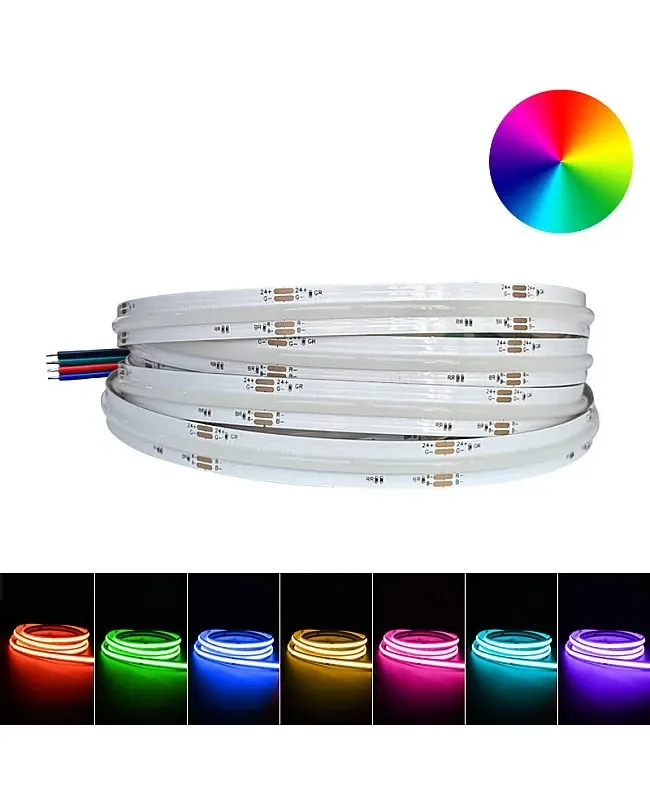

Flex LED tape strips are 16.4 ft per reel, can be cut to any length from the cutting marks, and reconnected with the solderless COB LED connectors. They can be used with LED controllers to switch from static colors to dynamic modes and adjust the speed of the dynamic mode or the brightness of the static color.

IP20 and IP67 waterproof-rated products are available, suitable for both indoor and outdoor applications. IP20 non-waterproof products come with double-sided adhesive tape for easy installation. IP67 RGB lighting features silicone clips, enabling installation in wet or rainy locations for outdoor projects.

Specifications

Model: RGB COB

Width: 10mm

Length: Reel

Working Voltage: DC12V/DC24V

LED Type: 1022

LED Brand: San An

LED Quantity: 420PCS/M, 840PCS/M, 432PCS/M, 810PCS/M

Power: 5W+5W+5W

Emitting Color: RGB

Luminous Efficiency: 110-120lm/W

Beam Angle: 180°

CRI: >

Dimmable: YES

IP Rating: IP20 Non-Waterproof, IP67 Waterproof

Cuttable Length: 50mm, 20.83mm

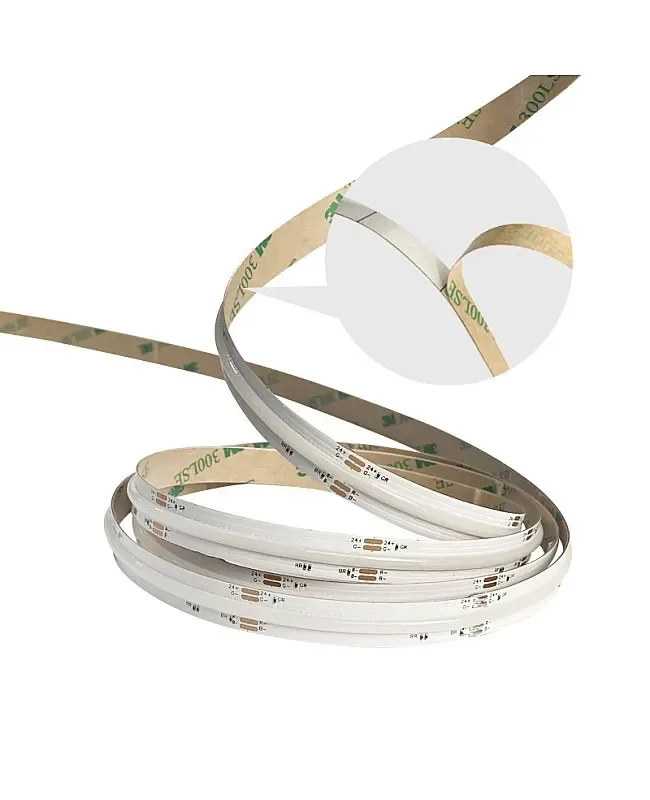

Back With Double-Sided Adhesive Tape

4PIN RGB Connector Included

Applications: TV Backlighting, Coves, Bias Lighting, Under Cabinets, Sign Lighting, Stage & Theaters, Light Design, etc

Working Temperature: -40-80℃

Includes

1 * RGB COB LED Tape(5M/Reel)
