Product details
LED COB Tape 4MM Seamless Color Temperature Adjustable
LumaCircuit offers LED COB Tape 4MM Seamless Color Temperature Adjustable as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. LED Quantity: 576PCS/Meter Working Voltage: DC5V/DC12V Color: Tunable White Ice Blue+Orange The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The tunable white LED COB tape, which has a super-narrow size and width of only 4mm, is intended to provide a bright, energy-efficient illumination source for various applications. They feature a dual-white color temperature, allowing users to adjust the color of the light to their needs. It works on and can be installed in a narrow location in your cars, furniture, under-cabinets, DIY projects, etc.
- LED Quantity: 576PCS/Meter
- Working Voltage: DC5V/DC12V
- Color: Tunable White Ice Blue+Orange
- Color Temperature Adjustable From 2700K To 6500K
- Color Rendering Index: >
- Minimum Cutting Length: 27.78mm
- IP Rating: IP20 Non-waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-65N2RA
- Length: 16.4FT/Reel
- Width: 4mm
- Brand Of LED Chips: San An
- Type Of LED Chips: 1022
- LED Quantity: 576PCS/Meter
- Working Voltage: DC5V/DC12V
- Power: 7W+7W
- Color: Tunable White Ice Blue+Orange
- Color Rendering Index: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

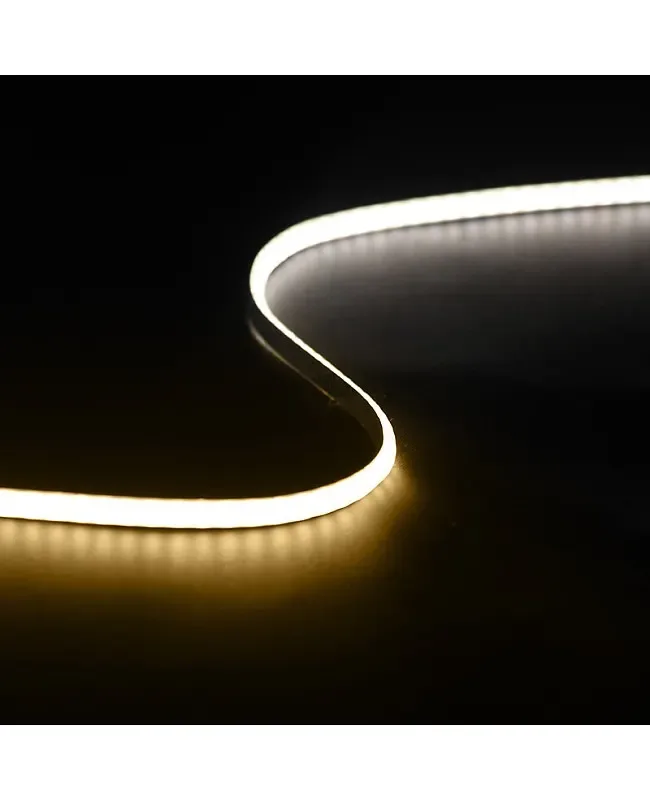

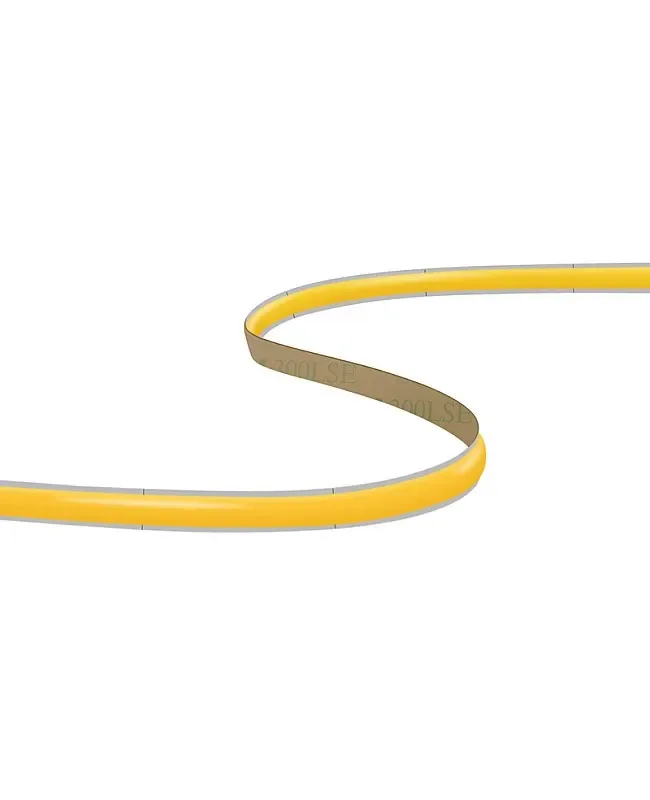

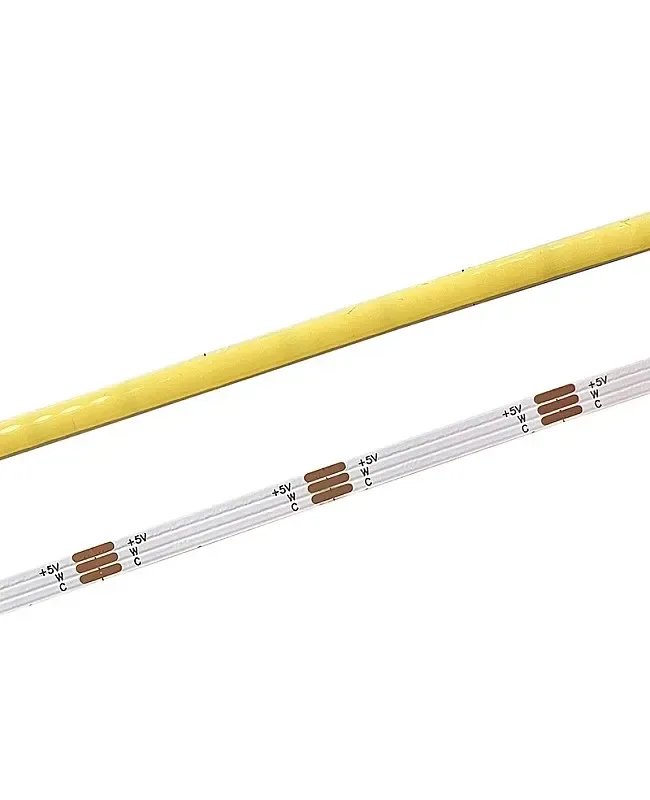

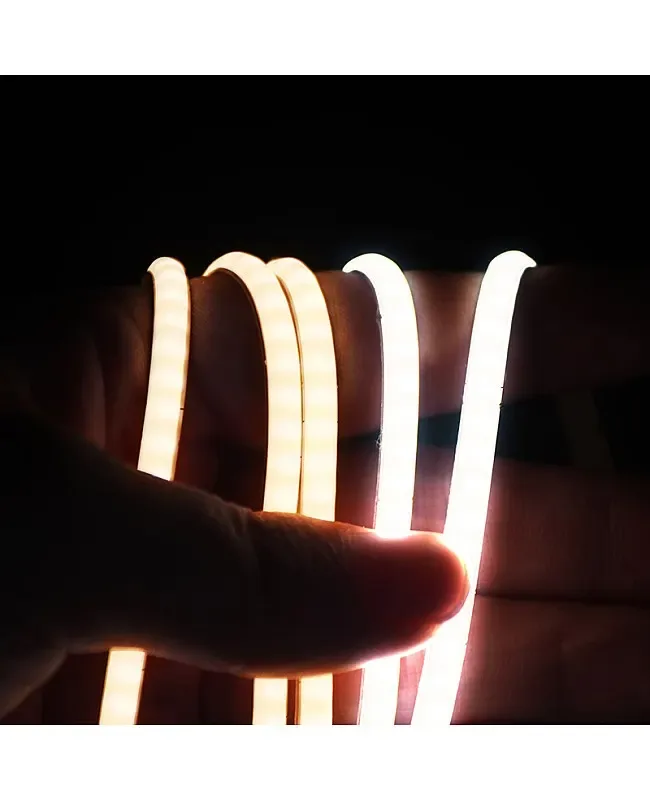

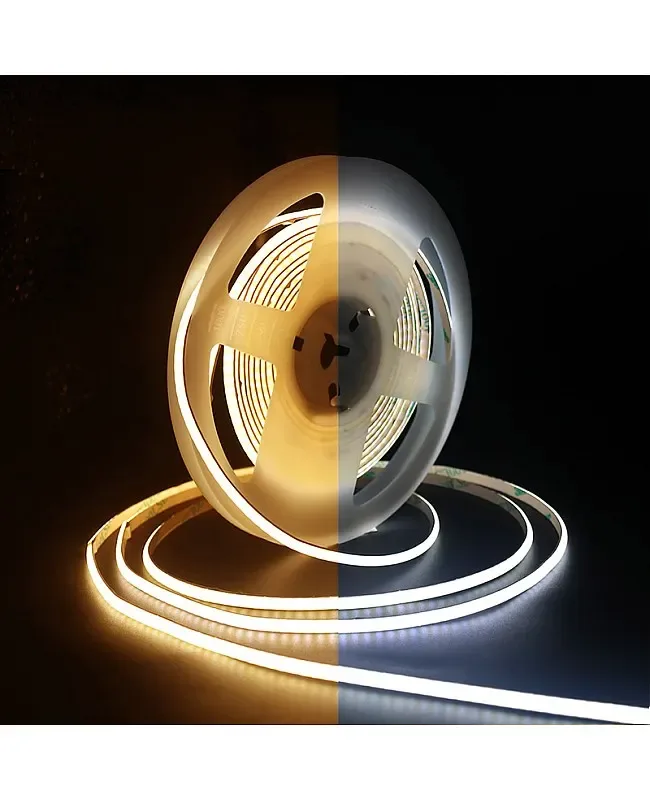

The tunable white LED COB tape, which has a super-narrow size and width of only 4mm, is intended to provide a bright, energy-efficient illumination source for various applications. They feature a dual-white color temperature, allowing users to adjust the color of the light to their needs. It works on and can be installed in a narrow location in your cars, furniture, under-cabinets, DIY projects, etc. Use the high-quality San An 1022 LED chips as the light source, 576PCS LED chips mounted on a one-meter dual-layer flexible PCB board, flexible and bendable. The high density of LED chips creates seamless linear lighting, no visible light dots and dark areas, and uniform light emission. There are two colors of LED chips on the COB LED stripes, 2700K warm white and 6500K cool white. It can work with a CCT LED controller to adjust the brightness and color temperature from 2700K to 6500K for various scenes. The COB light tapes are cuttable; the installer can cut to any length for your project from the cutting points. The back has double-sided adhesive tape, and it is easy to remove the protective paper on the back of the LED strips and stick them where you want to install them. The working voltage is 5V, which can light up power banks, wall adapters, and batteries.
Specifications
Model
Length: 16.4FT/Reel
Width: 4mm
Thickness: 2mm
Brand Of LED Chips: San An
Type Of LED Chips: 1022
LED Quantity: 576PCS/Meter
Working Voltage: DC5V/DC12V
Power: 7W+7W
Color: Tunable White Ice Blue+Orange
Color Temperature Adjustable From 2700K To 6500K
Color Rendering Index: >
Minimum Cutting Length: 27.78mm
IP Rating: IP20 Non-waterproof
Beam Angle: 180°
Back With Double-sided Adhesive Tape
Dimmable: YES
Includes
1 * 5V 4MM COB LED Tapes(5M/Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
