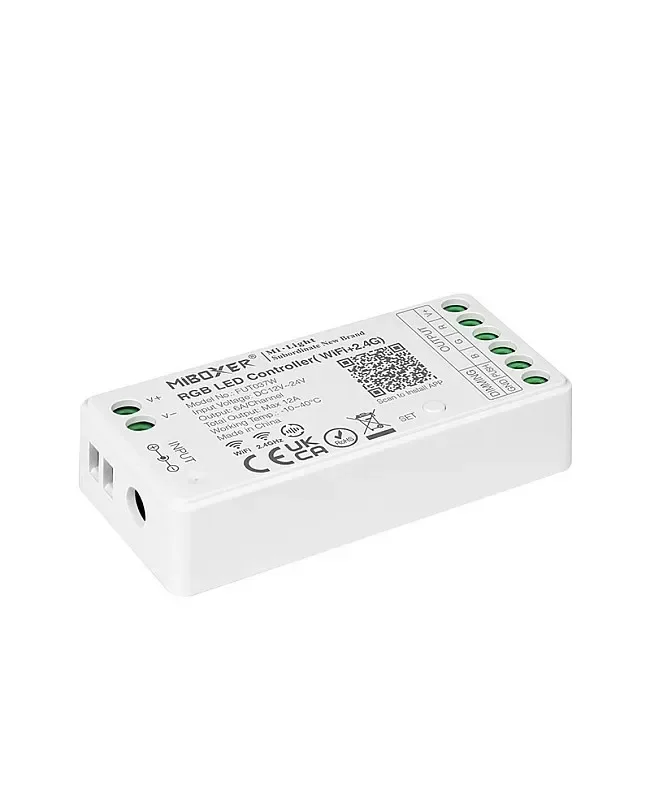

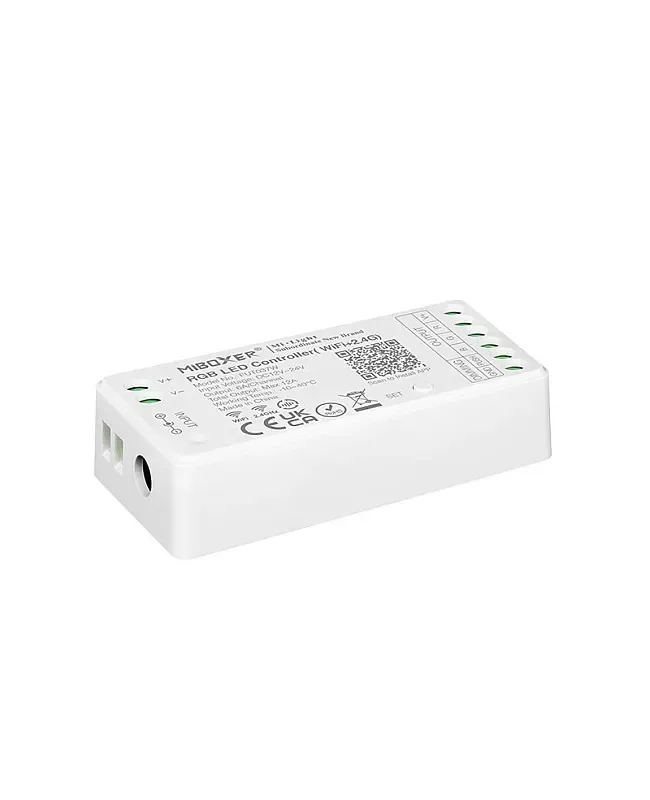

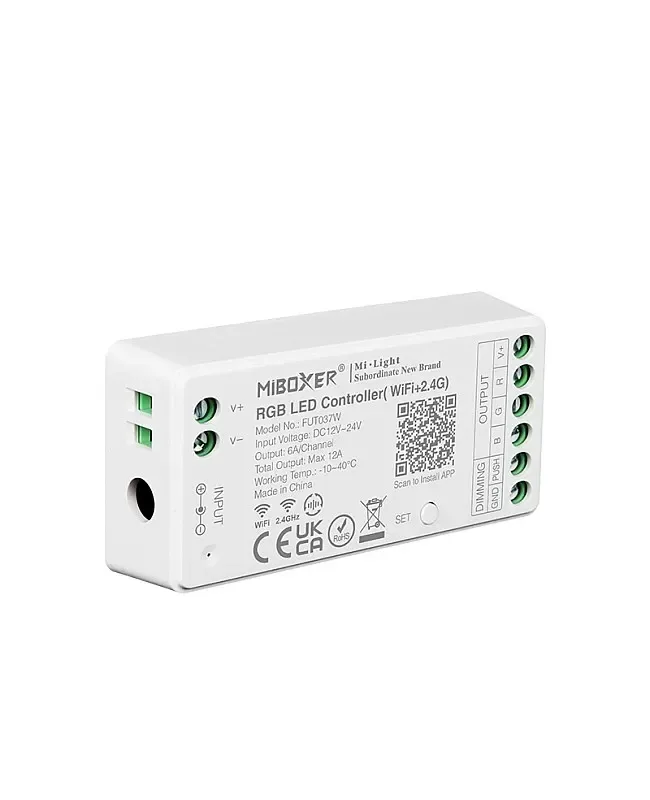

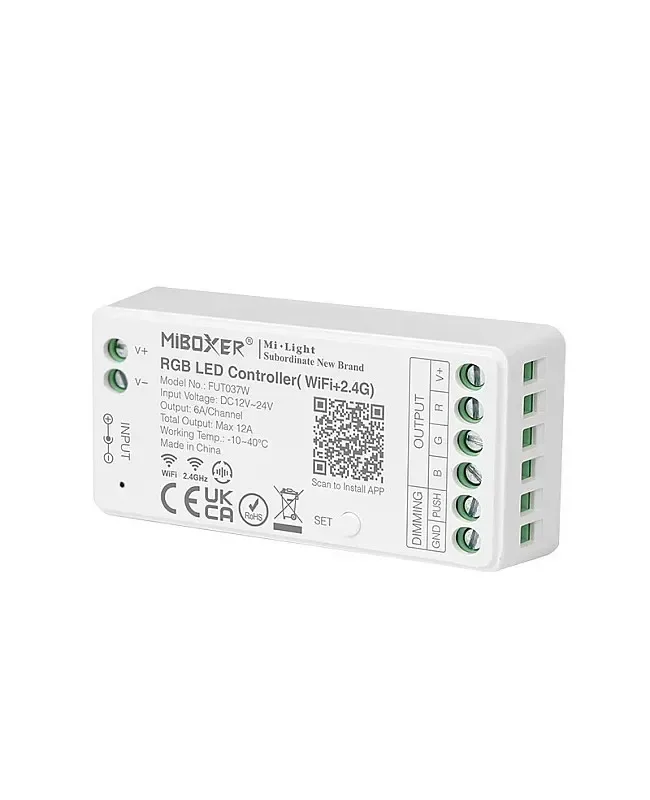

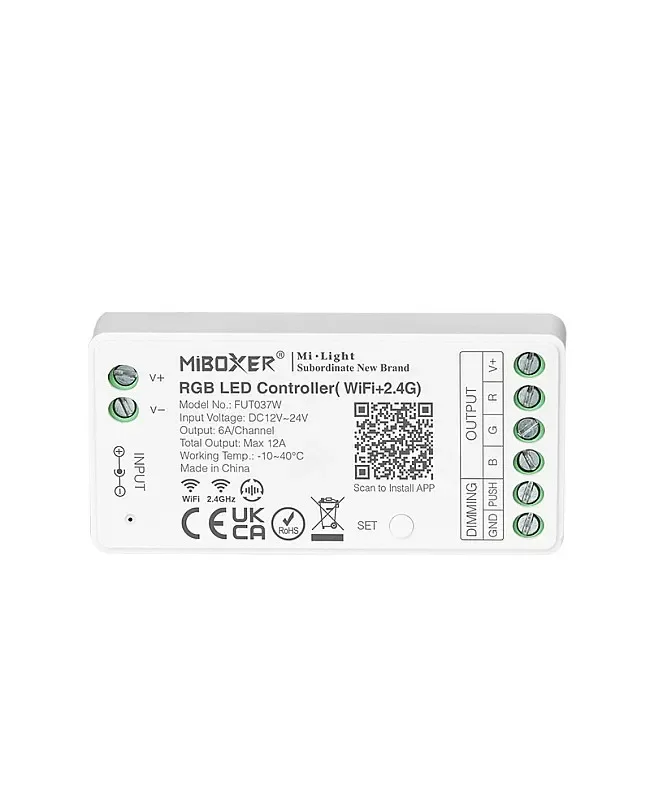

WiFi RGB Lighting Strips Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller lighting controllers are designed for the color-changing strip lights, have a WiFi and Bluetooth dual-module design to enhance the distribution network experience, and improve the success rate of the distribution network. The WiFi RGB controllers can be controlled by 2.4G RF remotes, smartphone app, and third-party voice commands, and they support push dimming from 0 to 100% the installer can see the static color or dynamic modes for your LED light.
• wireless controller WiFi Lighting Strip Controller User Manual
• Size: 74.5*36*17mm(L*W*H)
• Total Output Current: 12A
• Color Temperature Adjustable By Mixed RGB
• Support Third-Party Voice Control: Amazon Alexa, Google Assistant
• 4G RF Remote Controllable wireless controller T4, WL
• WiFi + Bluetooth Dual Module Design

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V
• Light engine: RGB
• Size: 74.5*36*17mm(L*W*H)
• Working Voltage: -24V
• Output: 6A/Channel
• Total Output Current: 12A
• Support Third-Party Voice Control: Amazon Alexa, Google Assistant
• 2.4G RF Remote Controllable: wireless controller T4, WL
• Group Control: YES
• Bluetooth Protocol: 4.2
• Remote Control Distance: ≤30m
• IP Rating: IP20 Non-Waterproof

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The wireless controller lighting controllers are designed for the color-changing strip lights, have a WiFi and Bluetooth dual-module design to enhance the distribution network experience, and improve the success rate of the distribution network. The WiFi RGB controllers can be controlled by 2.4G RF remotes, smartphone app, and third-party voice commands, and they support push dimming from 0 to 100% the installer can see the static color or dynamic modes for your LED light. There are 16 million colors available; adjust the color temperature by Mixed RGB. One controller will receive the signals from the remote control and will transmit the signal to other controllers within 30 meters, and all controllers can work synchronously.

Quick Links

wireless controller WiFi Lighting Strip Controller User Manual

Specifications

Size: 74.5*36*17mm(L*W*H)

Working Voltage: -24V

Output: 6A/Channel

Total Output Current: 12A

16 Million Colors Available

Color Temperature Adjustable By Mixed RGB

Smartphone APP Control

APP Name: mobile app

Support Third-Party Voice Control: Amazon Alexa, Google Assistant

4G RF Remote Controllable wireless controller T4, WL

WiFi + Bluetooth Dual Module Design

Group Control: YES

Support Push Dimmable

WiFi Standard: IEEE 802./g/n 2.

Bluetooth Protocol: 4.2

RF: 2.

Remote Control Distance: ≤30m

Signal Transmitting & Modes Synchronization

IP Rating: IP20 Non-Waterproof

Working Temperature: -10-+40℃

Includes

1 * wireless controller RGB Lighting Strips Controller
