DC12V 3528 120LEDs Per Meter LED Light Strip

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

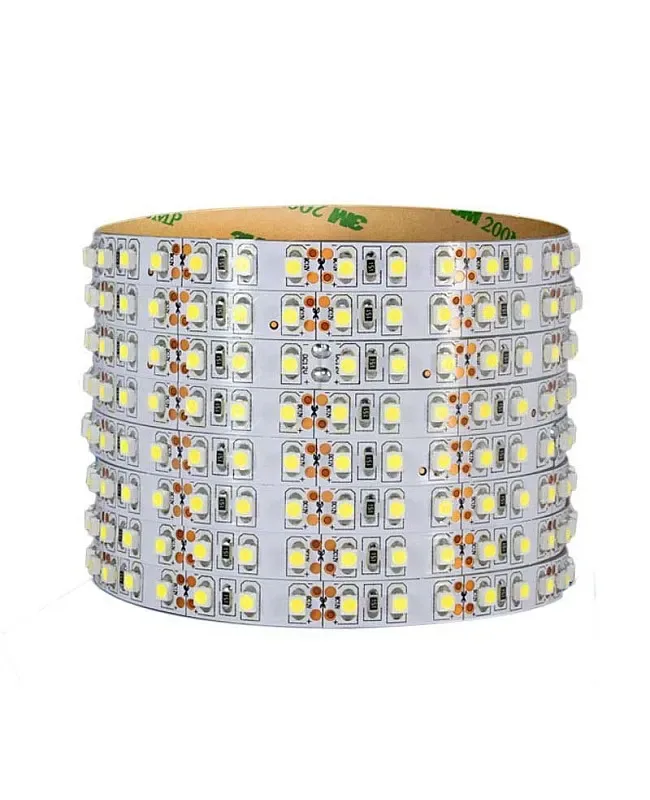

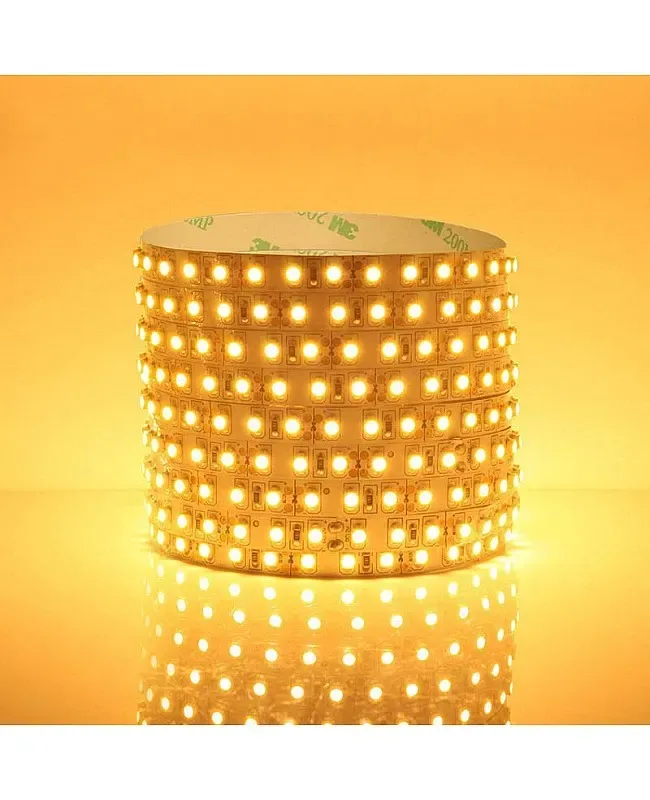

• The 3528 LED light strips work on DC12V, using the 3528 SMD LEDs as the light source. Various emitting colors are available, 120 LEDs per meter, and 5 meters per reel. They are 4 types of waterproof LED strip lights available, IP20 non-waterproof, IP65, IP67 and IP68, can use the IP20 and IP65 strip lights indoor, both of them with double side adhesive tape, take off the protector on the tape and stick on the place you want to install, can cut to any size you wish to and reconnect them with LED connectors.

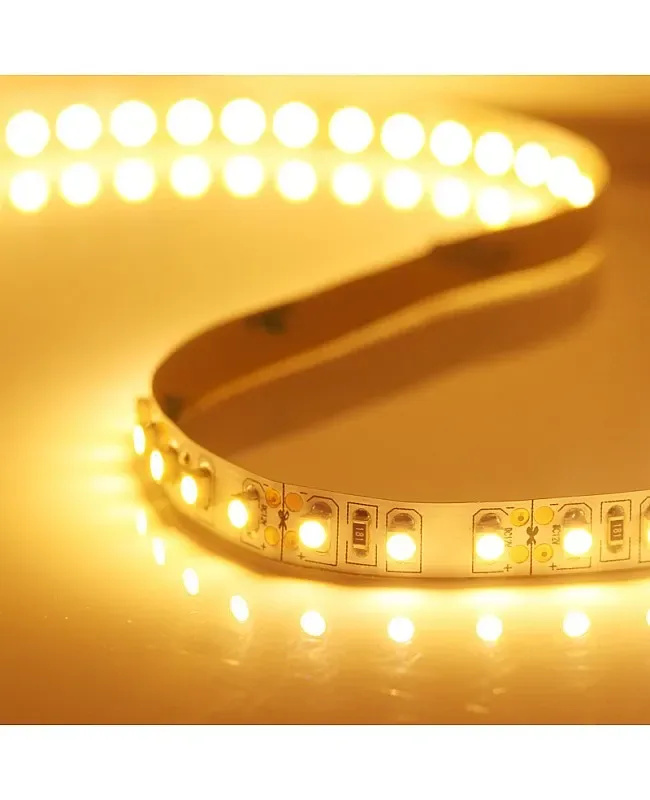

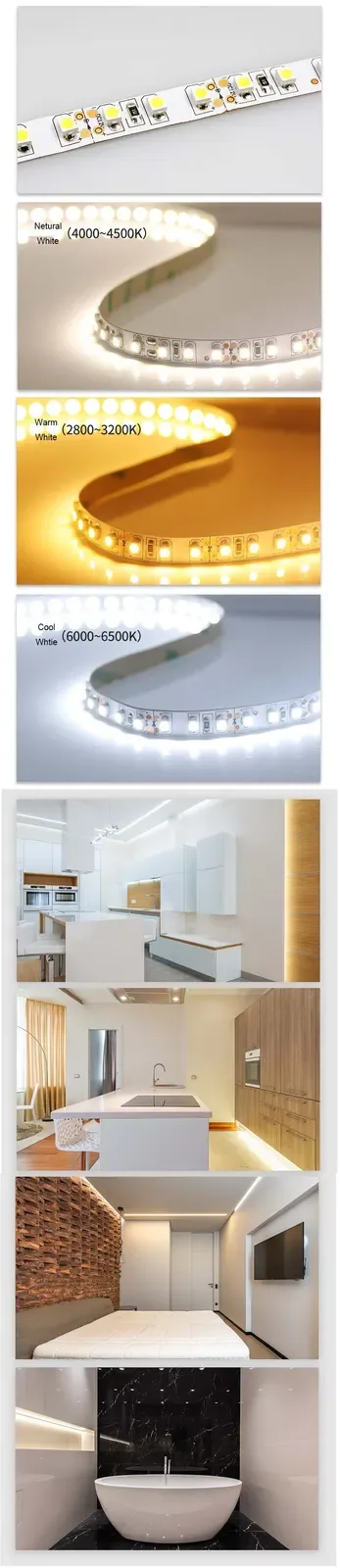

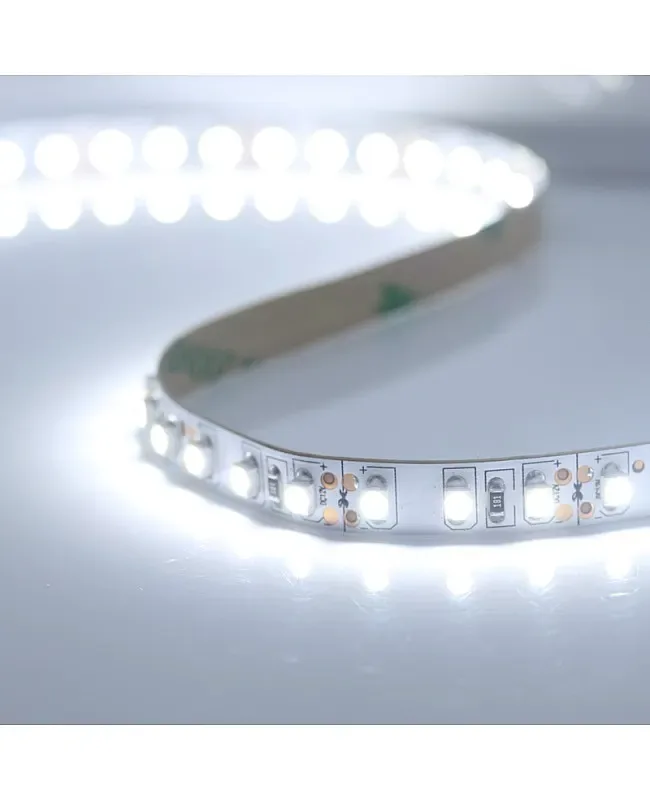

• Color available: Warm white(2800-3200K)/Cool White(6000-6500K)/Natural White(4000-4500K)
• LED Quantity: 120 LEDs/Meter
• IP Rating: IP20, IP65, IP67, IP68
• Size Width: 8mm; Thickness: 2mm
• Back With Double-Sided Adhesive Tape
• 3LEDs Cuttable Follow The Scissor Mark
• 1 * 3528 LED Light Strip( Per Reel)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• LumaCircuit model: LC-STR-HXBGY7
• Color available: Warm white(2800-3200K)/Cool White(6000-6500K)/Natural White(4000-4500K)
• Working Voltage: DC12V
• LED: 3528 SMD LED
• LED Quantity: 120 LEDs/Meter
• Power: 9.6W/Meter
• Beam Angle: 120°
• IP Rating: IP20, IP65, IP67, IP68
• Size Width: 8mm; Thickness: 2mm
• Length: Per Reel

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

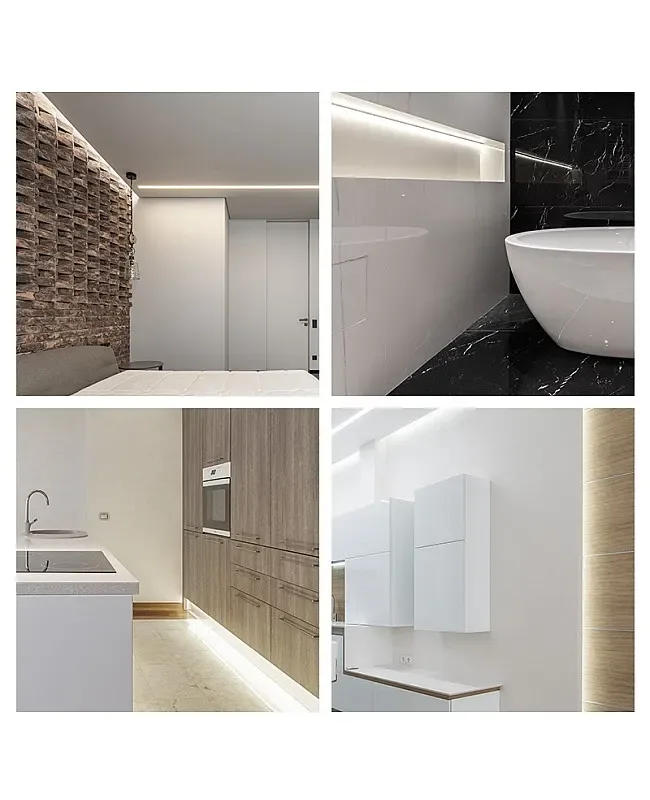

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The 3528 LED light strips work on DC12V, using the 3528 SMD LEDs as the light source. Various emitting colors are available, 120 LEDs per meter, and 5 meters per reel. They are 4 types of waterproof LED strip lights available, IP20 non-waterproof, IP65, IP67 and IP68, can use the IP20 and IP65 strip lights indoor, both of them with double side adhesive tape, take off the protector on the tape and stick on the place you want to install, can cut to any size you wish to and reconnect them with LED connectors. For IP67 and IP68 outdoor installations, use the LED clips to fix them in damp places. The installer can choose the various emitting colors of the LED light strip, warm white, white, cool white, red, green, blue, etc. The installer can work with the LED dimmers to adjust the brightness. Need to work with the output LED power supplies.

Specifications

Manufacturer: TYoung

Color available: Warm white(2800-3200K)/Cool White(6000-6500K)/Natural White(4000-4500K)

Working Voltage: DC12V

LED: 3528 SMD LED

LED Quantity: 120 LEDs/Meter

Power: 9.6W/Meter

Beam Angle: 120°

IP Rating: IP20, IP65, IP67, IP68

Luminous Flux: 18lm/LED

Size Width: 8mm; Thickness: 2mm

Dimmable: YES

Back With Double-Sided Adhesive Tape

3LEDs Cuttable Follow The Scissor Mark

Length: Per Reel

1 * 3528 LED Light Strip( Per Reel)
