Product details
3528 TV Backlight Strip Kit
LumaCircuit offers 3528 TV Backlight Strip Kit as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. LED Source: 3528 Single-Color LEDs Colors: Warm White(3000K)/Cool White(6000K) Power Cable Length: 90cm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

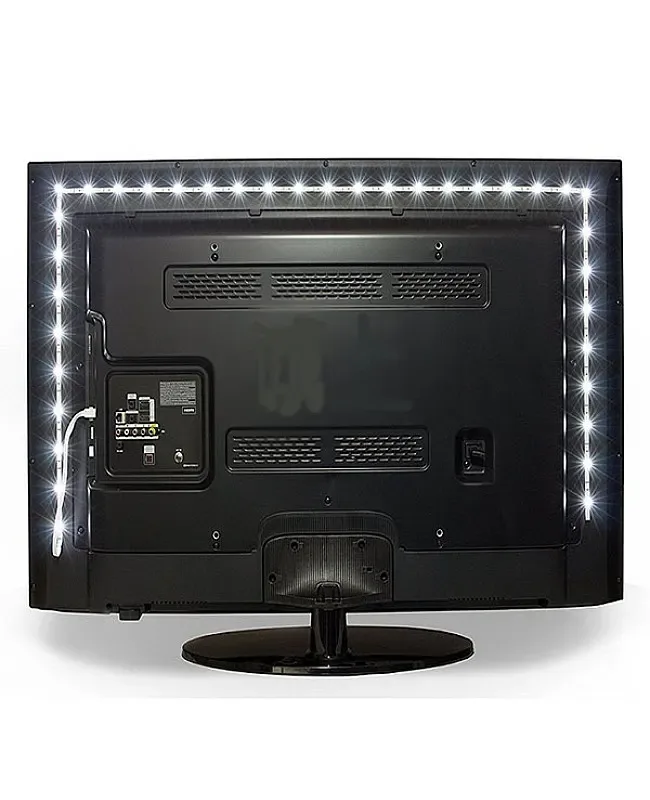

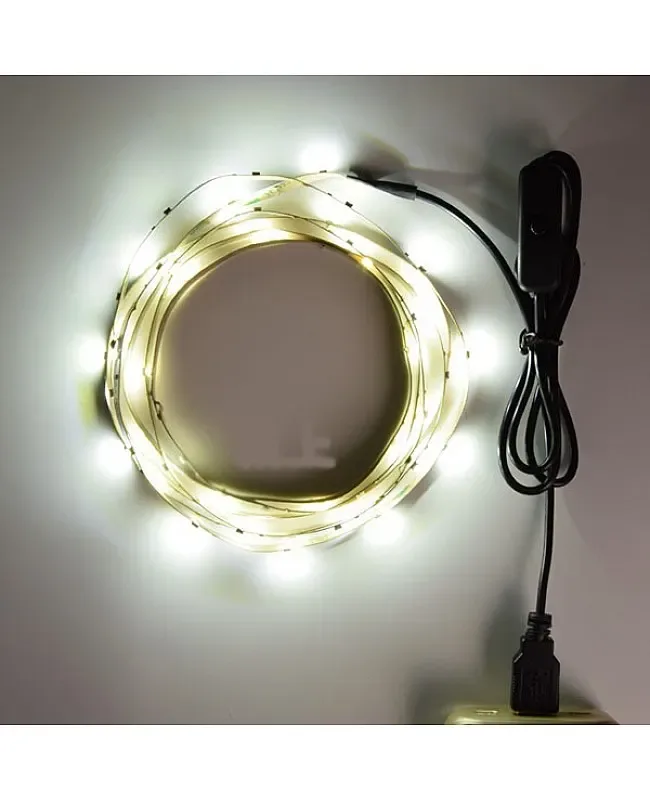

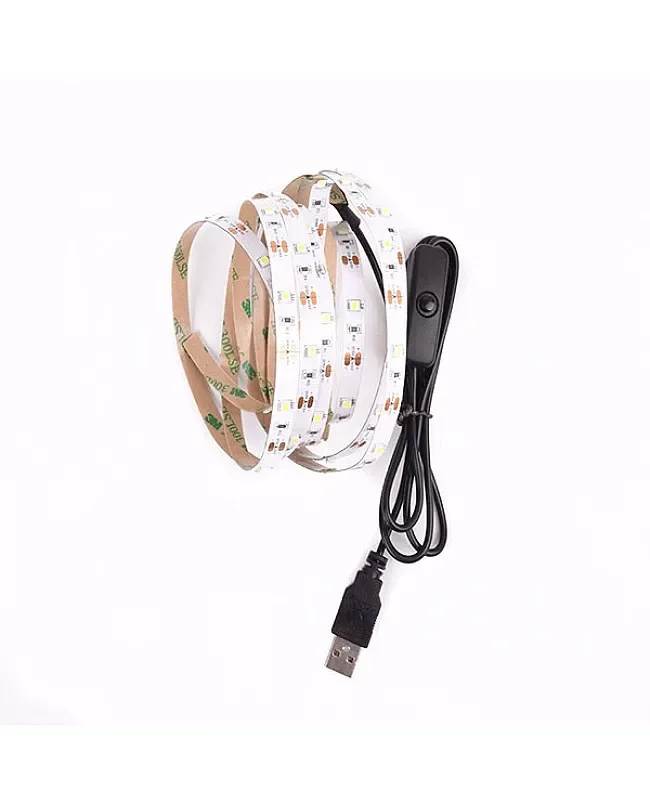

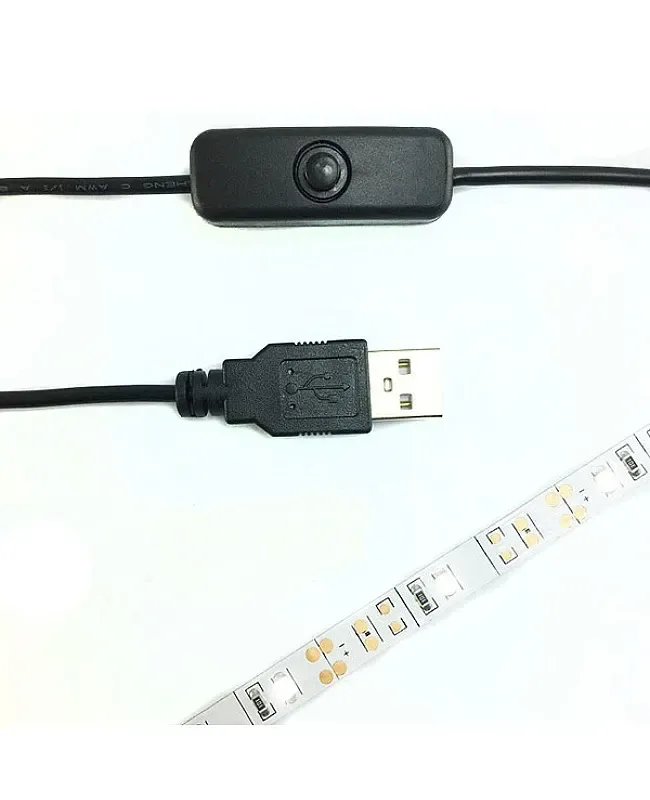

- The single-color TV backlight strip kit uses high-quality 3528 SMD LEDs as a light source, 30 LEDs per meter. The length of the LED strips is 200cm, and they can be cut with scissors along the cut marks to fit the best size of your TV. The TV backlight kit with a 90cm length USB power cable, with an ON/OFF switch, can connect to the USB port on your TV and use the switch to power on/off. Two emitting colors are available: warm white(3000K) or cool white(6500K). Back with 3M double tape, easy install and use.
- LED Source: 3528 Single-Color LEDs
- Colors: Warm White(3000K)/Cool White(6000K)
- Power Cable Length: 90cm
- Waterproof Level: IP20 Non-Waterproof
- Back With Double-Sided Adhesive Tape
- 1 * 3528 TV Backlight Strip Kit
- The 3528 TV Backlight Strip Kit, which uses 3528 SMD LEDs as the light source, per piece, comes with a 90CM power cable with USB port, can insert into the USB port on your TV to light it up.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- Working Voltage: DC5V
- LED Source: 3528 Single-Color LEDs
- LED Quantity: 30 PCS/M
- LED Strip Length: 200cm
- Colors: Warm White(3000K)/Cool White(6000K)
- Working Power: 3W
- Power Cable Length: 90cm
- Beam Angle: 120°
- LumaCircuit model: LC-STR-MGL96R
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The single-color TV backlight strip kit uses high-quality 3528 SMD LEDs as a light source, 30 LEDs per meter. The length of the LED strips is 200cm, and they can be cut with scissors along the cut marks to fit the best size of your TV. The TV backlight kit with a 90cm length USB power cable, with an ON/OFF switch, can connect to the USB port on your TV and use the switch to power on/off. Two emitting colors are available: warm white(3000K) or cool white(6500K). Back with 3M double tape, easy install and use. Remove the protector from the tape and stick it where you want to install it. The 3528 TV backlight strip kit can also be used in your kitchen, cabinet, holidays, etc.
Specifications
Working Voltage: DC5V
LED Source: 3528 Single-Color LEDs
LED Quantity: 30 PCS/M
LED Strip Length: 200cm
Colors: Warm White(3000K)/Cool White(6000K)
Working Power: 3W
Power Cable Length: 90cm
With an ON/OFF Switch
Waterproof Level: IP20 Non-Waterproof
Beam Angle: 120°
Back With Double-Sided Adhesive Tape
With USB Connect Port
1 * 3528 TV Backlight Strip Kit
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
