Single Color LED Strip Controller 12V 72W
LumaCircuit offers Single Color LED Strip Controller 12V 72W as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Static Power Consumption: <1W Working Voltage: DC5V, DC12V, DC24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The single-color LED strip controller has a mini size and compact structure, which makes it suitable for use in a narrow space. The single color LED controller works on DC5V to DC24V, designed for the constant voltage single color LED lights, LED point source lights, LED strip lights, wall wash lights, etc., with one output channel design, the max output current is 6A, max loading power is 144W when working in DC24V.
- Working Temperature: -20-60℃
- Static Power Consumption: <1W
- Working Voltage: DC5V, DC12V, DC24V
- Power: DC5V: 30W; DC12V: 72W; DC24V: 144W
- Dynamic Speed Levels: 10 Levels
- Light Brightness Levels: 10
- 11 Keys Remote Control Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V
- Working Temperature: -20-60℃
- Size: 42*12*3mm(L*W*H)
- Static Power Consumption: <1W
- Working Voltage: DC5V, DC12V, DC24V
- Output Channels: 1
- Output Current: 6A*
- Power: DC5V: 30W; DC12V: 72W; DC24V: 144W
- Dynamic Modes: 8
- LumaCircuit model: LC-STR-9PXA99
- Dimensions found: 42x12x3mm / 3mm / 20m
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

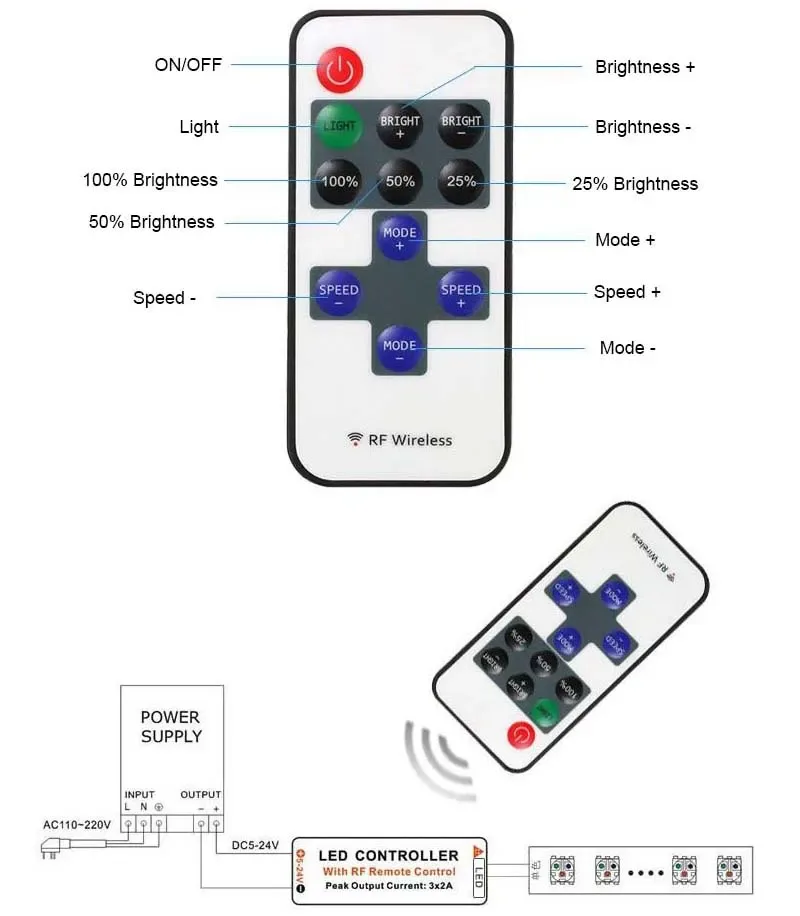

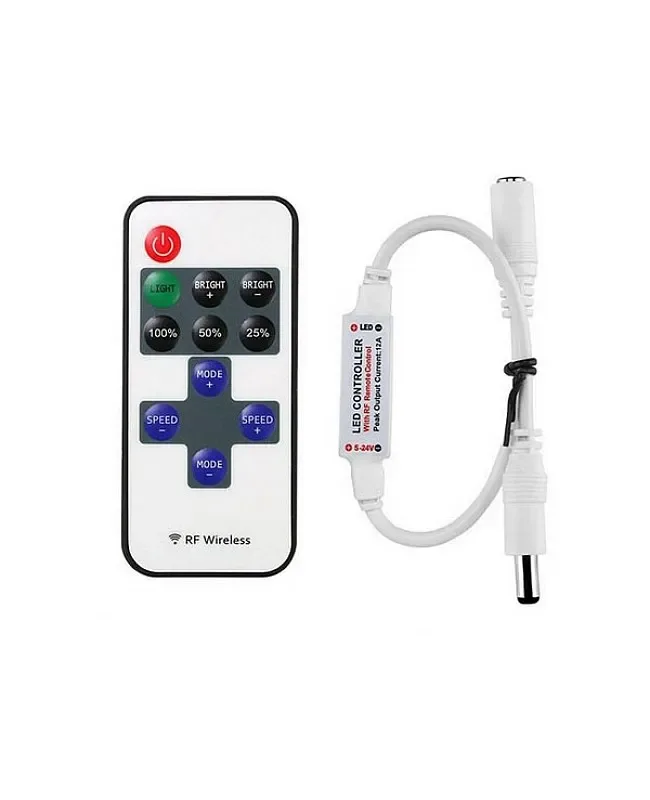

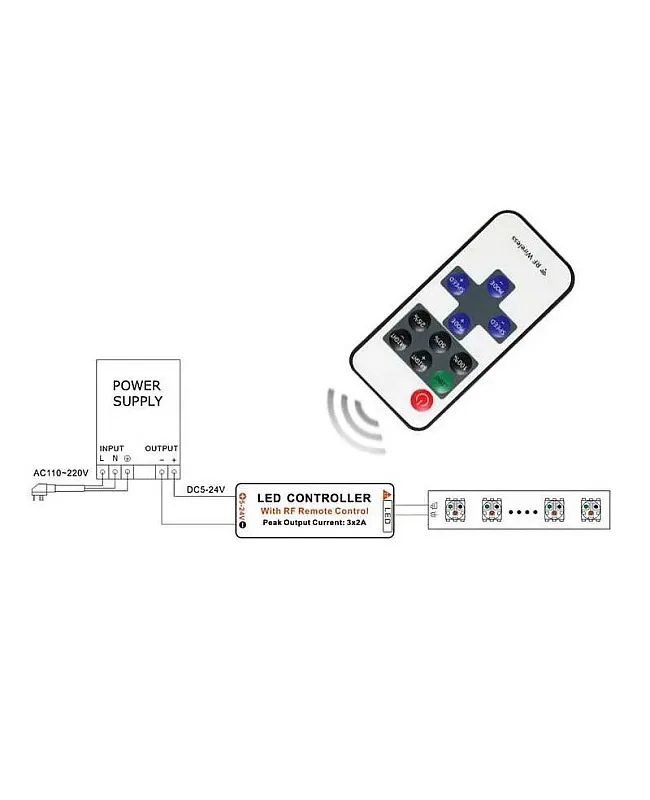

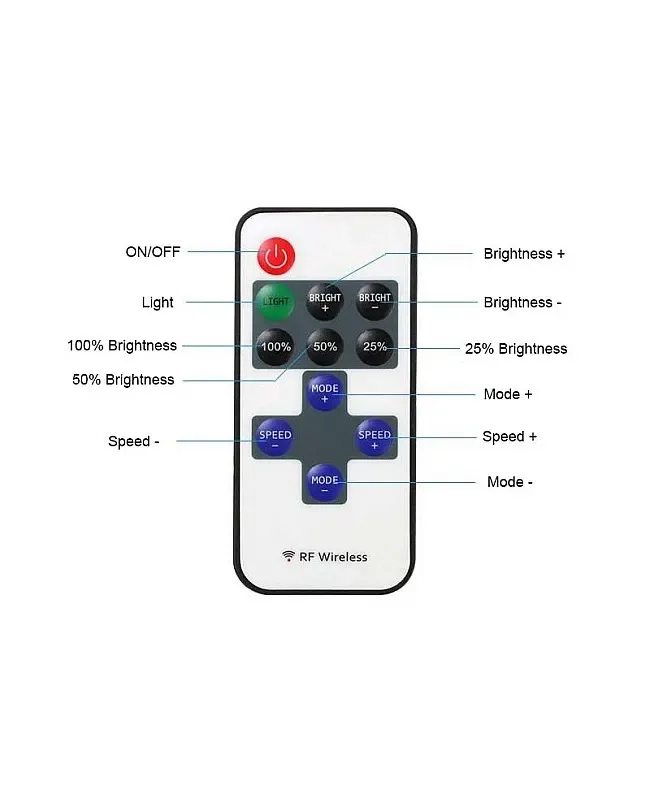

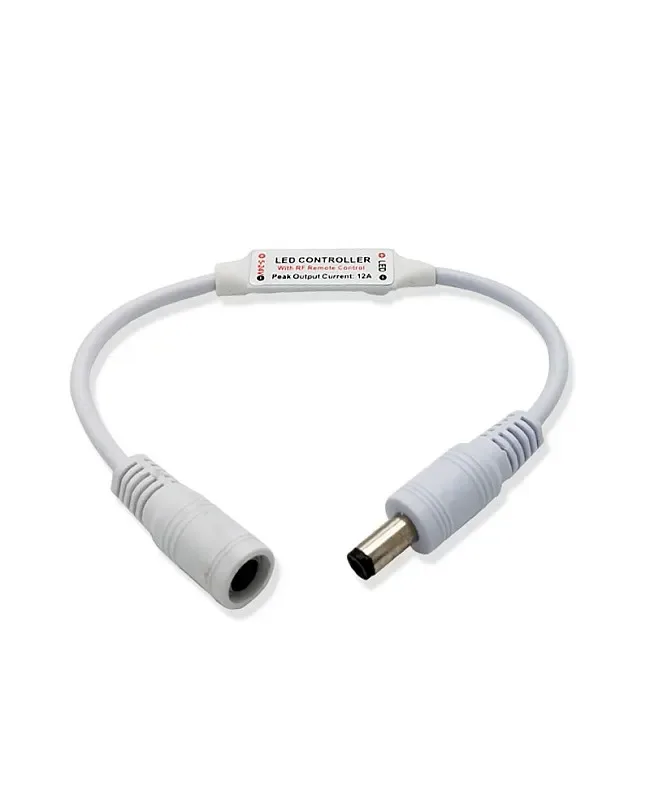

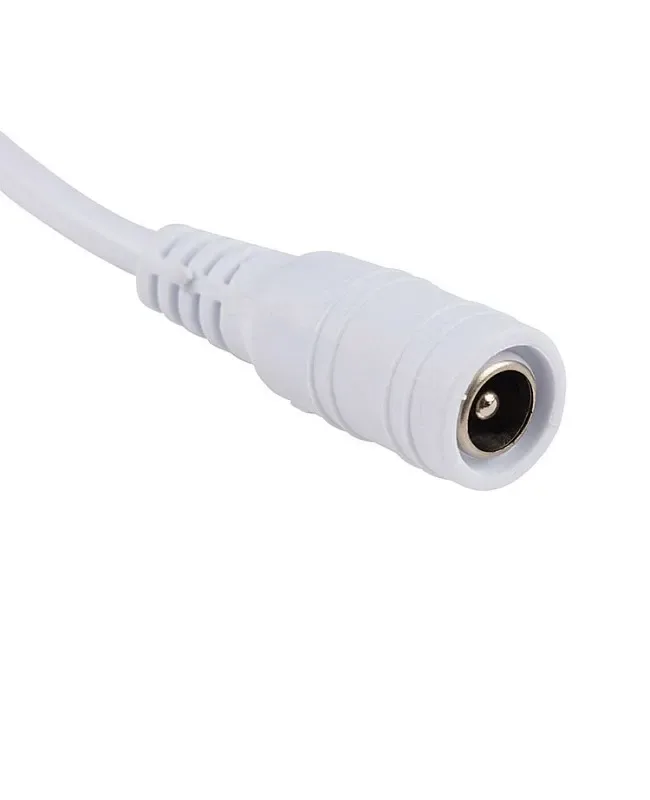

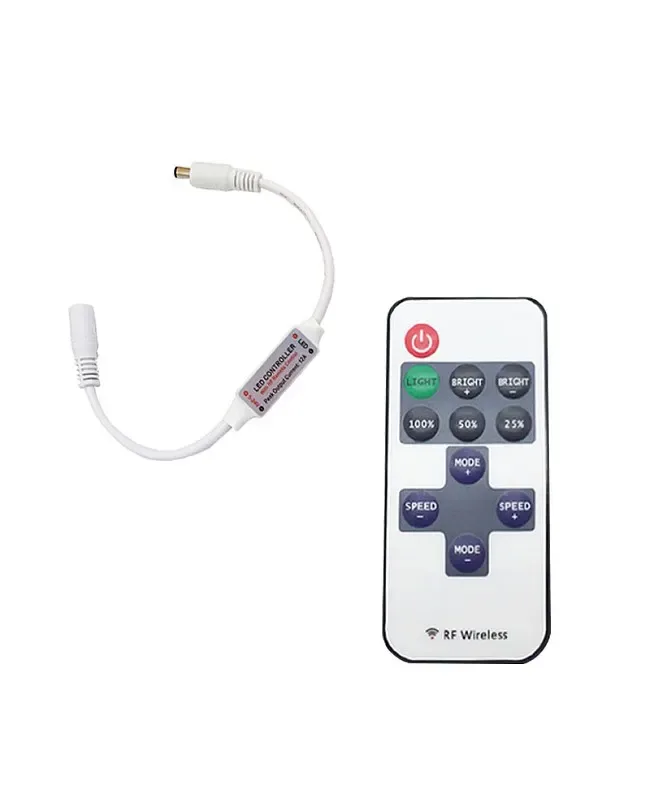

The single-color LED strip controller has a mini size and compact structure, which makes it suitable for use in a narrow space. The single color LED controller works on DC5V to DC24V, designed for the constant voltage single color LED lights, LED point source lights, LED strip lights, wall wash lights, etc., with one output channel design, the max output current is 6A, max loading power is 144W when working in DC24V. The 11-key RF remote control includes features that allow you to turn on/off the LED light, adjust the brightness of static colors, or adjust the speed of dynamic modes. The mini LED strip controllers with male and female DC connectors allow connecting to the LED transformer and single-color LED strips to light them up easily.
Specifications
Working Temperature: -20-60℃
Size: 42*12*3mm(L*W*H)
Static Power Consumption: <1W
Working Voltage: DC5V, DC12V, DC24V
Output Channels: 1
Output Current: 6A*
Power: DC5V: 30W; DC12V: 72W; DC24V: 144W
Dynamic Modes: 8
Dynamic Speed Levels: 10 Levels
Light Brightness Levels: 10
PWM Grade: 256
11 Keys Remote Control Included
RF Distance: ≤20m
Weight: 200g
1 * Single Color LED Strip Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
