DC12V 5050 60LEDs RGB LED Strip Light

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

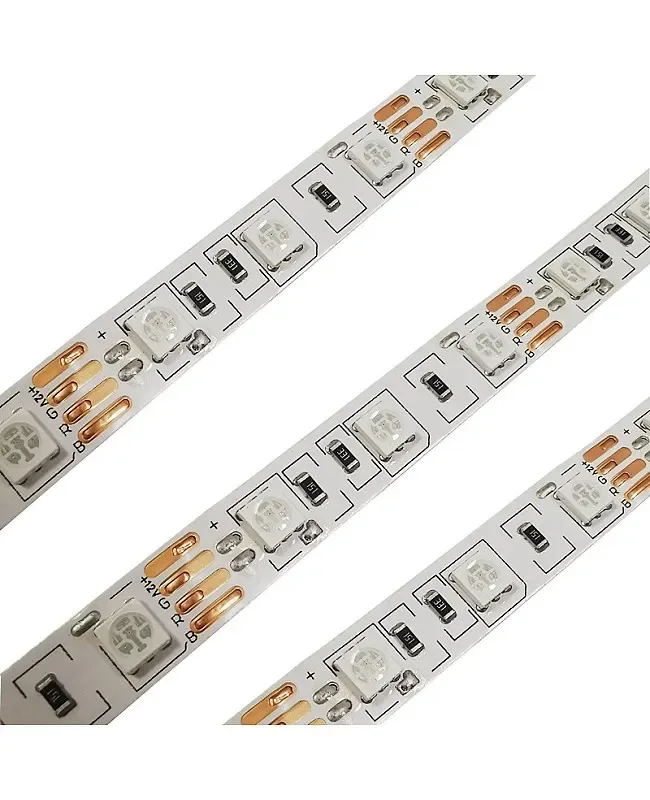

• The RGB LED strip lights use high-quality 5050 SMD LEDs as the light source, and each LED includes red, green, and blue brand LED chips, with 60 LEDs per meter. Five meters per reel, cuttable and re-connectable, the installer can follow the cutting point, cut to any length you want, and reconnect them via the RGB LED connectors. There are 4 types of waterproof RGB LED strip Lights: IP20, IP65, IP67, and IP68.
• LED Quantity: 60PCS/Meter
• Power: 14.4W Per Meter(60LED Per Meter)
• Lumens: UP to 3000lm(60LED/meter)
• IP Rating: IP20(Non-waterproof), IP65, IP67, IP68
• Cuttable And Re-connectable
• Back With Double-Sided Adhesive Tape
• Comes With 4-pin RGB LED Connector

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: RGB
• LumaCircuit model: LC-STR-IPKP0B
• Color Available: RGB
• LED: 5050 SMD LED
• LED Quantity: 60PCS/Meter
• Working Voltage: DC12V
• Power: 14.4W Per Meter(60LED Per Meter)
• Lumens: UP to 3000lm(60LED/meter)
• CRI: >
• Beam Angle: 120°
• IP Rating: IP20(Non-waterproof), IP65, IP67, IP68

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The RGB LED strip lights use high-quality 5050 SMD LEDs as the light source, and each LED includes red, green, and blue brand LED chips, with 60 LEDs per meter. Five meters per reel, cuttable and re-connectable, the installer can follow the cutting point, cut to any length you want, and reconnect them via the RGB LED connectors. There are 4 types of waterproof RGB LED strip Lights: IP20, IP65, IP67, and IP68. The IP20 is non-waterproof, and the IP65 is for indoor use, while the IP67 and IP68 are for outdoor applications. The IP20 and IP65 RGB LED strips with double side adhesive tape on the back, take off the protector and stick on the place that you want to install, easy to install and use the IP67 and IP68 color-changing LED strips comes with LED clips, you could fix them on the wet, or damp locations easily, the installer can use them in home, shop, mall, office, signs, etc working in DC12V, can work with the LED transformer that the output is DC12V and the RGB LED controller to light up them, can use the remote control to set the static color or the dynamic mode, the brightness of the static color or the speed of dynamic mode adjustable.

Specifications

Manufacturer

Color Available: RGB

LED: 5050 SMD LED

LED Quantity: 60PCS/Meter

Working Voltage: DC12V

Power: 14.4W Per Meter(60LED Per Meter)

Lumens: UP to 3000lm(60LED/meter)

CRI: >

Beam Angle: 120°

IP Rating: IP20(Non-waterproof), IP65, IP67, IP68

Reel Length: 500cm

Width: 10mm

thickness: 2mm

Cuttable And Re-connectable

Back With Double-Sided Adhesive Tape

Comes With 4-pin RGB LED Connector

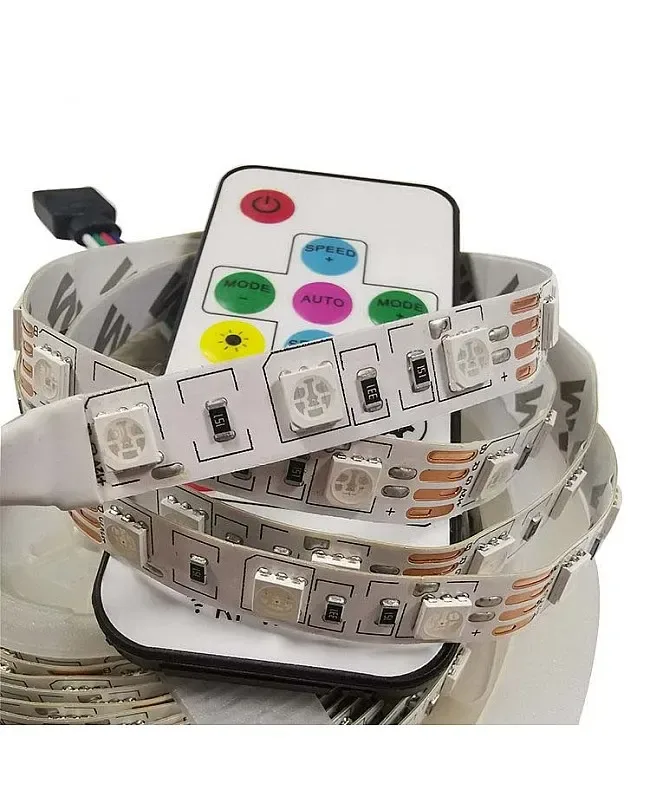

Can Work With the LED RGB Controller To Adjust The Static Color Or Dynamic Mode

1 * RGB Strip Light(Reel)
