AC110V COB LED Strips Outdoor Waterproof Dotless
LumaCircuit offers AC110V COB LED Strips Outdoor Waterproof Dotless as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. PCB Board: Dual Layer Gold-Plated FPC LED Quantity: 320PCS/Meter Working Voltage: AC110V/AC220V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The high voltage AC110V COB LED strips work on AC110V; they come with a US power plug and can be connected to the public power system to light up directly; there is no need for an extra LED power supply. There are 320 LEDs mounted on a one-meter dual-layer gold-plated FPC board, 5 meters per reel or 10 meters per reel, flexible, bendable, and cuttable. The minimum cuttable length is 50cm, and the installer can cut to any length following the cutting marks.
- PCB Board: Dual Layer Gold-Plated FPC
- LED Quantity: 320PCS/Meter
- Working Voltage: AC110V/AC220V
- Emitting Colors: Warm White(3000K), Cool White(6500K)
- Luminous Efficiency: 87LM/W
- Minimum Cuttable Length: 50cm
- Uniform Light Emission Without Hotspots
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 110 V / 220 V
- Light engine: CCT
- PCB Board: Dual Layer Gold-Plated FPC
- LED Quantity: 320PCS/Meter
- Width: 10mm
- Lengths: 5M, 10M
- Working Voltage: AC110V/AC220V
- Power: 6W/M
- Emitting Colors: Warm White(3000K), Cool White(6500K)
- Beam Angle: 180°
- CRI: >
- Minimum Cuttable Length: 50cm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

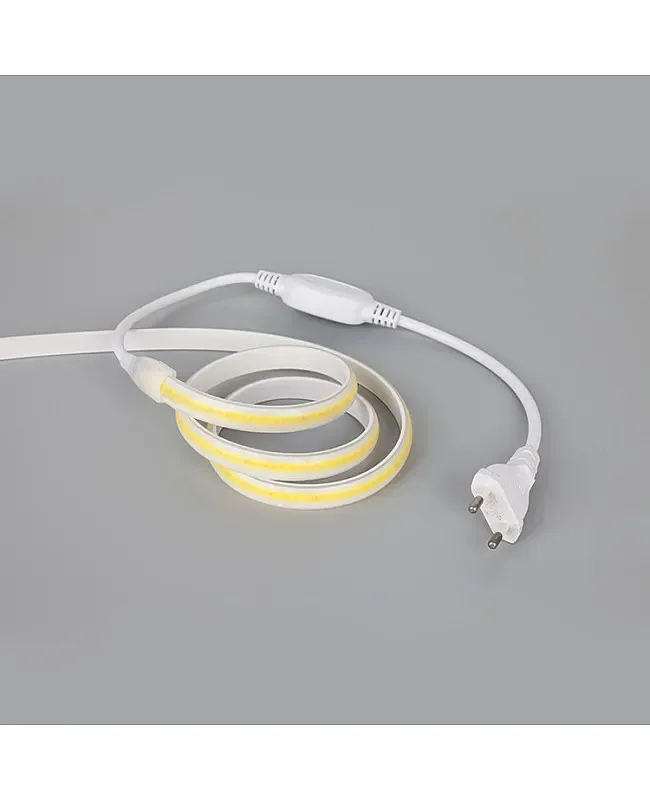

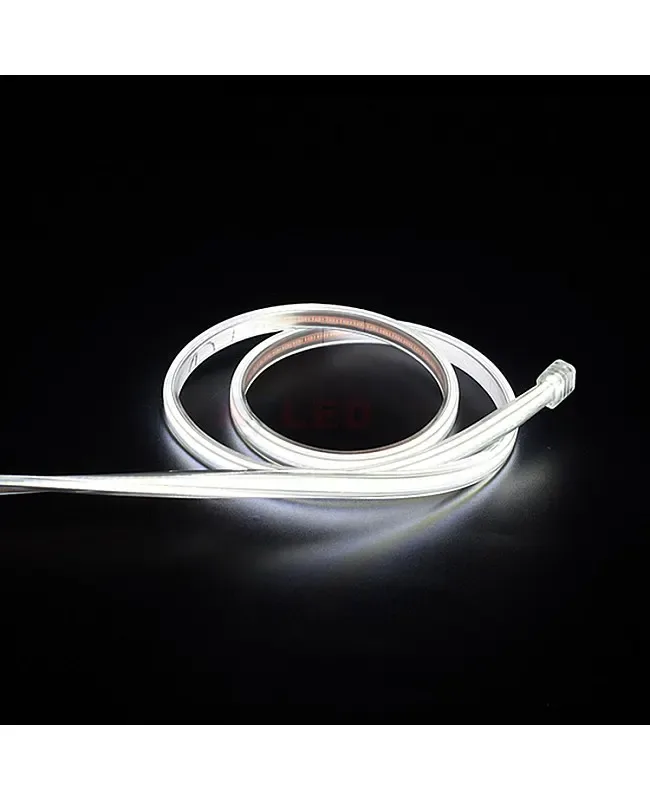

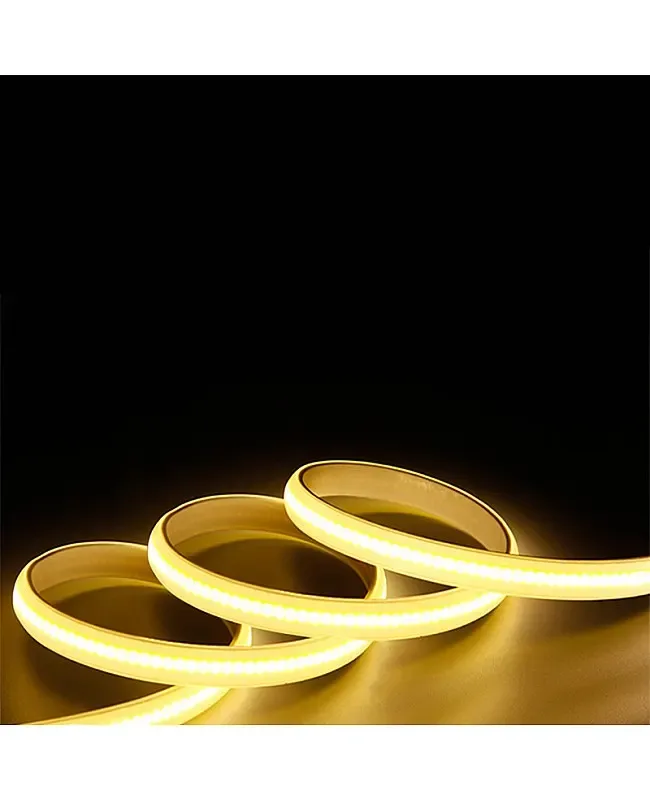

The high voltage AC110V COB LED strips work on AC110V; they come with a US power plug and can be connected to the public power system to light up directly; there is no need for an extra LED power supply. There are 320 LEDs mounted on a one-meter dual-layer gold-plated FPC board, 5 meters per reel or 10 meters per reel, flexible, bendable, and cuttable. The minimum cuttable length is 50cm, and the installer can cut to any length following the cutting marks. The chip-on-board technology creates a smooth and seamless line of light, no visible light dots and hotspots, uniform light emission, and high CRI 80+ for quality color rendering. The COB LED strips are sealed with a silicone tube and filled with silicone material, and the waterproof level is up to IP67; the installer can use them for outdoor applications and install them in a wet location. Various emitting color products are available. The installer can use them in hotels, cabinets, theatres, clubs, shopping malls, exhibitions, bars, dance halls, museum lighting decorations, or edge backlighting.
Specifications
PCB Board: Dual Layer Gold-Plated FPC
LED Quantity: 320PCS/Meter

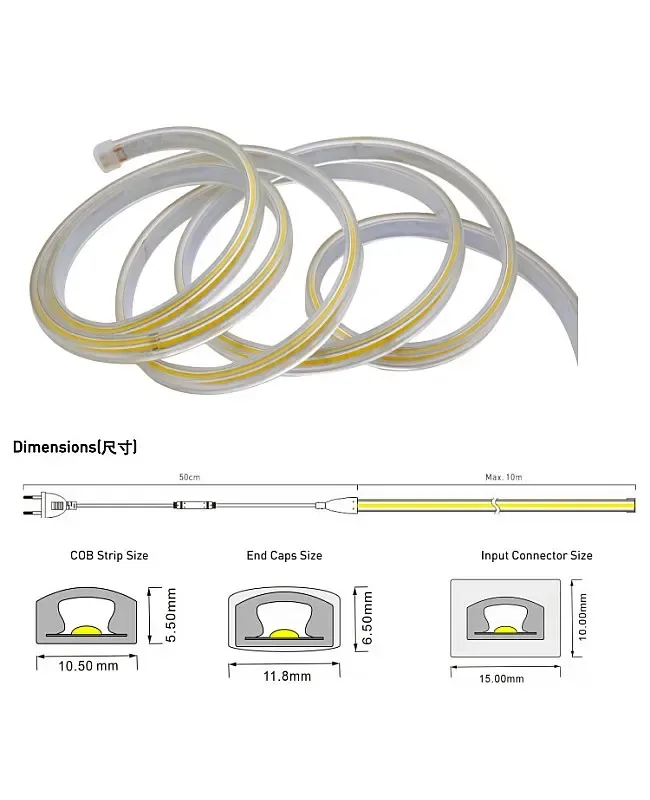

Width: 10mm
Lengths: 5M, 10M
Working Voltage: AC110V/AC220V
Power: 6W/M
Emitting Colors: Warm White(3000K), Cool White(6500K)
Luminous Flux: 522LM/M
Luminous Efficiency: 87LM/W
Beam Angle: 180°
CRI: >
Dimmable: NO
Minimum Cuttable Length: 50cm
Power Plug: US/EU
Uniform Light Emission Without Hotspots
Flexible, Bendable And Cuttable
Waterproof Level: IP67 Waterproof
Working Temperature: -20℃-+50℃
Includes
1 * High Voltage COB LED Strips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
