Product details

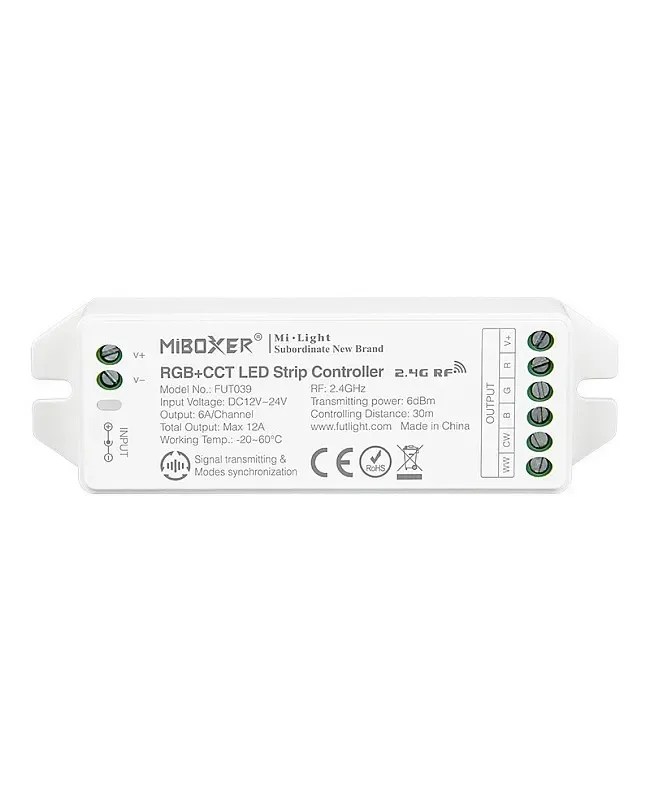

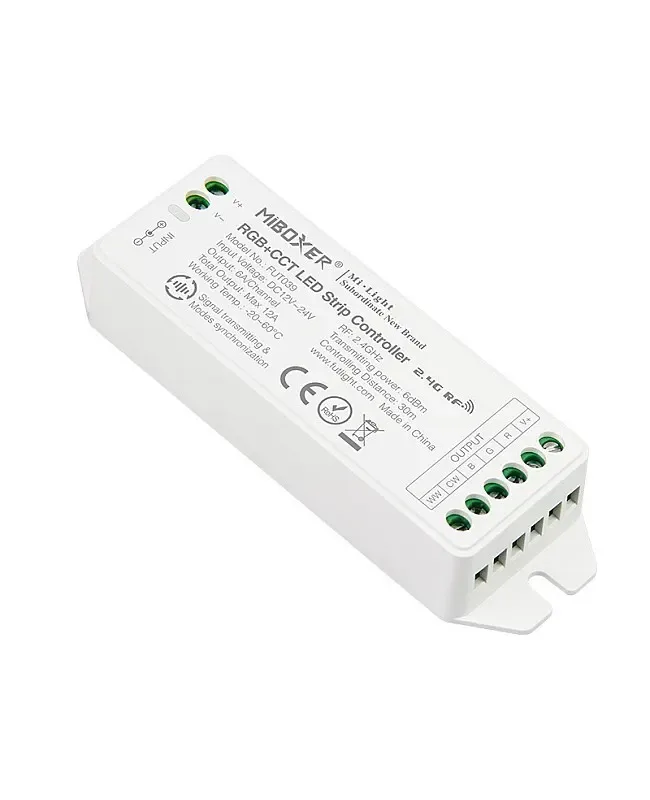

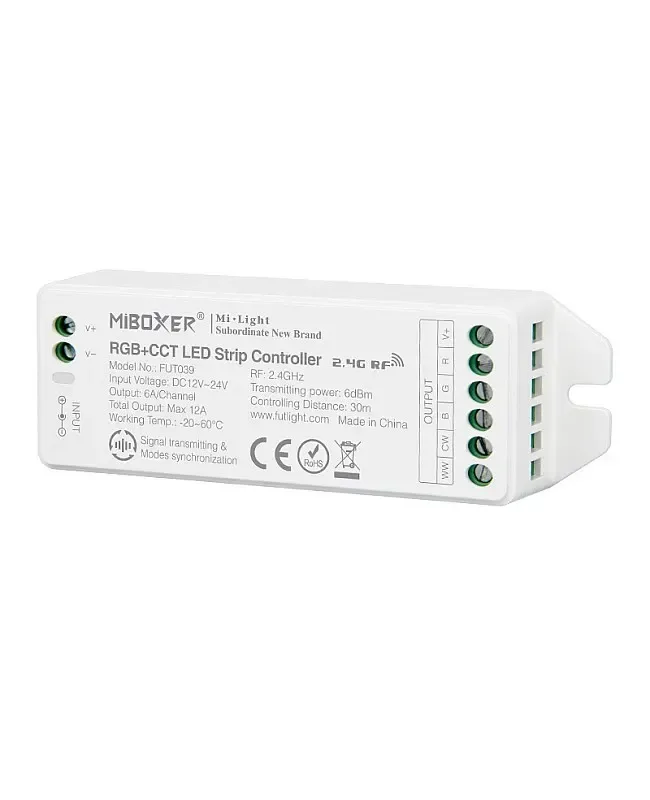

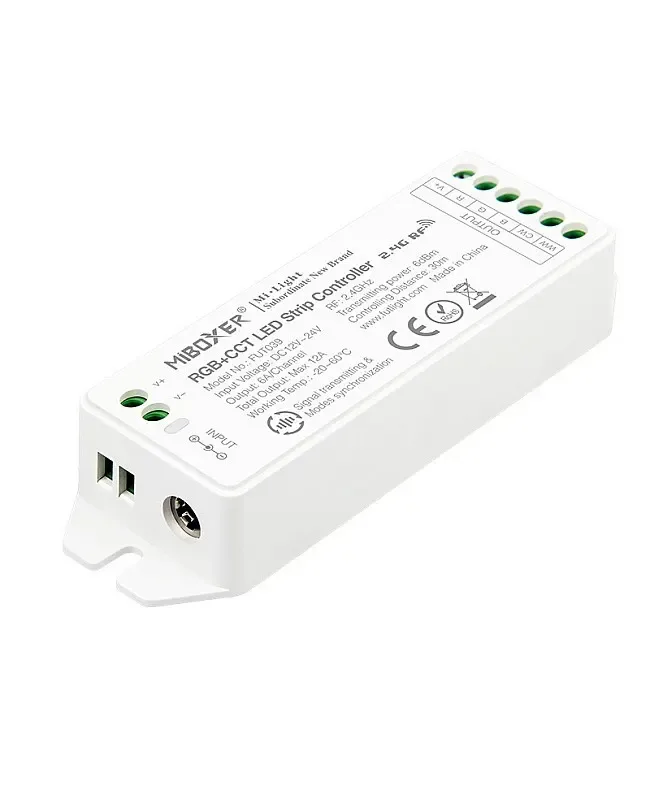

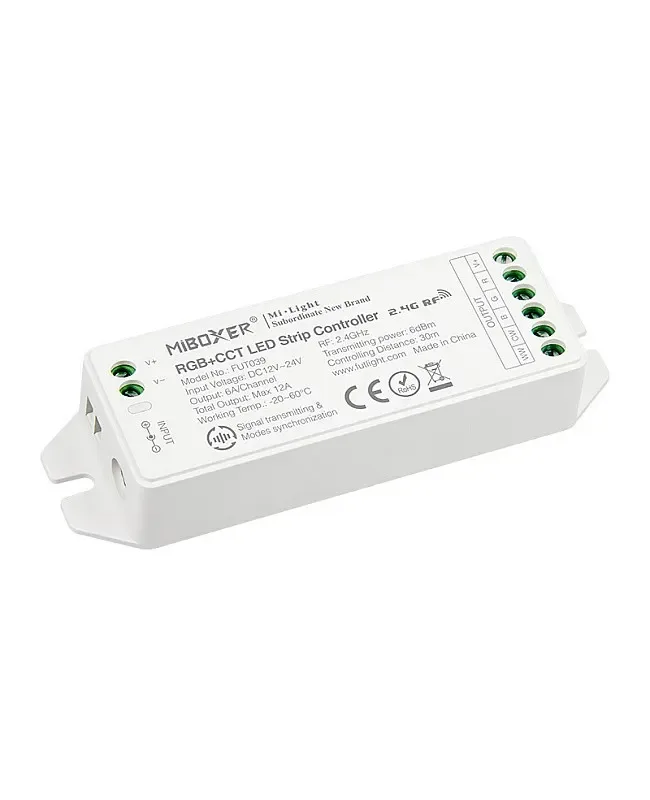

4G RGB+CCT LED Strip Controller
LumaCircuit offers 4G RGB+CCT LED Strip Controller as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller RGBWW Controller Manual Size: 119*37.5*22mm(L*W*H) Output Current: Total 12A, 5 Channels, 2.4A/Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2 wireless controller LED controllers are designed for the RGB+CCT LED strips, working on DC12V or DC24V, with 6-channel LED strip terminals, making them easy to connect to the LED strip lights this is compatible with most of the wireless controller 2. RF remote controls, which allows the LED light to be controlled remotely within 30 meters. After adding the 2.4G gateway, a smartphone App can control the wireless controller 039, and third-party voice control includes Amazon Alexa and Google Assistant.
- wireless controller RGBWW Controller Manual
- Size: 119*37.5*22mm(L*W*H)
- Output Current: Total 12A, 5 Channels, 2.4A/Channel
- Transmitting Power: 6 dBm
- Output Connection: Common Anode
- Compatible With T4, T3, wireless controller WL
- Support Smart Phone APP Control And Third-Party Voice Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- Size: 119*37.5*22mm(L*W*H)
- Working Voltage: -24V
- Output Current: Total 12A, 5 Channels, 2.4A/Channel
- Transmitting Power: 6 dBm
- Control Distance: 30m
- Output Connection: Common Anode
- Working Temperature: -20℃-+60℃
- LumaCircuit model: LC-STR-IZ3UOW
- Dimensions found: 119x37.5x22mm / 22mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

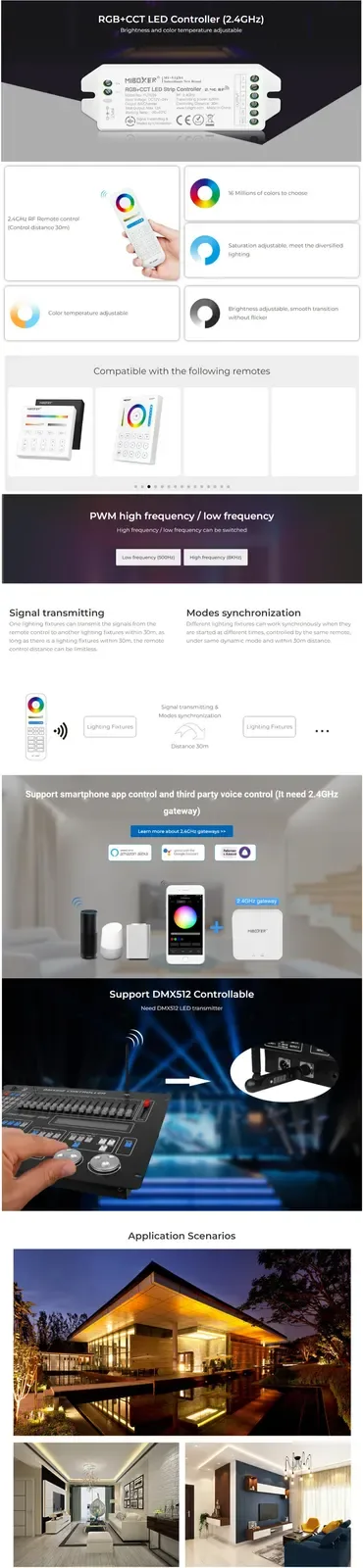

The 2 wireless controller LED controllers are designed for the RGB+CCT LED strips, working on DC12V or DC24V, with 6-channel LED strip terminals, making them easy to connect to the LED strip lights this is compatible with most of the wireless controller 2. RF remote controls, which allows the LED light to be controlled remotely within 30 meters. After adding the 2.4G gateway, a smartphone App can control the wireless controller 039, and third-party voice control includes Amazon Alexa and Google Assistant. There are 16 million colors available, and brightness and saturation are adjustable randomly; the installer can adjust the color temperature from 2700K to 6500K, and the brightness is adjustable. The controller will receive the signal from the remote control and transmit it to other controllers within 30 meters. Different controllers will work synchronously when they are started at various times. The DMX512 control panel can control the RGB+CCT after adding the DMX512 LED Transmitter.
Quick Links
wireless controller RGBWW Controller Manual
Specifications
Size: 119*37.5*22mm(L*W*H)
Working Voltage: -24V
Output Current: Total 12A, 5 Channels, 2.4A/Channel
RF: 2.
Transmitting Power: 6 dBm
Control Distance: 30m
Output Connection: Common Anode
Compatible With T4, T3, wireless controller WL
Support Smart Phone APP Control And Third-Party Voice Control
DMX512 Control Panel Controllable(DMX512 LED Transmitter Needed)
16 Million Colors Available
Color Temperature And Brightness Adjustable
Signal Transmitting
Modes Synchronization
Working Temperature: -20℃-+60℃
Includes
1 * RGB+CCT LED Strip Control
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
