12V LED Strip Light Controller With Remote
LumaCircuit offers 12V LED Strip Light Controller With Remote as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Material: Metal + Plastic Working Voltage: DC12V-DC24V Max Output Current: 8A Each Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

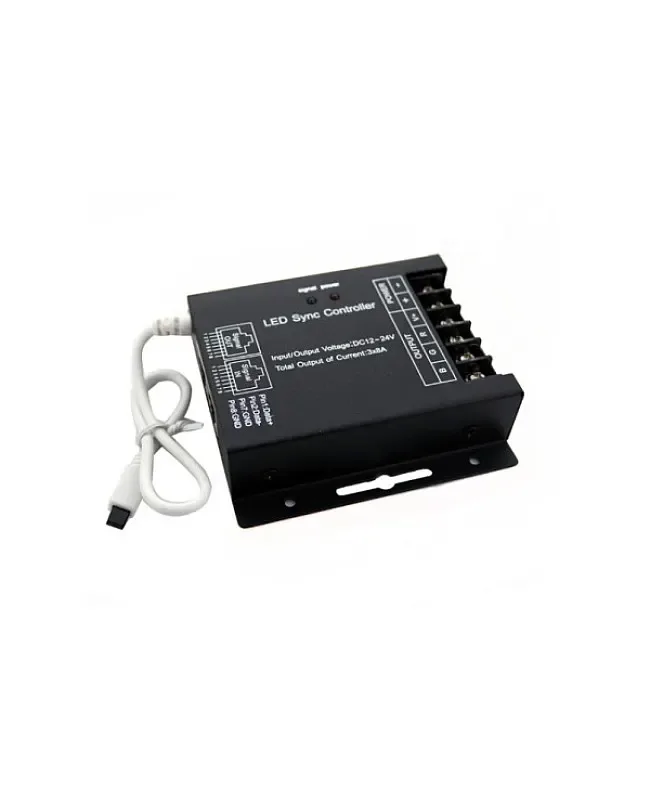

- The 12V LED strip light controller with a 24-key IR remote has a metal shell for better heat dissipation. It works on DC12V or DC24V, with a common anode connecting mode, three output channels, and the maximum output current of each channel can reach 8A. It adopts the advanced micro control unit, which is suitable for all kinds of constant voltage LED lights.
- Material: Metal + Plastic
- Working Voltage: DC12V-DC24V
- Max Output Current: 8A Each Channel
- Output Power: 5V: <120W, 12: <288W, 24V: <576W
- Connecting Mode: Common Anode
- Static Power Consumption: <1W

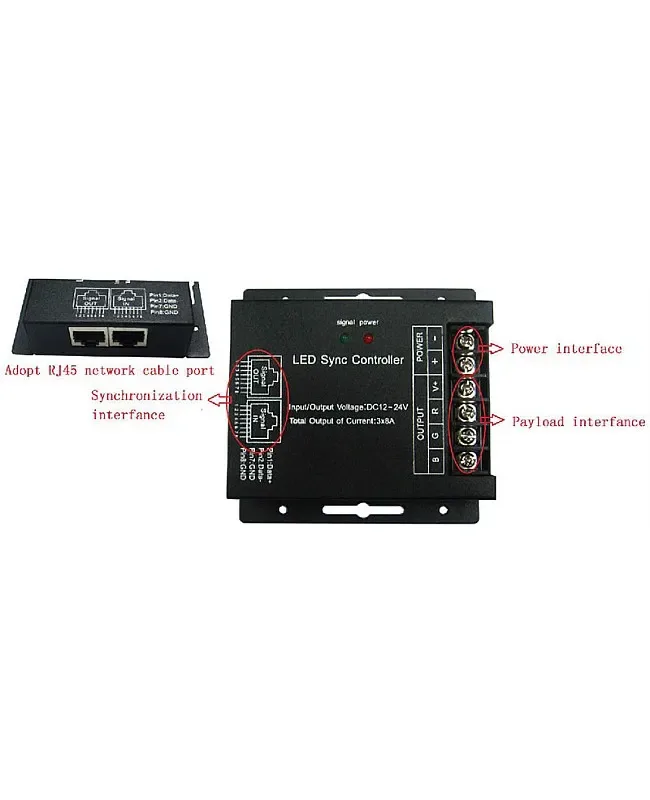

- Adopts Dual Network Cable Ports
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 5 V
- Material: Metal + Plastic
- Size: 130*64*24mm
- Working Voltage: DC12V-DC24V
- Output: 3 Channels
- Max Output Current: 8A Each Channel
- Output Power: 5V: <120W, 12: <288W, 24V: <576W
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- LumaCircuit model: LC-STR-GSTJJX
- Dimensions found: 130x64x24mm / 24mm
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

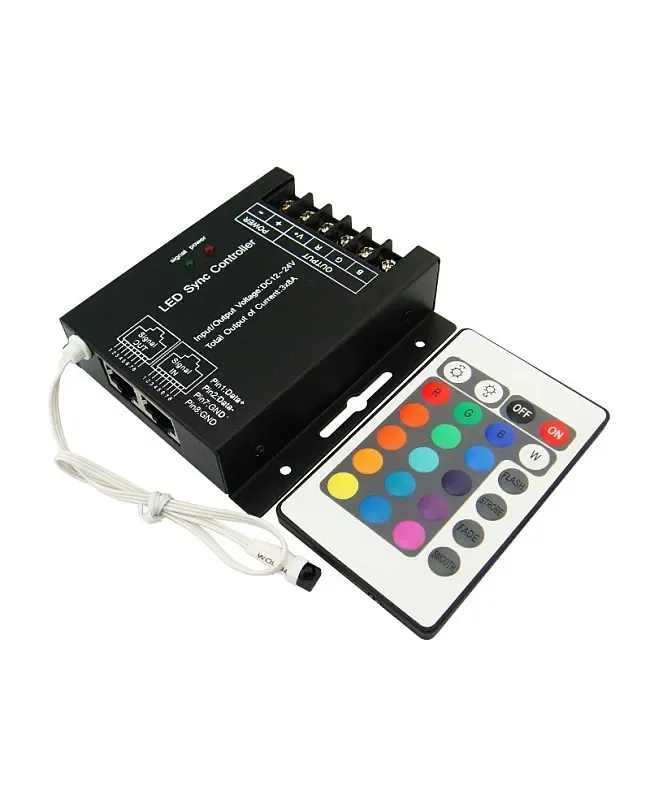

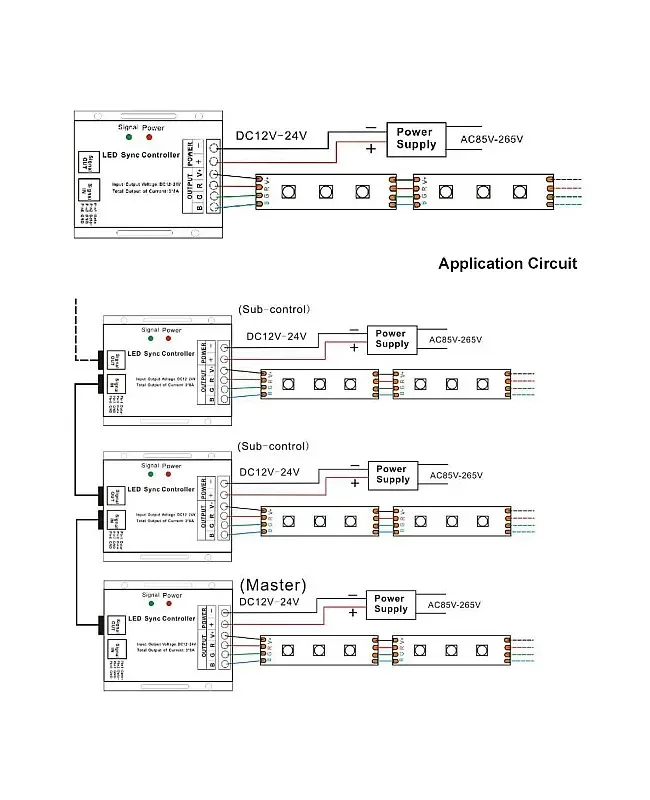

The 12V LED strip light controller with a 24-key IR remote has a metal shell for better heat dissipation. It works on DC12V or DC24V, with a common anode connecting mode, three output channels, and the maximum output current of each channel can reach 8A. It adopts the advanced micro control unit, which is suitable for all kinds of constant voltage LED lights. The installer can use the IR remote to adjust the brightness, static colors, and dynamic changes in lighting effects for various LED lamps, point source light, and LED modules. There are 20 modes in total, 16 static colors, and four dynamic modes. The brightness of static colors and the speed of dynamic modes are adjustable. The LED light controller has two network cable ports for LED lights synchronization work.
Specifications
Material: Metal + Plastic
Size: 130*64*24mm
Working Voltage: DC12V-DC24V
Output: 3 Channels
Max Output Current: 8A Each Channel
Output Power: 5V: <120W, 12: <288W, 24V: <576W
Connecting Mode: Common Anode
Static Power Consumption: <1W
Adopts Dual Network Cable Ports

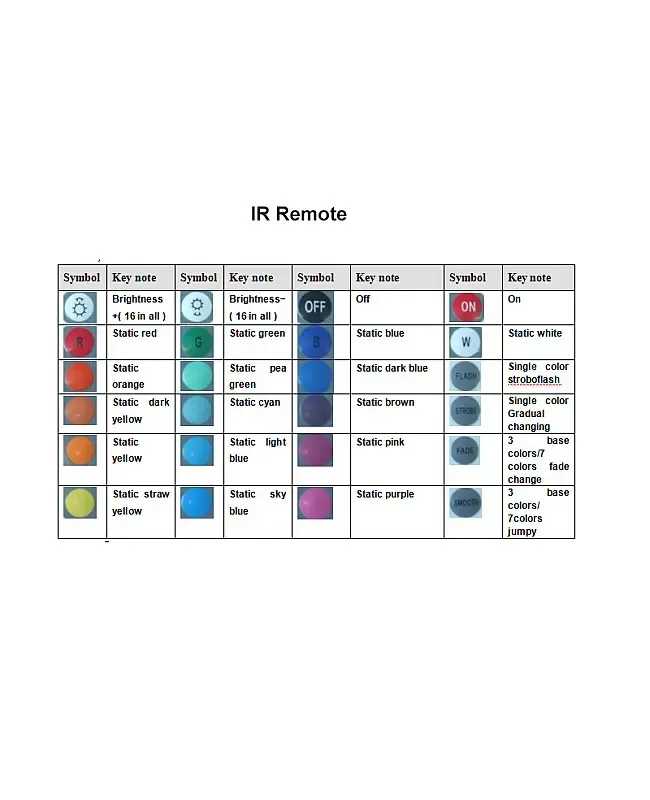

24 Keys IR Remote Control Included
20 Modes In Total, 16 Static Colors And 4 Dynamic Modes
Brightness Of Static Color And Speed Of Dynamic Modes Adjustable
Includes
1 * LED Strip Light Controller
1 * 24 Keys IR Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
