Product details
WL 12W RGB+CCT Smart Floodlight WiFi+2.4G
LumaCircuit offers WL 12W RGB+CCT Smart Floodlight WiFi+2.4G as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White) Brightness And Saturation Controllable Communication Protocol: WiFi+2. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 12W RGB+CCT smart floodlight allows you to create warm and colorful ambient lighting in your rooms. Remote Controls, smartphone apps, and third-party voice commands can control it. The installer can easily choose colors and adjust color temperature, brightness, and saturation for various scenes. There are 16M colors, and the color temperature is adjustable from 2700K warm white to 6500K cool white.
- Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White)
- Brightness And Saturation Controllable
- Communication Protocol: WiFi+2.
- 4G RF Remote Controllable
- Compatible With These Remote Controls B, B, B, B, B, T4, B, T3, B, W, G,
- 4G Remote Control Distance: ≤30m
- WiFi Protocol: IEEE 802./g/n 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-XQC4T8
- Height: 1515mm(59.6 in)
- Input Voltage: DC24V
- Power: 12W
- Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White)
- CRI: >
- Beam Angle: 90°
- Communication Protocol: WiFi+2.
- Compatible With These Remote Controls: B, B, B, B, B, T4, B, T3, B, W, G,
- 2.4G Remote Control Distance: ≤30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller 12W RGB+CCT smart floodlight allows you to create warm and colorful ambient lighting in your rooms. Remote Controls, smartphone apps, and third-party voice commands can control it. The installer can easily choose colors and adjust color temperature, brightness, and saturation for various scenes. There are 16M colors, and the color temperature is adjustable from 2700K warm white to 6500K cool white. The smart flood lights adopt WiFi + Bluetooth + 2.4G wireless transmission technology, low power consumption, and strong anti-interference ability. Wi-Fi+Bluetooth can significantly enhance the network experience. Bluetooth can also directly connect and control equipment at close range. The floodlights with auto signal transmitting and modes synchronization design, one floodlight can transmit the signals from the remote control to another lighting within 30 meters, different lighting fixtures can work synchronously when they are started at other times, controlled by the same remote, under the same dynamic mode, and within 30m distance. After pairing with a 2.4G gateway, the wireless controller light supports a smartphone APP, and third-party voice control can work with Amazon Alexa and Google Assistant. The installer can download the APP " Tuya Smart " to achieve more functions like group control, device sharing, biorhythm, timing, scene customization, etc.
Specifications
Type: Smart Floodlight
Model
Height: 1515mm(59.6 in)
Input Voltage: DC24V
Power: 12W
16M Of Colors Choose
Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White)
Brightness And Saturation Controllable
Luminous Flux: 400LM
CRI: >
Beam Angle: 90°
Communication Protocol: WiFi+2.
4G RF Remote Controllable
Compatible With These Remote Controls B, B, B, B, B, T4, B, T3, B, W, G,
4G Remote Control Distance: ≤30m
WiFi Protocol: IEEE 802./g/n 2.
Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
Support " Tuya Smart " APP Control(2.4G Gateway Needed)
Support Music Rhythm
Support Third Party Voice Control(Alexa, Google Assistant)(2.4G Gateway Needed)
Group Control
Support DMX512 Controllable
Auto Signal Transmitting And Modes Synchronization
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃

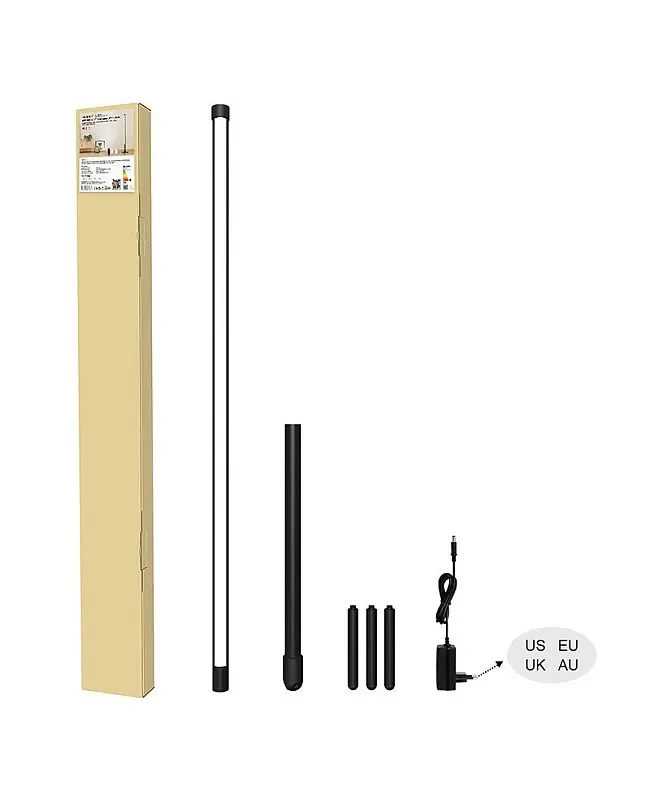

Includes
1 * Lamp Body

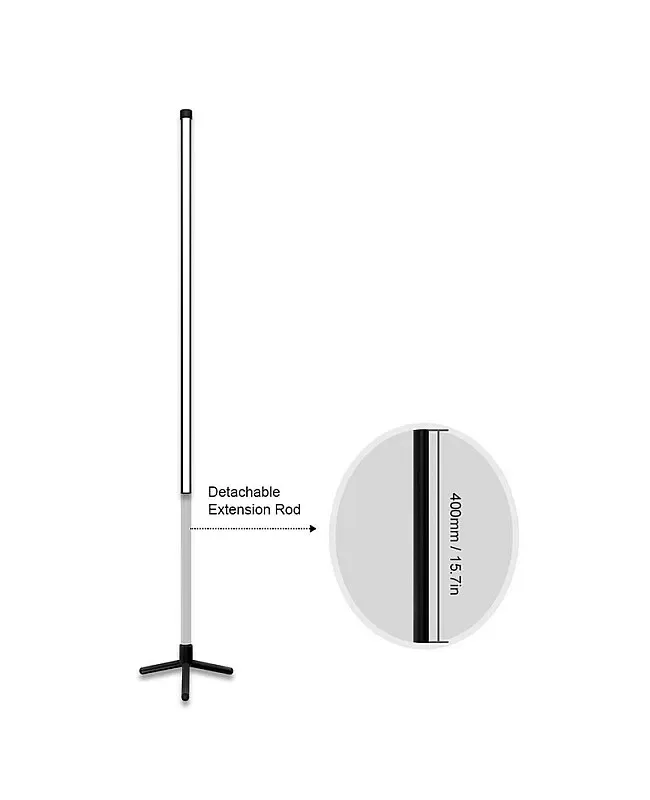

1 * Extension Rod
1 * Brackets
1 * Power Supply(US, EU, UK, And AU Available)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
