DC12V Strip Light Switching LED Linear Driver
LumaCircuit offers DC12V Strip Light Switching LED Linear Driver as a configurable LED strip for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Material: Metal + Aluminum Size: 159*40*32mm(L*W*H) Input Voltage: -220V(Below 15A Can Use 110-220V AC, Above 15A Only Can Use AC220V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The DC12V strip light switching LED linear drivers, which are made of metal and aluminum material for better heat dissipation, the input voltage range from AC110V to AC220V, can connect to the public power system directly without an extra adapter, the output voltage is DC12V, the installer can use them for the 12V LED lights and strip lights. The LED drivers with a rectangular linear structure can be installed in a narrow location for indoor applications.
- Material: Metal + Aluminum

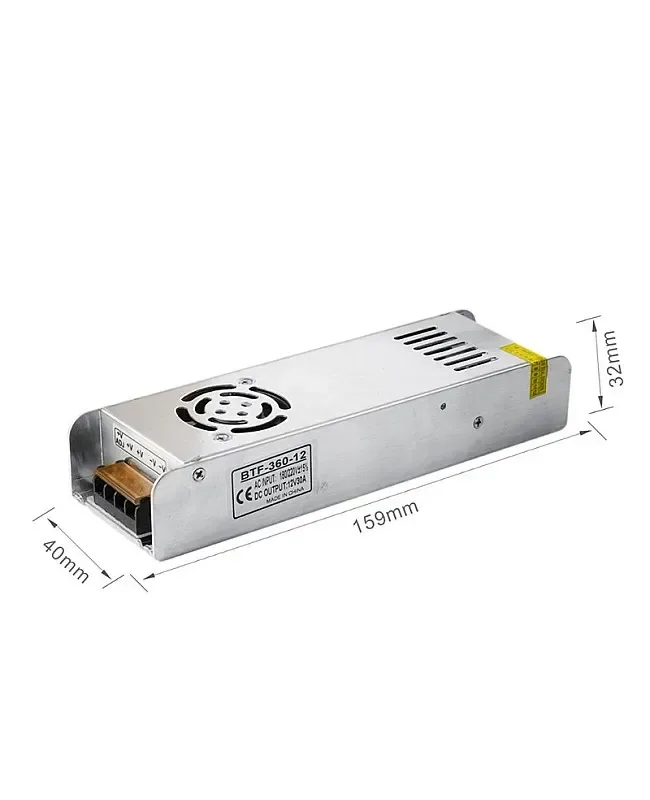

- Size: 159*40*32mm(L*W*H)
- Input Voltage: -220V(Below 15A Can Use 110-220V AC, Above 15A Only Can Use AC220V)

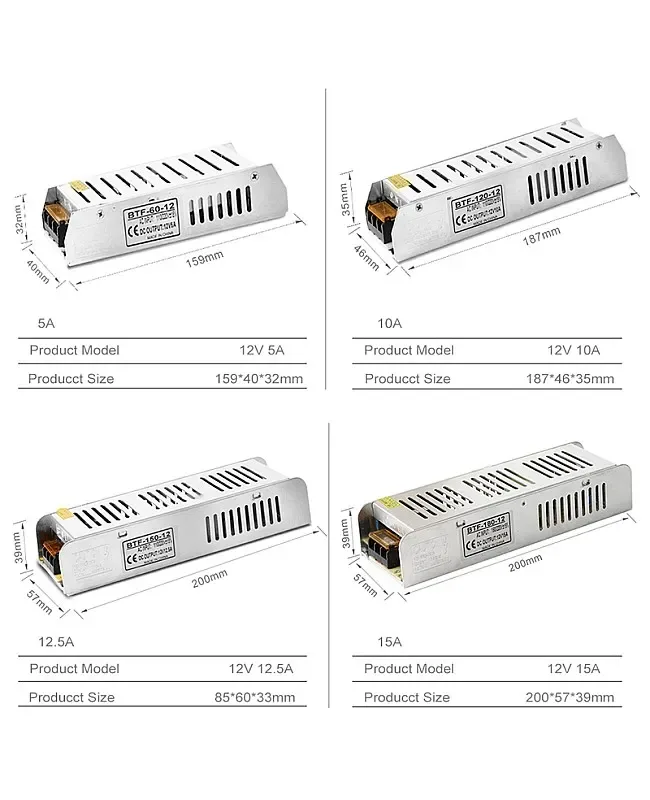

- Output Current: 5A, 10A, 12.5A, 15A, 16.5A, 20A, 30A
- Output Power: 60W, 120W, 150W, 180W, 198W, 240W, 360W

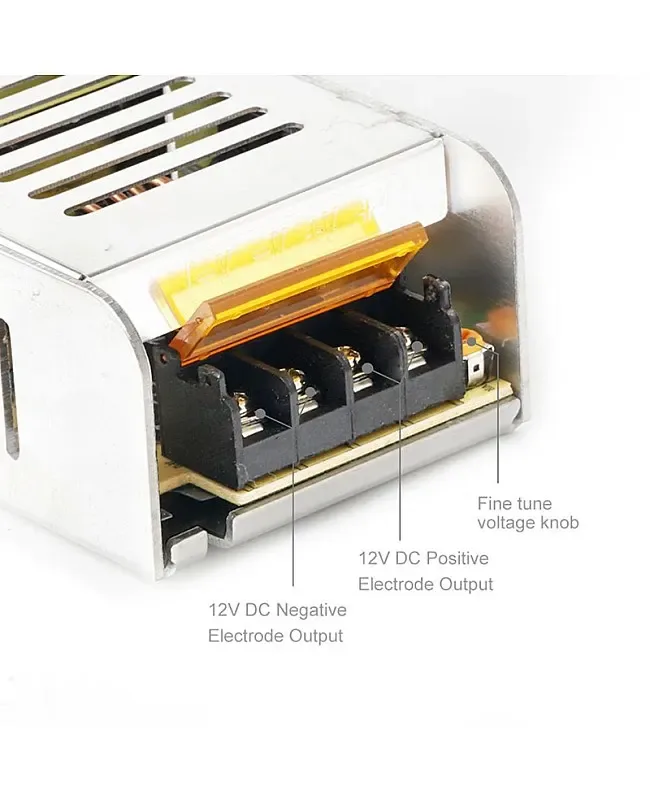

- Connection Interface Cover Can Be Opened And Closed
- Aluminum Shell Cooling System
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 110-220 V / 220 V
- Material: Metal + Aluminum
- Size: 159*40*32mm(L*W*H)
- Input Voltage: -220V(Below 15A Can Use 110-220V AC, Above 15A Only Can Use AC220V)
- Output Voltage: DC12V
- Output Current: 5A, 10A, 12.5A, 15A, 16.5A, 20A, 30A
- Output Power: 60W, 120W, 150W, 180W, 198W, 240W, 360W
- Working Temperature: 0℃-+40℃
- Storage Temperature: -20℃-+60℃
- IP Rating: IP20 Non-Waterproof
- LumaCircuit model: LC-STR-GJT0S9
- Dimensions found: 159x40x32mm / 32mm
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The DC12V strip light switching LED linear drivers, which are made of metal and aluminum material for better heat dissipation, the input voltage range from AC110V to AC220V, can connect to the public power system directly without an extra adapter, the output voltage is DC12V, the installer can use them for the 12V LED lights and strip lights. The LED drivers with a rectangular linear structure can be installed in a narrow location for indoor applications. Various output current products are available, ranging from 5A to 30A. The Linear LED drivers have multiple safety protections to ensure safety and reliability.
Specifications
Material: Metal + Aluminum
Size: 159*40*32mm(L*W*H)
Input Voltage: -220V(Below 15A Can Use 110-220V AC, Above 15A Only Can Use AC220V)
Output Voltage: DC12V
Output Current: 5A, 10A, 12.5A, 15A, 16.5A, 20A, 30A
Output Power: 60W, 120W, 150W, 180W, 198W, 240W, 360W
Connection Interface Cover Can Be Opened And Closed
Aluminum Shell Cooling System
Working Temperature: 0℃-+40℃
Storage Temperature: -20℃-+60℃
Ambient Humidity: 0-95% Non-Condensation
IP Rating: IP20 Non-Waterproof
Short Circuit Protection
Overload Protection
Over-Voltage Protection
Includes
1 * LED Linear Driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
