Mini Inline LED RGB Strip RF Controller With Remote Control
LumaCircuit offers Mini Inline LED RGB Strip RF Controller With Remote Control as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Connecting Method: Common Anode Static Power Consumption: <0.5W Output Current: Total, 6A: 3*2A(RGB)/4*1.5A(RGBW) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LED RGB strip RF controller features a mini size and an inline design, allowing for easy installation in narrow or small spaces, such as under a cabinet or within furniture. Working with a voltage range of 5V to 24V, versions with 3 or 4 output channels are available for RGB or RGBW LED strip lights. The mini RGB LED controller boasts a female DC connector and 4-pin or 5-pin female LED connector, making it easy to connect to LED power supplies and LED strips.
- Connecting Method: Common Anode
- Static Power Consumption: <0.5W
- Output Current: Total, 6A: 3*2A(RGB)/4*1.5A(RGBW)
- Output Power: 5V: <30W; 12V: <72W; 24V: <144W
- Working Temperature: -20℃-60℃
- 5*2.1mm DC Female Connector And 4Pin Female Connector(5Pin Female Connector For RGBW) Included
- Speed Of Dynamic Modes Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V / 5 V / 12 V / 24 V
- Light engine: RGBW
- Size: 55*22*13mm(L*W*H)
- Working Voltage: -24V
- Static Power Consumption: <0.5W
- Output Current: Total, 6A: 3*2A(RGB)/4*1.5A(RGBW)
- Output Power: 5V: <30W; 12V: <72W; 24V: <144W
- Working Temperature: -20℃-60℃
- Color Order: +GRB
- LumaCircuit model: LC-STR-SV3HZJ
- Dimensions found: 55x22x13mm / 13mm / 4x1
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

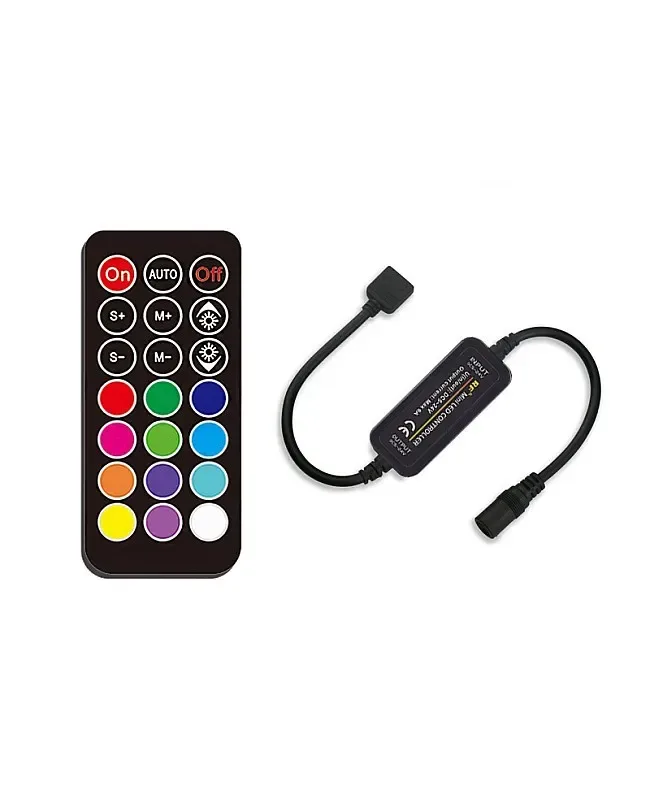

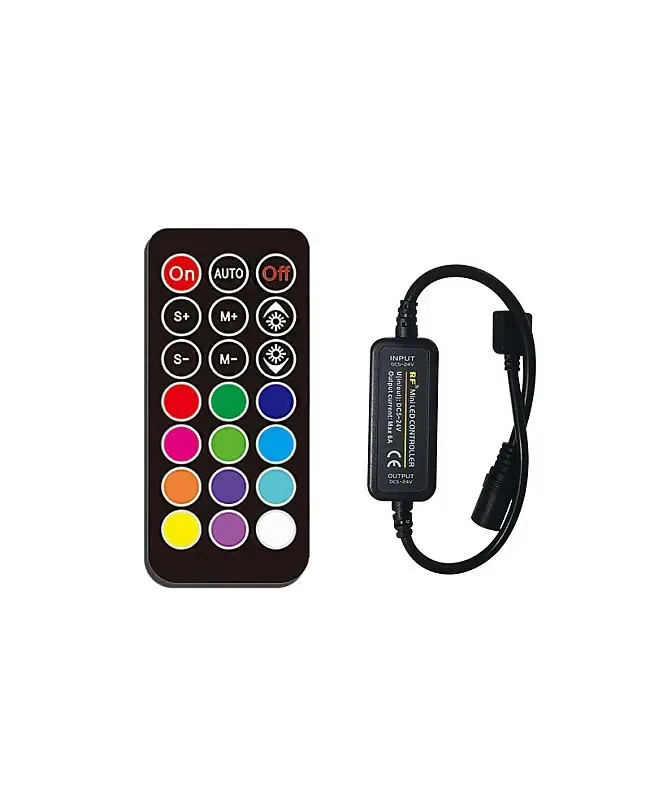

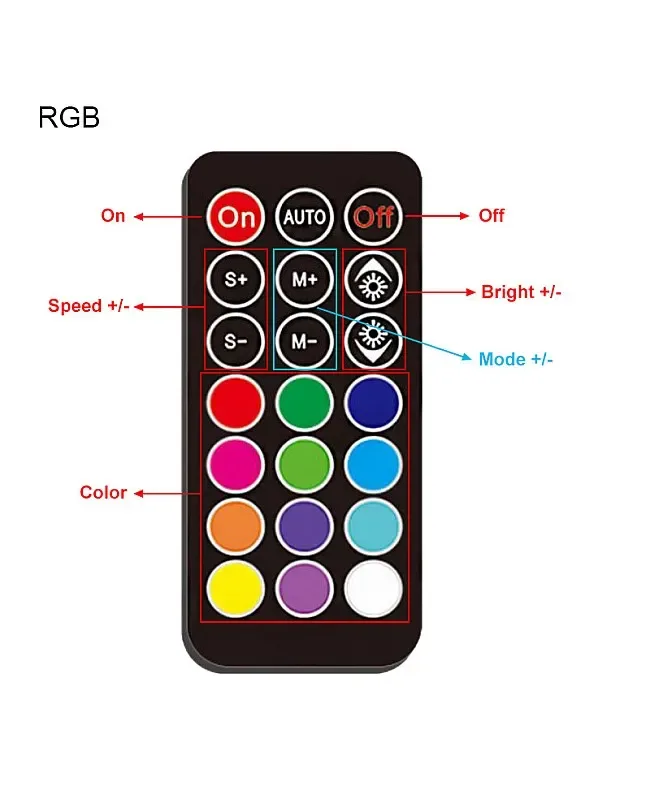

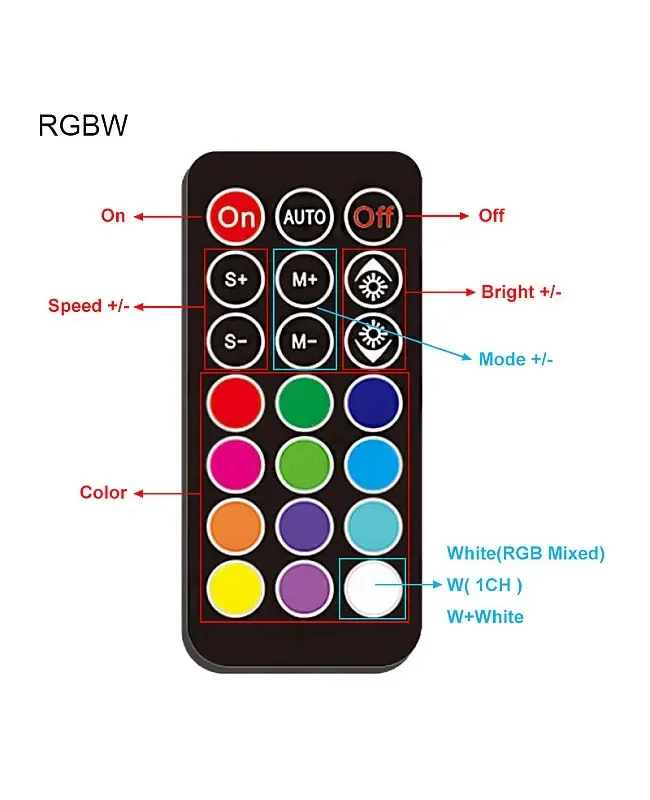

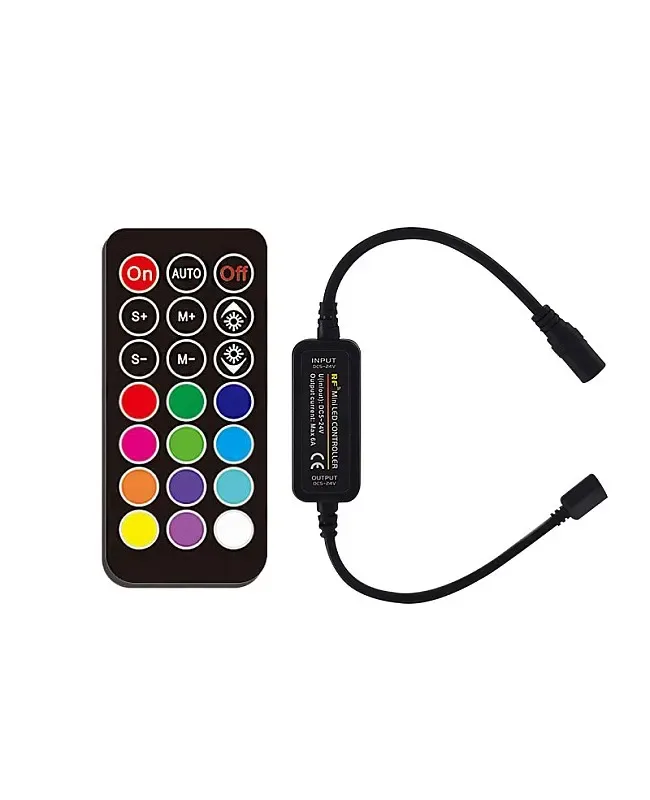

The LED RGB strip RF controller features a mini size and an inline design, allowing for easy installation in narrow or small spaces, such as under a cabinet or within furniture. Working with a voltage range of 5V to 24V, versions with 3 or 4 output channels are available for RGB or RGBW LED strip lights. The mini RGB LED controller boasts a female DC connector and 4-pin or 5-pin female LED connector, making it easy to connect to LED power supplies and LED strips. The 21 Keys RF remote control can set 12 static colors and 19 dynamic modes, with adjustable brightness for static colors and speed for dynamic modes.
Specifications

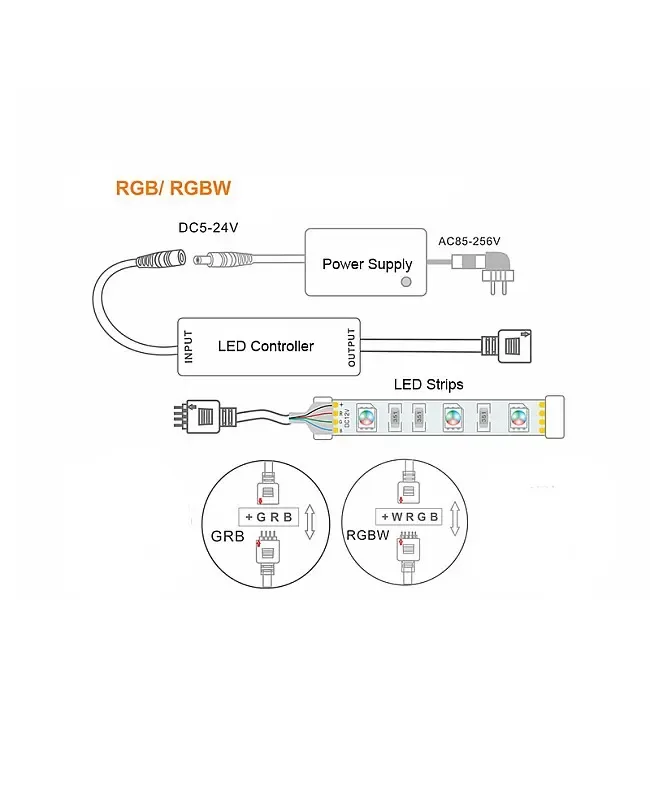

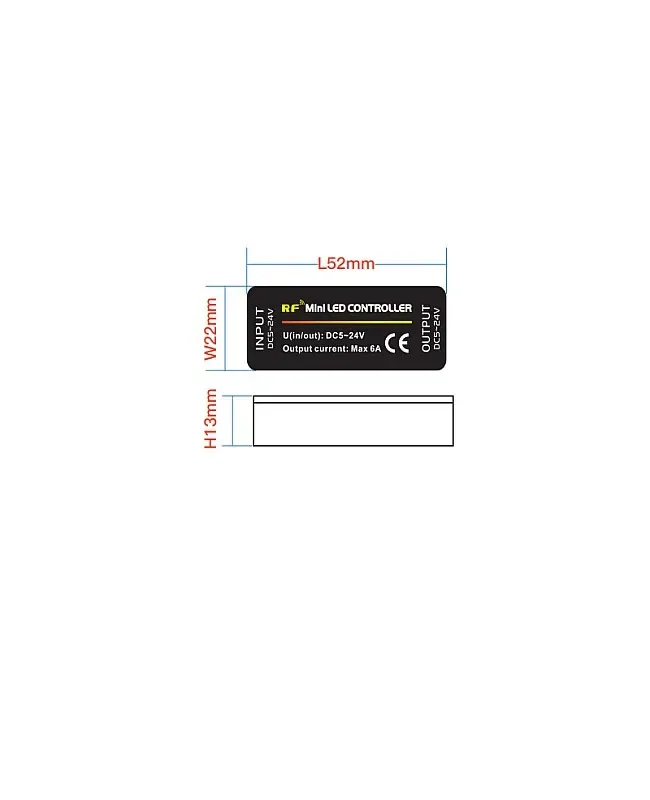

Size: 55*22*13mm(L*W*H)
Working Voltage: -24V
Connecting Method: Common Anode
Static Power Consumption: <0.5W
Output Current: Total, 6A: 3*2A(RGB)/4*1.5A(RGBW)
Output Power: 5V: <30W; 12V: <72W; 24V: <144W
Working Temperature: -20℃-60℃
5*2.1mm DC Female Connector And 4Pin Female Connector(5Pin Female Connector For RGBW) Included
12 Static Colors And 19 Dynamic Modes Available
Color Order: +GRB
0-100% Dimmable
Speed Of Dynamic Modes Adjustable
Includes
1 * LED RGB Strip RF Controller
1 * 21 Keys Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
