Product details

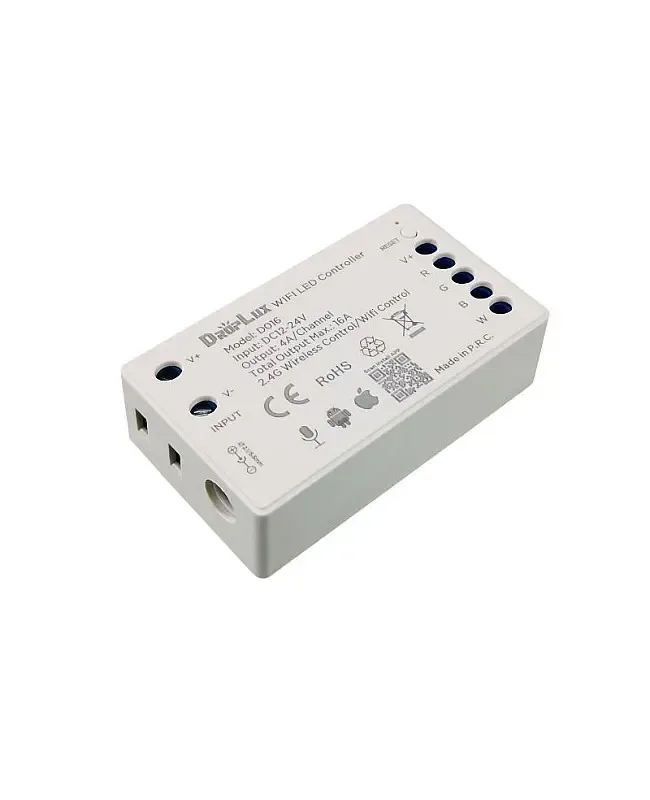

384W RGBW LED Strip WIFI Controller With 2.4G Remote Control
LumaCircuit offers 384W RGBW LED Strip WIFI Controller With 2.4G Remote Control as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Output Current: ≤4A(Each Channel) Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGBW LED strip WiFi controller can be controlled by voice via Amazon Alexa, Google Assistant, Yandex Alice, etc. The installer can download the app from the App Store or Google Play. The RGBW controller works in -24V, with a 4-channel design, and the maximum loading power is up to 384W when working in DC24V. With memory function design, each time it powers on, it resumes the mode that was stopped at the last power-off. The installer can scan the QR code on the controller's surface to download the Tuya App.
- Working Temperature: -20-60℃
- Output Current: ≤4A(Each Channel)
- Static Power Consumption: <1W
- Max Power Output: 192W(12V)/384W(24V)
- Connecting Mode: Common Anode
- 3 Compatible RF Remote Controls Optional
- Compatible With Voice Control Via Amazon Alexa, Google Assistant, Yandex Alice, etc
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12-24 V / 12 V
- Light engine: RGBW
- Size: 70*40*20mm(L*W*H)
- LumaCircuit model: LC-STR-L03DKC
- Working Temperature: -20-60℃
- Working Voltage: -24V
- Output Channels: 4
- Output Current: ≤4A(Each Channel)
- Static Power Consumption: <1W
- PWM Frequency: 1.95 KHz
- Max Power Output: 192W(12V)/384W(24V)
- Connecting Mode: Common Anode
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

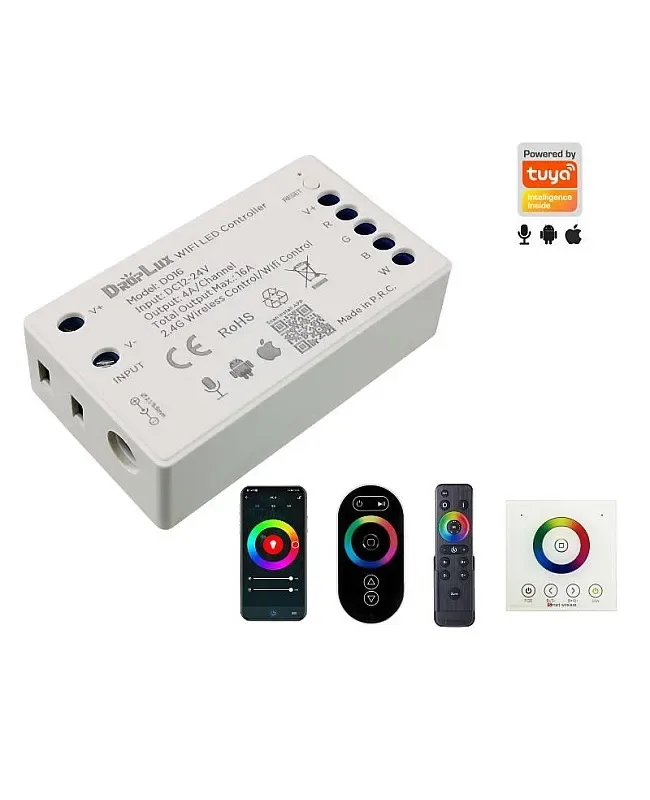

The RGBW LED strip WiFi controller can be controlled by voice via Amazon Alexa, Google Assistant, Yandex Alice, etc. The installer can download the app from the App Store or Google Play. The RGBW controller works in -24V, with a 4-channel design, and the maximum loading power is up to 384W when working in DC24V. With memory function design, each time it powers on, it resumes the mode that was stopped at the last power-off. The installer can scan the QR code on the controller's surface to download the Tuya App. After downloading the app, long-press the "Reset" button on the RGBW WiFi LED controller and hold for 5 seconds until the loading LEDs flash to start the connection with the Tuya APP. After the connection, the installer can control the LED light via the APP to achieve control like group control, scene control, timer control, music control, etc. The RF 2.4G remote control can set 4 groups and control the groups separately or all at once. Remote control with one color ring and buttons allows for the control of static colors or dynamic modes. The brightness of static colors and the speed of dynamic modes are adjustable. The WiFi LED controller will transmit the signals from the remote control and self-inspect the work status for each other. Multiple receivers can wirelessly sync work completely when paired to the same remote control, not only in static mode but also in the dynamic modes.

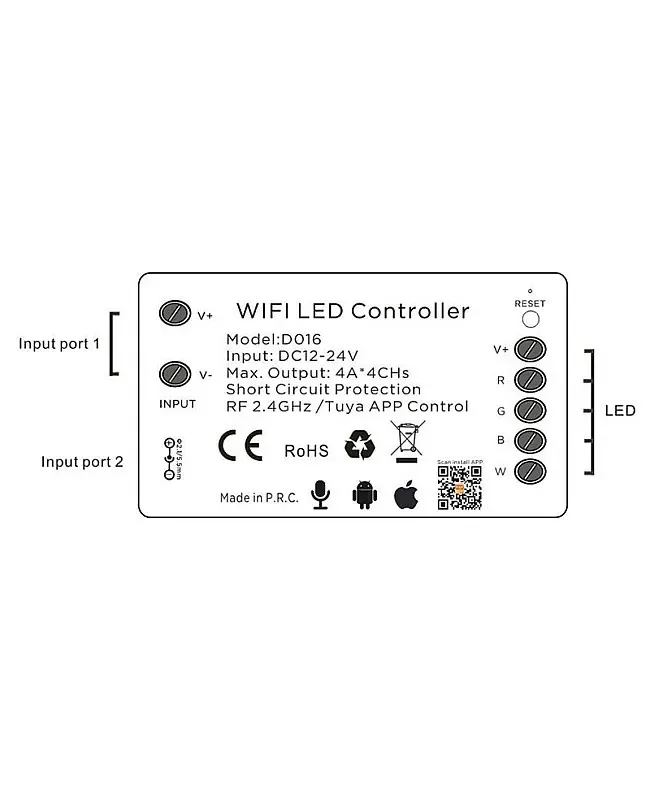

RGBW LED Strip WiFi Controller Specifications

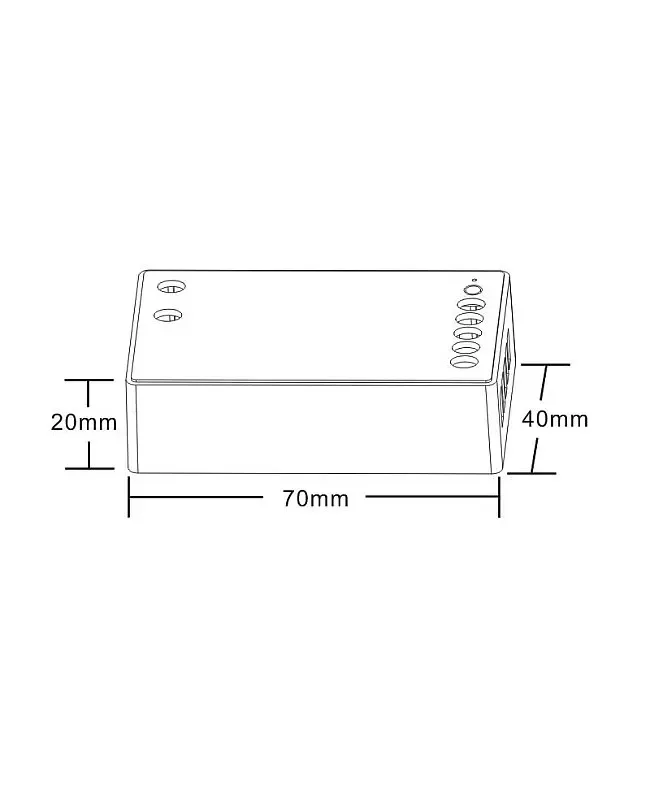

Size: 70*40*20mm(L*W*H)
Model
Working Temperature: -20-60℃
Working Voltage: -24V
Output Channels: 4
Output Current: ≤4A(Each Channel)
Static Power Consumption: <1W
PWM Frequency: 1.95 KHz
Max Power Output: 192W(12V)/384W(24V)
Connecting Mode: Common Anode
Grayscale: 1024 Levels
Speed Stage: 100 Levels
RF Frequency: 2.
RF Distance: ≤20m
3 Compatible RF Remote Controls Optional
WIFI Technology By TUYA
Compatible With Voice Control Via Amazon Alexa, Google Assistant, Yandex Alice, etc
Wireless Synchronization Function
Short Circuit Protection: YES
Memory Function: YES
Weight: 80g

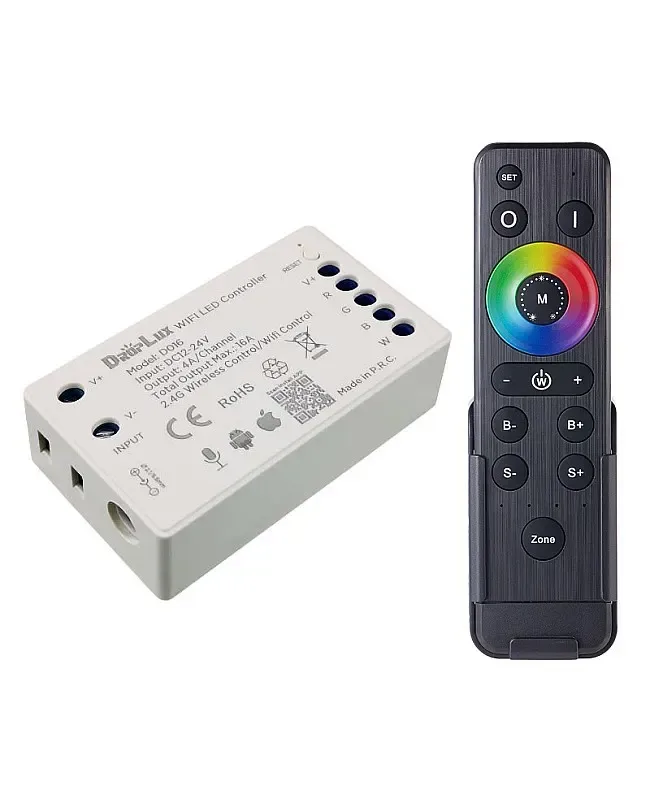

2.4G RF Remote Control Specifications
Working Temperature: -20-60℃
Size: 150*40*20mm
Color: Black
Working Voltage: DC3V
Powered By 2PCS AAA Batteries
Standby Current: <
Working Current: <
Standby Power
Working Power
RF Frequency: 2.
RF Distance: <20m
Weight: 95g
Includes
1 * RGBW LED Strip WIFI Controller
1 * RFBK-RGB-2.4G(RGBW Function)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
