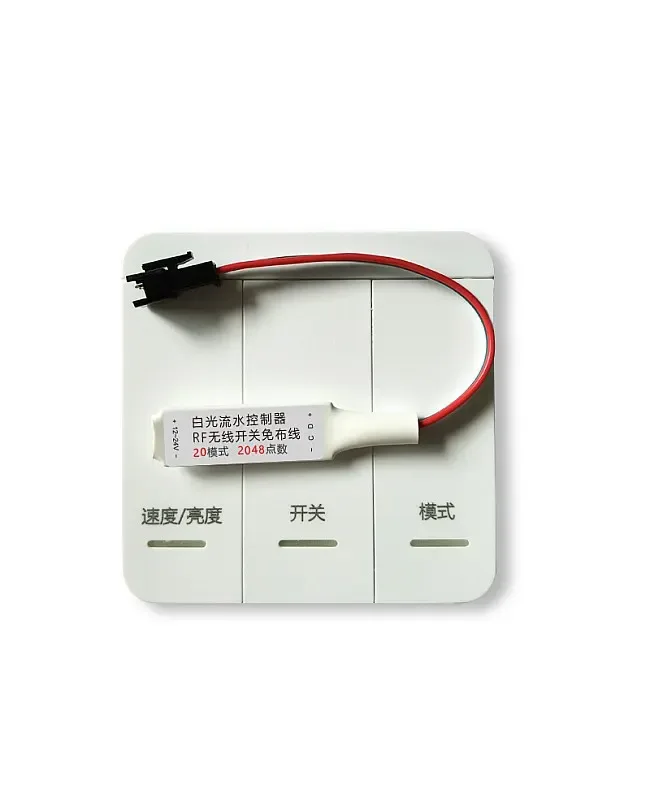

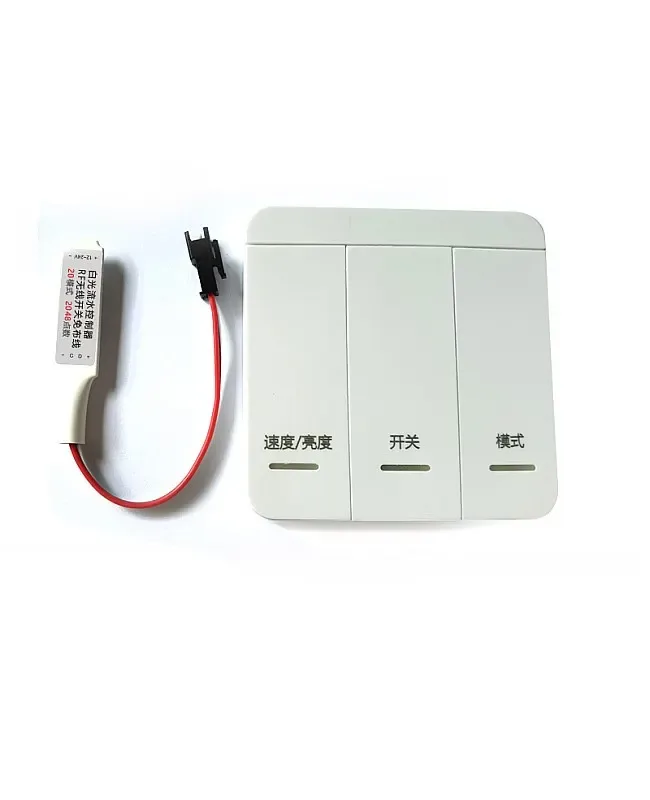

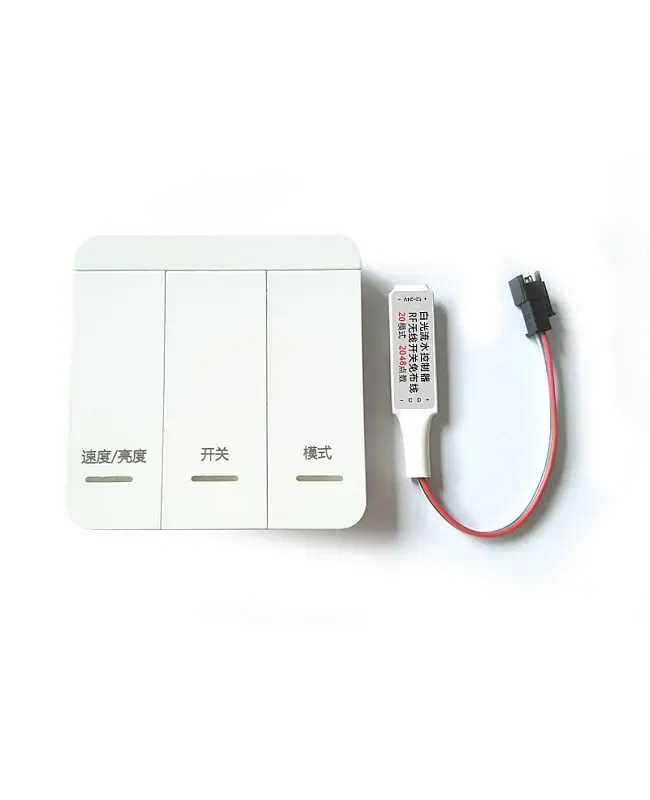

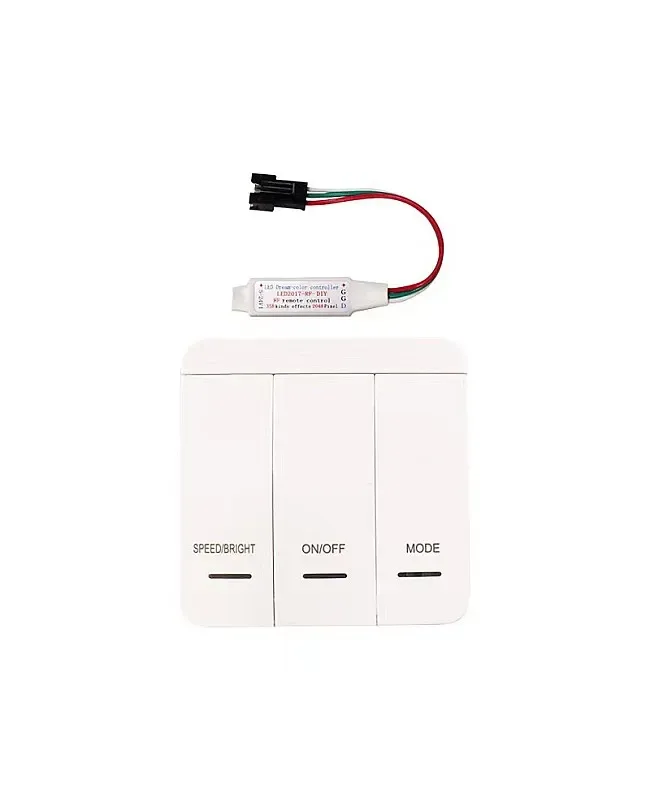

Waterflow LED Strip RF Controller With Wireless Remote Control
LumaCircuit offers Waterflow LED Strip RF Controller With Wireless Remote Control as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Max Support ICs: 2048PCS 10 Levels Of Speed Adjustable 10 Levels Of Brightness Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The water flow LED strip controller with wireless remote control can work with white digital LED strips to achieve the running water or water flow effect. The input voltage range is from DC12V to DC24V, and it supports ICs up to 2048 pieces. The default setting is 80 pieces. There are 28 lighting effects, and the installer can use them to achieve the running water or water flow effect.
- Max Support ICs: 2048PCS
- 10 Levels Of Speed Adjustable
- 10 Levels Of Brightness Adjustable
- Remote Control Distance: 15-20M
- Support ICs: 1804, 16703, 1903, 2811, 6812, etc
- Take Out All 3 Buttons To Reveal The Battery Slot.
- Install Back The Buttons.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: Addressable
- LumaCircuit model: LC-STR-T0N9W8
- Size: 60*13*3mm(L*W*H)
- Input Voltage: -24V
- Effect Mode: 20 Kinds
- Remote Control Distance: 15-20M
- Dimensions found: 60x13x3mm / 3mm / 20M
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The water flow LED strip controller with wireless remote control can work with white digital LED strips to achieve the running water or water flow effect. The input voltage range is from DC12V to DC24V, and it supports ICs up to 2048 pieces. The default setting is 80 pieces. There are 28 lighting effects, and the installer can use them to achieve the running water or water flow effect.
Specifications
Model
Size: 60*13*3mm(L*W*H)
Input Voltage: -24V
Max Support ICs: 2048PCS
10 Levels Of Speed Adjustable
10 Levels Of Brightness Adjustable
Effect Mode: 20 Kinds
Remote Control Distance: 15-20M
Memory Function: YES
Support ICs: 1804, 16703, 1903, 2811, 6812, etc

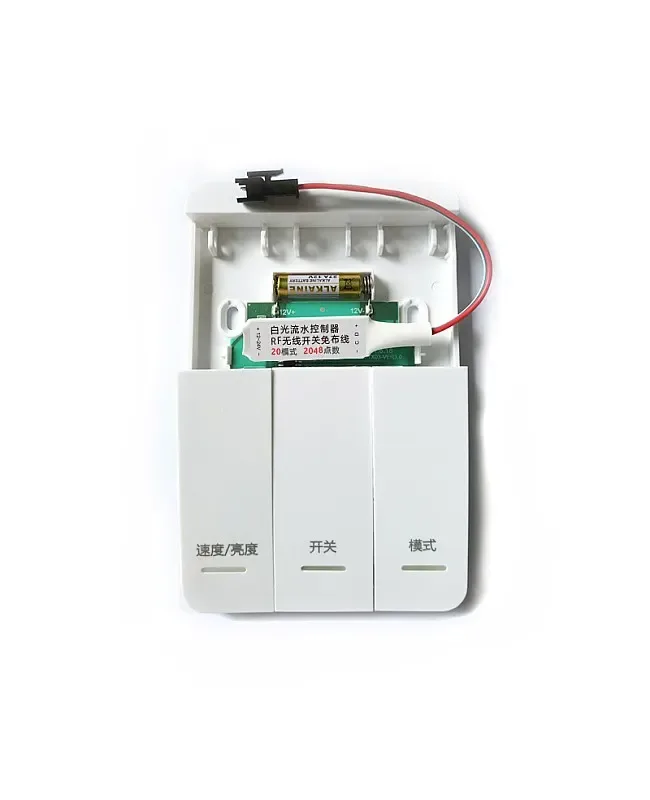

How To Install A Battery?
Take Out All 3 Buttons To Reveal The Battery Slot.
Install The Battery.
Install Back The Buttons.

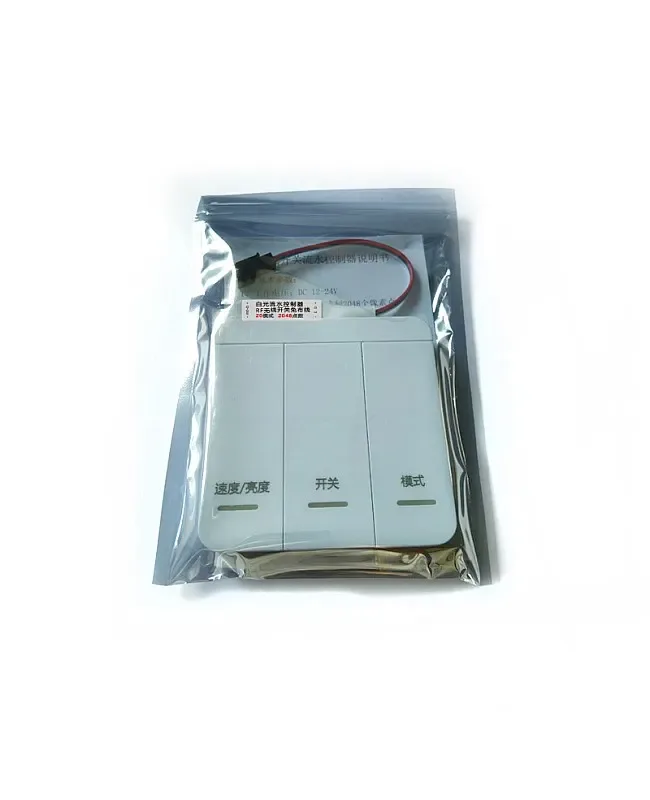

Includes
1 * Waterflow RF Controller
1*Wireless Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
