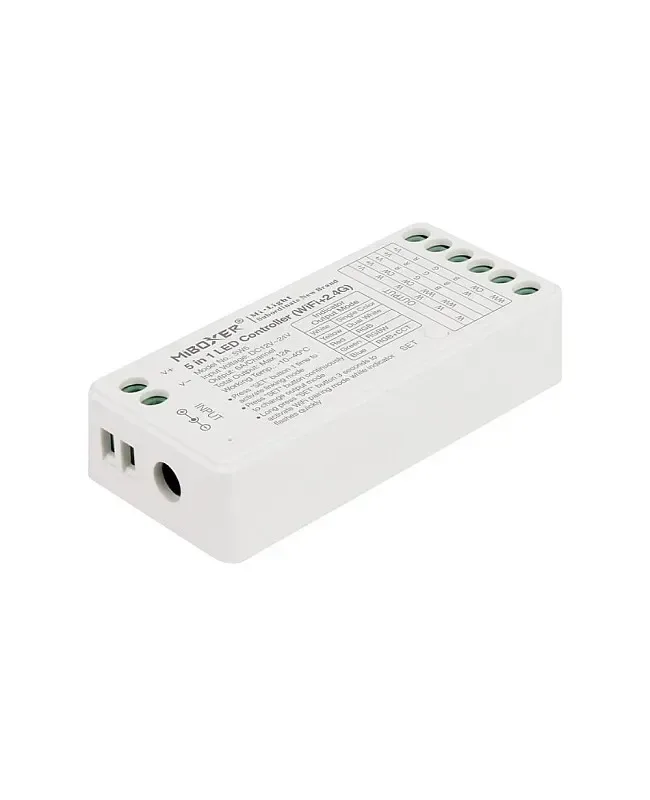

5 In 1 LED Strip Light WiFi Controller
LumaCircuit offers 5 In 1 LED Strip Light WiFi Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Models: (WiFi+2.4G) / (2.4G) Size:74.5*36*17mm(L*W*H) Output Current: 6A/Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

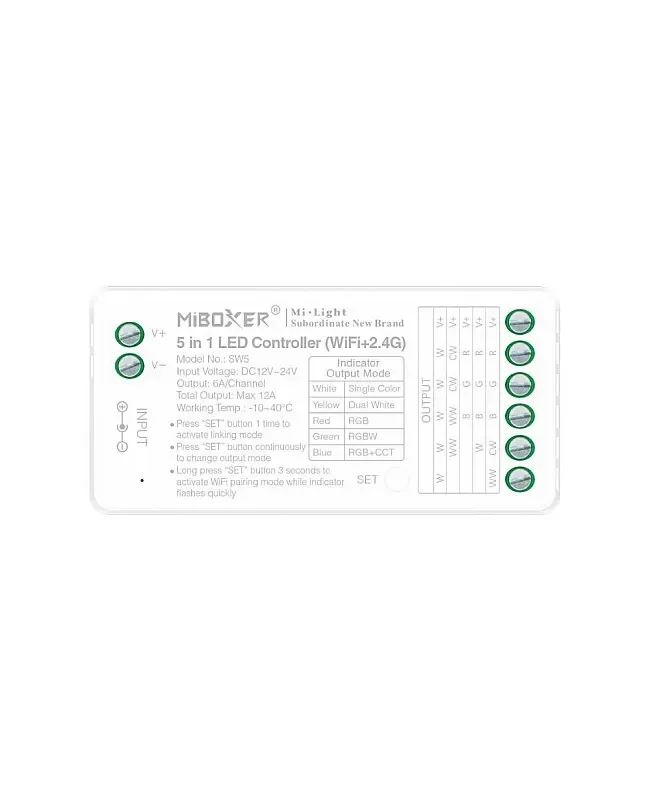

- The wireless controller WiFi Controllers feature a 5-in-1 design, supporting single-color, dual-white, RGB, RGBW, and RGB+CCT LED strip lights. The controller has a " SET" button, which the installer can press to switch the output mode. The WiFi LED controllers have 5 output channels; the max output current of each channel is 6A, and the total output current is 12A. It integrates WiFi and 2.4G communication modules, allowing for control via 2.4G RF remote controls, smartphone apps, and third-party voice commands.
- Models: (WiFi+2.4G) / (2.4G)

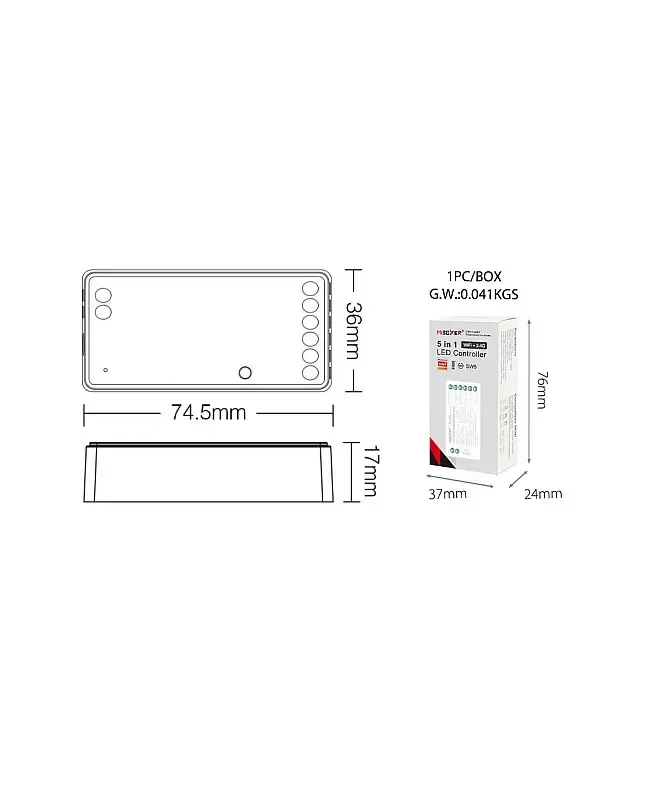

- Size:74.5*36*17mm(L*W*H)
- Output Current: 6A/Channel

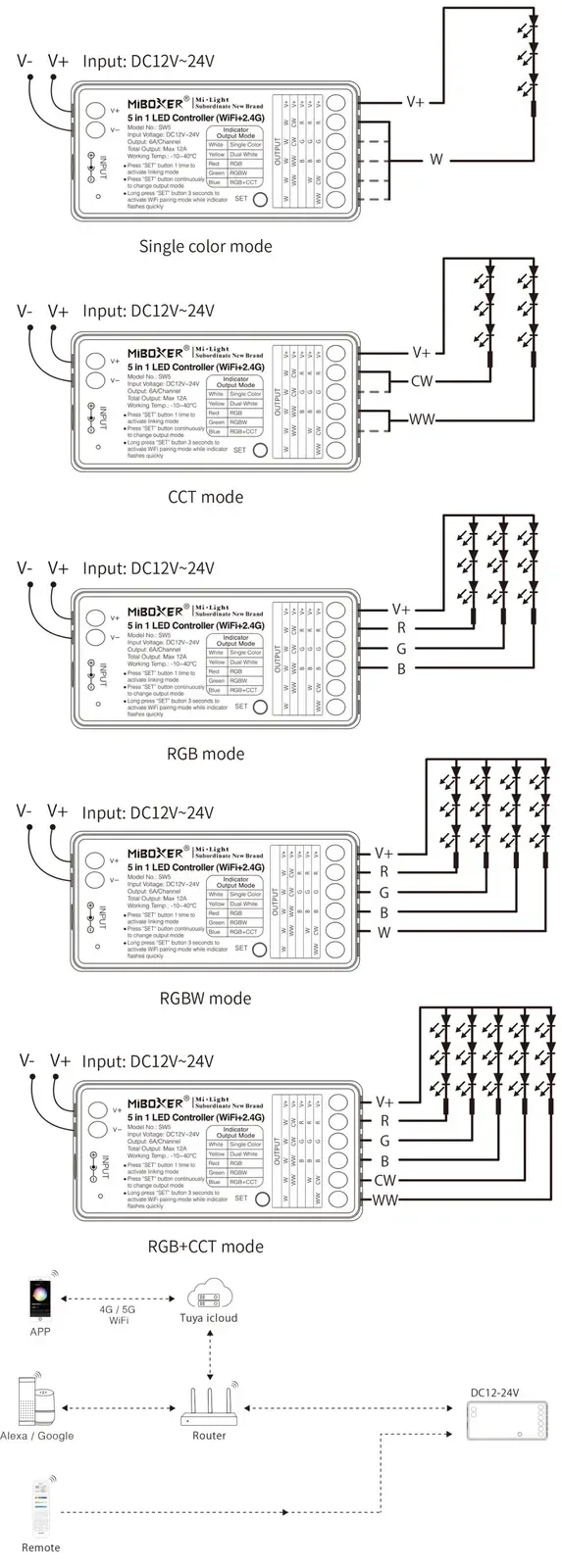

- 5 In 1 Design For Single-color, Dual-white, RGB, RGBW, RGB+CCT
- 16 Million Colors Adjustable, Saturation Adjustable, Color Temperature And Brightness Adjustable
- Built-in 18 Dynamic Modes With Jumping, Gradually Changing(Only For 2.4G Remote Control)
- Support Tuya Smart APP Control(2.4G Version Needs A 2.4G Gateway, WiFi+2.4G Version Does Not Need)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- Models: (WiFi+2.4G) / (2.4G)
- Size: 74.5*36*17mm(L*W*H)
- Colors: White
- Input Voltage: -24V
- Output Current: 6A/Channel
- Total Output: 12A Max
- Output power: 144W-288W
- Control Signal: 2.4G RF
- Control Distance: ≤30M
- Support Third-party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu, And voice assistant(2.4G Version Needs A 2.4G Gateway, WiFi+2.4G Version Does Not Need)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller WiFi Controllers feature a 5-in-1 design, supporting single-color, dual-white, RGB, RGBW, and RGB+CCT LED strip lights. The controller has a " SET" button, which the installer can press to switch the output mode. The WiFi LED controllers have 5 output channels; the max output current of each channel is 6A, and the total output current is 12A. It integrates WiFi and 2.4G communication modules, allowing for control via 2.4G RF remote controls, smartphone apps, and third-party voice commands. The installer can change the output mode and static color and adjust the brightness, color temperature, and saturation for various scenes. 16 million colors and 18 dynamic modes are available. The features an auto-forwarding function, which accepts signals from a remote control and forwards them to the same controller within a 30-meter range, ensuring all controllers synchronize. With a WiFi module, the installer can connect the Controller directly to your mobile phone, bypassing the need for a gateway, and control the LED lights using the TUYA SMART APP. It supports third-party voice control services, including Amazon Alexa, Google Assistant, Yandex Alice, and voice assistant, among others. It supports DMX control after pairing with a DMX512 LED transmitter.
Specifications
5 In 1 LED Controller
Models: (WiFi+2.4G) / (2.4G)
Size:74.5*36*17mm(L*W*H)
Colors: White
Input Voltage: -24V
Output Current: 6A/Channel
Total Output: 12A Max
Output power: 144W-288W
5 In 1 Design For Single-color, Dual-white, RGB, RGBW, RGB+CCT
16 Million Colors Adjustable, Saturation Adjustable, Color Temperature And Brightness Adjustable
Built-in 18 Dynamic Modes With Jumping, Gradually Changing(Only For 2.4G Remote Control)
Control Signal: 2.4G RF
Control Distance: ≤30M
Support Tuya Smart APP Control(2.4G Version Needs A 2.4G Gateway, WiFi+2.4G Version Does Not Need)
Support Third-party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu, And voice assistant(2.4G Version Needs A 2.4G Gateway, WiFi+2.4G Version Does Not Need)
Have a DND Function, Usually Used In Power Failure areas, And Save Power
Singal Auto-Forwarding(Remote Control Only)
IP Rate: IP20 Non-waterproof
Dimming Curve: Logarithmic
Support DMX512 Control(DMX512 LED Transmitter Needed)
Working Temperature: -10-40℃

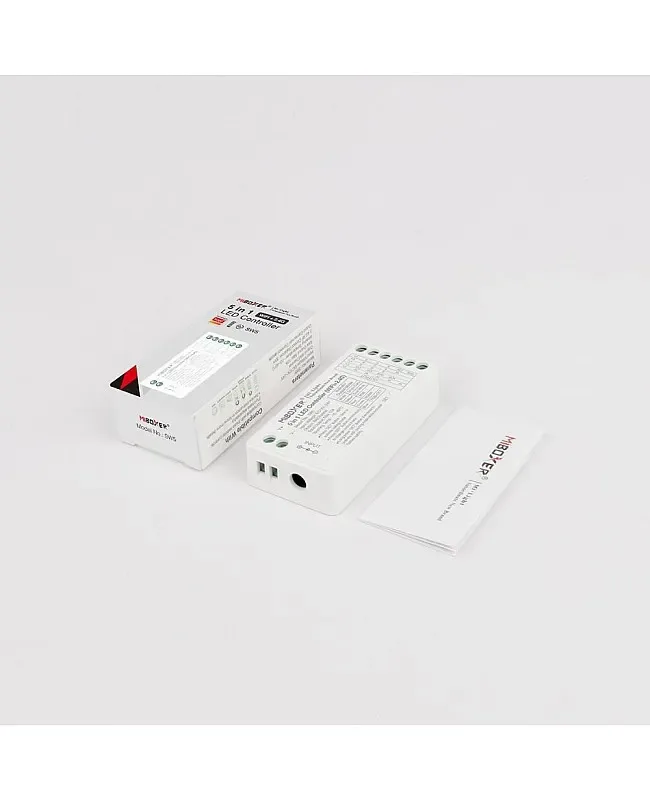

Includes
1 * LED Strip WiFi Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
