*10A Synchronous RGB LED Strip Controller 360W
LumaCircuit offers *10A Synchronous RGB LED Strip Controller 360W as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Max Output Current: 10A( Each Channel) Max Output Power: 360W ( 12V ) / 720W ( 24V ) Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

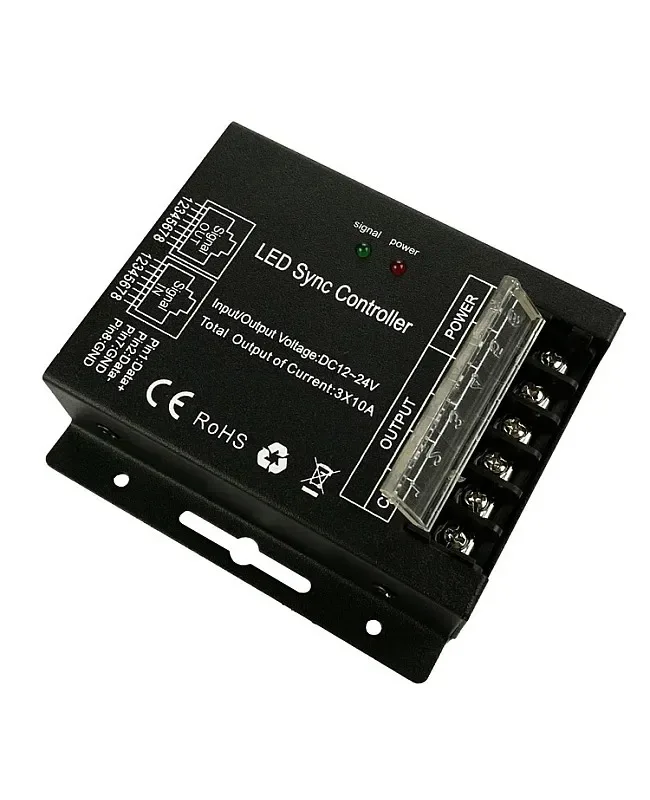

- The RGB LED strip controller with synchronous function adopts advanced PWM digital control technology, designed for the RGB constant voltage LED light. It has a black metal shell for better heat dissipation. The LED controller works on DC12V or DC24V. With a three-output-channel design, the max output current of a single channel is 10A, and the max loading power is up to 720W when working in 24V. It comes with the RF remote control, with a control distance of up to 20 meters.
- Max Output Current: 10A( Each Channel)
- Max Output Power: 360W ( 12V ) / 720W ( 24V )
- Connecting Mode: Common Anode
- Memory Function: Support
- Designed For RGB Constant Voltage LED Lights
- 14 Keys RF Remote Control included
- 18 Modes In Total, 8 Static Colors And 10 Dynamic Modes
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: RGB
- Size: 91*88*24mm(L*W*H)
- Working Voltage: -24V
- Output: 3 Channels
- Max Output Current: 10A( Each Channel)
- Max Output Power: 360W ( 12V ) / 720W ( 24V )
- Connecting Mode: Common Anode
- Mode: 18
- PWM Frequency: 433.
- Working temperature: -20-60℃
- LumaCircuit model: LC-STR-BKHEBB
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

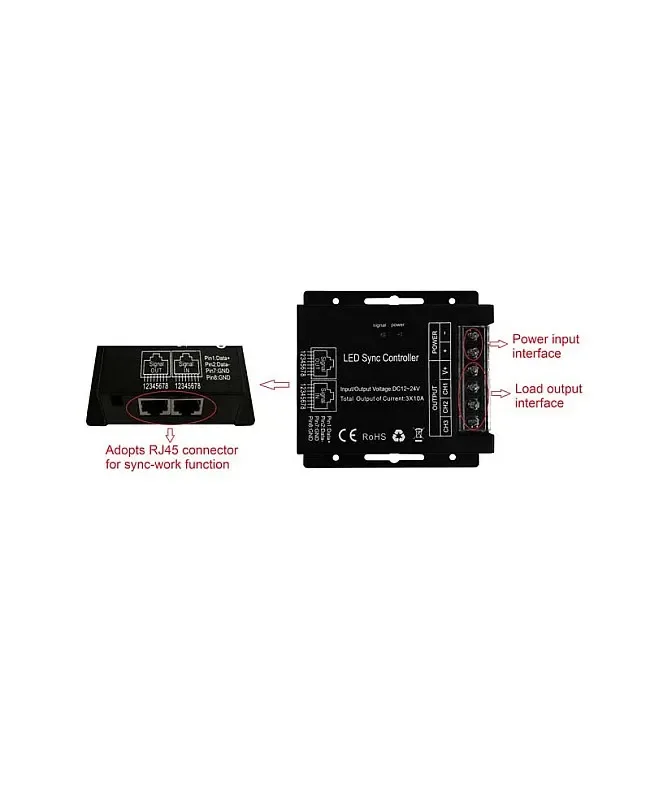

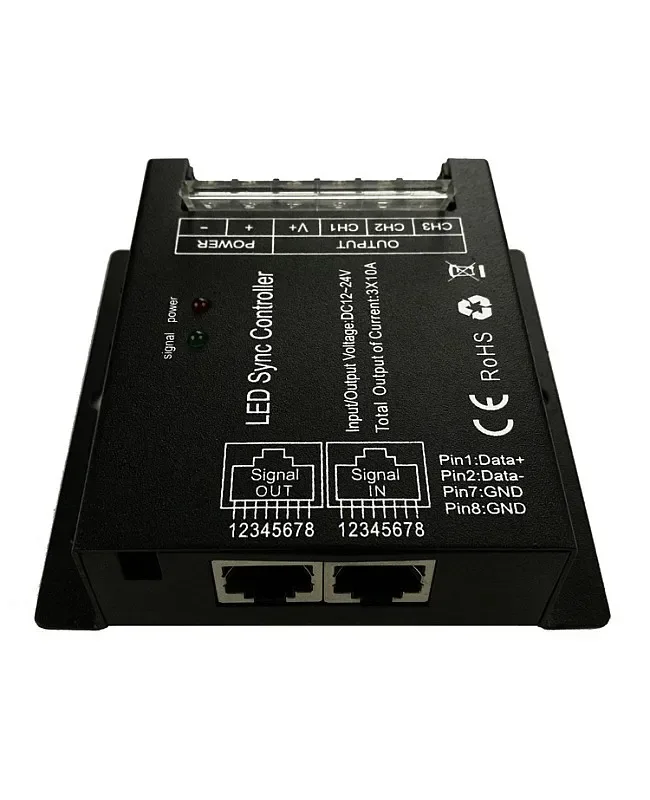

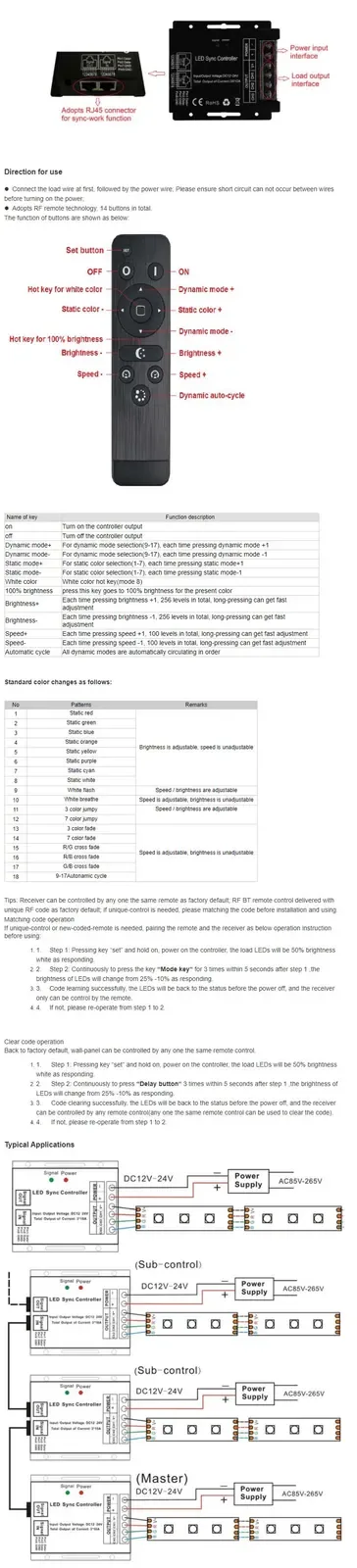

The RGB LED strip controller with synchronous function adopts advanced PWM digital control technology, designed for the RGB constant voltage LED light. It has a black metal shell for better heat dissipation. The LED controller works on DC12V or DC24V. With a three-output-channel design, the max output current of a single channel is 10A, and the max loading power is up to 720W when working in 24V. It comes with the RF remote control, with a control distance of up to 20 meters. The RF remote has 18 modes, 8 static colors, and 10 dynamic color-changing styles. The brightness of the static color is adjustable, 256 levels in total, and the speed of dynamic modes is adjustable, 100 grades in total. Each time the power is turned on, the RGB LED controller with memory function retains the mode stopped during the last power-down. Multiple controllers can work synchronically when connected by a network cable through the port, and the network cable between 2 ports is up to 80 meters.
Specifications
Size: 91*88*24mm(L*W*H)
Working Voltage: -24V
Output: 3 Channels
Max Output Current: 10A( Each Channel)
Max Output Power: 360W ( 12V ) / 720W ( 24V )
Connecting Mode: Common Anode
Grayscale: 256 Levels
Speed Stage: 100 Grade
RF Distance: <20M
PWM Frequency: 433.
Memory Function: Support
Designed For RGB Constant Voltage LED Lights
14 Keys RF Remote Control included
18 Modes In Total, 8 Static Colors And 10 Dynamic Modes
Multiple Controllers Can Work Synchronically
Working temperature: -20-60℃

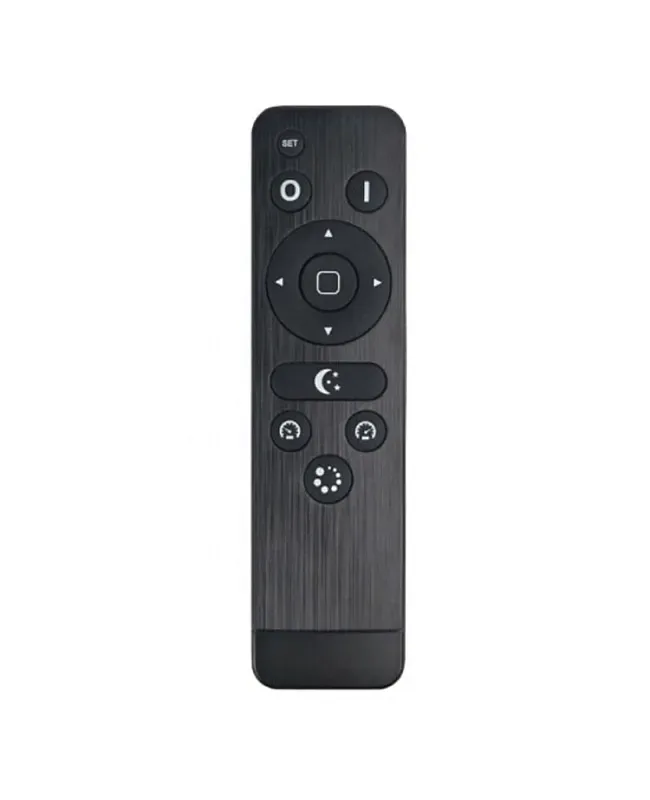

RF Remote Control Specifications
Size: 150*40*20mm(L*W*H)
Working Temperature: -20℃-60℃
Supply Voltage: DC3V(AAA*2)
Standby Current: <
Working Current: <
Standby Power
Working Power
RF Frequency: 433.
RF Distance: ≤20m

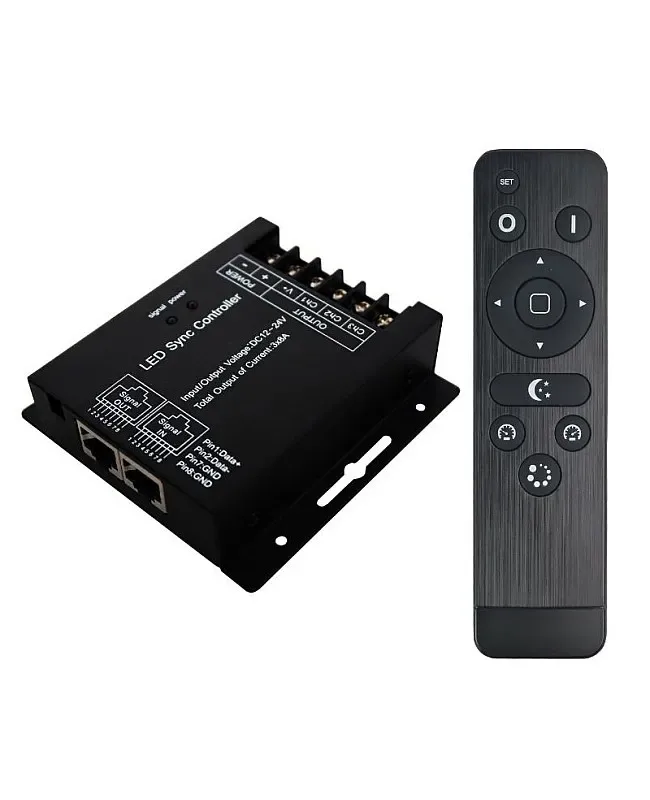

Includes
1 * RGB LED Strip Controller
1 * 14 Keys RF Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
