Product details
9W RGBWW Low Voltage Outdoor Landscape Lighting
LumaCircuit offers 9W RGBWW Low Voltage Outdoor Landscape Lighting as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Emitting Color: RGB + CCT Color Temperature: 2700 K- 6500 K Luminous Efficiency: 100LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 9W RGBWW outdoor landscape lighting is a powerful, energy-efficient LED landscape lighting system designed to illuminate outdoor areas such as gardens, patios, driveways, and pathways. This system is easy to install and use, features a low voltage DC24V, and uses high-lumen LED chips as the light source for low power consumption and luminance decrease. The surface of the RGB CCT outdoor lighting with an anti-dazzling optical lens will deliver scientifically symmetrical and bright light rays.
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 100LM/W
- Saturation, Brightness And CCT Adjustable
- Illumination Distance: >10m
- Compatible With wireless controller 2.4G Remote Controls T4, WL
- Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- Size: 133*82mm(W*H)
- Color: Black
- Working Voltage: DC24V
- Rated Current: 0.41A
- Power: 9W
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >80
- Beam Angle: 15°
- IP Rating: IP66
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

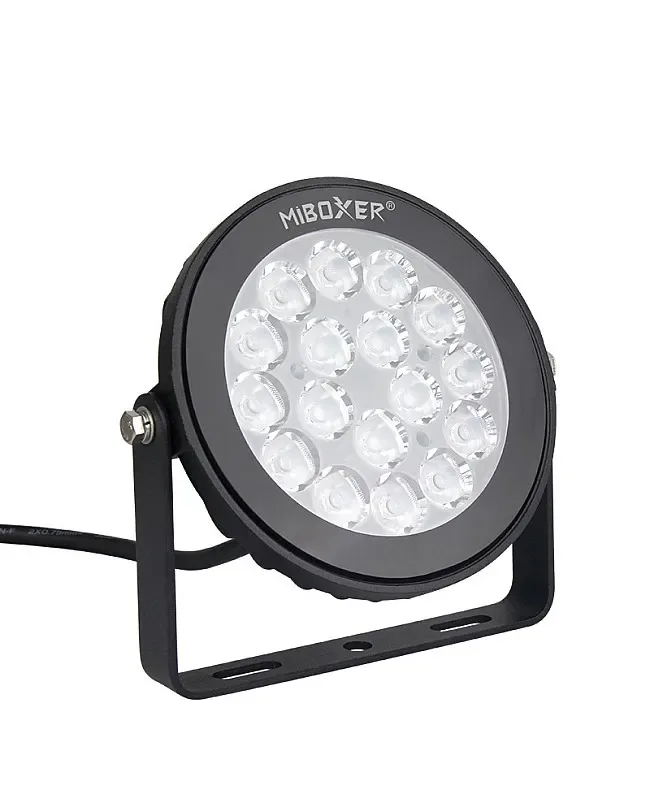

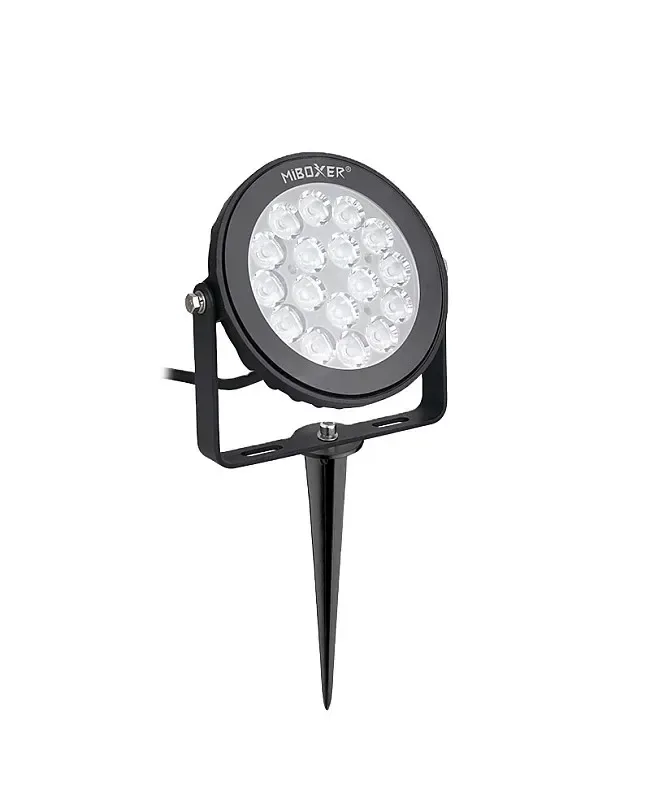

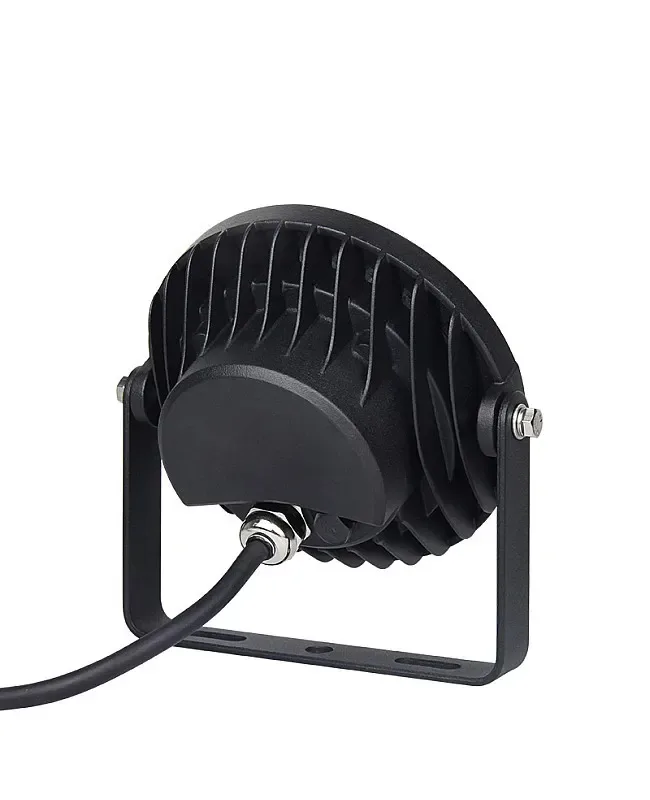

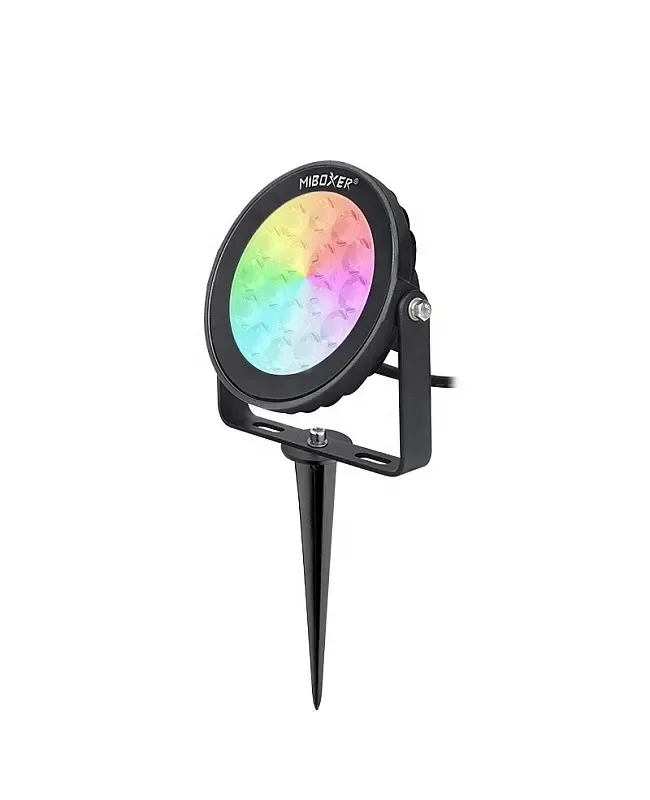

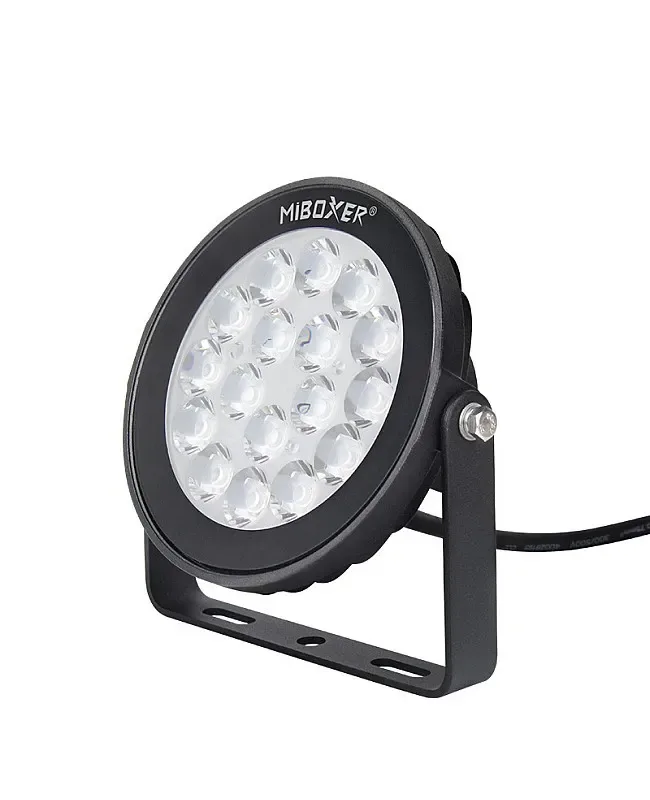

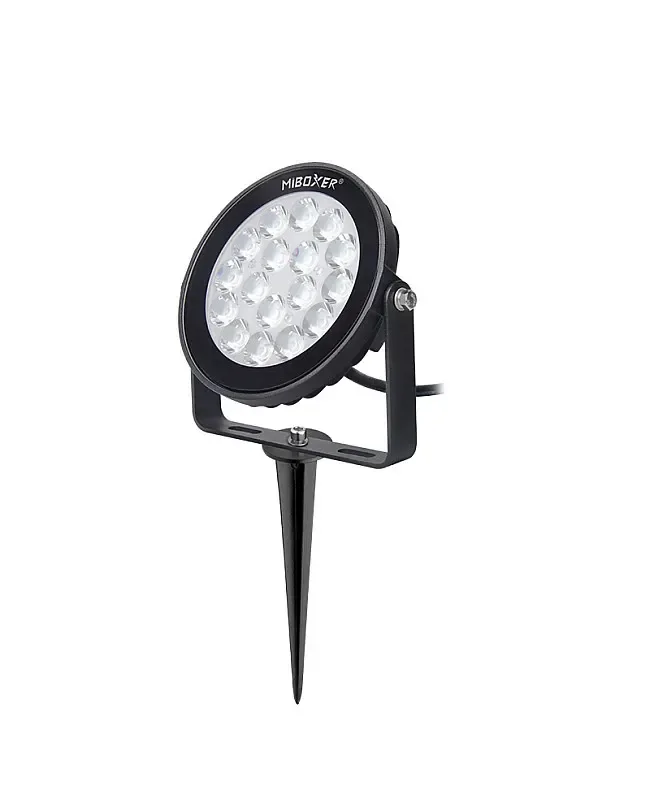

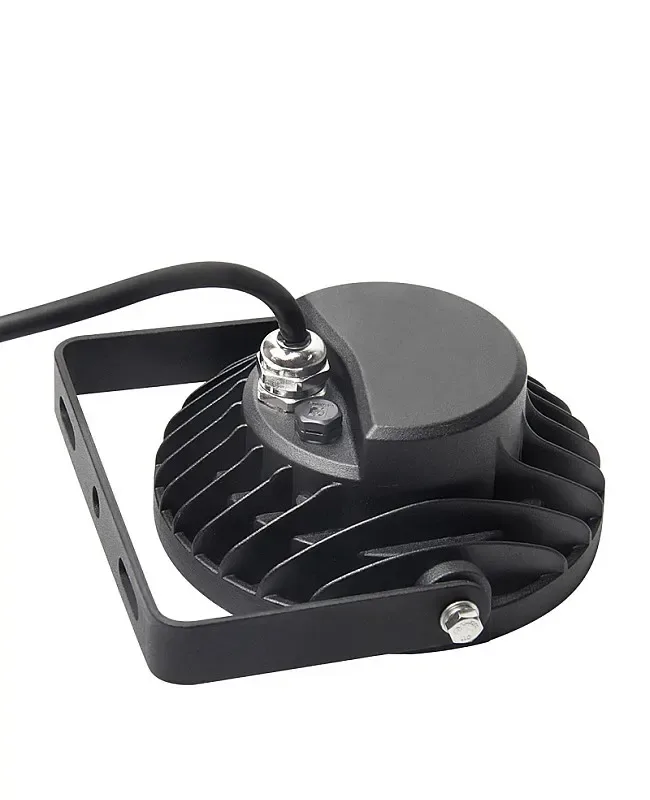

The wireless controller 9W RGBWW outdoor landscape lighting is a powerful, energy-efficient LED landscape lighting system designed to illuminate outdoor areas such as gardens, patios, driveways, and pathways. This system is easy to install and use, features a low voltage DC24V, and uses high-lumen LED chips as the light source for low power consumption and luminance decrease. The surface of the RGB CCT outdoor lighting with an anti-dazzling optical lens will deliver scientifically symmetrical and bright light rays. The waterproof level can reach IP66 and be used for outdoor landscape applications. There are 16 million colors available, and the installer can set the color and adjust the color saturation, color temperature, and brightness for various scenes. The low-voltage landscape 2.4 G remote controls can control the light. After adding the 2.4G gateway, which supports a smartphone APP and third-party voice control, supports Amazon Alexa and Google Assistant. The wireless controller landscape lighting will receive the signals from the RF remote and transmit them to other lights within 30 meters, and different landscape lamps will work synchronously. The low-voltage outdoor landscape lighting is the perfect choice for outdoor lighting.
Specifications
Size: 133*82mm(W*H)
Color: Black
Working Voltage: DC24V
Rated Current: 0.41A
Power: 9W
Emitting Color: RGB + CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 900LM
Luminous Efficiency: 100LM/W
16 Million Colors Available
Saturation, Brightness And CCT Adjustable
Beam Angle: 15°
Illumination Distance: >10m
IP Rating: IP66
RF: 2.
Control Distance: ≤30m
Compatible With wireless controller 2.4G Remote Controls T4, WL
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Signal Transmitting And Modes Synchronization
Anti-Corrosion Inserted Pole Included
Applications: Road, Driveway, Pathway, Greenbelt, Plaza, Park, Plant Landscape Lighting, etc
Working Temperature: -20-45℃
Includes
1 * wireless controller 24V Low Voltage Outdoor Landscape Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
