Product details
6W RGBWW Low Voltage Landscape Lighting
LumaCircuit offers 6W RGBWW Low Voltage Landscape Lighting as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Emitting Color: RGB + CCT Color Temperature: 2700 K- 6500 K Brightness, Color Temperature, And Saturation Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 6W wireless controller RGBWW low-voltage landscape lighting is a versatile and energy-efficient lighting solution for both indoor and outdoor use. These lights feature a unique combination of RGB and CCT, which can be adjusted to produce various colors and tones. It uses high-lumen LED chips as the light source for low power consumption and decreased luminance, with an anti-dazzling optical lens that will deliver light scientifically symmetrical and bright light rays.
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Brightness, Color Temperature, And Saturation Adjustable
- Luminous Efficiency: 90LM/W
- Illumination Distance: >10m
- 4G Remote Controllable T4, WL
- wireless controller Manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- Size: 71*108mm(W*H)
- Color: Black
- Working Voltage: DC24V
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Power: 6W
- CRI: >80
- Beam Angle: 25°
- IP Rate: IP66
- 2.4G Remote Controllable: T4, WL
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

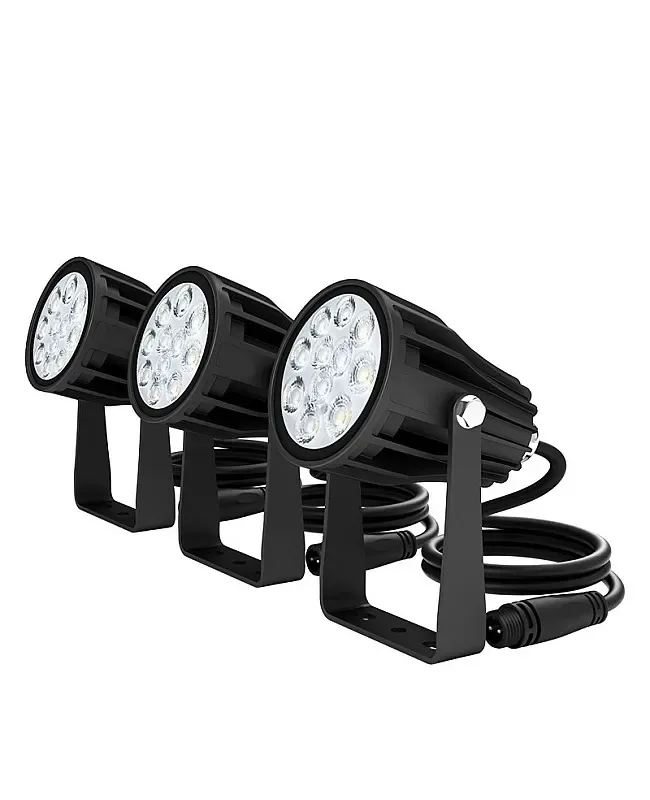

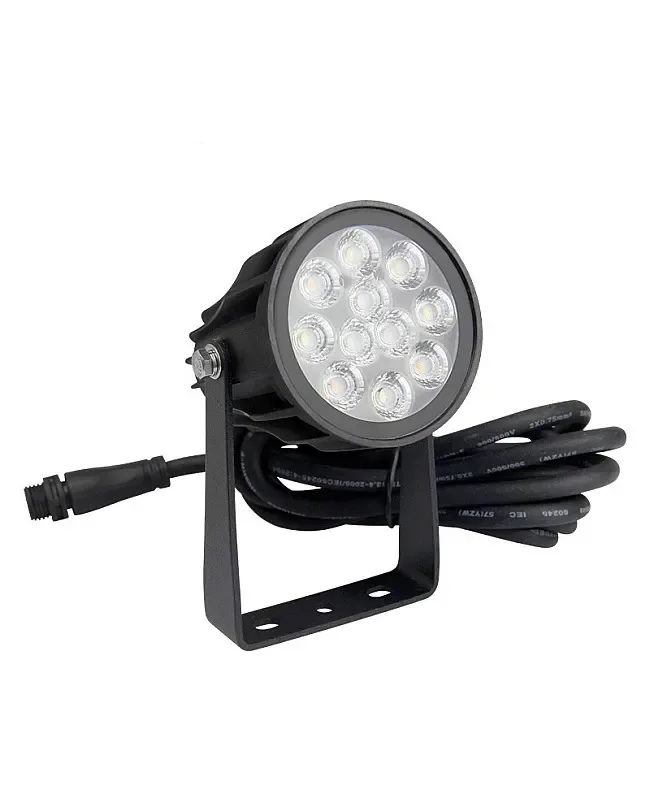

The 6W wireless controller RGBWW low-voltage landscape lighting is a versatile and energy-efficient lighting solution for both indoor and outdoor use. These lights feature a unique combination of RGB and CCT, which can be adjusted to produce various colors and tones. It uses high-lumen LED chips as the light source for low power consumption and decreased luminance, with an anti-dazzling optical lens that will deliver light scientifically symmetrical and bright light rays. It comes with a waterproof male connector, which is easy to connect to a power supply to light up. The head of the path light is 180° rotatable, and the installer can adjust the lighting direction easily. The waterproof level is IP66, which usually works outdoors even in rainy conditions. A 2.4G RF remote control can control the wireless controller path light. After pairing with the wireless controller gateway, a smartphone app and third-party voice commands, including Amazon Alexa and Google Assistant, can be controlled. The installer can easily set the color and adjust the color saturation, brightness, and temperature for various scenes. One light will receive the signals from the remote control and transmit them to other lights within 30 meters, and all of them will synchronize. There are two versions available, and the installer can choose the light version or the kit version, which includes the necessary cables, connectors, and remote control.
Quick Links
wireless controller Manual
Specifications
Size: 71*108mm(W*H)
Color: Black
Working Voltage: DC24V
Emitting Color: RGB + CCT
Color Temperature: 2700 K- 6500 K
16 Million Colors Available
Brightness, Color Temperature, And Saturation Adjustable
Power: 6W
Luminous Flux: 550lm
Luminous Efficiency: 90LM/W
Beam Angle: 25°
Illumination Distance: >10m
IP Rate: IP66
RF: 2.
4G Remote Controllable T4, WL
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Supports Amazon Alexa And Google Assistant
Control Distance: ≤30m
Auto-Signal Transmitting And Modes Synchronization
Anti-Corrosion Garden Spike Included
Working Temperature: -20-45℃
Switch Power Supply Features
Input Voltage: -240V, 50/60Hz
Rated Current: 1.5A Max
Static Power Consumption: 0.21W Max
Configuration: II Conductor
Output Voltage: DC24V
Rating Load Current: 2.7A
Rating Output Power: 65W
Working Temperature: 0-45℃
Storage Temperature: -20-80℃
Includes(Light Only)
1 * wireless controller Low Voltage Path Lights
1 * Anti-Corrosion Garden Spike
1 * User Manual

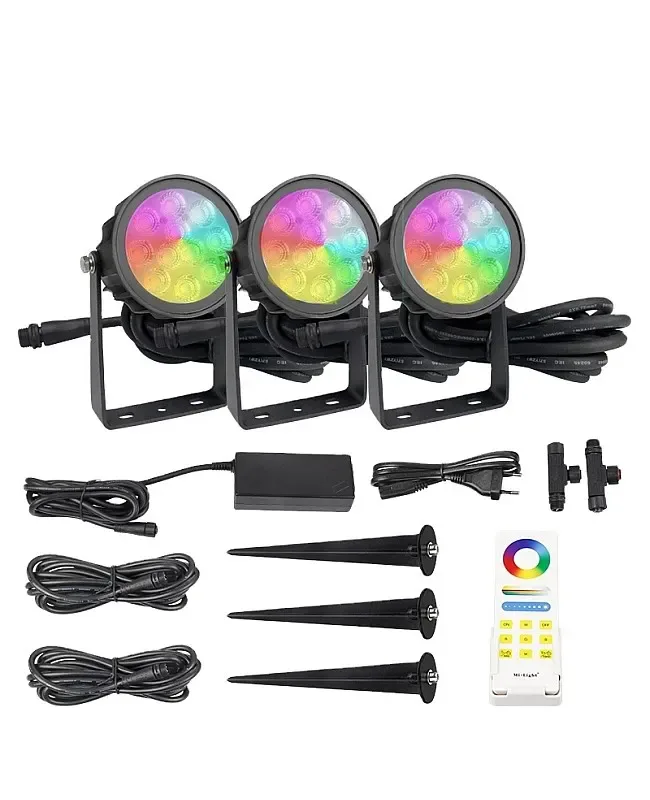

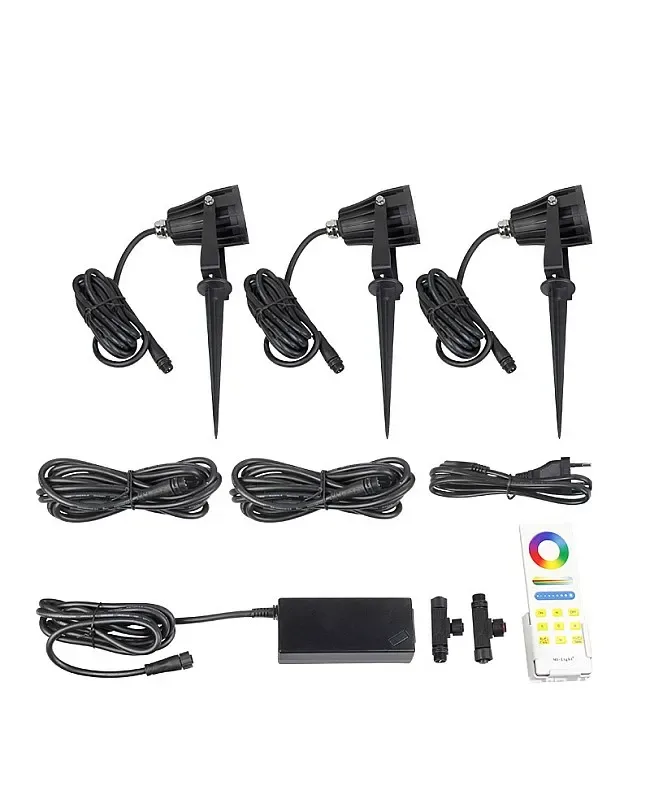

Includes(Kit)
3 * Smart Path Lights
3 * Anti-Corrosion Spikes
1 * Switching Power Supply
1 * Power Cable
2 * Male To Female Extension Cables
2* T Type Cable Connector 2 Pin
1 * Remote Control
1 * User Manual
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
